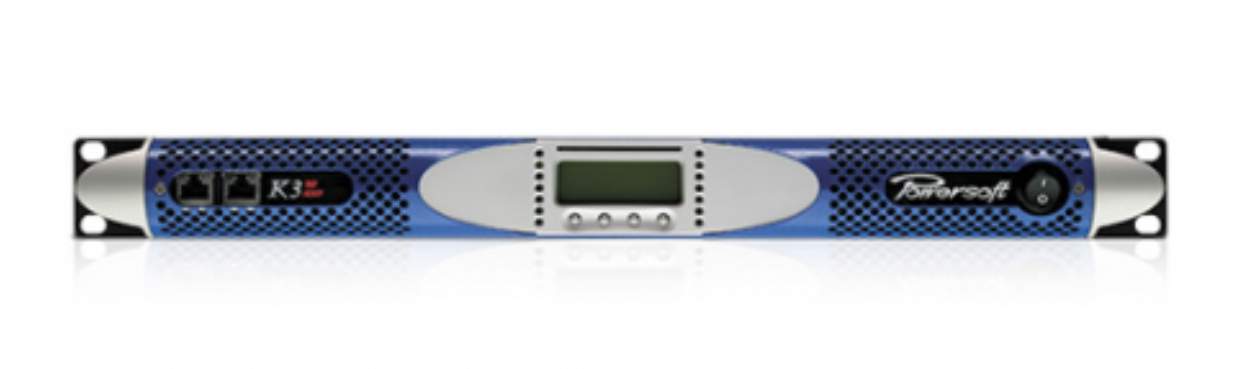

Powersoft K3 DSP+AESOP Power Amplifier - Unit is in excellent shape and has remaining warranty period of (4) years. Unit is 1U and approx 17lbs. Amplifier has both voltage and peak limiting that is user configurable with downloadable software from Powersoft. Damping factor on this unit is 5000 which gives the amplifier heft & “slam” comparable to the coveted Crest CA9! These sell new for approx $4700.
I purchased the unit new from an authorized Powersoft Dealer. Love the amp but I’m going back to a standard all in one head.
General Specifications
Number of channels 2
Output power Single channel mode with no limiting implemented
Stereo:
2ohms - 2800 W, 4ohms - 2600 W, 8ohms - 1400 W
Bridge Mono:
2ohms - 5600W, 4ohms - 5200W
Max output voltage / current 165 Vpeak / 102 Apeak 100 Vpeak 140 Vpeak 330 Vpeak
AC Main Power
Power supply Universal, regulated switch mode with PFC (Power Factor Correction)
Nominal power requirement 100-240 V ±10%, 50-60 Hz
Operating voltage 90 V - 264 V
Power consuption** 115 V
230 V
Idle 64 W 1.12 A
75 W 1.3 A
1/8 of max output power @ 4 ? 813 W 8 A
813 W 4 A
1/4 of max output power @ 4 ? 1625 W 14.8 A 1625 W 7.4 A
Damping Factor - 5000
Thermal Operating temperature range 0° - 45° C - 32° - 113° F
Thermal dissipation** 115 V
230 V
Idle 382 BTU/h 96.3 kcal/h
382 BTU/h 96.3 kcal/h
1/8 of max output power @ 4 ? 836 BTU/h 210.7 kcal/h
836 BTU/h 210.7 kcal/h
1/4 of max output power @ 4 ? 1390 BTU/h 350.3 kcal/h
1390 BTU/h 350.3 kcal/h
AUDIO
Gain 26 dB 29 dB 32 dB 35 dB
Input sensitivity 5.30 V 3.75 V 2.66 V 1.88 V
Max input level 27 dBu 24 dBu 21 dBu 18 dBu
Gate -52 dBu -55 dBu -58 dBu -61 dBu
Frequency response 20 Hz - 20 kHz (±0.5 dB) @ 1 W, 8 ?
S/N ratio > 106 dB (20 Hz - 20 kHz, A weighted)
Crosstalk separation > 70 dB @ 1kHz
THD+N < 0.3% from 1 W to full power (typically < 0.05%)
IMD < 0.3% from 1 W to full power (typically < 0.05%)
Input impedance 10 k? balanced
Slew rate 50 V/?s @ 8?, input filter bypassed
Damping factor > 5000 @ 20-200 Hz
DSP architecture Analog Devices SHARC® DSP
AD Converter Dual 24 bit 96 kHz Tandem® architecture with 127 dBA of dynamic range and THD
DA Converter Dual 24 bit 96 kHz Tandem® architecture with 122 dBA of dynamic range and THD
Internal precision 40 bit floating point
Firmware Network upgradable firmware
Memory/presets 8 MB (RAM) plus 2 MB flash for presets / 50 stored locally + 150 stored on Smart Card
Latency 6.0 ms fixed latency architecture
Input equalizer Three layers (PEQ, raised cosine, shelving), 32 filters each + group filters, up to 256 filters total
Output equalizer 16 fully parametric filters per channel, IIR: peaking, hi/lo-shelving, hi/lo-pass, band-pass, band-stop, all-pass. Custom FIR up to 384 taps @ 48 or 96 kHz
Crossover Butterworth, Linkwitz-Riley, Bessel: 6 dB/oct to 48 dB/oct (IIR), linear phase (FIR), hybrid (FIR-IIR)
Delay up to 4 s on input section; up to 32 ms per output, sample-by-sample stepping
Limiters Power limiter, TruePower, RMS voltage, RMS current + Peak limiter
Damping control Active DampingControl
Front panel Indicators and Controllers 2 x LED bar - Signal level and over-temperature protection
4 x Push-button - Setting operating parameters
1 x Display - Settings and monitoring
1 x Power switch -
Connectors
AC main 1 x IEC C20 connector - 20 A max (region-specific power cord provided)
Audio signal input 2 x XLR - Signal input
1 x Analog/Digital input - Switchable Analog line/AES3 digital input on channel 2
Auxiliary voltage 1 x 2 pin Phoenix MC 1.5/2-ST-3.81 - External voltage connector (DSP version only)
Audio out (link through) 2 x XLR - Signal output (link through)
Loudspeakers 2 x speakON - Neutrik NL4MD
Network/data 2 x Rj45 socket - Ethernet + AESOP connection (DSP+AESOP version only)
2 x Rj45 socket - Ethernet + AESOP connection (DSP+AESOP version only)
1 x Rj45 socket - RS485 data connection (non-DSP version)
Rear panel
Indicators and Controllers 1 x Push-button - Link channel pair
1 x Push-button - Toggle ANALOG input/AES3 input on selected connector
Construction
Dimensions (L x H x W) 1U - 483 mm x 44.45 mm x 380 mm (19.0 in x 1.8 in x 15.0 in)
Weight 8 kg (17.6 lb)
