Price shipped CONUS
NO TRADES
Includes Gig SKinz bag

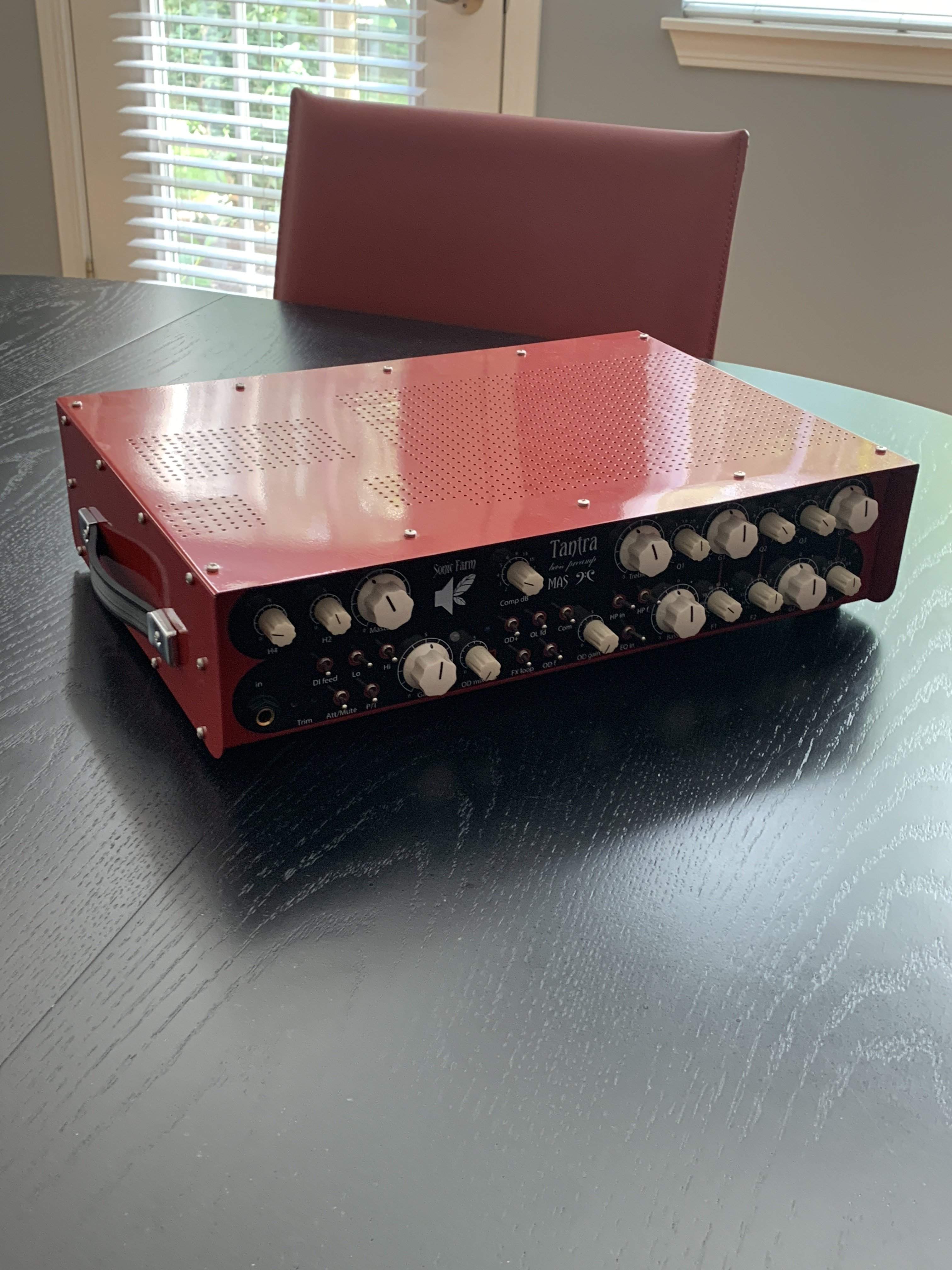

Design concept: (tube) pentode front end with solid state processing section
1 channel with 2 tube modes: triode and pentode
Sections: Overdrive, HP filter, 5-band EQ, Compressor, 2 band harmonic generator.
Bass instrument input: 1/4” unbalanced, mono
Input impedance: 2.2MOhm
Frequency response: 10Hz-20kHz +/- 3dB
Maximum gain: 54dB at the line output, 32dB at the DI (mic level) output
Harmonic distortion: up to 2% before clipping level, quickly decreases if driven less.
Maximum output level: 30dBu
Minimum output load (preamp): 600Ohm
Minimum output load (power amp): 4Ohm

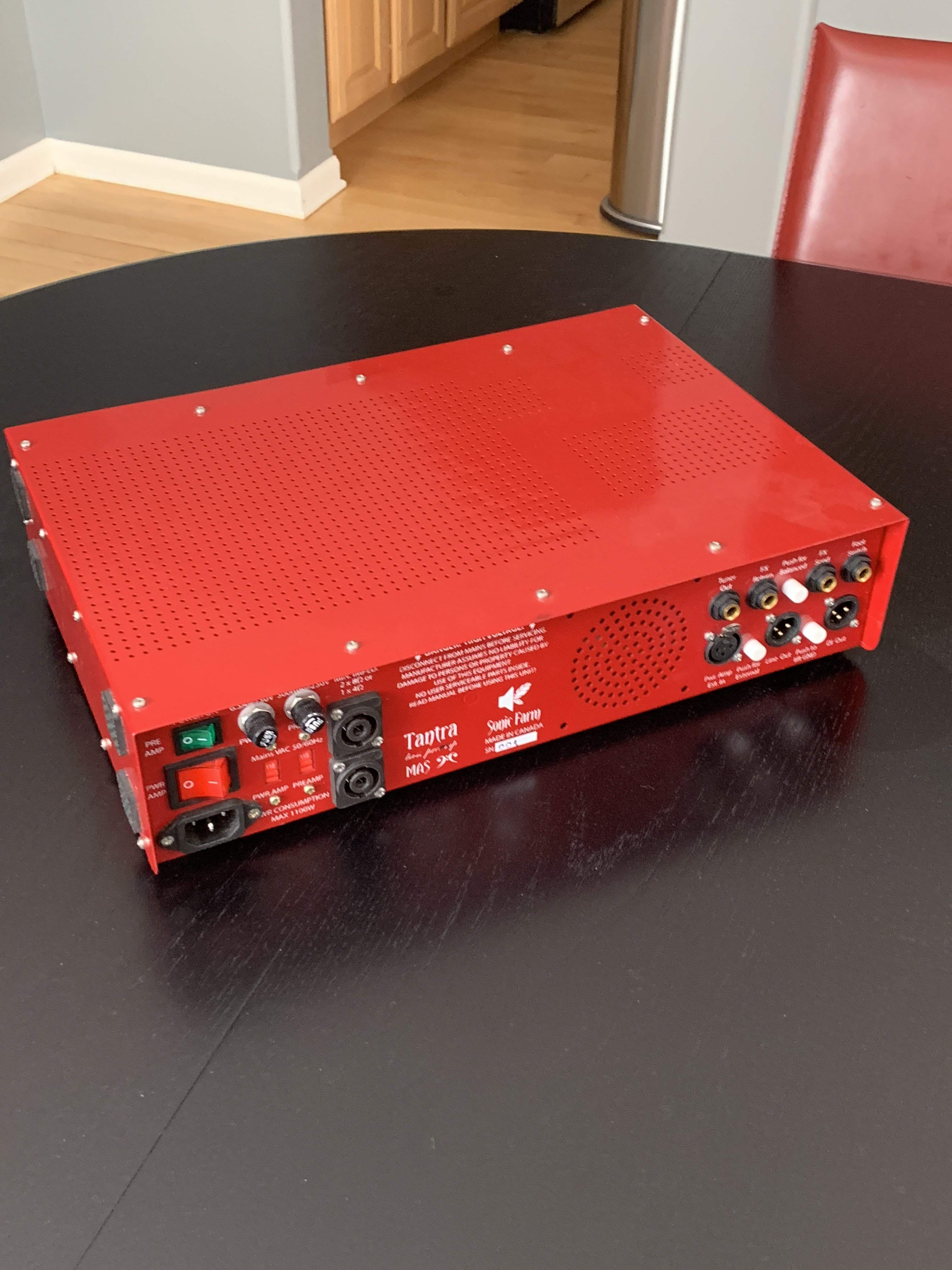

Rear panel XLR connectors: Preamp out, DI out, Pwr amp in, all balanced only
Rear panel 1/4” connectors: FX loop (2xTRS, see manual), tuner out, foot switch (TS)
Power consumption: 15W preamp, 1100W pwr amp.
All supply voltages regulated.
285V Plate voltage for huge headroom
Operating voltage: 110-120VAC or 220-240VAC, switchable
Gold plated printed circuit boards with a double copper layer.
Gold plated tube sockets
