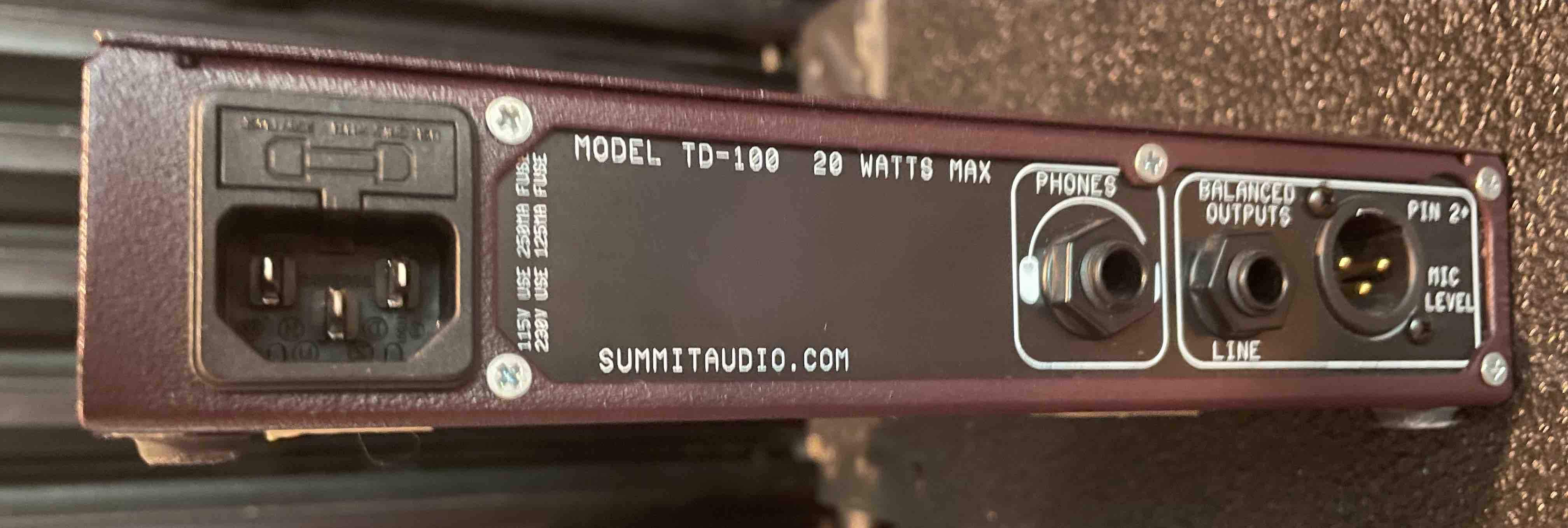

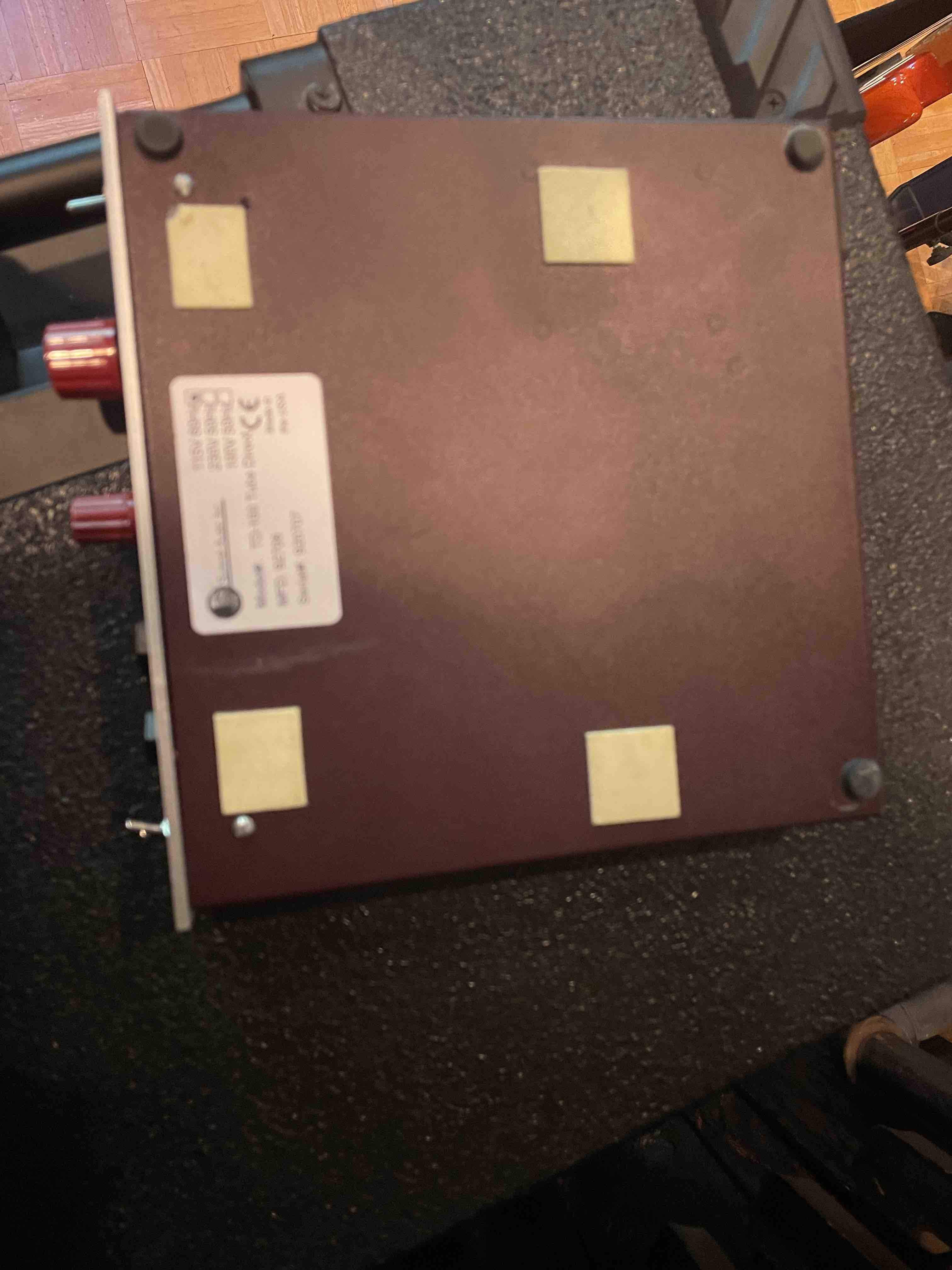

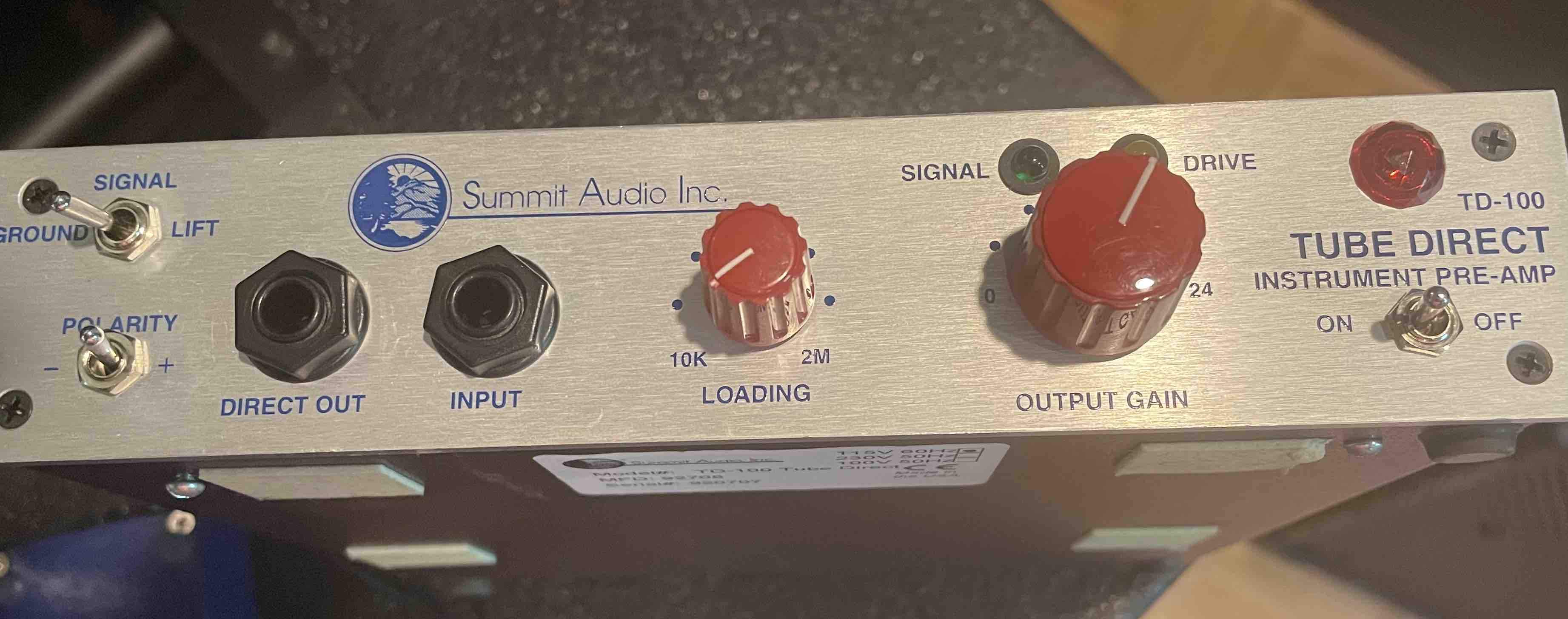

For sale: Summit Audio TD-100 Tube Direct Instrument Preamp. This is a fabulous Tube DI for recording. The highs are crystal clear and the mids are warm and creamy with up to 24db of gain if you need it. The amp is in perfect working condition and very good cosmetic condition. One of the little rubber feet is missing and the previous owner added some tape to keep the amp securely on top of a console. I've attached photos. I'm happy to ship anywhere in the continental US. Shipping is included. Please PM me if you are interested. Thanks for your consideration, Ben.
Here are the specs:
Power Configuration
Here are the specs:
Power Configuration
- Internal AC Supply
- 20 watts, 115, 50 or 60 Hz (USA model)
- Fuse size .5 amp, slo-blo for 100/115 V
- Fuse size .25 amp, slo-blo at 230 V
- Input Impedance: 10K-2M ohms
- Output impedance:
- XLR: 2K ohms
- TRS: 600 ohms
- Instrument Input: 1/4" Jack
- Direct Instrument Output: 1/4" -10 dB balanced
- Outputs: +4 dB male XLR and 1/4" -10 dB balanced
- Stereo Link: 1/4" mono Jack
- Headphone Output: 1/4" stereo jack (600 ohms)
- Max input level: +23dBu
- Max output level: TRS: +21dBu, XLR: +2dBu
- Max gain: 24dBu
- Frequency response: 20Hz-100kHz -1dB
- Signal to noise ratio: 140dB
- THD + Noise: 0.14%, +5dB in, unity gain
- Vacuum tubes: single 12AX7A
