musicmaster bass pickup replacement

#2
Hi Daniel B.

Since the Musicmaster Bass uses a single-coil Strat-type pickup, I'd get a clear-sounding humbucker like the Seymour Duncan Vintage Rails™ SVR-1 and wire its two coils in parallel for a tone yielding the greatest clarity.

Why replace one noisy single-coil pickup with another?

BTW. Guitar pickups which have a clear sound work fine for bass.

My MIJ [Invalid or Expired Link Removed] uses [Invalid or Expired Link Removed] guitar pickups (as does every Fender VI made from 1962 onwards).

#4
I just compared the two directly. The single-coil P-bass pickup is about 1/4" wider than the Musicmaster. Same goes for string spacing.

Even if you were to physically modify the Musicmaster to accept a SCPB shape, the poles wouldn't line up properly with the strings. IMO that's a big deal, since these type of pickups are very fussy about string proximity IME.

I'm a big fan of the Aero because 1) the quality & design is superb and 2) I wanted to stick with the single-coil concept. This way, I've got something like a short-scale SCPB, and I'm really digging that.

If you don't care to stick with single coil, you can eliminate hum and save $40 or more with one of those strat "rail" type.

#9
Orangeclawhamme said:
Would any of these work as well on a Bronco bass?
Click to expand...
Yewbetcha!


A bit of chisel work to create space for the angled SCPB-3, mount the pickup to a homemade pickguard and wire the pickup direct to the output jack. Add LaBella flats and be ready to thump!

#13
SC Bassboy said:
I've got the SCPB-3 Quarter-Pound in my MM bass. It doesn't really fit 100% properly but it sounds awesome and you can anchor your thumb on the side of it.



Click to expand...

It looks like it fits pretty close. I thought about trying it, but I kind of want to keep my MM all original. I have been thinking about doing a bronco project with the SCPB pickups though.

#14

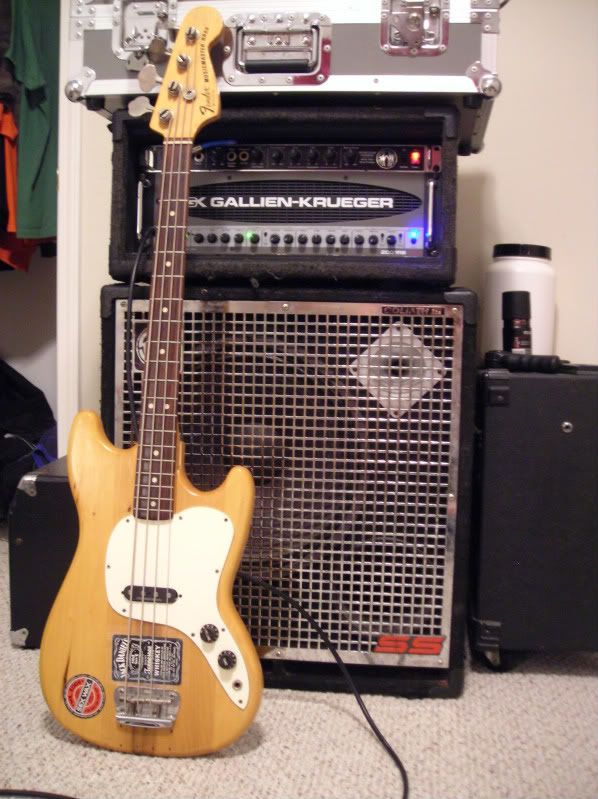

Well, after a long time rebuilding my bass, its finaly done. Its a 1976 Musicmaster. When I received it, it was painted in black with a lot of dings and marks, a Jazz Bass pickup was installed on a hand made pickguard. I repainted it, replaced the bridge with a "modern" one, and installed an AERO pickup on a new pickguard. Im really happy with the output level, I still have to do some changes on the circuit because the sound is a lot "nasal". I had to remove the pickup´s cover that come with the pickup because it´s position was too far from the strings.

Sorry for the pics, has been took with a BB


Attachments

  • pickup.jpg
    32 KB · Views: 887
  • musicmaster-aero.jpg
    34.4 KB · Views: 1,685
#15
Im building another Musicmaster starting from a 81 neck I found time ago. Im waiting for those Wizard pickups, but may be I will made one by myself. I found that the AERO is designed for a plane fretboard, so I will make mine with the two center poles higher than the other two. It will be a kind of try and fault. Who knows.


Below a pic with the pickup cover installed.


Attachments

  • musicmaster-aero-dia.jpg
    36.2 KB · Views: 1,153
#16

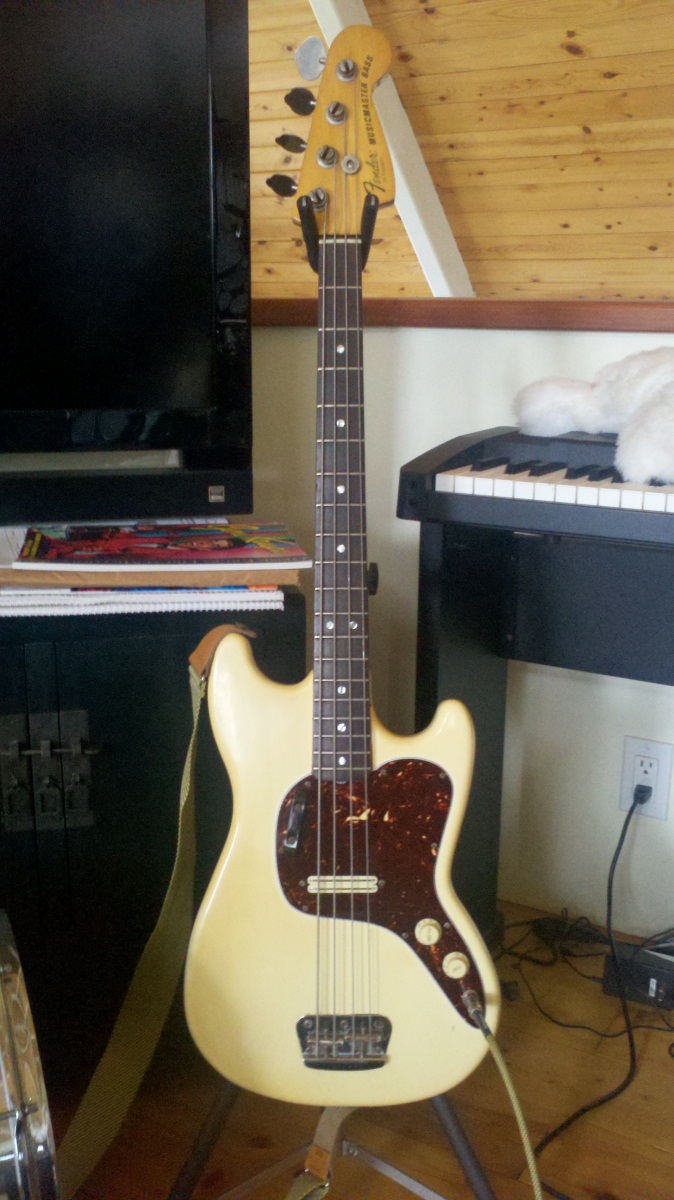

I'm new to this forum and this is my first post, but it was helpful in my project so I just want to share. I just installed a new pickup in my 78 Musicmaster Bass. Picked up a Dragonfire Rail in cream and chrome off of ebay for $20.00! Also replaced the black pickguard with a brown tortise shell and the black knobs with cream knobs.

The bass now looks and sounds awesome! I wired the pickup in parallel which gives it a clear punchy tone. From what I read in many other places I figured wiring it it series might make it sound muddy, so I followed MIJ-VI's advice and wired parrallel and it sounds great. With the tone control open it is nice and bright with a lot of string sound. Rolling off the tone warms it up and takes the edge off. Also the pick-up is pretty hot so I lowered it till it sits about an 1/8 of an inch above the pickguard. A lot lower than the stock pickup at 1/4 inch. I originally had it up at 1/4 inch but it was too bright and edgy and the strings could also stick to the rails. Down at 1/8 of an inch it both sounds and looks great!

Also the change from the black knobs, pickguard, and pickup cover to the brown tortise pickguard and cream pickup and knobs gives it a great sexy, classic, vintage look. Add the tweed strap and cord and it's retro all the way!

Hope this info can help some others looking to upgrade their Musicmaster bass!
