2 2x10 Stacked Vertically

F

ftroop13

Jun 26, 2009
26
0
#1
I have a 4x10 square bottom I am thinking of cannablizing in pusuit of an idea.

I like the feel of a stack where there are speakers at chest and head height. I would like to have two custom 2x10 cabinets made that are 36" tall by say 15" wide and stack them. The result would be a column of 4 10" speakers 6 feet tall. The rig would be very portable and provide excellent monitoring while acting like a line array.

Can anyone suggest a cabinet builder with knowledge of cab design that could help with this project?

I have looked at Accugroove and LDS and others, but their standard cabs are not tall enough to reach 6 feet tall.

#3
These aren't line arrays by the way - just vertically aligned drivers. Doesn't really need to be 6 feet tall, does it? The top driver will easily give enough off-axis response that it doesn't need to be at exact ear height. Really what you want to do is get the drivers as close together as possible.

#4
Yeah...I guess it doesn't need to be 6 feet tall. I should check out Avatar.

As far as cannabalizing the cab, I have 4 Eminence BP Legends I would use and store the cab for another day. The cab itself won't fetch much as it is a Hartke XL.

#5
ftroop13 said:
Yeah...I guess it doesn't need to be 6 feet tall. I should check out Avatar.

As far as cannabalizing the cab, I have 4 Eminence BP Legends I would use and store the cab for another day. The cab itself won't fetch much as it is a Hartke XL.
Click to expand...

Which BP's? The wizzer or the LF? I would leave the Hartke as is and use the BP's either way. At least we know what the specs are on the BP's and can design a box to fit.

#6
LF. I have 2 Hartke XL 4x10 I dumped/blew the aluminum drivers and replaced with the Eminence speakers. The bottoms sound much better and I love the 8x10 stack with my vintage V4B, I just don't get many gigs where I need 8x10.

Looks like Avatar only sells loaded bass cabs.

#7
Those BP's look good in about 3.5 ft cu at 43 Hz per pair. They will be excursion limited in that big of a box at 165w (per pair). 2.5 ft cu per pair get's you to 200w on excursion and a bit higher mid-bass peak. They really need a mid driver though as they crap out between 500 and 800 Hz. One alpha 6 per pair of 10's crossed over at 500-800 Hz would work. Build your own if you can. You won't learn anything buying an Avatar.

#8
I like the idea of pairing a 6" rather than a tweeter with the BP 10's.

When you listen to old Larry Graham and he snaps, it is not a 'ping' it is more a 'kahhh'. The 8 would help with the 'kahhh'.

#9
I have designed and built (not finished yet, but the woodwork is 90% done) a 5 cu.ft, 2-10/1-6 mid cab for a pair of BP102's. Tuned to 38Hz, its 34"H, 17"D 18.5"W (inside dim's). Two of these (although that was not my intention) would be easily stackable. I will try to post a pic soon. Plan is to xover the woofers @700, mid @400.. Drivers are vertically aligned.. Ports are 10" high, 2" wide, 11" deep

#10
ftroop13 said:
I like the feel of a stack where there are speakers at chest and head height. I would like to have two custom 2x10 cabinets made that are 36" tall by say 15" wide and stack them. The result would be a column of 4 10" speakers 6 feet tall. The rig would be very portable and provide excellent monitoring while acting like a line array.
Click to expand...


Based on what I've seen, heard, and read over the years, I'd love to see this kind of design become more popular.

Good luck. :bassist:

#13

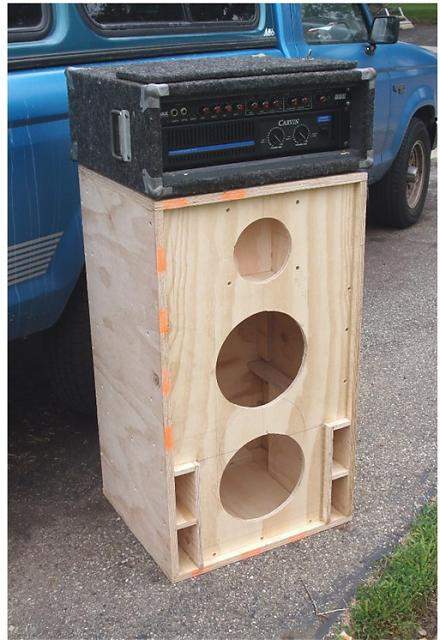

Here it is, i set my rack on it and set it next to my truck for size reference.


Attachments

  • 210 cab 1.jpg
    210 cab 1.jpg
    45.2 KB · Views: 61
#15
Wondering why not make a road case.. that matches a 2x10.. this can stack on top.

I have a large fleet of cabs.. a 2x10 can keep up wiht most bands is overkill for most venues. I understand the height thing.. I have one setup that has a "pillar" box with a 1x12 on top..

Not coupling the floor is a cool thing.

T.

#16
Haven't made any decision yet on the grill, I could make up a 3/4" square frame and stretch cloth, or I might do as I did my 12"s, just use the grills that clamp over the speaker. Since I'm building this in tandem w/a Fitzmaurice O15TB, I'll be finishing 'em w/duratex.
