Actual PLANS for a headless bass build

[katalyzt13]

I previously asked people about headless bass kits - I'm having trouble finding one I'm happy with.

I happen to have a nice piece of wenge, and some swamp ash - so I was thinking about trying to make a neck thru (wenge) headless bass with swamp ash wings - does anyone have a good set of plans for a headless bass? Please share what you have, or your own projects - even if you don't have plans, maybe your project will help inspire me!

Thanks!



[Gilmourisgod]

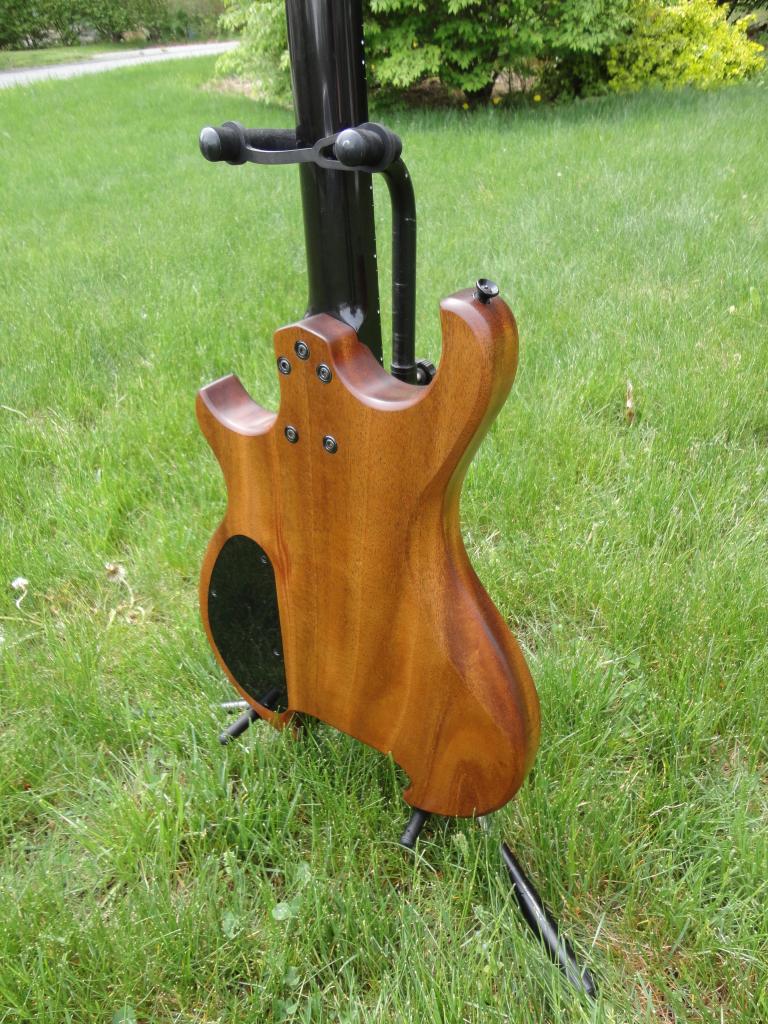

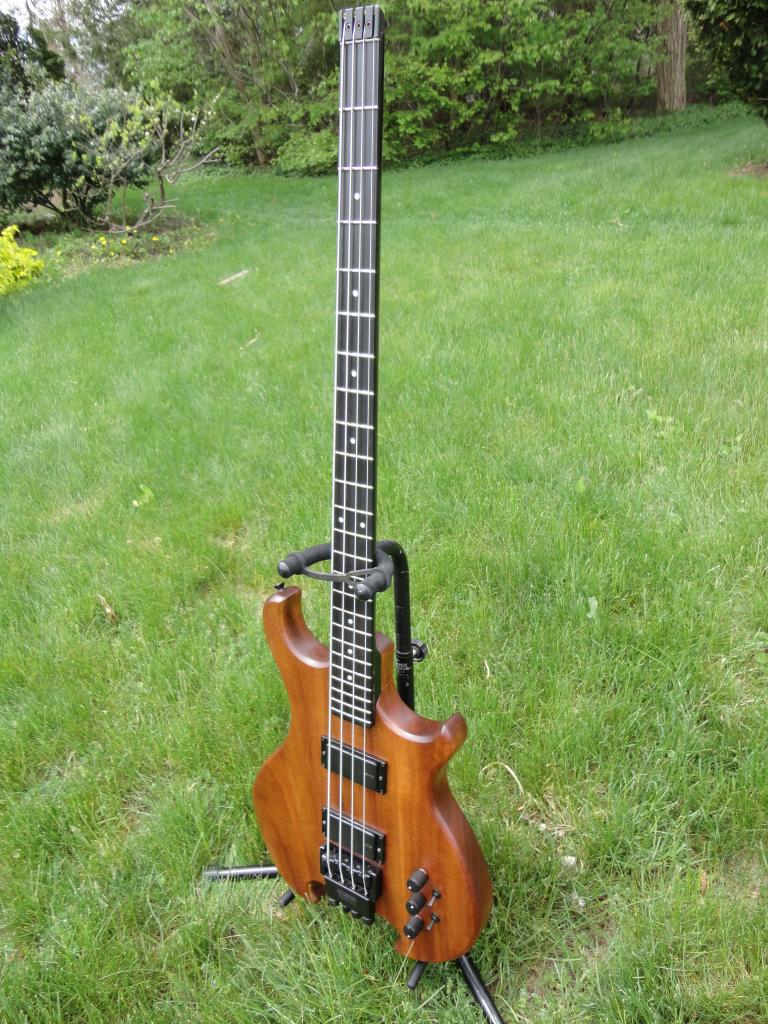

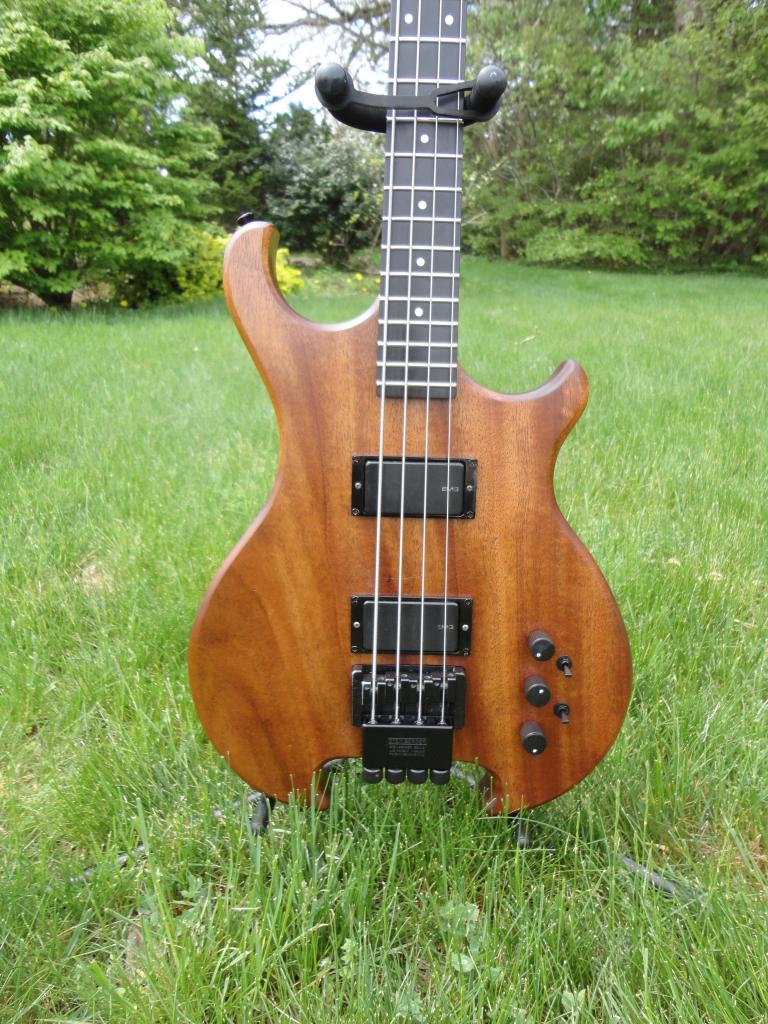

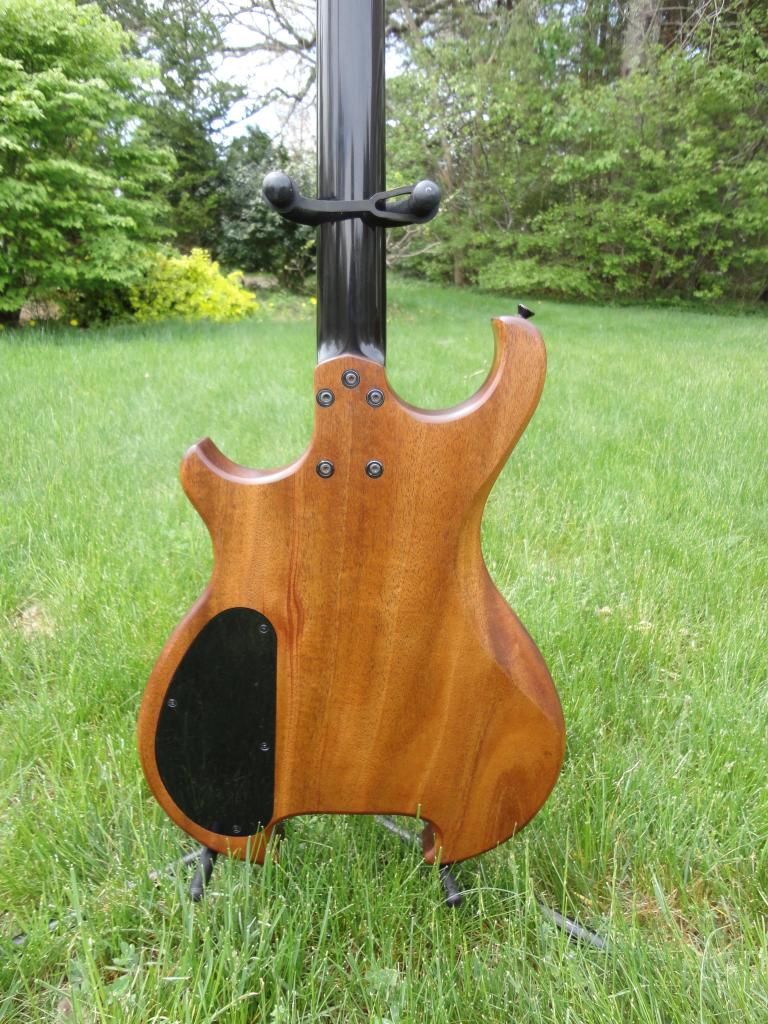

I built this one a few years ago, cannabalizing the neck, electronics, and hardware from my 86' Steinberger XP-2. I still have the original body and other parts for eventual re-sale, but this was an attempt at a more traditional body. I can't say it's a masterpiece design-wise, but it went together nicely, and sounds great. In retrospect, I could have made the body thinner and cut down on the weight, I may still do that. I didn't do a full set of design drawings for it, just a 2d CAD plan view, which you are welcome to, but it's pretty specific to this neck and electronics.



[katalyzt13]

I built this one a few years ago, cannabalizing the neck, electronics, and hardware from my 86' Steinberger XP-2. I still have the original body and other parts for eventual re-sale, but this was an attempt at a more traditional body. I can't say it's a masterpiece design-wise, but it went together nicely, and sounds great. In retrospect, I could have made the body thinner and cut down on the weight, I may still do that. I didn't do a full set of design drawings for it, just a 2d CAD plan view, which you are welcome to, but it's pretty specific to this neck and electronics.
View attachment 3642468
View attachment 3642469
View attachment 3642470
View attachment 3642471

That looks nice! I would love the CAD files just to have, maybe to work from or get ideas - yours turned out very nice!



[Gilmourisgod]

Pm me with your email address, I’ll send you the CAD.



[AndyBas]

Hello,
Beautiful bass!
Is it possible to have the CAD file?

Thanks
Andy



[Gilmourisgod]

@AndyBas .
PM me your email address, I'll send you the CAD or PDF file.



[carbon14]

Pm me with your email address, I’ll send you the CAD.

I am new here but would love the cad files too, I want to build something similar. (sorry for being over 6 years late!)
