Aguilar OBP3: Vol+Blend+3Eq+bypass switch + mid switch + tone

[odel]

Hi guys,

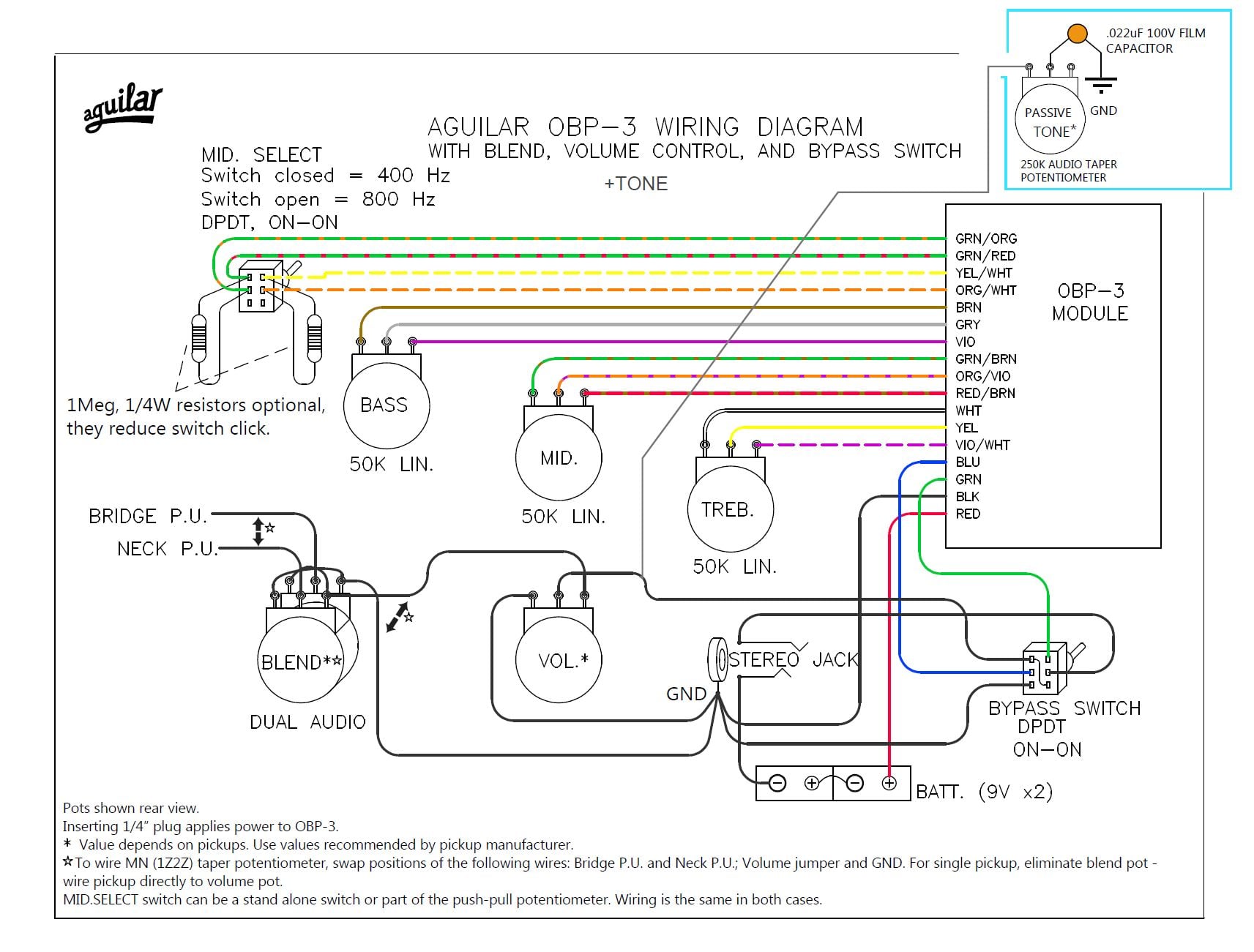

I was thinking about adding a tone pot to my bass.
Would this be ok? would it work in passive and active mode?
I was also thinking about using a dual concentric Fender 250k pot for VOL+TONE
Thanks.



[odel]

I found this wiring, the guys says the "Jesse" from Aguilar confirmed it... Lucky him! In Aguilar no one answers nowadays. Dreadful tech service.
Invalid Link Removed



[odel]

el primer diagrama está pa choped, pero rula si se cambia el enganche desde el potedetono de la segunda a la 3 patilleja del vol.
Saludos a los españoles!
