Aria Pro 2 TSB 550 Repair - Pickup Screw Size

[Cassko]

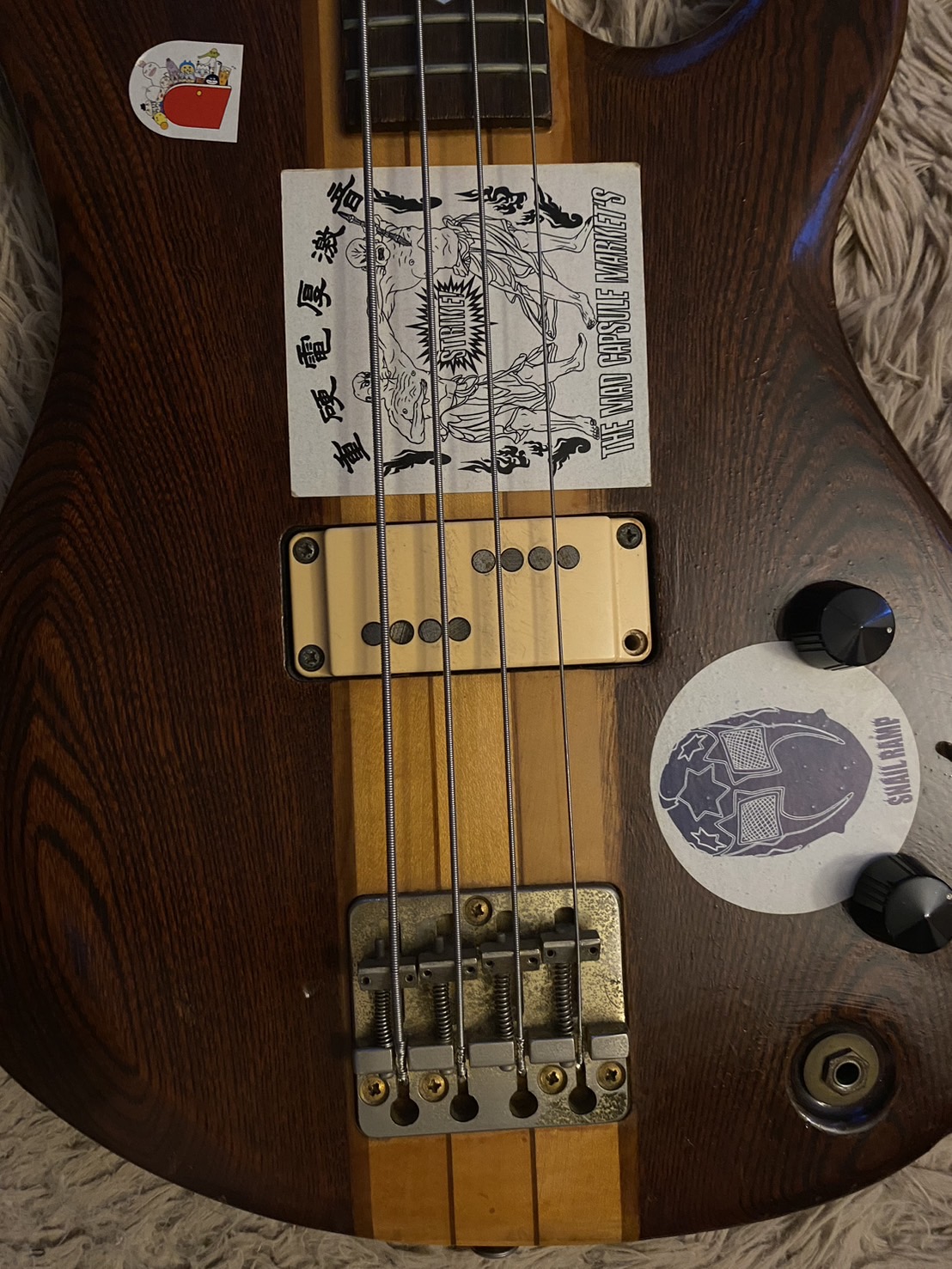

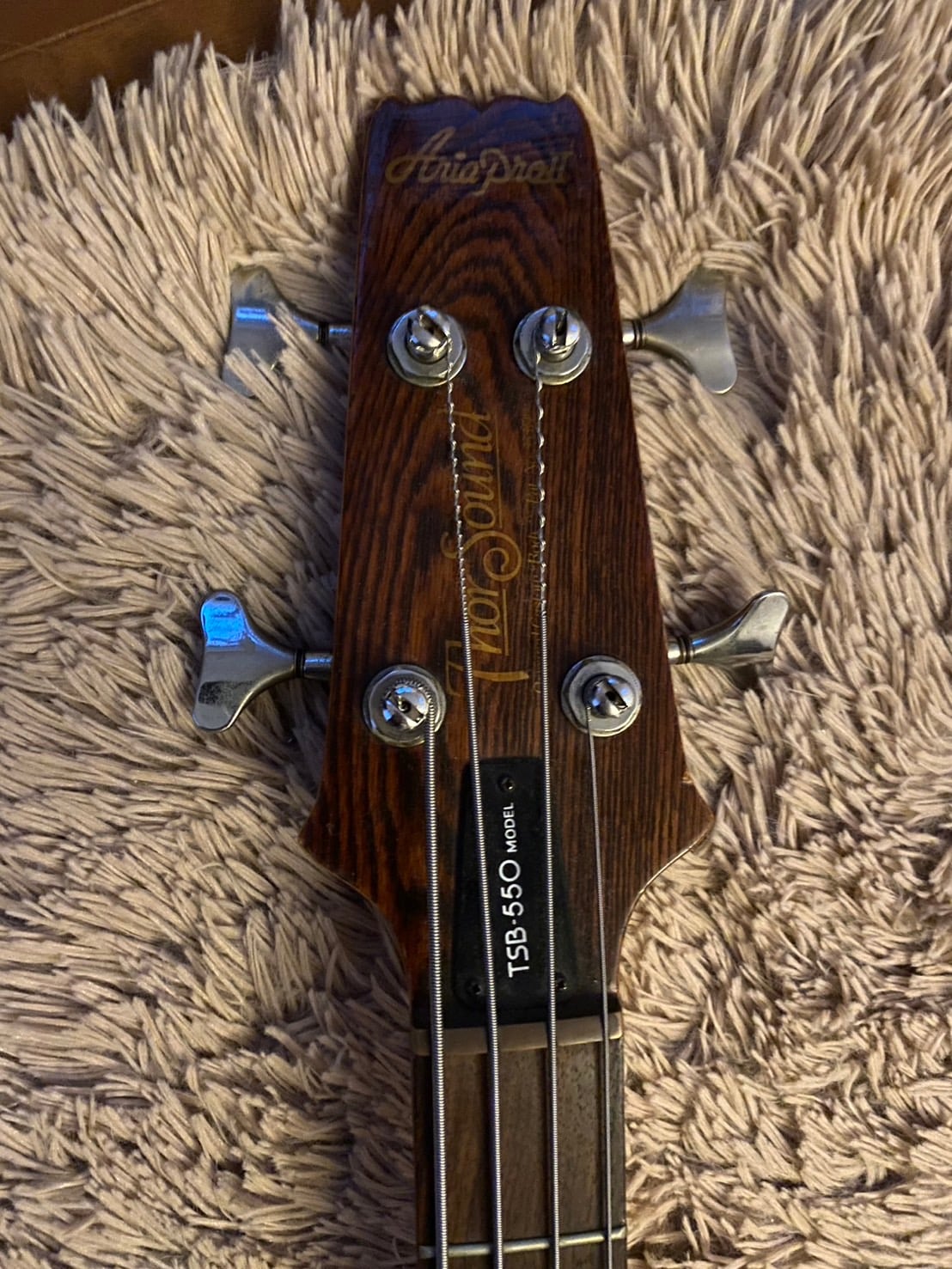

Need some help locating the pickup screw size on an old Aria Pro 2 TSB 550 I'm fixing for a friend, if anyone has any insights they would be greatly appreciated!



[claudel]

If you have one of the originals, you could try to match at the hardware store.

Most hardware stores that sell screws have a thread gauge.

They are probably metric.



[Gluvhand]

Need some help locating the pickup screw size on an old Aria Pro 2 TSB 550 I'm fixing for a friend, if anyone has any insights they would be greatly appreciated!View attachment 5493734 View attachment 5493736

Get over to the Aria Club. Someone there will know what the size is and maybe where to find them. Good bunch.



[Matt Liebenau]

If you have one of the originals or can measure what sizes you need these guys have measurements posted for most of their screws. I had to find some with an odd head size last year and the posted numbers were invaluable.

Screws & Nuts - Page 1 - Philadelphia Luthier Tools & Supplies, LLC



[Deathblade Eric]

Measured an original on my TSB-400:
Panhead machine screw - M4 x 0.7mm pitch, 35mm long. Head diameter approx 6mm

Pete.
