Bartolini P4s... Help with model#s

[DugOnBass6ate12]

I recently bought a pair of bartolini P4s but not clear on what the etched numbers mean. Any help would be greatly appreciated.
Bridge---90P46K
Neck---90P46KT



[dwizum]

P46K is their older 6 string "bright" dual coil P4 shape. They were making these in the early 90's, not sure how long they lasted.

T is their treble designation - so I'm wondering if you've got yours reversed since Bart sets are typically installed with T at the bridge.

It's a good set of pickups!



[DugOnBass6ate12]

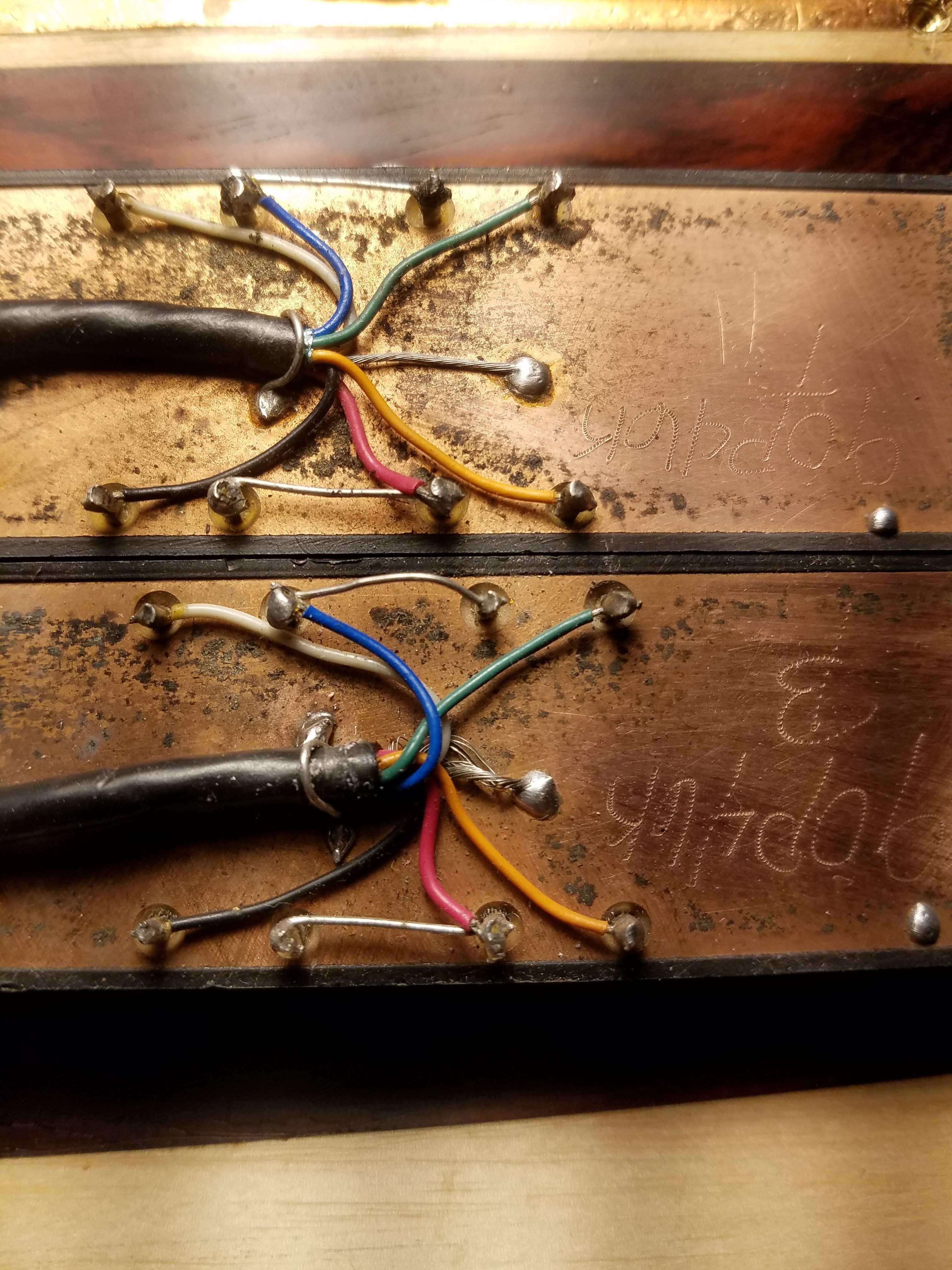

Thanks for the reply. As I looked at the set again what I thought was an N might be an H. Heres what they look like. Also couldn't really find any info on the Bartolini site with the color scheme of the pickup wires but with the info you sent I may have better luck. Thanks again



[dwizum]

Yeah, T (treble) = bridge and B (bass) = neck.

Here's the wiring diagram for that pickup:

6-Conductor Pickups Wiring Archive - Bartolini Pickups & Electronics

The 6 wire configuration is super flexible but also kind of overwhelming.



[DugOnBass6ate12]

Right on! Thanks again for pointing me in the right direction. I was getting overwhelmed just navigating the bartolini site. You saved me a lot of time and frustration. Cheers
