blend with series parallel bypass to master volume diagram?

Discussion in 'Pickups & Electronics [BG]' started by RafJasper, Jun 23, 2020.

  1. RafJasper


    Apr 17, 2020
    Hey all, I'm a new member so if this post violates any rules I'll take it down and I apologize.

    I'm hoping to wire a bass with two pickups (Dingstrand Nordwalls) so that it has a 500k master volume, a 250k ungrounded blend, and a 250k no load tone and has a series parallel switch which bypasses the blend. I've seen it mentioned on this forum when I searched that this could be accomplished with a 3pdt switch but all of the actual images of the diagrams seem to have expired. If anyone could send me a diagram I would be so appreciative. I'm not sure if this forum has rules about compensation but I am willing if it is allowed.

    If it makes any difference, this will then go into a dpdt active passive switch to bypass a preamp, though I think I have a good grasp on that part.

    Thank you all very much, any advice is greatly appreciated.
  2. rojo412

    rojo412 Sit down, Danny... Supporting Member

    Feb 26, 2000
    Cleveland, OH.

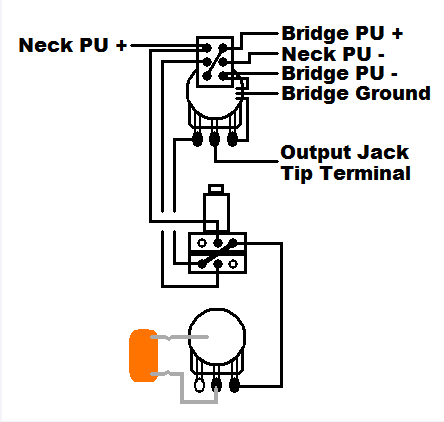

    Here's a diagram I have used for that multiple times, as drawn by line6man:
    Screen Shot 2019-11-06 at 11.51.00 PM.png
    You only need the DPDT switch. It will allow you to either run the blend pot or if the switch is thrown, the pickups will be in series.
    RafJasper likes this.
  3. RafJasper


    Apr 17, 2020
    Thank you very much, this is very helpful, I really appreciate it
    rojo412 likes this.
