Bugera Veyron BV1001T line voltage?

[Mucho Ruido]

Hi,
Does anyone know if the Bugera Veyron BV1001T can run on US 120 volts and European 240 volts? I don't see a switch on the back. Maybe the power supply can handle both voltages and I need to change a fuse and a couple jumpers internally. I realize that doing so would technically void the warranty.

Thanks so much in advance.



[abarson]

Either there is some kind of jumper or switch inside the amp or they built market specific versions. There’s really no clue in any documentation that I can find.



[Mucho Ruido]

Yeah, I checked the manufacturers documentation as well. Nothing. Lot's of stuff used to have a small switch on the back near the IEC plug.



[agedhorse]

How is it labeled on the back?



[Sparky Mark]

Hi,
Does anyone know if the Bugera Veyron BV1001T can run on US 120 volts and European 240 volts? I don't see a switch on the back. Maybe the power supply can handle both voltages and I need to change a fuse and a couple jumpers internally. I realize that doing so would technically void the warranty.

Thanks so much in advance.

User manual shows two different versions .



[agedhorse]

Then it’s not user changeable.



[Mucho Ruido]

How is it labeled on the back?



[ardgedee]

The label below the power socket says, "100-120V — 50/60Hz 110W"

That means there's nothing available for a user to switch.



[Aidenn7]

You need an adapter/ transformer



[Aidenn7]

Something like this.. But if you play aboard.. I get a cheap preamp/di with variable power supply.. https://www.amazon.com/Yinleader-Vo...=110+to+220+transformer&qid=1676570962&sr=8-3



[Sparky Mark]

Yeah, I checked the manufacturers documentation as well. Nothing. Lot's of stuff used to have a small switch on the back near the IEC plug.

It's clear from both the documentation and the mains inlet labeling the supply voltage is factory set for the region of use.
Are you planning to use an amp on an inter-continental tour?



[seamonkey]

Yeah, I checked the manufacturers documentation as well. Nothing. Lot's of stuff used to have a small switch on the back near the IEC plug.

Lot's of stuff these days list: 100-240v 50/60hz
And can be plugged into either without flipping a switch.



[Sparky Mark]

Lot's of stuff these days list: 100-240v 50/60hz
And can be plugged into either without flipping a switch.

Yeah, but this isn't one of them.



[Mucho Ruido]

The pricing overseas is lot less. Thomann had b-stock units for $322. Thanks everyone.



[MischaMischer]

Bugera Veyron is not externally switchable. But.... between the 120V / 240V Version only a wire jumper is installed/removed. The wire jumper was even included in my 240V-Bugera. Just moved from Europe to Mexico....Jumper installed (PCB positios are marked)



[MischaMischer]

Bugera Veyron is not externally switchable. But.... between the 120V / 240V Version only a wire jumper is installed/removed. The wire jumper was even included while not installed in my 240V-Bugera. Just moved from Europe to Mexico....Jumper installed (PCB positions are marked) and 120V operation is okay!



[Gabriel Simões]

Could you please share more info on how to do this change?
Also, isn’t it also necessary to replace the fuse?



[DWBass]

I'm pretty sure the amp has a SMPS.



[Gabriel Simões]

I have opened my amp to take pictures…

First impression: I wasn’t able to put any of the screws back in the right way… and one of the holes just got damaged from removing it.. so I couldn’t get the screw back at all. Bad first impression…

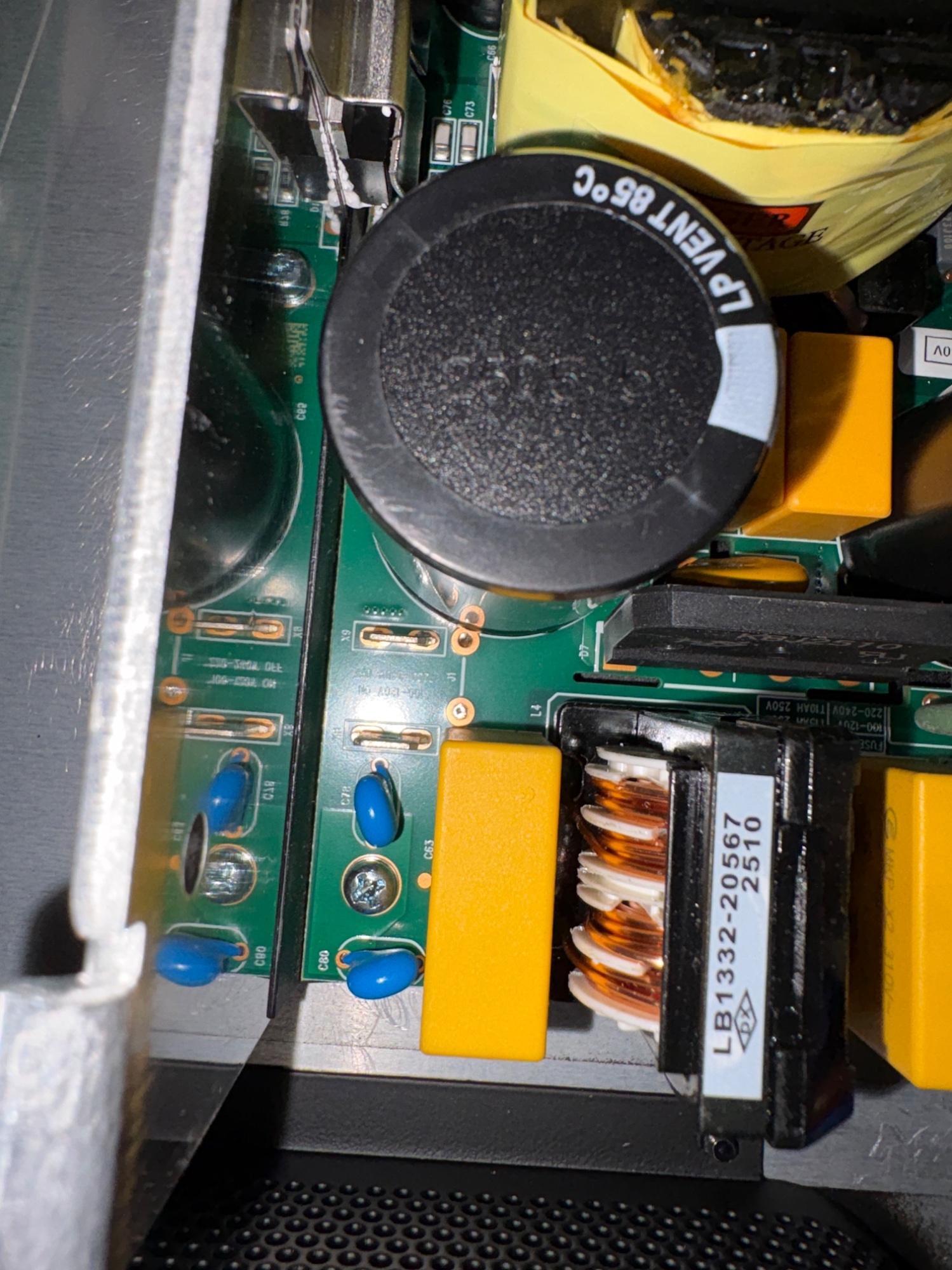

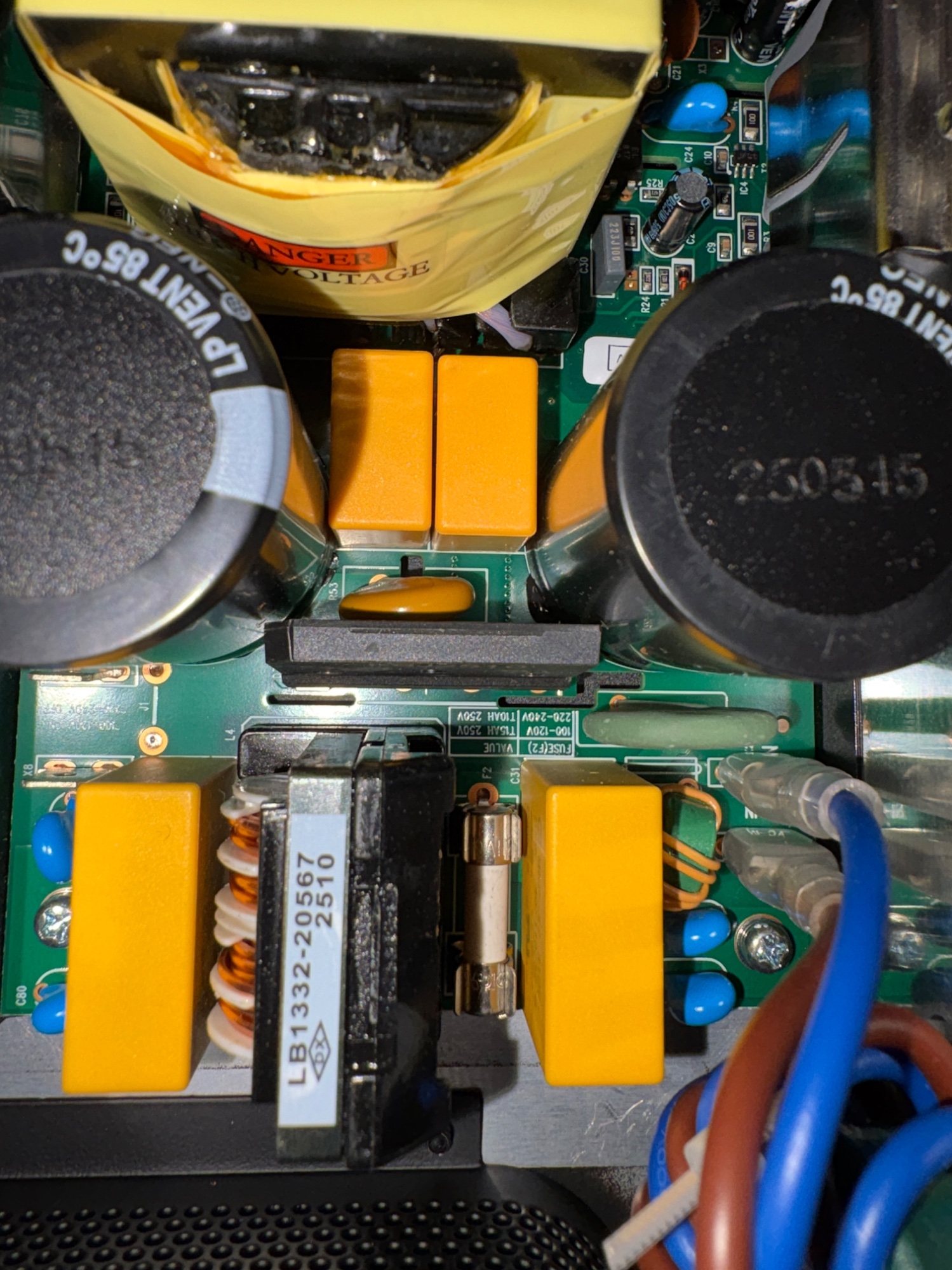

To convert from 220v to 110v I believe I need to solder a piece of copper wire on Jumper J1 (picture 1) AND replace the fuse (picture 2).
Can anyone confirm it?

Regarding the screw, does anyone know how I can rebuild the hole?



[agedhorse]

Rule number one… if it’s not broken don’t break it.

Rule number two… if you don’t know what you are doing, don’t screw with it. A SMPS primary circuit can become explosive if you get it wrong.

So far, it looks like you are two for two here.
