Calling All Behringer X32 Users!: Using S16 to expand INPUTS and OUTPUTS

[organworthyplayer337]

Update: turns out they already had a Cat5e cable that they weren't using so I didn't have to buy one. Took a little while but I got the XLR inputs routed correctly.

I do have a question: When using AES50, is there a way to monitor/receive the master console's Aux Inputs as well?



[s0c9]

Update: turns out they already had a Cat5e cable that they weren't using so I didn't have to buy one. Took a little while but I got the XLR inputs routed correctly.

I do have a question: When using AES50, is there a way to monitor/receive the master console's Aux Inputs as well?

I don't believe so directly.. AES50 only handles main inputs and outputs by default.
But, I believe you can route the Aux inputs of the master to any of the 48 inputs on AES50-A or B.
Check the routing table on the slave unit?

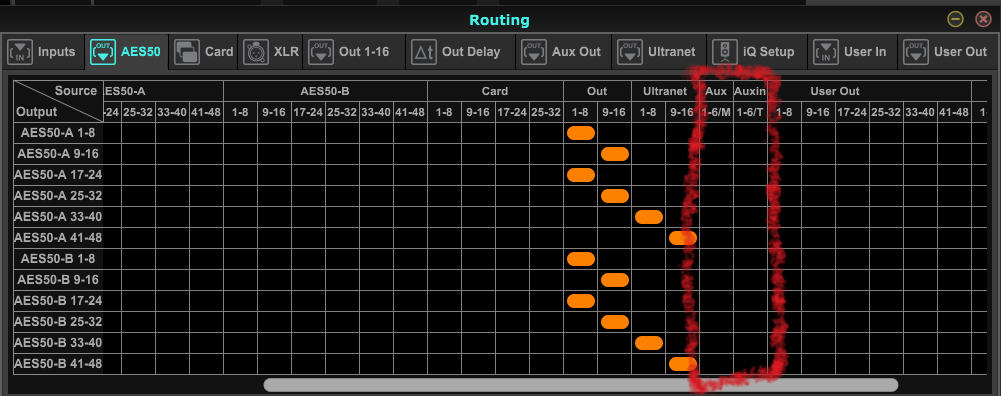

Here's a shot from X32 Edit routing table



[organworthyplayer337]

I don't believe so directly.. AES50 only handles main inputs and outputs by default.
But, I believe you can route the Aux inputs of the master to any of the 48 inputs on AES50-A or B.
Check the routing table on the slave unit?
Here's a shot from X32 Edit routing table
View attachment 4711753

Thank you, I will try this. I will also try taking an unused channel and setting it's input source as the Aux Inputs and see if that works.

I am curious what the M/T means at the end of the Aux labels



[s0c9]

Thank you, I will try this. I will also try taking an unused channel and setting it's input source as the Aux Inputs and see if that works.

I am curious what the M/T means at the end of the Aux labels

idk. I've never used AUX inputs except to play from USB.



[kittywithabanjo]

I have seen people use the Aux ins for Keys instead of using a DI Box, not my preference.
