This example is not from a G&K amp but pretty revealing otherwise.

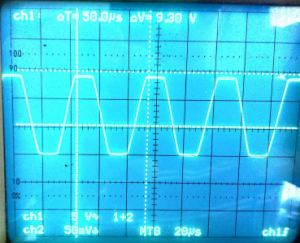

Output when clipping, without Baker clamp diodes:
You can see how there's an "overhang" of clipping, the output sort of "sticking" to rails due to hard saturation of the voltage amps.

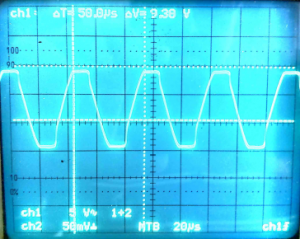

With Baker clamp diodes:
The transistors recover from clipping much faster. There is no nasty harmonics due to "overhang".
Output when clipping, without Baker clamp diodes:
You can see how there's an "overhang" of clipping, the output sort of "sticking" to rails due to hard saturation of the voltage amps.
With Baker clamp diodes:
The transistors recover from clipping much faster. There is no nasty harmonics due to "overhang".
