Connecting Nightbass to svt pro

Discussion in 'Amps and Cabs [BG]' started by HowieVucter, Apr 14, 2016.


  1. HowieVucter

    HowieVucter

    Apr 13, 2016

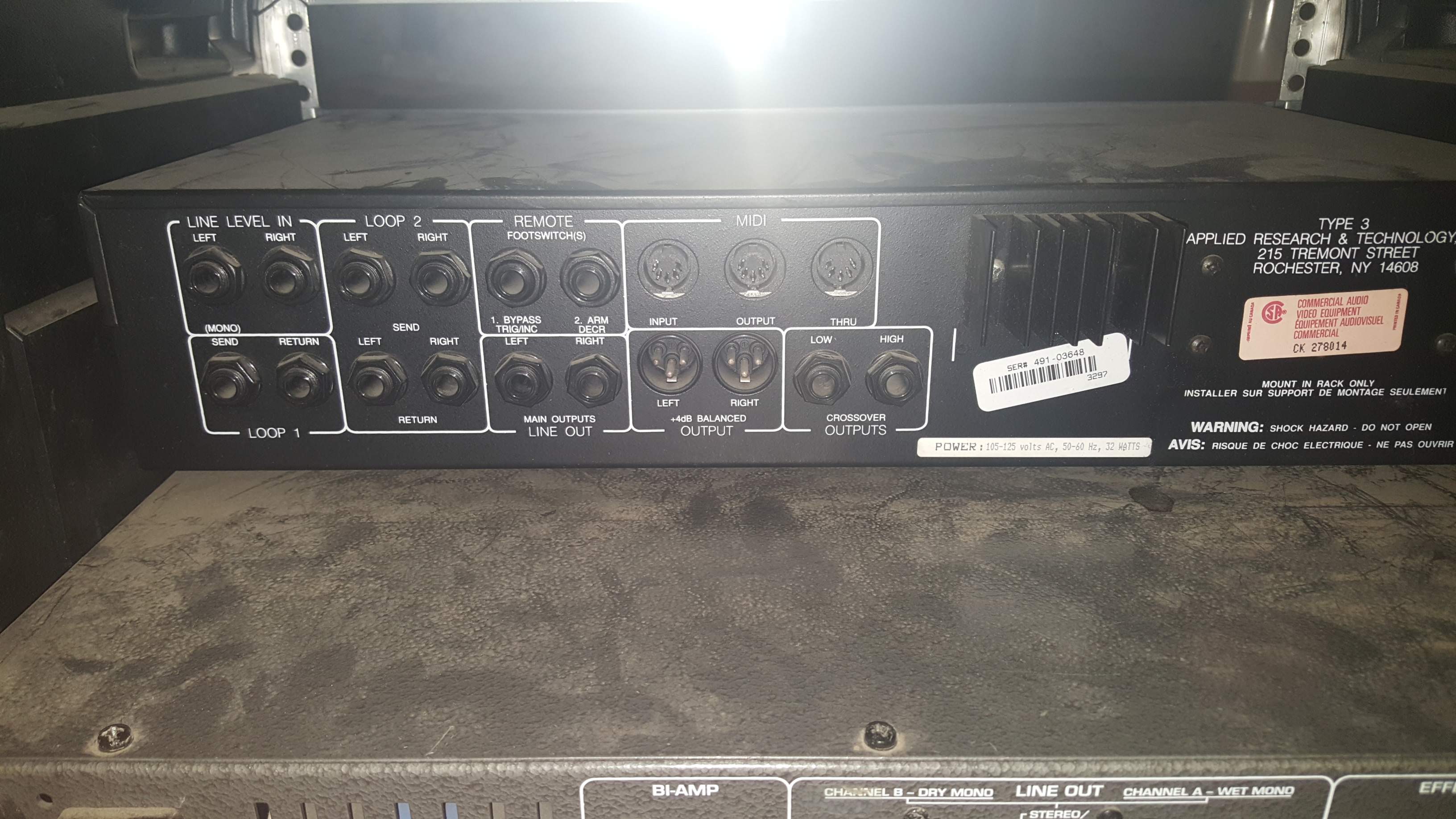

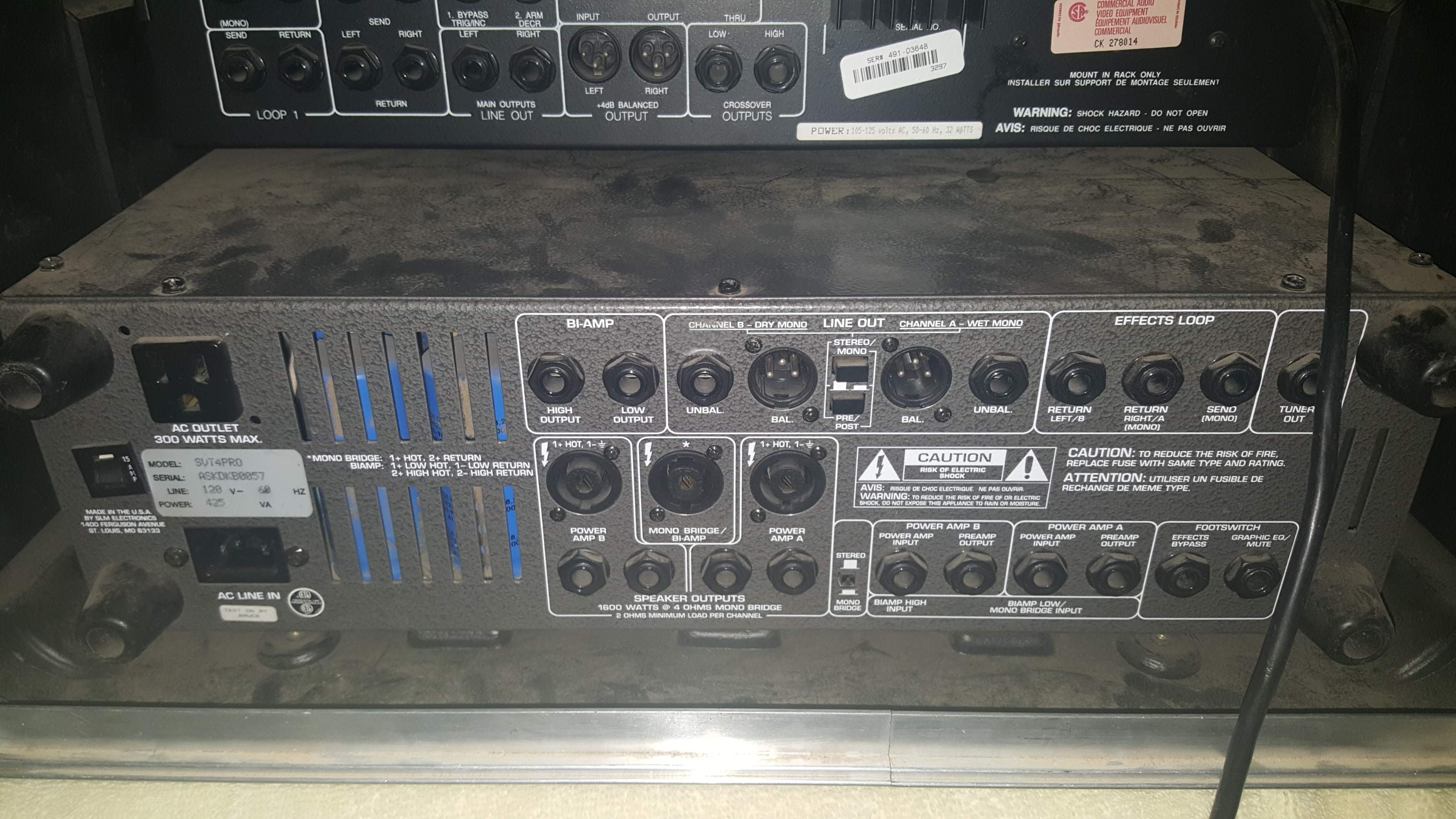

    20160412_180604.jpg 20160412_180627.jpg

    Don't have much experience with anything this complicated. Trying to figure out how to run both the nightbass and svt together, don't know how to connect them. Thank you, and any help is much appreciated!

  2. B-string

    B-string Supporting Member

    Do you want to run in mono, dual mono or stereo mode (one or two speaker cabs with same signal or stereo effects).

  3. B-string

    B-string Supporting Member

    This would be for stereo, be sure to leave the stereo switch out using two cabs (no bridged mode). Use the white only for mono or mono bridged mode on the Ampeg (one or two cabs).


    HowieVucter likes this.
  4. mikezimmerman

    mikezimmerman Supporting Member

    Apr 29, 2001
    Omaha, Nebraska
    Or, if you wanted to keep the SVT preamp and EQ in the circuit, you could run the Nightbass in the effects loop (SVT : Effects Loop Send (Mono) [upper right] -> Nightbass : Line Level In - Left (Mono) [upper left] ), then back to the SVT (Nightbass : Main Outputs Line Out - Left / Right [bottom middle] -> SVT : Effects Loop Return - Left / Right [upper right])

    HowieVucter likes this.
  5. HowieVucter

    HowieVucter

    Apr 13, 2016
    Oh mono. Thanks for the reply!

  6. HowieVucter

    HowieVucter

    Apr 13, 2016
    Thanks man!

  7. mikezimmerman

    mikezimmerman Supporting Member

    Apr 29, 2001
    Omaha, Nebraska
    I think for mono you'd want to just take the Left Line Out from the Nightbass back to the Right (Mono) Effects Loop Return on the SVT, because it looks like the Nightbass uses Left for Mono and the SVT uses Right...
