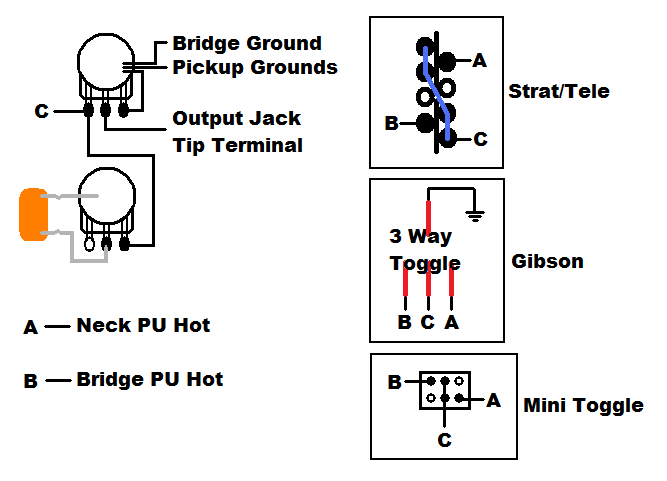

I'm curious if the attached wiring diagram makes any sense electronically. I cooked-it up quickly and then drew it in AutoCAD; hope it's clear enough to understand. Here's the specs:
1) Two pickups;
2) No tone control;
3) One master volume for both pups;
4) 3-way toggle switch wired as follows: Up = neck pup only; Middle = both pups; Down = bridge pup only.
Both pups would be wired to the toggle switch which would then run to the volume pot. From there it goes to the output jack and that's it.
Does this diagram make sense?
1) Two pickups;
2) No tone control;
3) One master volume for both pups;
4) 3-way toggle switch wired as follows: Up = neck pup only; Middle = both pups; Down = bridge pup only.
Both pups would be wired to the toggle switch which would then run to the volume pot. From there it goes to the output jack and that's it.
Does this diagram make sense?
