Hi folks,

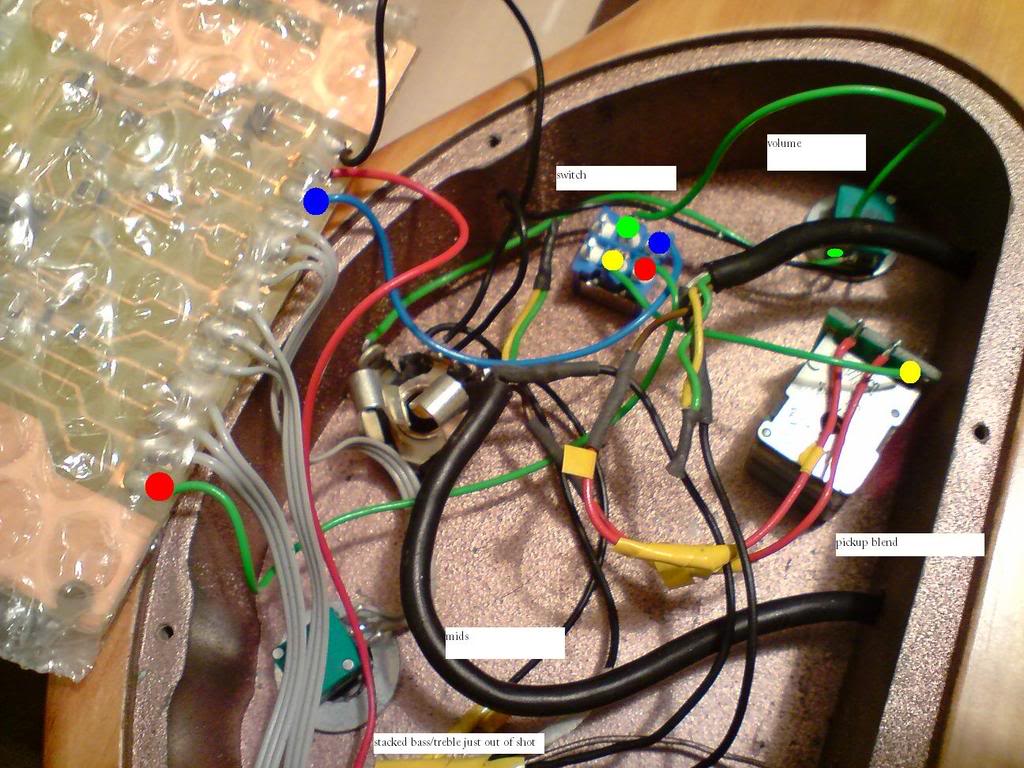

Just switched my active passive switch for a black one after intending to do so for many years. The passive option however isn't working (active is fine). I am pretty sure the wires are all as they were on the original switch. Here is a piccie - can anyone spot the problem?

Cheers
ped

Bit of a mess in here I'm afraid!



[Pierrot]

You need to connect the two empty poles on the switch to each other.

*edit: Assuming you're not supposed to have a working tone control in passive mode.



[cdawzrd]

^^ yup



[ped]

Thanks a lot guys - a thorough inspection of the removed switch revealed a tiny jumper across the contacts! Do'h!

Many thanks again
ped



[Stan Hinesley]

Those jumpers are pretty easy to miss. Can't tell you how many times I've pulled my hair out over something like that. Now I make a drawing before removing anything and I also use a magnifying lamp just to make sure I don't miss any details.



[ped]

That would have been the sensible option! Thank god for bass forums though, eh?

Thanks guys



[Stan Hinesley]

Saved my ass more than once!
