HELP!! Ampeg PF-50T content

So I was curious and rolled a preamp tube or two in my newly acquired PF-50T... I must damaged it somehow, the status LED won't turn purple now and there's no heater glow in any tube, let alone sound. What am I possibly doing wrong here? Maybe I broke the PCB by pushing a tube in too forcefully? Anyone has an idea? :help:

The power fuse is good. I've put the stock preamp tubes back in and didn't help. :crying:


I believe the main circuit board has two additional fuses. Perhaps one of them is for the heater supply. Also there are several push on connectors. It may be best to get a repair center to take a look rather than poking around and invalidating your warranty.

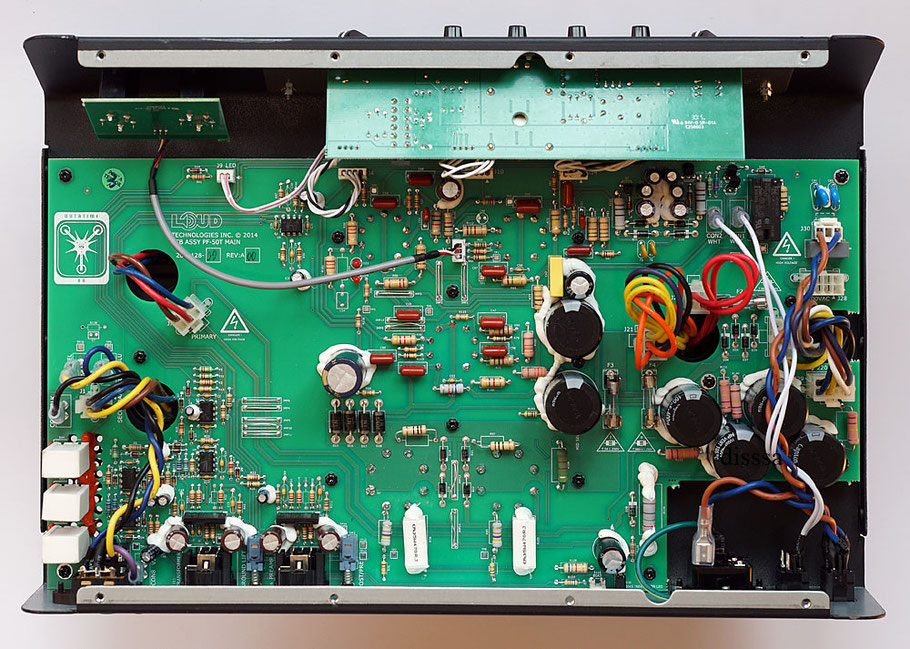

Here is an image from @disssa

You can open a larger image if you go to his webpage: Invalid Link Removed

If you decide to take a look, be careful as there may be lethal voltages inside the chassis.

  • Like
Reactions: Camaro69
Yeah, always red.
I actually purchased this used so, as new as it might look, it may not have any warranty left. I don't want to risk getting electrocuted either, but I suppose only taking a peep probably won't damage me. :bag:

You shouldn't be able to damage the amp by changing a preamp or power tube tube. Always do this with the power off.

Remove the tube(s) that you changed. Do this by rocking the tube back and forth while gently pulling. Inspect the tube pins to ensure that they not bent. This can happen with preamp tubes, the pins are somewhat delicate. If bent bad enough, the tube can be inserted into the wrong socket holes. If any are bent, use needle nose pliers or something similar to carefully straighten the pin(s). It is important to not scratch the plating on the pins. This can lead to rust which is an insulator and can inhibit good contact with the tube socker terminals.

Next inspect the tube socket to ensure that nothing is bent there. You'll see if it looks right. If it is bent, use a small needle to carefully bend the contacts inward and together. Sometimes when tube rolling, you can overstretch the contacts and open them up too much. Again a bad contact results. The process of pinching the contacts closed is called re-tensioning. Google the term for visual instructions as to how to do this.

To reinsert the tube, align the pins. There is a larger space between two of the pins on the preamp tubes, the power tubes often have a center keyway post. Once aligned, gently rock the tube into place. Make sure that it's fully seated.

Last edited:
Taking it to a tech tomorrow. Probably won't be rolling tubes since, minimal benefit for more risk. :bag:


As long as you turn the amp off, remove/insert the tubes properly, and do not use excess force, it should be safe to roll the same tube types in the amp.

The amp has two 12AX7s and one 12AU7. 12AX7 and 12AU7 are biased a bit different. Bias determines how much current the tube pulls. Although the 12AX7 is considered a higher gain tube, it has a lower plate dissipation rating, so it should be biased for less current. People often sub these tubes for each other if they are looking to modify how much gain a circuit has, with no problems. In order to really do it properly, a resistor or two should be changed so the new tube biases in the proper current range.

12AX7, 7025, ECC83, ECC803, and 5751 are all direct subs. 5751 has lower gain than the others. There are also some obsolete designations like 6681.

Let's us know how it turns out & good luck.
