Help! On a Gibson victory bass switch

[chaseth]

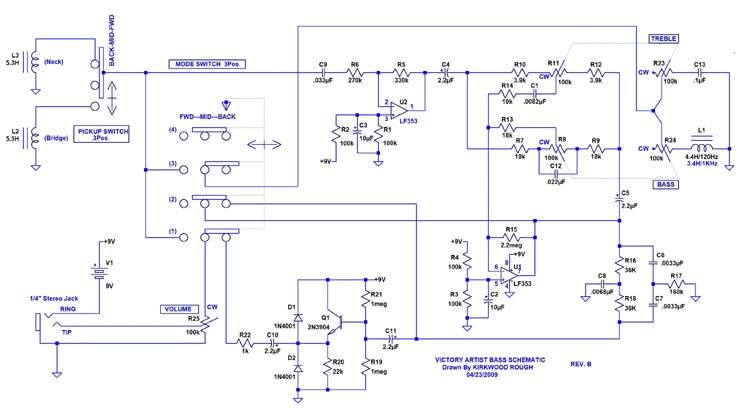

I bought a old Gibson victory artist that has the pickup selector switch and mode switch broken of which I'm trying to replace. My problem is that that I don't know which kind of switches to buy. I'm pretty confident for the pickup selector switch I need a 3 position 9 prong on-on-on switch. The mode switch I need a 4pdt switch. I need help reading the schematic. Should it be a on-off-on switch or a on-on-on? Or what's the deal with momentary switches? Help I'm attaching the schematic. Thanks



[bholder]

I don't think mine's an Artist, not sure I can help, I'll take a closer look in the morning, crosseyed tired now..



[mech]

The selector switch is a single pole/double throw...1PDT.....On-On.
The mode switch is a 4 pole/triple throw....4PTT.....On-On-On.
