Hooking two multifx together in stereo.

[Sasu Juntunen]

Hi,

In order to connect two multifx together and have them both in stereo I thought I have my instrument cable into a splitter box. From the splitter two mono cables to each multifx input. Then stereo out from both fx into a 4 channel mixer. And from there two xlr out to FOH.

Do you have a better solution?



[Roland GR 88]

That would work but be prepared for possible noise or phasing issues. Finding an effect or a multi-effect with stereo inputs may not cost any more than a mixer, splitter and cables might and would simplify things considerably.
What are the two FX pedals you have ?



[Sasu Juntunen]

That would work but be prepared for possible noise or phasing issues. Finding an effect or a multi-effect with stereo inputs may not cost any more than a mixer, splitter and cables might and would simplify things considerably.
What are the two FX pedals you have ?

Thanks for the great tip. BOSS GT-1B only now. But Im eyeing on ZOOM 3B



[Michedelic]

I put together(for my guitar rig)an outlandish, Rube Goldberg* system with this:
Loopi splitter pedal, with on/off switches...

https://www.loopipedals.com.au/
‘A’ send to ‘mono’ in on a Strymon Mobius mod pedal, and then a stereo chain on through to a Timeline delay and Big Sky reverb...
‘B’ send to ‘mono’ in on an Eventide Modfactor, Timefactor, and Space in the same fashion. Then the dual stereo pairs to this...

dbx DI4
which sits on top of a pair of side by side Traynor YBA-1’s, each powering a single 12” cab, receiving each side of the summed stereo output of the DBX(send ‘C’ on the switcher could theoretically be used to go a third ‘dry’ center amp, if I’m feeling it). All levels panned/blended on the DBX, you then have two discrete parallel stereo FX lines to do either/or, or stack. Sure, it’s not a continuous sequential chain, if that’s what you might want, but it’s something to consider. You could get even crazier with a pair of stereo volume pedals in line for real time fading, but I haven’t gone there(yet).

*If you don’t know what that means, it’s an ancient pop culture reference pertaining to a comical contrived overcomplicated system that still works, in the end.



[bassbrad]

Thanks for the great tip. BOSS GT-1B only now. But Im eyeing on ZOOM 3B

You might be better off thaking the stereo out from the Boss GT-1B running that into the Zoom MS70CDR that has stereo ins and outs. The MS70CDR has every effect except for amp models and distortions.



[Sasu Juntunen]

I put together(for my guitar rig)an outlandish, Rube Goldberg* system with this:

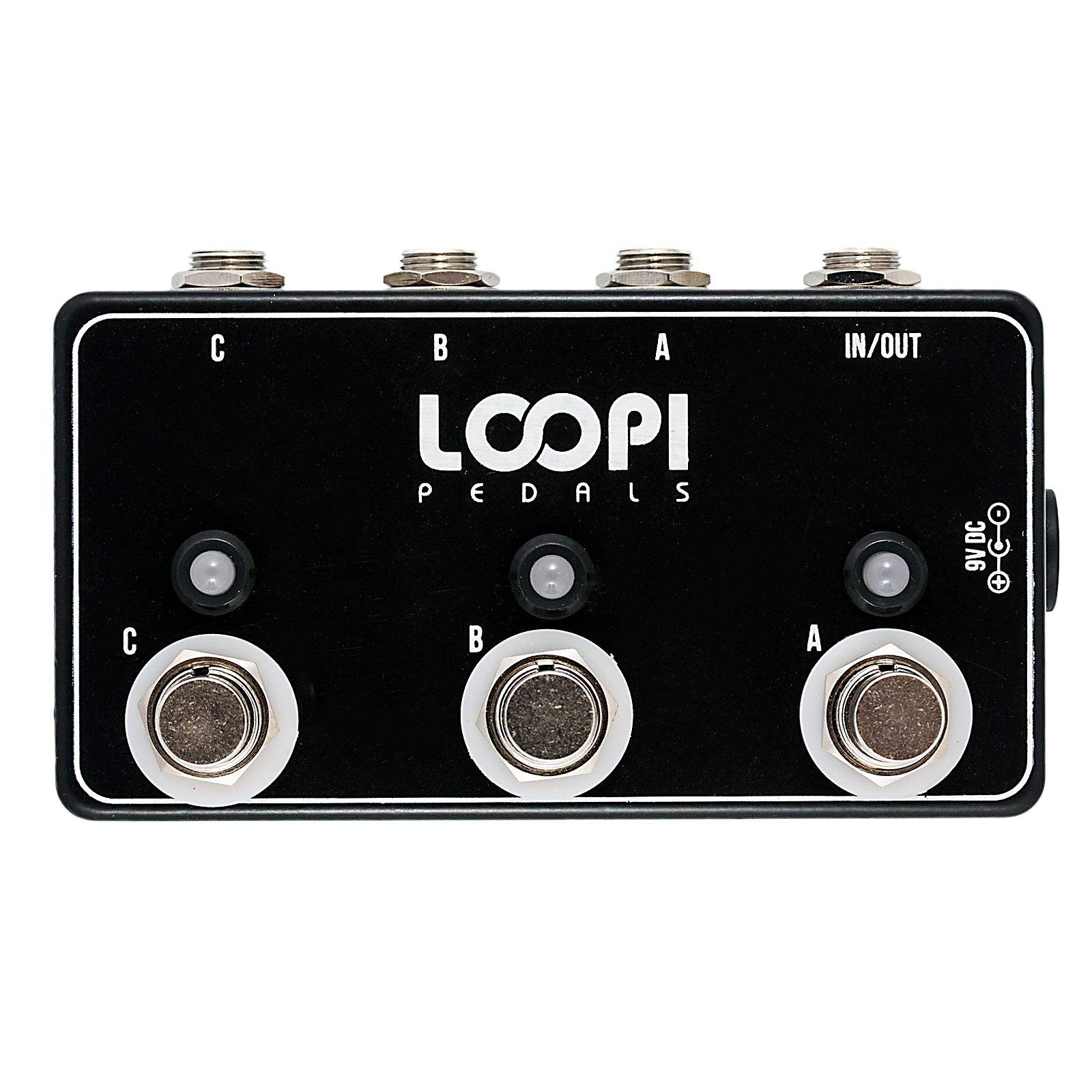

Loopi splitter pedal, with on/off switches...
View attachment 3759266
Home - Loopi Pedals
‘A’ send to ‘mono’ in on a Strymon Mobius mod pedal, and then a stereo chain on through to a Timeline delay and Big Sky reverb...
‘B’ send to ‘mono’ in on an Eventide Modfactor, Timefactor, and Space in the same fashion. Then the dual stereo pairs to this...
View attachment 3759245

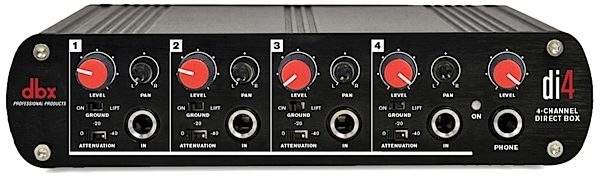

dbx DI4
which sits on top of a pair of side by side Traynor YBA-1’s, each powering a single 12” cab, receiving each side of the summed stereo output of the DBX(send ‘C’ on the switcher could theoretically be used to go a third ‘dry’ center amp, if I’m feeling it). All levels panned/blended on the DBX, you then have two discrete parallel stereo FX lines to do either/or, or stack. Sure, it’s not a continuous sequential chain, if that’s what you might want, but it’s something to consider. You could get even crazier with a pair of stereo volume pedals in line for real time fading, but I haven’t gone there(yet).

*If you don’t know what that means, it’s an ancient pop culture reference pertaining to a comical contrived overcomplicated system that still works, in the end.

Wow what a great system you have. It would be nice if the dbx had an master stereo out for all of those 4 line in.



[Sasu Juntunen]

You might be better off thaking the stereo out from the Boss GT-1B running that into the Zoom MS70CDR that has stereo ins and outs. The MS70CDR has every effect except for amp models and distortions.

Thanks for the tip. It looked very compact and intuitive.



[bassbrad]

Thanks for the tip. It looked very compact and intuitive.

I failed top mention that there is a free computer editor for the Zppm MS70 called ToneLib Zoom that makes working with the pedal quite easy.



[Michedelic]

Wow what a great system you have. It would be nice if the dbx had an master stereo out for all of those 4 line in.

Well, it does, that’s what goes to the pair of amp heads; there are R/L RCA and XLR outputs in the back, you just need adaptors to make them 1/4”, or else use a TRS to stereo 2-conductor(like a Hosa)out of the headphone out in front to keep it all 1/4”.
