I just bought an ibanez mezzo 205(still in shipping) and im wondering if anyone owns one or has swapped pickups on them before? I want to swap my sadowsky pickups from my ibanez tmb35, but i remember my luthier saying that the dimensions of the tmb35 stock pickups are unusual (maybe the size of a 4 string pickup but made for 5 string?) so im wondering if they will fit in the new bass. Any info would be awesome
Enjoy the benefits of a premium membership!
Upgrade Account
-
TalkBass has been independent since 1998. Add your voice.
Create a free account to reply to discussions, view embedded media, and browse with fewer display ads.
Join free Log in
Want zero display ads or expanded classifieds tools? Compare plans.
Ibanez mezzo 205 pickup size
- Thread starter blazekwi
- Start date
Well, better late than never...... I just took delivery of one..... my 3rd Mezzo 5 (and this one will NOT be sold, lol).

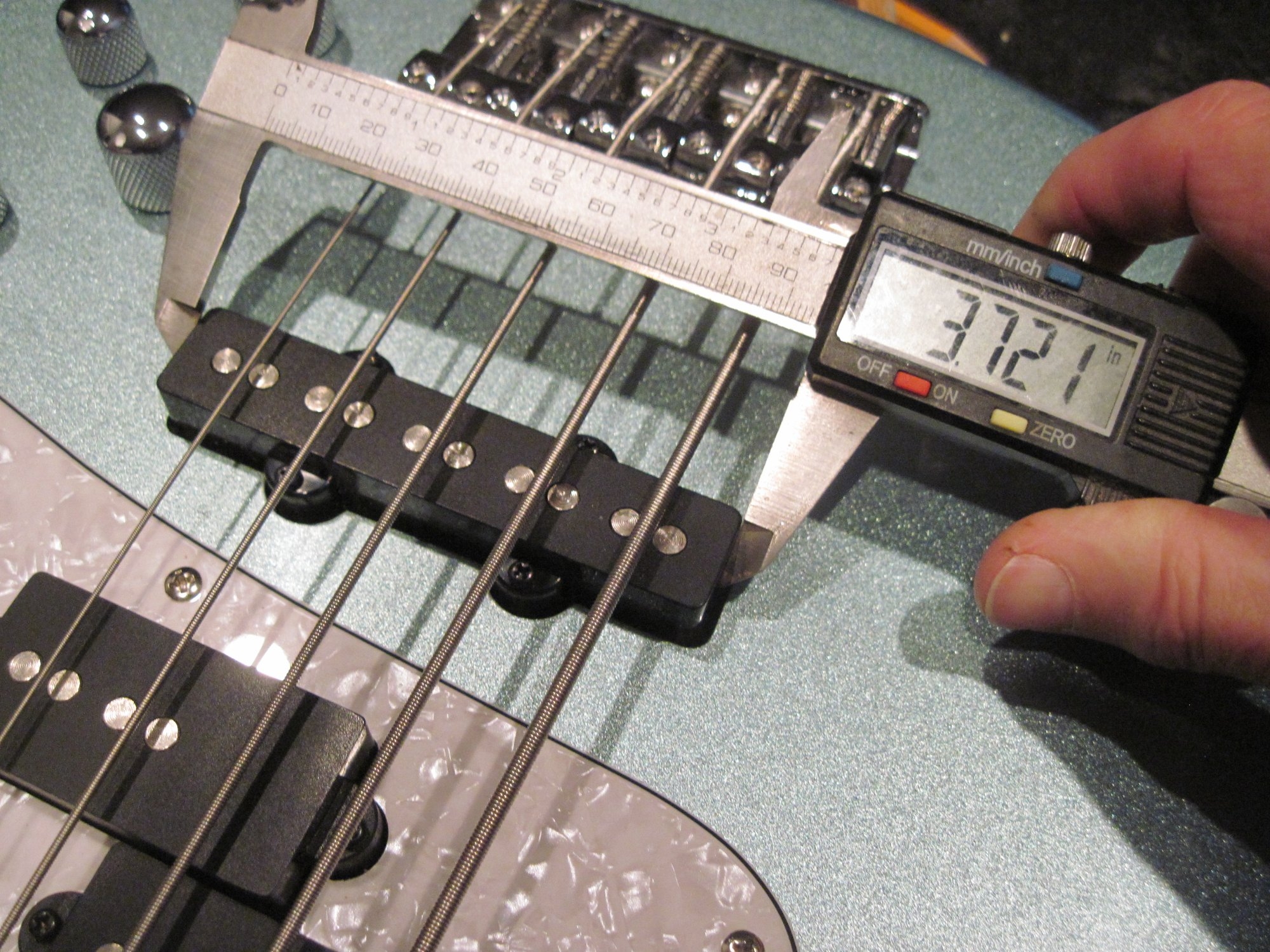

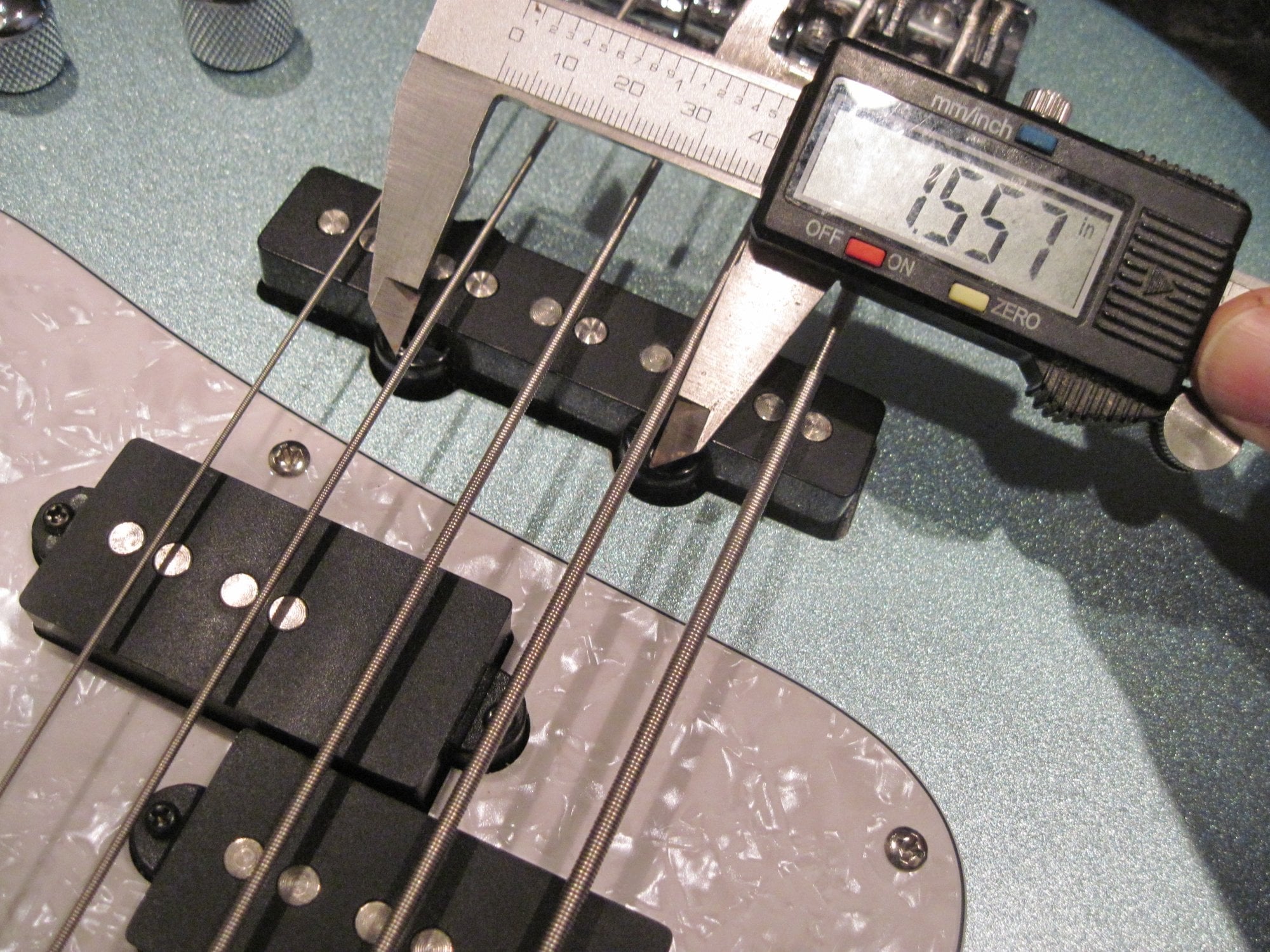

The P pickup cavities are the same size as a normal 4 string P pickup cover. The width of the J pickup is 3.72" and the cavity is a hair wider. See pics.
I just bought a set of pickups from Wilde (Bill Lawrence ). They have a likker deal of $115 for the PJ set. The P pickups are the P46 with 5 Alnico 2 poles on each side, total of 10 poles, which were built for 4, 5 and 6 string basses. The J pickups are J45 with 9 poles that can handle 4, 5 and even some 6 string basses. These pickups get fantastic reviews, so I decided to snag them for this build. I will run them totally passive and see what result I get. I didn't see anybody running them with a preamp, but I'll probably experiment with that down the road.
Mine is a 2022 model and I snagged it off GC's website before anyone else. I've been waiting about 7 months to come across one. I was hoping it was in good shape and it turned out it's PRISTINE with very low action and properly intonated. It has a set of Dunlop SS super Bright strings (ZING!!). Sounds great from the get-go, but I'm looking for a bit more warmth and no preamp / bass boost / whatever it is in there, so here we go........... !!!! I hope yours turns out great, too. And, I'm pretty sure these pickups are the same model/dimension as the TMB35. Looking at the spec sheets for both, they are both "Dynamix" pickups. Feel free to PM me if you want to compare builds/mods! -Lenny
The P pickup cavities are the same size as a normal 4 string P pickup cover. The width of the J pickup is 3.72" and the cavity is a hair wider. See pics.
I just bought a set of pickups from Wilde (Bill Lawrence ). They have a likker deal of $115 for the PJ set. The P pickups are the P46 with 5 Alnico 2 poles on each side, total of 10 poles, which were built for 4, 5 and 6 string basses. The J pickups are J45 with 9 poles that can handle 4, 5 and even some 6 string basses. These pickups get fantastic reviews, so I decided to snag them for this build. I will run them totally passive and see what result I get. I didn't see anybody running them with a preamp, but I'll probably experiment with that down the road.
Mine is a 2022 model and I snagged it off GC's website before anyone else. I've been waiting about 7 months to come across one. I was hoping it was in good shape and it turned out it's PRISTINE with very low action and properly intonated. It has a set of Dunlop SS super Bright strings (ZING!!). Sounds great from the get-go, but I'm looking for a bit more warmth and no preamp / bass boost / whatever it is in there, so here we go........... !!!! I hope yours turns out great, too. And, I'm pretty sure these pickups are the same model/dimension as the TMB35. Looking at the spec sheets for both, they are both "Dynamix" pickups. Feel free to PM me if you want to compare builds/mods! -Lenny
Also, my upcoming mods will be a set of Gotoh Res-O-Lite tuners (GB350) in chrome and a Gotoh 404SJ-5 bridge. The bridge on this is fine, but I plan to run string-thru, so I can utilize full scale strings. I did that on a Warmoth Medium scale Z bass, 4 string. Turned out great and the string-thru access holes are radiused so there are no sharp bends/kinks. I ran EB Slinky Cobalt flats and wasn't worried at all about the angle coming up from the bottom, with that nice sweeping angle. I am really looking forward to getting this going. Oh, also..... the Gotoh bridge has 18mm string spacing; the exact same spacing as your Mezzo. You'd have to plug and drill new mounting holes, but well worth it!
I love the sound these give my Mezzo. I removed the 2 band pre, as I felt there was no need for it. I was right. Most excellent. However, I have to adjust the P pickup kind of the opposite way I'm used to; I "sink" the 2 screws towards the middle to get the A poles down a bit. The issue is that when I play the A string, both pieces of the P assembly pick up the vibration and make the A string a bit louder than the other 4 strings. I've had this issue with other pickups, but this is the most manageable. Still, I am on the hunt for a fairly affordable pickup that is balanced a bit more. I have been in contact with @laklandplayer and he has reached out to Becky at Wilde, along with EMG to see if they would be interested in producing a 5 string pickup that fits the standard 4 string P dimensions, with no "overlap" of the A string. Hopefully that will happen soon. Meanwhile, I have not given up on the Wilde P46 !
