Is a HPF redundant with a SansAmp BDDI V2?

[Ritter667]

I run the blend at 50% too (for the sound of the instrument).
It looks like that scoop is just part of the cabsim for a big vintage cab:
you could try boosting mids @500hz to neutralize that.

Well the scoop of the Sansamp is closer to around 1kHz, so that is what you should be boosting to counter it.



[pbassnut]

Hi all,

My main sound comes from my pedalboard, which consists of MXR M76 -> OE DCX Bass -> SansAmp BDDI V2. I usually go straight into the Return input of any given amp, or straight to PA.

I see (almost) everyone raving about the benefits of a HPF to clean up the unruly low frequencies of one’s bass tone.
Now, the BDDI has quite prominent, punchy lows. However, the SansAmp circuitry is meant to emulate amp + cab. There’s an analog cab sim which usually means that the “high highs” and “low lows” are trimmed a bit.

So my question is, is a HPF redundant with the SansAmp? I was thinking of getting a Broughton adjustable HPF to put in front of my chain, to clean up my low frequencies.

What is your experience with this setup ? Thanks!

The SansAmp BDDI V2 is a classic, iconic pedal that is loved by many ... including sound technicians who mix them for the FOH sound. I would keep it simple and just us the SansAmp as it is.



[DragonCurse]

Well, no need to dime it, just enough to smooth this out some.
View attachment 7038032

How did you generate this?



[ics1974]

I use one only if I need to (boomy room) or to just tighten up the sound.



[vickerekes]

How did you generate this?

I didn't... twas a fellow TB'er.



[vickerekes]

Well the scoop of the Sansamp is closer to around 1kHz, so that is what you should be boosting to counter it.

IME it gets 'honky' in the mix, YMMV.



[vickerekes]

What’s the Blend 1-6 ranking?

The knob position, I believe; with 12:00 being blend 3... just a guess.



[Ritter667]

IME it gets 'honky' in the mix, YMMV.

I suppose one mans honk is another man's punch, snap, definition and articulation, and I would also say it very much depends on which mix exactly we are talking about.



[vickerekes]

What is the lower graph?

Sorry I don't recall. You'd need to root through old posts.



[vickerekes]

I suppose one mans honk is another man's punch, snap, definition and articulation, and I would also say it very much depends on which mix exactly we are talking about.

Right. That's my experience, YMMV...



[BEADist]

How did you generate this?

Link to the original thread with the graphs:

https://www.talkbass.com/threads/b7k-bddi-eq-and-blend-measurements.1199379/



[Ian774]

These measurements are for BDDI V1 which is quite different from the V2 I have



[Ian774]

While we’re at it, I assume there’s no need for an LPF either with a SansAmp, as the SansAmp circuitry has a speaker sim that rolls off high frequencies, right?



[Ian774]

Ok, that’s me again!

I’ve since switched to the ParaDriver V2 and sold my BDDI V2.
If I wanted to get an HPF still, probably the Broughton one, where would be the best position for it? Just after my tuner, first in line, or after the SansAmp?

I mostly use the SansAmp with the +10dB switch on, so I can drive the power amp of whatever amp I use. Would the Broughton HPF withstand that much gain coming from the SansAmp?
Stupid question probably, but I just don’t know….

Thx



[Zbysek]

I would put it towards the beginning....unless your pedalboard contains octaver or synth...



[Ian774]

I would put it towards the beginning....unless your pedalboard contains octaver or synth...

Nope, comp, DCX and SansAmp.



[Zbysek]

Nope, comp, DCX and SansAmp.

In such a case I would put it in front of the comp...



[Elmstreet]

In such a case I would put it in front of the comp...

Came here to say the same. I put mine right after my tuner before my compressor.



[mouthmw]

Ok, that’s me again!

I’ve since switched to the ParaDriver V2 and sold my BDDI V2.
If I wanted to get an HPF still, probably the Broughton one, where would be the best position for it? Just after my tuner, first in line, or after the SansAmp?

I mostly use the SansAmp with the +10dB switch on, so I can drive the power amp of whatever amp I use. Would the Broughton HPF withstand that much gain coming from the SansAmp?
Stupid question probably, but I just don’t know….

Thx

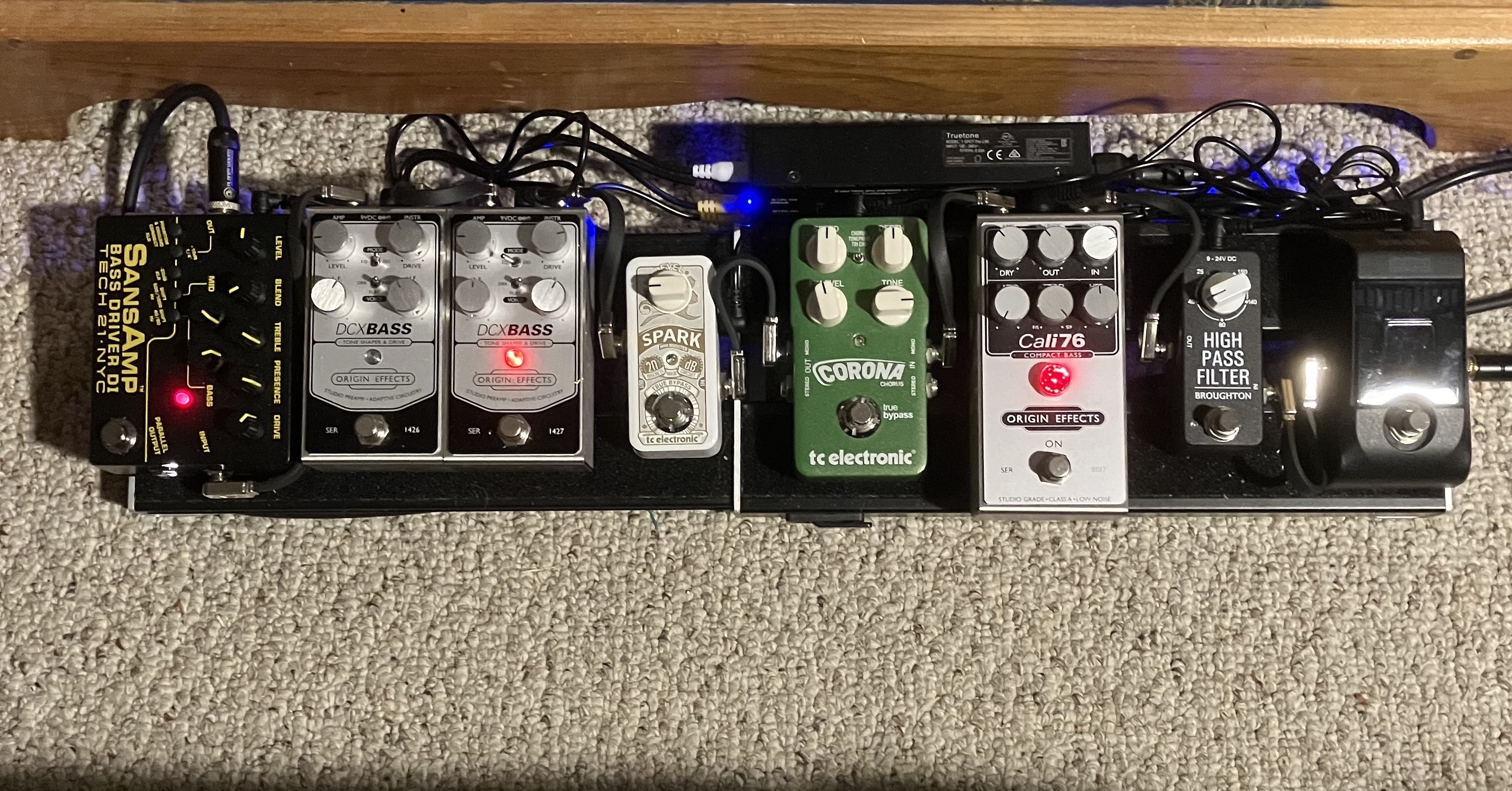

I put my Broughton HPF LPF at the end of the chain, just before BDDI. Why? I cut the high end for dirt pedals as a sort of rough cab sim plus preparation for BDDI v2 to take it further. With it, the blend knob is more useful on BDDI as I don’t need to rely solely on BDDI as a cab sim for dirt. I tried using HPF LPF first in chain but it sucks for shaping dirt that way. I want my signal to be shaped right before it hits my amp and/or my BDDI. Both low end and high end. I use 80 Hz (60 Hz for Stingray) for HPF and 5 kHz for LPF. The result is a thick but tight tone and my dirt doesn’t sound like fizzy crap unlike when going direct.

Edit: I see you’re asking about HPF solely. Still, at the end for sure, to shape the end result no matter the pedal.
