Jack Socket to Warwick Streamer

[koshey]

Hi my dudes,

please help me to figure it out:

It is time to change the Jack Socket in my bass.
I've found on the warwick website 2 variants:
1. R5 Connector: https://shop.warwick.de/de/ersatzteile-fuer-instrumente/warwick-ersatzteile/elektroniken-teile/mec-closed-mec-closed-6.3-mm/1/4-stereo-jack-socket-for-mouning-in-instrument-sides-with-jst-solderless-connectors?number=D0360598001564882621A2940-A00000131398


2. R4 Connector: https://shop.warwick.de/de/ersatzte...number=D0360598001564882621A2940-A00000131397

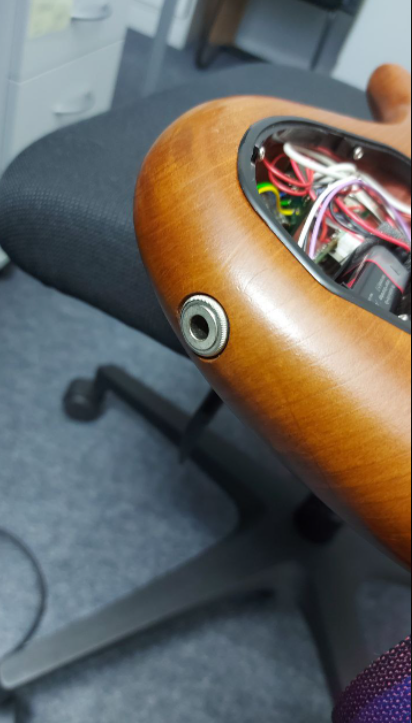

That'S what I have:

how to identify??


thanks a lot!



[Jefenator]

Apparently the difference between R4 & R5 is in the width of the plug that connects to the circuit board:
Warwick Online Shop - Different Replacement Jack Sockets??
My thought would be just to get a Switchcraft stereo barrel jack and re-solder the leads at the jack.
HTH



[cwchristopher]

Yours is the R4



[koshey]

Yours is the R4

Hey thanks) sure?))



[cwchristopher]

Positive. Most are, I’ve replaced a bunch of em, only seen a couple with R5



[koshey]

Apparently the difference between R4 & R5 is in the width of the plug that connects to the circuit board:
Warwick Online Shop - Different Replacement Jack Sockets??
My thought would be just to get a Switchcraft stereo barrel jack and re-solder the leads at the jack.
HTH

hey thanks man=)

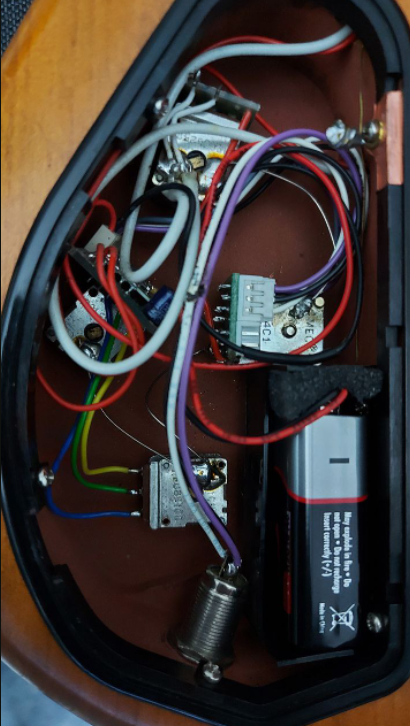

the wires are as well in a poor condition.. see foto.
Better to change all at once



[koshey]

Positive. Most are, I’ve replaced a bunch of em, only seen a couple with R5

Thanks!
