Lakland 55-01 upgrade

A

amans

Oct 19, 2011
6
0
#1
Hi guys I’ve bought a Lakland 55-01 but I want to change the preamp and the pickups in it, I’m having trouble finding the right replacement for the preamp.
the Bartolini website says the replacement is an NTMB+f but when I checked the wiring diagram it shows a mid switch and all other preamps of different brands also show a switch or a push/pull mid knob, my bass has neither of these. My controls are volume with push/pull active/passive , treble, bass, pickup blend and mid, 5 knobs in total I can’t seem to find any preamp with this configuration, any advice appreciated thanks

Sent from my iPhone

#2
I've owned a 55-01 for over 15 years now and it's been through a ton of different mods. All US Bartolini. Then Nordstrand pickups. Briefly a Delano preamp (which I received in error and did not like). Then back to the original Asian Bart pickups with the US Bart pre. It currently has Aguilar Super Double pickups and an Aguilar 3 band preamp. It's been in this config the longest.

  • Like
Reactions: 31HZ and Zooberwerx
#3
DWBass said:
I've owned a 55-01 for over 15 years now and it's been through a ton of different mods. All US Bartolini. Then Nordstrand pickups. Briefly a Delano preamp (which I received in error and did not like). Then back to the original Asian Bart pickups with the US Bart pre. It currently has Aguilar Super Double pickups and an Aguilar 3 band preamp. It's been in this config the longest.
Click to expand...
Yeah I’m trying to find which preamp to get but none of them seem compatible they all come with a switch but my bass doesn’t have a switch just five control knobs

#4

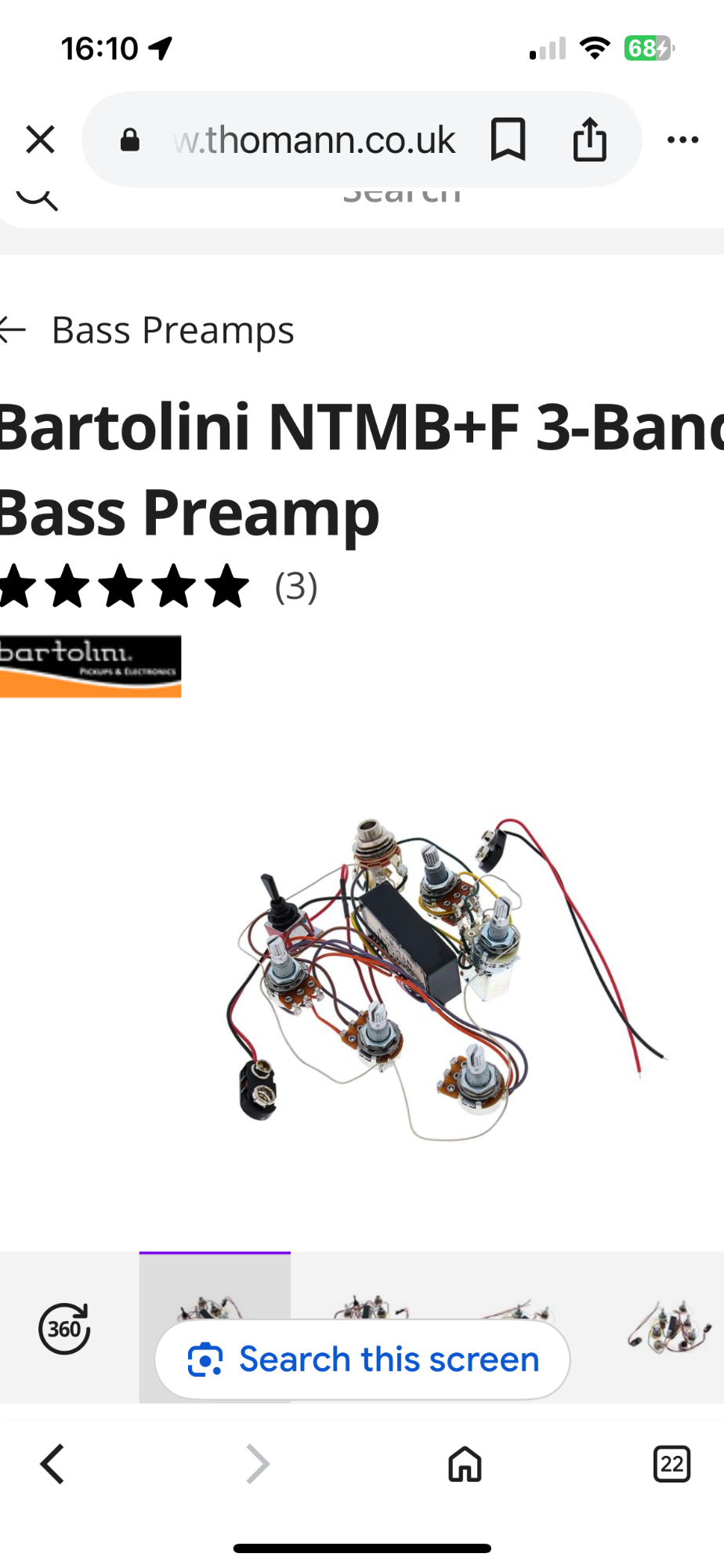

As you can see in the picture there is a switch but Lakland basses do not have a switch


Attachments

  • IMG_7045.png
    464.3 KB · Views: 32
#6

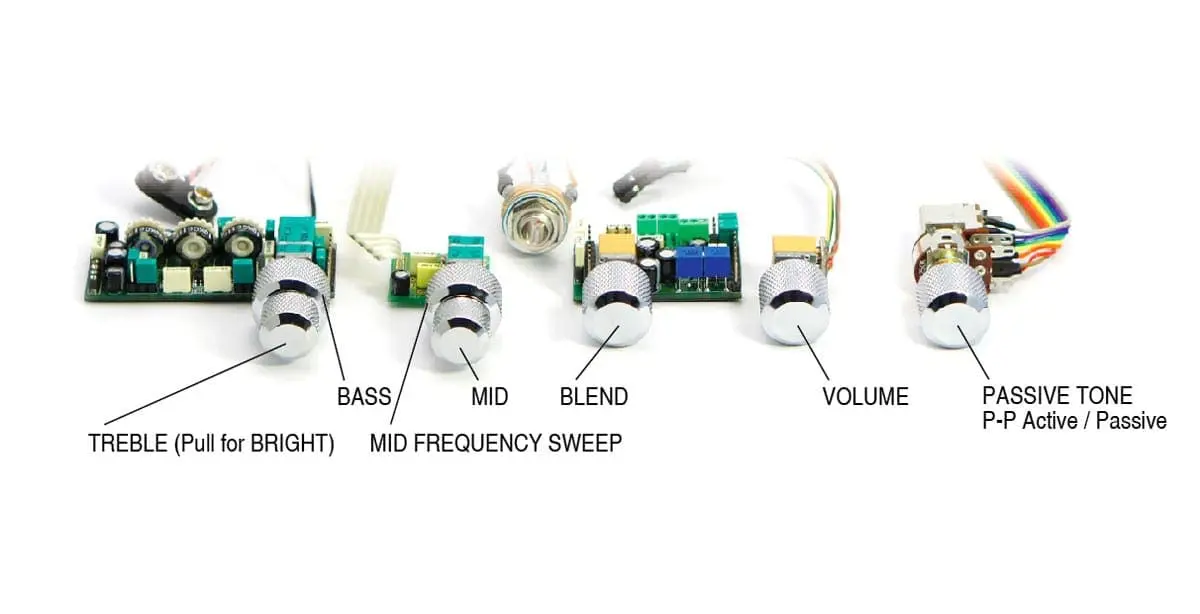

I have a 55-01. It has Nordstrand JazzBar pickups, which are single coil like early 60s Fenders, so it's very similar to a jazz bass. I swapped out the mk1 preamp for the USA Lakland oem unit which I think works great (see lakland website for full specs). I should note that I generally run the bass in passive mode- I'm not really a huge fan of active EQ. In the rare instance that I do engage the preamp I find that it's very transparent sounding.

#12
DWBass said:
I've owned a 55-01 for over 15 years now and it's been through a ton of different mods. All US Bartolini. Then Nordstrand pickups. Briefly a Delano preamp (which I received in error and did not like). Then back to the original Asian Bart pickups with the US Bart pre. It currently has Aguilar Super Double pickups and an Aguilar 3 band preamp. It's been in this config the longest.
Click to expand...

I use the MK1's with an OBP-3 in an Ibanez but my Mensinger 5 with Aguilar DCB-D4's (...actually a 6 string pickup installed at an angle) and OBP-3 is simply the liveliest of the bunch including Fernandes, US Barts / Noll, and Nordstrand Big Splits / Audere.

Riis

  • Like
Reactions: markbmbass and DWBass
#16
Long ago that I sold mine, but it's not a big deal to go with a switch...if that opens up options for you (pics)

Lakland 55-01 Mods Bartolini MK5 PUPs and LH3 Preamp

For sale Lakland 55-01 Mods Bartolini MK5 PUPs and LH3 Preamp

Lakland Skyline 55-01 Sunburst Late 2010 Indonesia assembled, Plek'd and shipped in 2011 I started to sell this before, sat down and played it and pulled the listing. I've got my eye on a US Brubaker, so back up she goes. Pickups - US Bartolini MK5 Preamp - Lakland/Hanson LH3 Preamp Push/Pull...
$725.00
