Most Compact LPF+HPF? I Just Got a Pedal From dpFX

[GrevMarkussen]

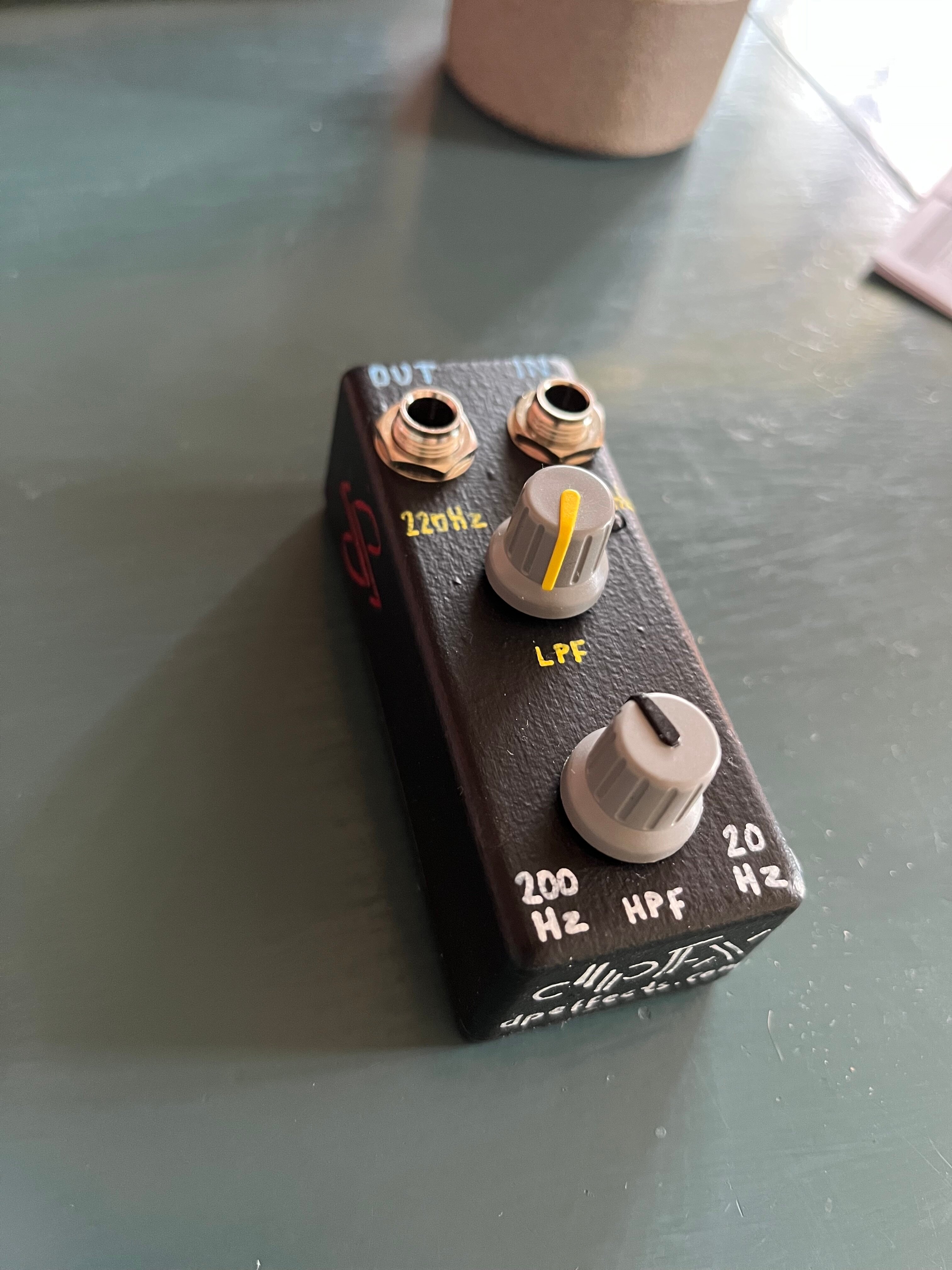

I was looking for a really compacy, and always-on, LPF+HPF pedal, and couldn't find any. However, dpFX could make one for me, and yesterday I got it in the mail!

I really think this is quite unique in the market. Does anyone know about anything else like it?

Excited to find a good spot for it under by board! Will report back when I do.



[gregmon79]

The most compact I've seen is the Fdeck. But that's only the HPF side. This is pretty cool. Would be interested to try one.



[S-Bigbottom]

That be dang small.

Nice!!!



[Zbysek]

Nice! What is the slope of the filters?



[getBAK]

Is that passive or active? I don't see power input but that might just be the angle



[davelowell2]

Is that passive or active? I don't see power input but that might just be the angle

In the second picture the black screwy part is for power.



[Parzival]

Depending on your board, you might could turn that sideways and mount it under the board.



[BunchyMutt]

nice! I wonder if Henrettta Engineering could out small that



[lomo]

Nice. I don't use a LPF but for HPF the Broughton always on is only 1.2" wide if you mount it such that the jacks & controls are on the face.



[wellshuxley]

That's really nice! Would love to see a gut shot if you have the opportunity to take one



[GrevMarkussen]

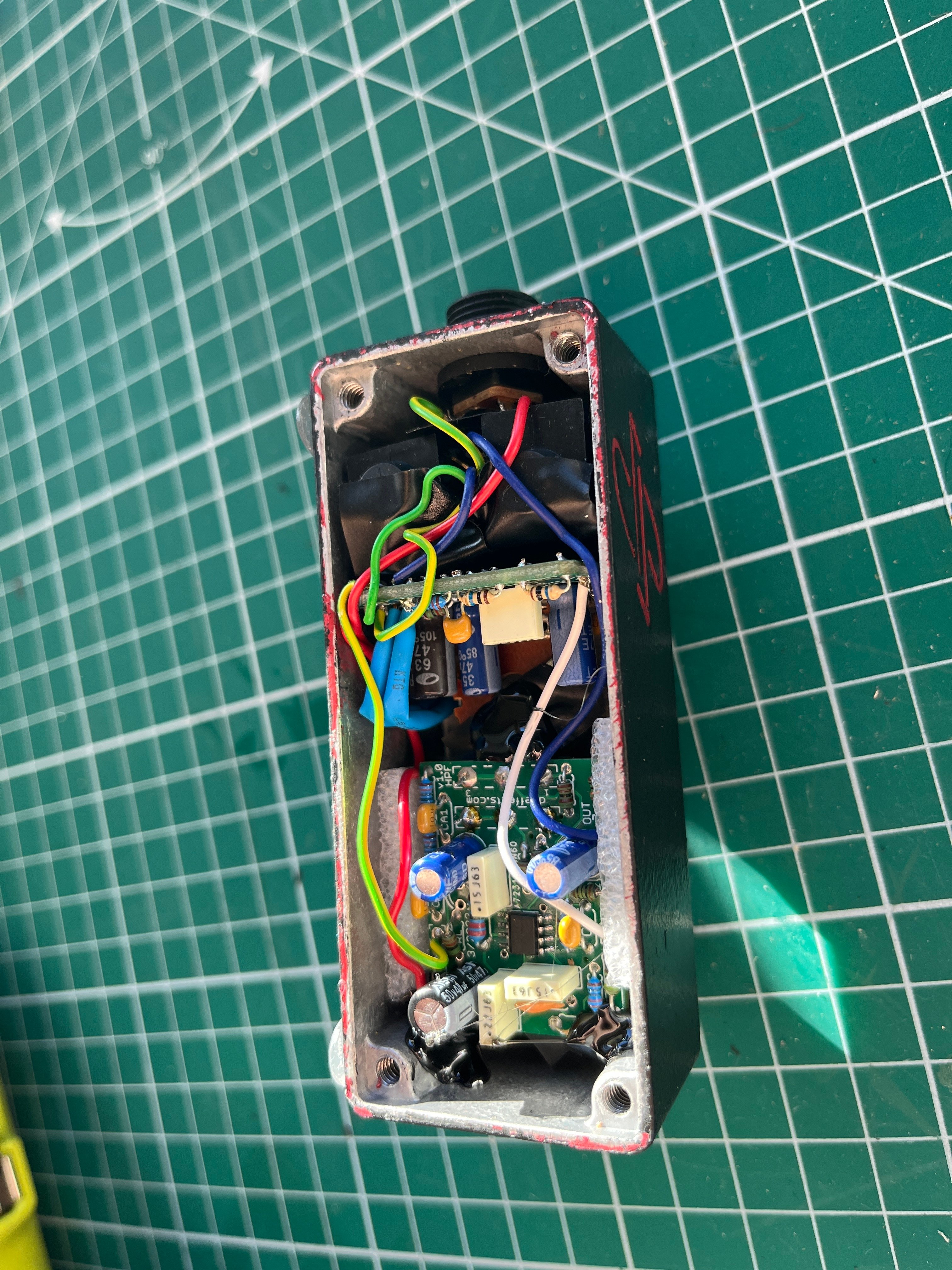

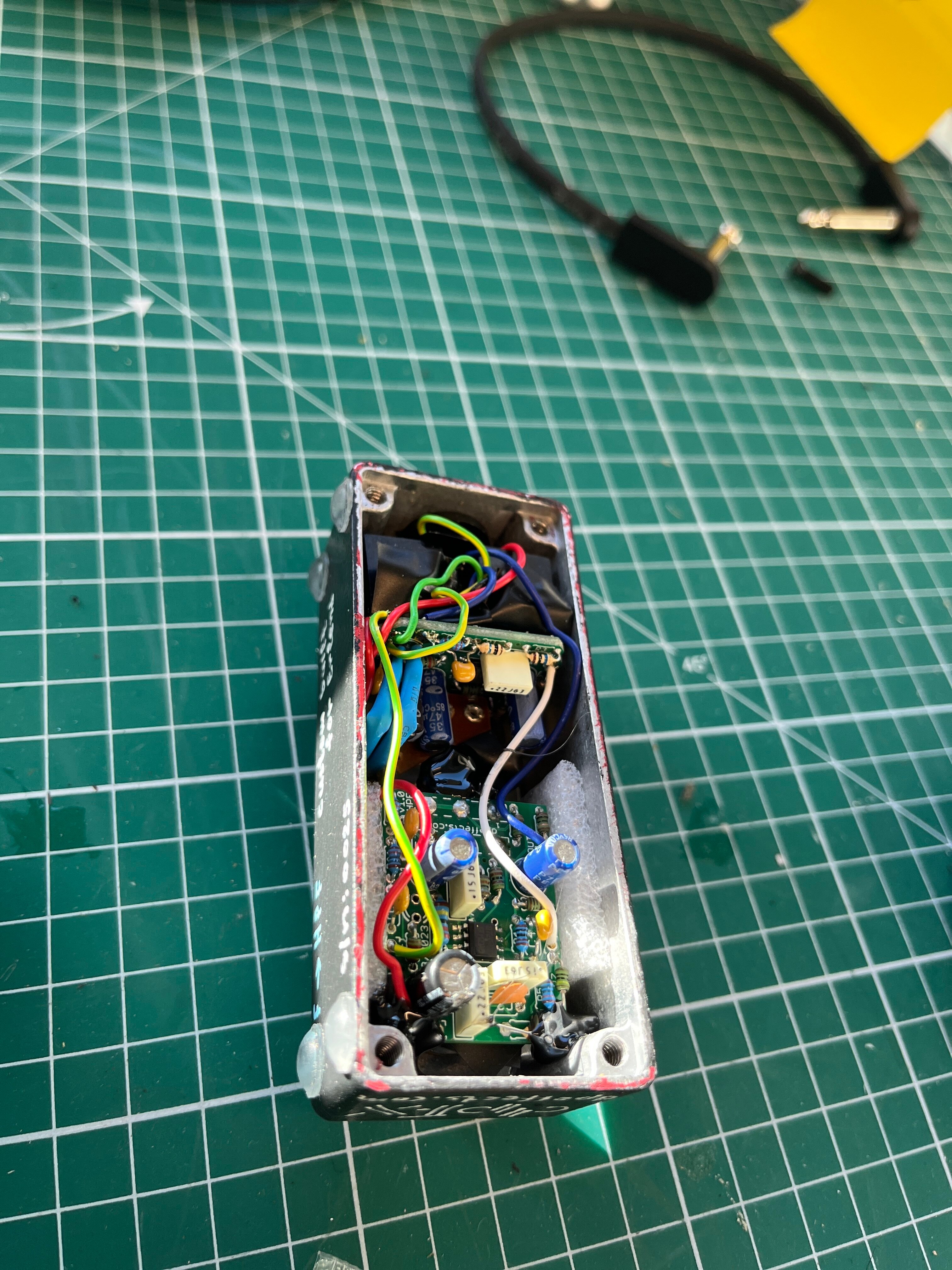

Here's the gut (tight stuff!):

The manual said that the slope was quite steep, I believe.

The plan is to have it sideways under the board!



[wellshuxley]

Here's the gut (tight stuff!):
View attachment 7043870
View attachment 7043871

The manual said that the slope was quite steep, I believe.

The plan is to have it sideways under the board!

Wow, they really packed it in there! Cool shots, thank you for sharing



[GrevMarkussen]

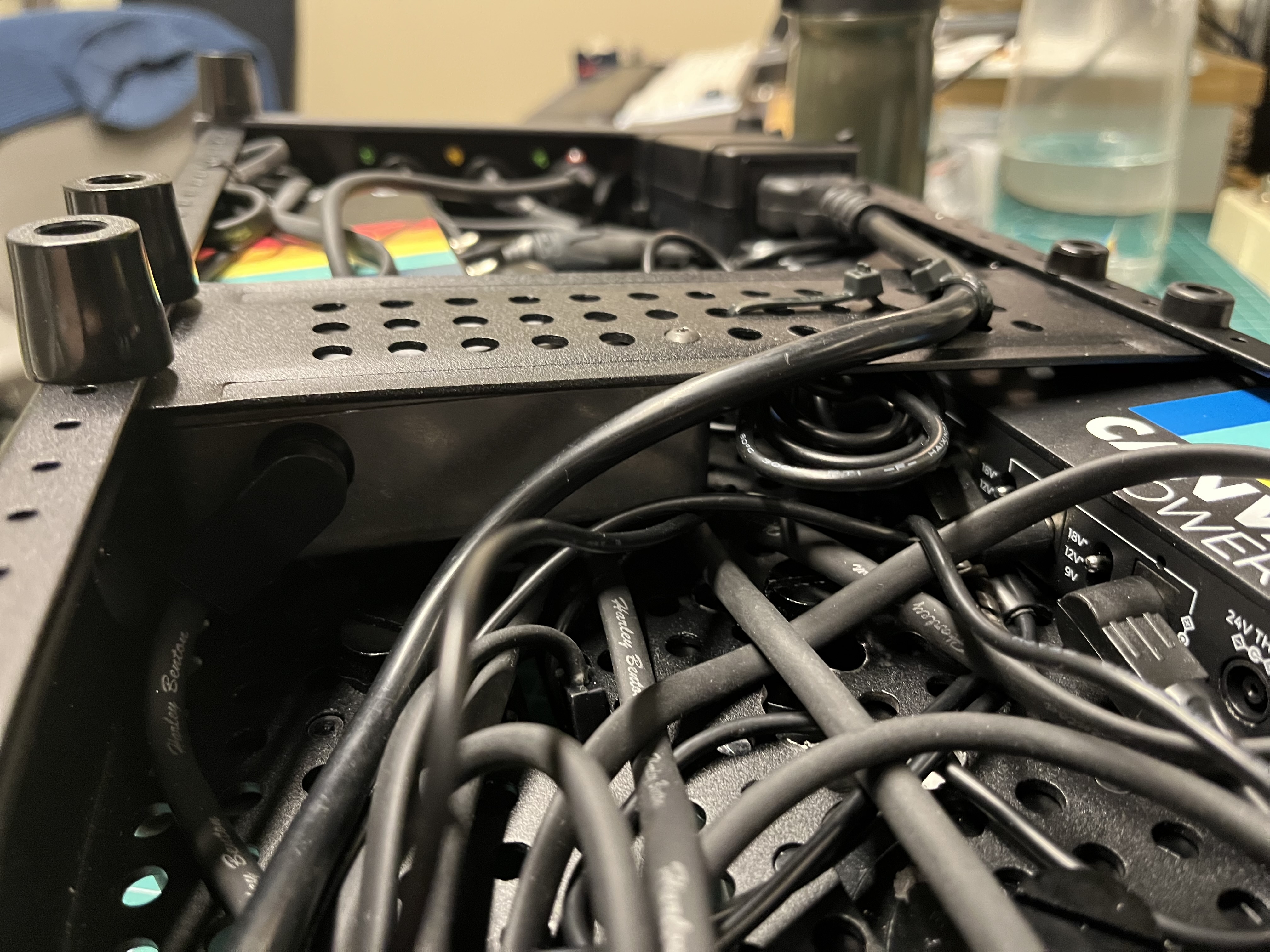

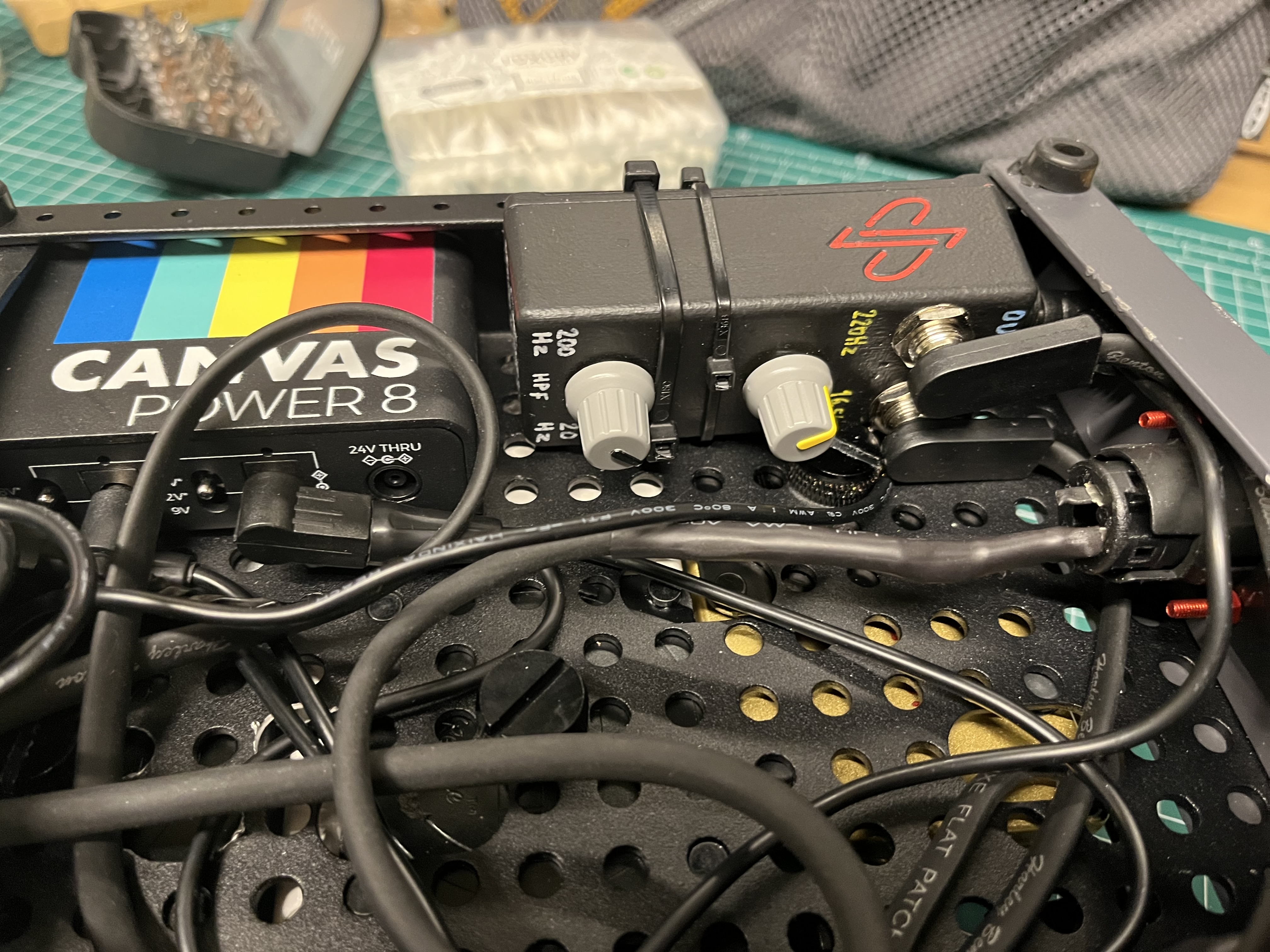

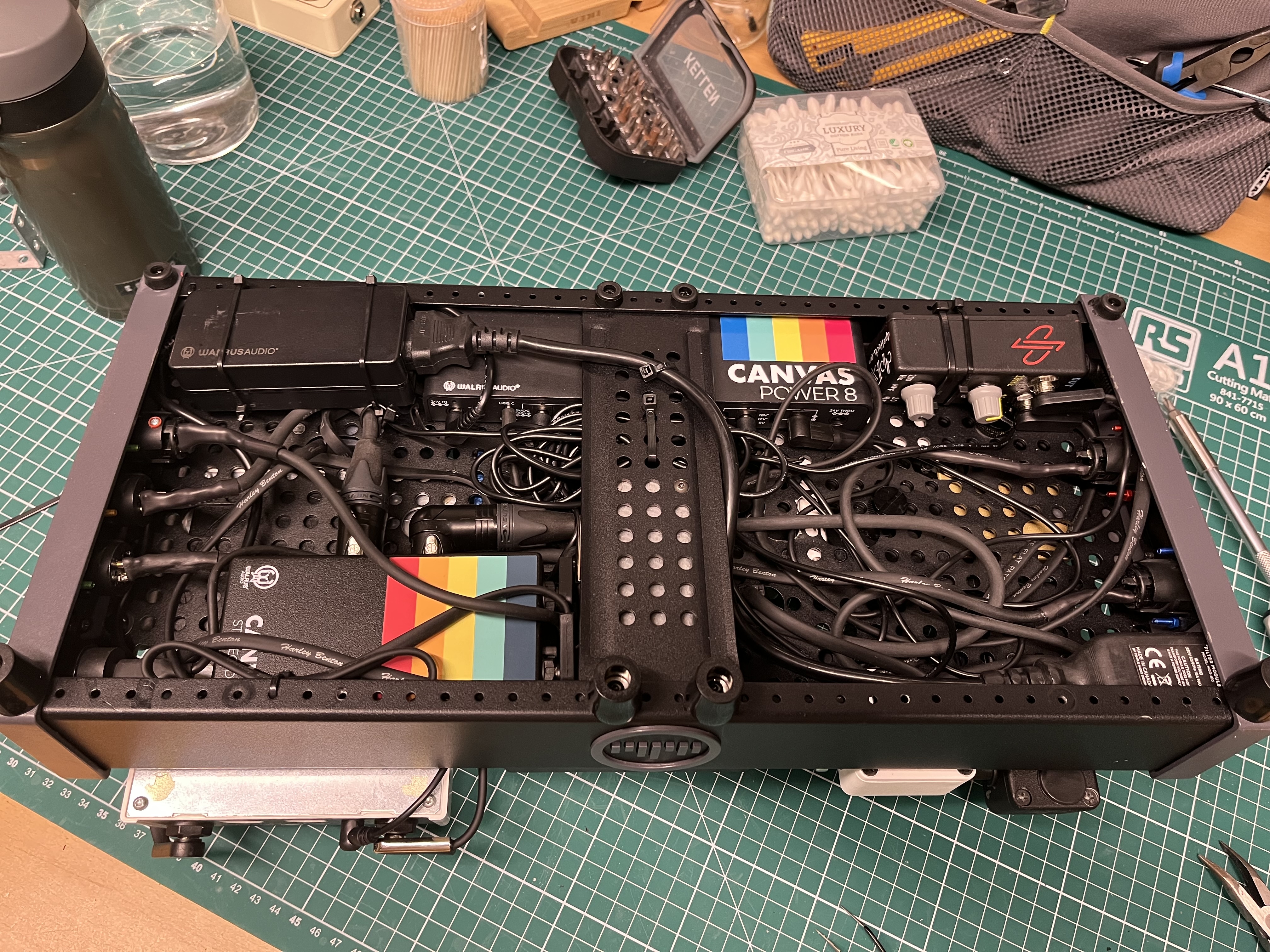

I didn’t have time to make it neat (and it’s very hard when there’s so much stuff!), but here it is! (The little grey box is a Lightning Boy 23fe.)



[wtfbtw]

Nice! What is the slope of the filters?

I've seen this filter posted on dpFX's instagram and now I see it here There they mention the slope for both filters is 12dB/octave.
Interesting gutshots @GrevMarkussen!



[Chris Wilke]

The most compact ones are built into other devices.

I have a Sansamp, and a DI each with HPF/LPF built into them.



[JohnnyBottom]

That Broughton Resonant Filter, while , standard size, gives you 3 in 1. hpf (w/resonant peak,eh) , lpf (w/ resonant peak!!), and the awesome mid with freq select.



[GrevMarkussen]

The most compact ones are built into other devices.

I have a Sansamp, and a DI each with HPF/LPF built into them.

Fair point — but that "forces" you to use those specific products. Having it separate is more flexible in that sense.

(I used to have HPF integrated like that, when I used a Noble. Got this when I switched off that. )



[Hypocrite]

Fair point — but that "forces" you to use those specific products. Having it separate is more flexible in that sense.

(I used to have HPF integrated like that, when I used a Noble. Got this when I switched off that. )

More than that, it forces you to use the cutoff freqs. that they decide for you.

It's like saying the most compact FX are the ones in multi-fx pedals. Technically correct, but more of a "one size fits most" approach
