My IBanez BTB mystery

Discussion in 'Basses [BG]' started by FunThumb, Feb 10, 2013.


  1. FunThumb

    FunThumb

    Jan 27, 2013
    NJ
    I have an Ibanez BTB 780PB in charcoal brown with a serial number that starts with 08...so I guess it was made in 2008? Anyway, for some reason this bass is not in any old ibanez catolog online that I can find. They have the 775 which is a 5 string buy mine is a 4 string. Anyone have this same bass? In descriptions online where the bass was for sale it says it has a Fishman Piezo bridge pickup....how can i tell if mine has it?

  2. Cyborg

    Cyborg Supporting Member

    Jul 7, 2007
    Lowcountry, SC
    It was a special edition.

  3. Jammin Johneboy

    Jammin Johneboy Guest

    Dec 23, 2011
    Ontario

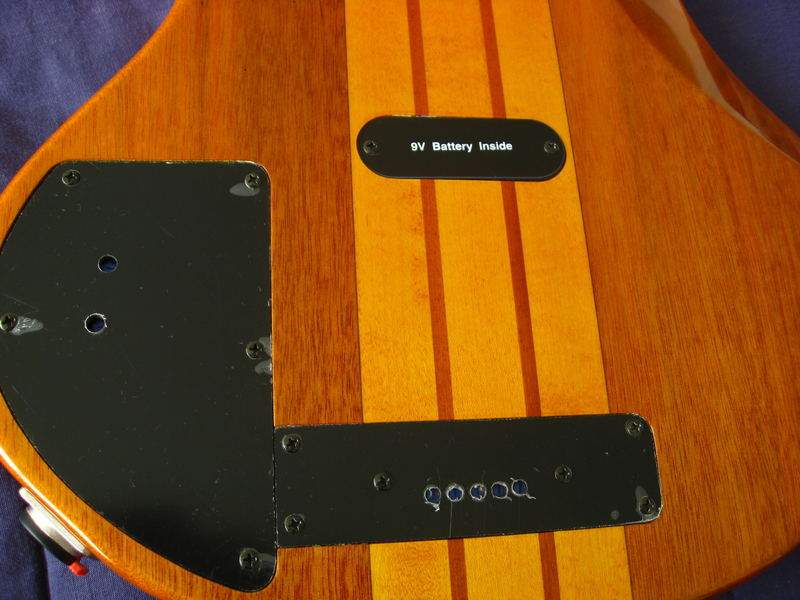

    The way you can tell if it has the Fishman Piezo bridge pickup is there is a plastic cover that extends under the bridge . The cover will have a series of holes in it for adjusting the volume of each string individually . The picture below shows the cover for a BTB 785 which is a 5 string version of your BTB 780 bass , therefore it has 5 adjustment holes , one for each string's volume. The BTB 775 does not have the piezo bridge pickup , the BTB 780 (4 string) and BTB 785 (5 string) both have the piezo bridge pickups. You can put a really small screwdriver in each hole through to the slot below to adjust the trim potentiometer (volume) of each string . Maybe shine a light or flashlight into the holes to see the adjuster slot before just jamming a screwdriver down there .

    With the other two holes on the largest cover , the one closest to the bottom of the bass is the overall volume for the piezo bridge pickup to balance it against the volume of the other pickups . The other hole a little higher up is an EQ (tone) adjustment for the brightness of the bridge piezo pickup .

    Here is how to adjust them if it is ever necessary :http://www.ibanez.co.jp/world/manual/guitars/EDA.pdf


    Attached Files:

    MoonBass17 likes this.
