New Engl Bass Rackhead E1060 Tube/SS Class-D

[OldogNewTrick]

After seeing for quite some time pics of and references to a new bass head from Engl amps, it's now actually for sale, at least here in Germany. Street price in Germany € 1.550

[Invalid or Expired Link Removed]

Some specs are not quite clear, as the website and the attached [Invalid or Expired Link Removed] quote different figures without specifying what impedance those power ratings refer to.

Dual mono 2x 350W (8ohms, my guess)
2x 500W (4ohms, my guess)

Bridge op 1x 1.000W (8ohms, my guess)
1x 1.700W (4ohms, my guess)

4 AX7's in the tube channel

web site:

-2 Channels (Tube and Solid-State Preamp) -2 x 350 Watts or 1x 1700 Watts (2 Class D poweramplifiers) -Switch Mode Power Supply (Wide Input for worldwide use) -Mute switch for both channels Channels: All tube channel (A): -4 Tubes 12AX7 - -12cB Pad -Bright Switch -Gain Control -Clipping LED -Drive Control and ON/OFF Switch -5-Band Tone Control (Bass, Low-Mid, High-Mid, Treble, Presence) -Bass Boost Switch -Ultra Bright Switch -Volume Control Solid State Channel (B): - -12dB Pad -Gain Control -Clipping LED -Shape Control and ON/OFF Switch -4-Band EQ (Bass, Semi-Parametric Low-Mid and High Mid, Treble) -Equalizer ON/OFF Switch -Compressor ON/OFF Switch -Volume Control Both Channels: -Master Volume -Effect Switches (A/B ON/OFF) -Protect LED for Poweramp Effects: - Effect Send and Return Jacks -One effect can be assigned to one channel - FX-Blend control on back panel Special: -Slave Output for Both Channels -External Input for Both Channels -Bi-Amping Output with adjustable crossover frequency -Tuner Out (Symmetrically) -DI-Out Pre-/Post-Preamp Switchable with Volume Control -Ground Lift -Speaken Outputs for Channel A and B -Speakon Output for bridged Output - Footswitch Input (supports ENGL Z-3, Z-4 or Z-9 Footswitches) Dimensions: -Height: 3.5" in (89mm) - Width: 19" in (483mm) - Depth: 13 1/3" in (337mm) Sensitivity: 0 dBm Preamp Output with 10mV 1kHz Input, Gain and Volume at Maximum, All tone controls flat (center position) and drive, Bass Boost, Ultra Bright, Shape , Equalizer, Compressor OFF; Effects Blend at Dry



[sonic 7]

Cool !!!!



[Red Man]

I'm one of the few people who has a copy of the user manual and photos of the back panel....I don't know why it ain't on engls website.... I'll see if I can upload it somehow



[Red Man]

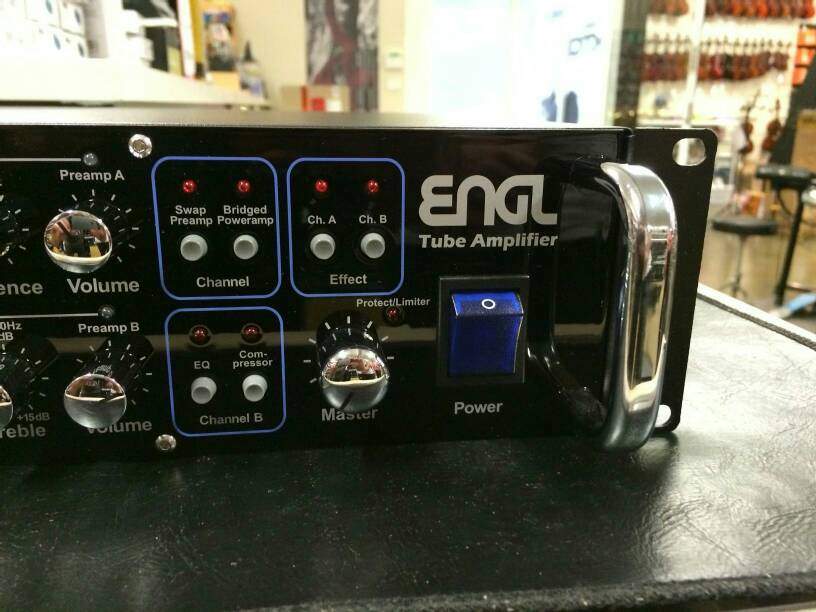

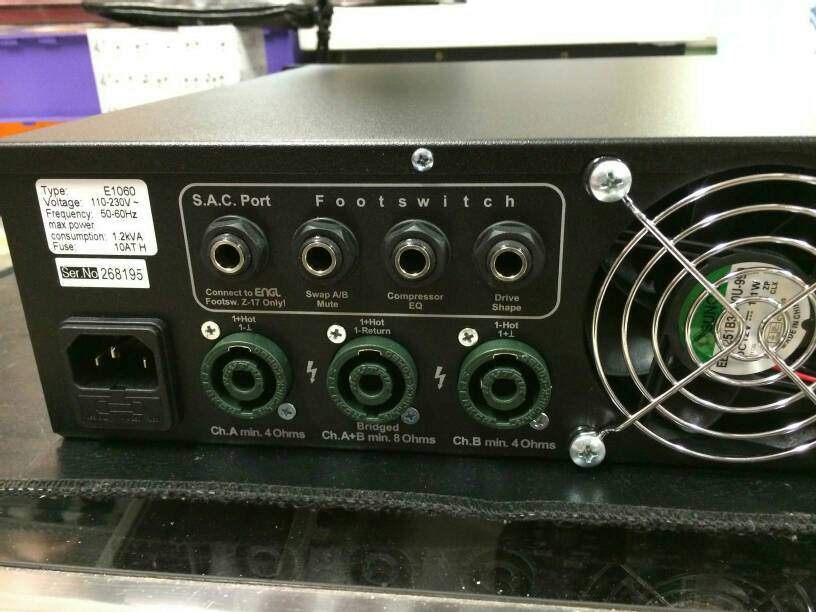

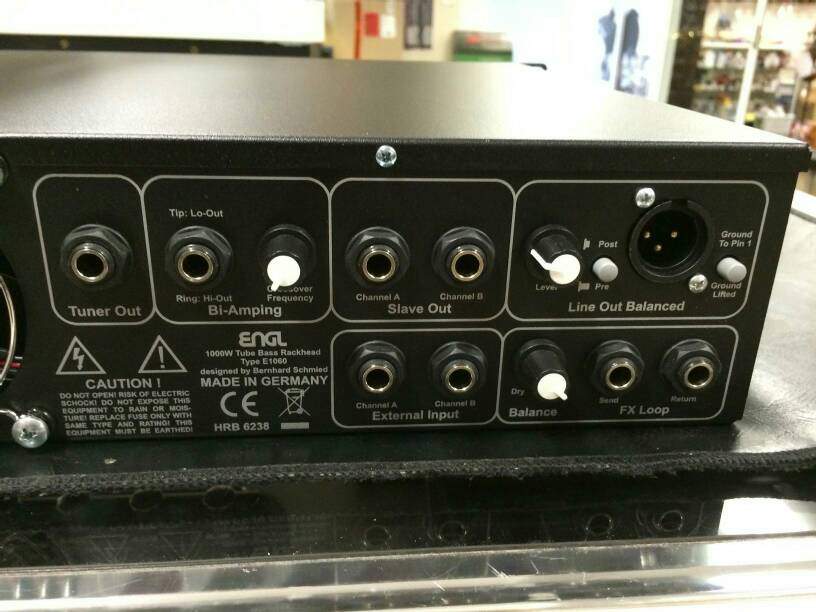

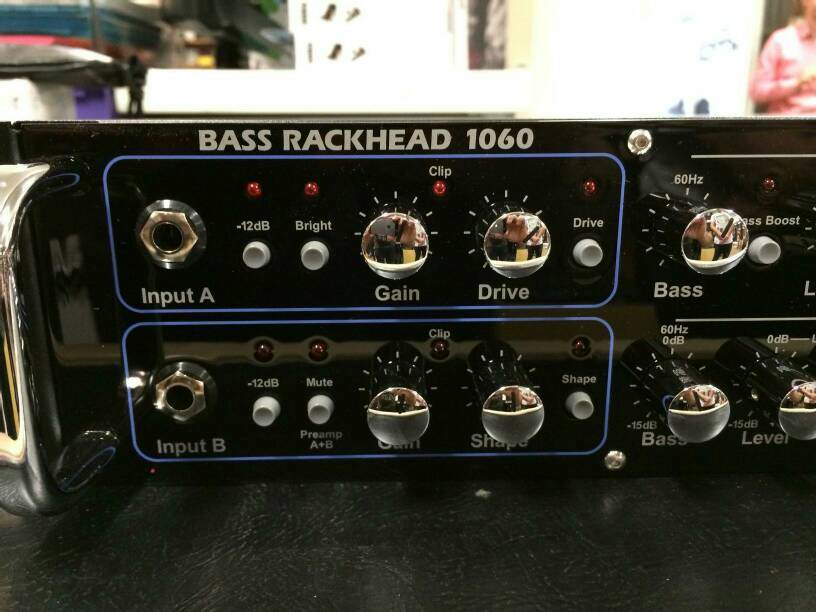

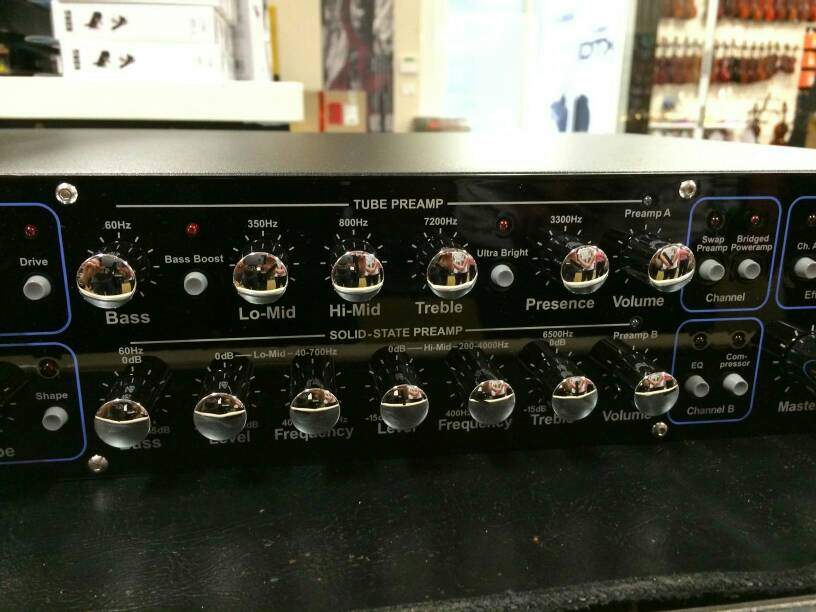

Photos of the unit



[Dave W]

I don't like how they call it a tube amp.



[crguti]

I want sound demos!!!!



[Musicman20]

Parts of it remind me of a Genz Benz Shuttlemax.



[Tunaman]

Parts of it remind me of a Genz Benz Shuttlemax.

Which means I would LOVE it! Its seems like a StreamlinerMax concept



[Red Man]

I just bought this amp and it's killer!

I want sound demos!!!!

Premier Guitar did a review of this amp and they included demos: Invalid Link Removed

I also just recently uploaded a bass cover using this amp, mind you I am running the MXR bass DI in front of it, which is colouring the sound:

Which means I would LOVE it! Its seems like a StreamlinerMax concept

Unlike the Genz Benz you cant blend the two preamps without doing some weird patching arrangement, they are two separate independent channels



[Midinut]

Apologies... this is a late question - can you run this amp with just one cab plugged into say channel A output? How would you then switch between chan A or B inputs so that you always get sound from chan A output? What I mean is instead of using the bridged output... that can only go down to 8 ohms.
