Nordstrand Hum Cancelling Big Blade Pickups

bucephylus

Supporting Member
Aug 18, 2002
12,452
18,890
Central Ohio
About 18 months ago, I started looking around at options to refit my Nashville Tobias Classic 6 string; which is fundamentally a pretty nice bass, weighing in a shade over 9 pounds, having a nice neck profile, and being very resonant and even throughout its registers. As part of the refit, I wanted to get close to the tones I was hearing from Foderas; so, I decided to give the Pope Flexcore a try. For pickups, I wanted to get closer to the single coil open character than the Bart pickups; and decided that exposed poles would be interesting to try.

As I was looking at various options, the Nordstrand shop announced the single coil Big Blade pickups. Those were interesting, because getting the exposed round slug pole types to line up with the string spacing on the Tobias was going to take custom bobbins/winding/etc. After listening to the Big Single vs Fat Stack sound clips, it seemed to me that the Nordstrand folks were doing a very credible job getting their hum cancelling pickups into a similar tonal zone as compared to the single coil designs.

So, I called Carey to ask if hum cancelling Big Blades might be an option. Carey's response was more or less to connect me to Adrian Smith, a bass player and member of the Nordstrand staff, who indeed was playing with some designs along these lines. Adrian agreed to send me a prototype set to evaluate.

Well, the prototype set arrived about a month ago, and the bass went off to Pat Wilkins for refinishing and refitting. Pat, BTW, is an awesome cat. Here is the result:

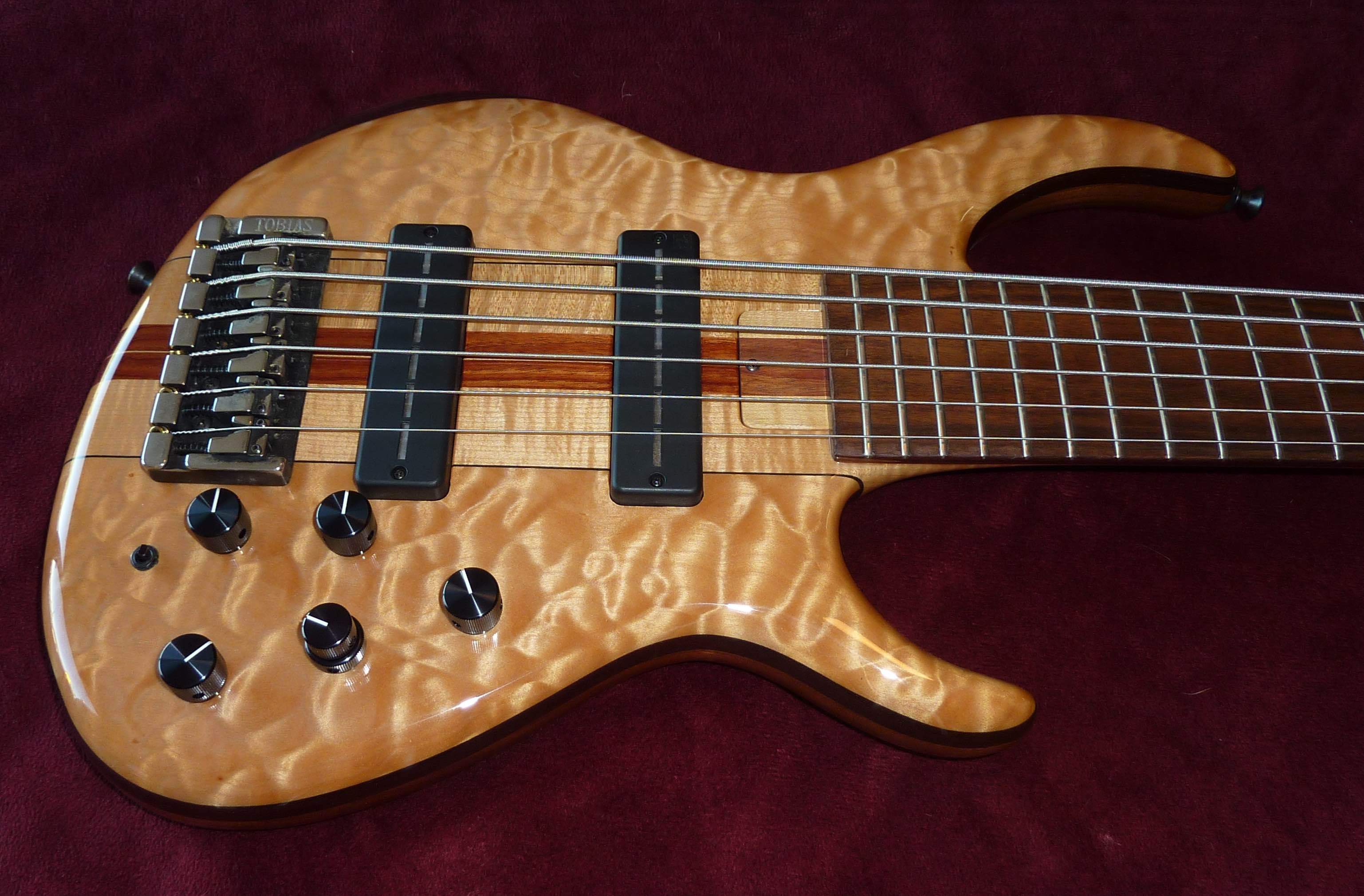

Tobias Classic 6 Front Body.jpg


Here is how I would characterize these pickups: VERY open, VERY even, NOT voiced, NOT scooped. In short, they are a solid platform that is a virtual blank canvas with which to construct your tone. Plenty of heft, but no honk.

I took the bass right away to rehearsal with my current cover band; and it effectively covered all the tones I use, running the gamut from thump to slap to staccato etc. Very clear in the mix.

Big shout out to Carey and Adrian who are very cool cats and were enormously helpful in getting exactly what I was after. Class act. We are fortunate to have them as part of the framework. Thanks, guys!

yup, sidewinders.
Nice review bucephylus
Did you wire them up in series or parallel?
Hey, Mo!

Again, I don't know. Pat made the executive decision. What I see is red and white leads soldered together and the green lead hooked up to signal. Guess I would have assumed they were parallel; but, maybe, that is series? I don't recall seeing any diagram of the taps.

Hey, Mo!

Again, I don't know. Pat made the executive decision. What I see is red and white leads soldered together and the green lead hooked up to signal. Guess I would have assumed they were parallel; but, maybe, that is series? I don't recall seeing any diagram of the taps.

That's series


usually:

black +
White -

Red +
Green -


series:

Black +

White-Red

Green -

(green and black can be reversed)

Parallel:

Black +
Red +

White -
Green -

Thanks @maurilio!

Yeah when I saw the connections, I figured it had to be series.

Finally found the original Big Blades thread, and see your post there about these pickups.
Nordstrand Big Blades?

For some reason, the TB search tool didn't find it when I searched "Nordstrand." I'm starting to be less confident in that search tool.

Anyhow, your comments there seem to line up with my perception of this configuration being very evenly voiced vs scooped. I like it that way! Very versatile.

About 18 months ago, I started looking around at options to refit my Nashville Tobias Classic 6 string; which is fundamentally a pretty nice bass, weighing in a shade over 9 pounds, having a nice neck profile, and being very resonant and even throughout its registers. As part of the refit, I wanted to get close to the tones I was hearing from Foderas; so, I decided to give the Pope Flexcore a try. For pickups, I wanted to get closer to the single coil open character than the Bart pickups; and decided that exposed poles would be interesting to try.

As I was looking at various options, the Nordstrand shop announced the single coil Big Blade pickups. Those were interesting, because getting the exposed round slug pole types to line up with the string spacing on the Tobias was going to take custom bobbins/winding/etc. After listening to the Big Single vs Fat Stack sound clips, it seemed to me that the Nordstrand folks were doing a very credible job getting their hum cancelling pickups into a similar tonal zone as compared to the single coil designs.

So, I called Carey to ask if hum cancelling Big Blades might be an option. Carey's response was more or less to connect me to Adrian Smith, a bass player and member of the Nordstrand staff, who indeed was playing with some designs along these lines. Adrian agreed to send me a prototype set to evaluate.

Well, the prototype set arrived about a month ago, and the bass went off to Pat Wilkins for refinishing and refitting. Pat, BTW, is an awesome cat. Here is the result:

View attachment 1087548

Here is how I would characterize these pickups: VERY open, VERY even, NOT voiced, NOT scooped. In short, they are a solid platform that is a virtual blank canvas with which to construct your tone. Plenty of heft, but no honk.

I took the bass right away to rehearsal with my current cover band; and it effectively covered all the tones I use, running the gamut from thump to slap to staccato etc. Very clear in the mix.

Big shout out to Carey and Adrian who are very cool cats and were enormously helpful in getting exactly what I was after. Class act. We are fortunate to have them as part of the framework. Thanks, guys!
You're like me in having ideal bass tones in your head, and doing what is necessary to achieve your desired tones! ;)

  • Like
Reactions: bucephylus
When are the pickups going to be available for sale? Are final design tweaks being made or can we expect to see them at places like bestbassgear.com soon? Any sound clips available or do these sound very similar to the single coil big blades? Love the big blade demos but want hum cancelling so figured these might be the ticket.

No release date for now, still in the work...

Ok, here something (I'm not too crazy about this video, we had tons of streaming tech problems that day and we were not focus/concentrated, sorry for the sloppy playing!)

this is my new bass with BBSW and a custom 3b:

<iframe src="Facebook" width="560" height="315" style="border:none;overflow:hidden" scrolling="no" frameborder="0" allowTransparency="true" allowFullScreen="true"></iframe>

Last edited:
No release date for now, still in the work...

Ok, here something (I'm not too crazy about this video, we had tons of streaming tech problems that day and we were not focus/concentrated, sorry for the sloppy playing!)

this is my new bass with BBSW and a custom 3b:

<iframe src="Facebook" width="560" height="315" style="border:none;overflow:hidden" scrolling="no" frameborder="0" allowTransparency="true" allowFullScreen="true"></iframe>

The embed isn't working, at least not for me.

Never mine. There it is! Very nice! Are these in series or parallel for this beautiful little concert?

Last edited:
