Nordstrand quad coil series/parallel wiring

[Flying B]

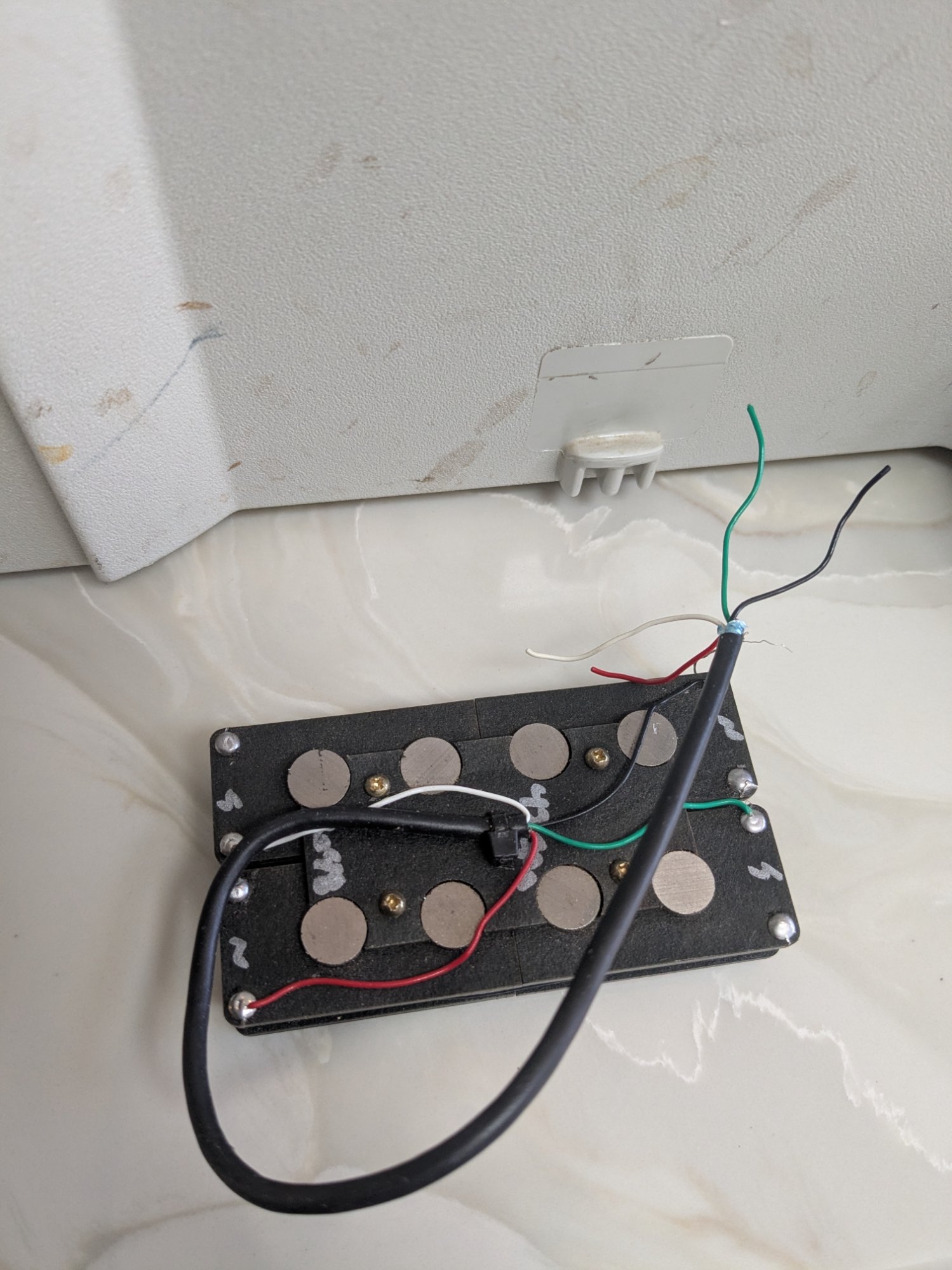

I'm sure this has probably appeared somewhere but I can't find it. I want to wire this nordstrand mm 4 quad coil to a dpdt switch to give me the option of series or parallel. All the wiring diagrams I can find are with a three way switch that also gives the option of single which I don't want as I'm just using a push pull pot.
Thanks



[ardgedee]

Does Nordstrand's own diagram not work?

Found here:

Pickup Wiring Diagrams and Schematics

All Single Coil and Split Coils: The black wire is ground and the white wire is hot. The gray wire also goes to ground unless a buffered input preamp is used like an Audere, in which case the black wire goes into the preamp common and the gray wire goes to ground. All Dual Coils and Humbuckers...

nordstrandaudio.com



[Flying B]

This is their diagram

But as I said it only shows the wiring for a three way switch, I just want series/parallel using a push pull pot. Probably very obvious how to do it for someone who understands this stuff!



[ardgedee]

But as I said it only shows the wiring for a three way switch, I just want series/parallel using a push pull pot. Probably very obvious how to do it for someone who understands this stuff!

Check the diagram I linked to. It's literally what you're asking for.



[Flying B]

Check the diagram I linked to. It's literally what you're asking for.

The link just takes me to the page that lists all their diagrams



[ardgedee]

The link just takes me to the page that lists all their diagrams

The link in the text that said "Nordstrand's own diagram" :

https://cdn.shopify.com/s/files/1/1941/7837/files/NA_wiring_diagram_ser_par_switch.pdf?v=1651785525



[Flying B]

Ah that's great cheers!



[sunbeast]

This is their diagram

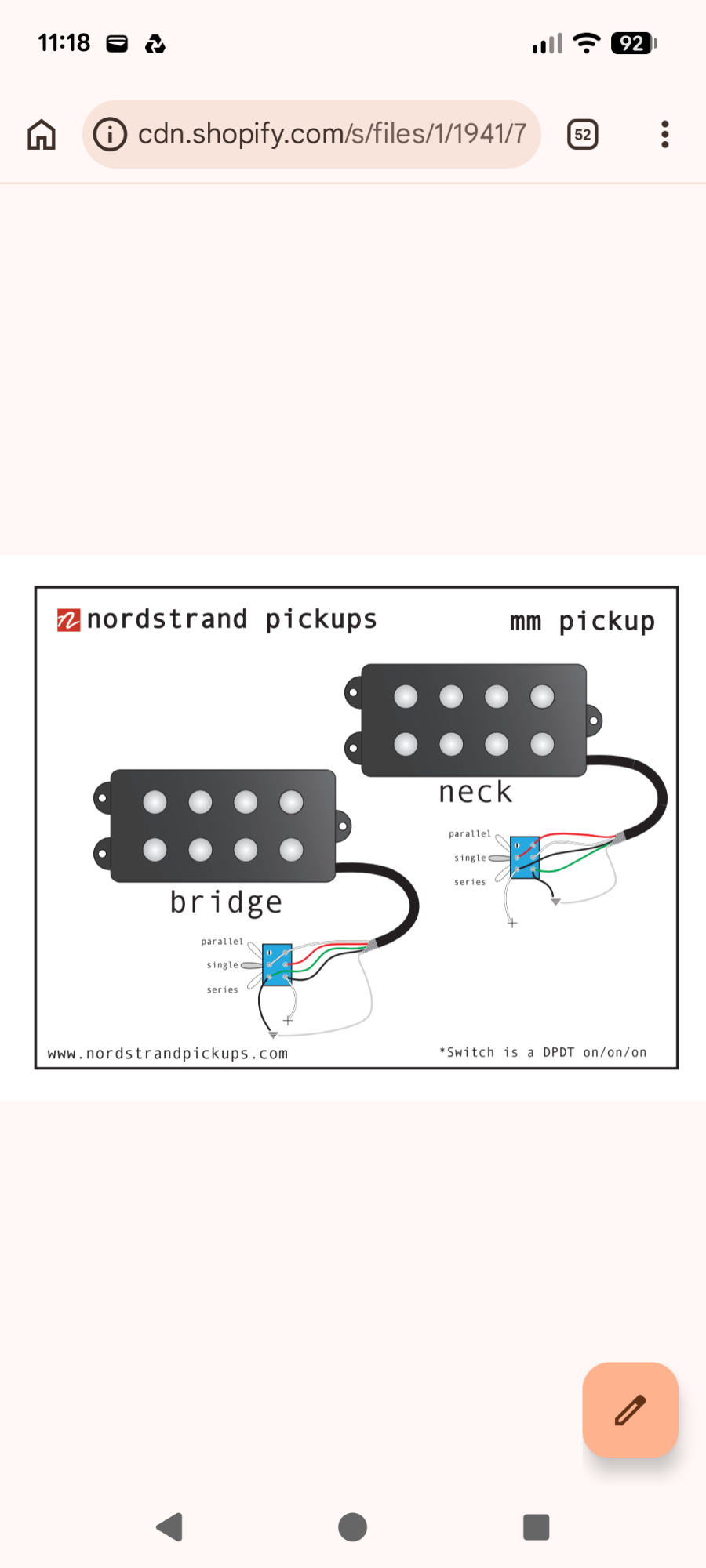

View attachment 7462015
But as I said it only shows the wiring for a three way switch, I just want series/parallel using a push pull pot. Probably very obvious how to do it for someone who understands this stuff!

Using this 3-way diagram but wired to a standard 2-way DPDT ON-On switch, this diagram will give you series/parallel as a 2-way and 3-way switch both work the exact same in the two outer positions.
