P/J Pickup Controls

[knitman]

Hi, just wondering if someone could explain to me the difference between a 3 way switch/1V/1T control setup like on the pbass plus and a 2V/1T setup like on a pbass special.

I'm interested in rewiring a squier pbass special which is why I'm asking. I'm open to interesting control suggestions.

Thanks



[M0ses]

A 3 way has these options:
Solo J
Both equal
Solo P

And 2 vol/tone allows you to blend them.

Pros of toggle: Ease/speed of use
Pros of 2 vol: Ability to fine tune.

Of course, if you were a little more electronic savy and knew exactly what kind of blends you wanted, you could wire in resistors to achieve blends other than solo/equal. But I have to leave SOME research to you.



[line6man]

http://www.talkbass.com/forum/showthread.php?t=526963



[knitman]

Is that to say that turning one of the volume knobs to 0 on the pbass special doesn't completely isolate the other pickup?? It seemed to sound like it to me when I was experimenting (but I'm new to bass).



[line6man]

Is that to say that turning one of the volume knobs to 0 on the pbass special doesn't completely isolate the other pickup?? It seemed to sound like it to me when I was experimenting (but I'm new to bass).

By "isolate", you mean remove?



[knitman]

yes, as in leaving only the other pickup



[line6man]

yes, as in leaving only the other pickup

When you turn a volume control down to "0", it should be connecting the pickup's hot directly to ground at 0 ohms. The pickup should not stay in the circuit at all.



[knitman]

so then, turning the J pickup volume to zero on a 2v/t is the same as switching to the P pickup on a 3way/v/t?



[line6man]

so then, turning the J pickup volume to zero on a 2v/t is the same as switching to the P pickup on a 3way/v/t?

No, the outputs of the pots are in parallel, so there is still the resistance from signal to ground from the J pickup's pot.



[J. Crawford]

My favorite?

V, V, Bass/Treble stacked, 3 way


Win.



[knitman]

Looking at the wiring diagram, I think i see what you mean. Could I get around this by keeping both volume pots but adding a 3 way? Something like this
http://www.seymourduncan.com/pdfs/support/schematics/2h_2v_1t_3w.pdf
pretending those are bass pickups, of course



[line6man]

Looking at the wiring diagram, I think i see what you mean. Could I get around this by keeping both volume pots but adding a 3 way? Something like this
http://www.seymourduncan.com/pdfs/support/schematics/2h_2v_1t_3w.pdf
pretending those are bass pickups, of course

Yeah, that's what I did with mine, and that's what Jordan just mentioned.

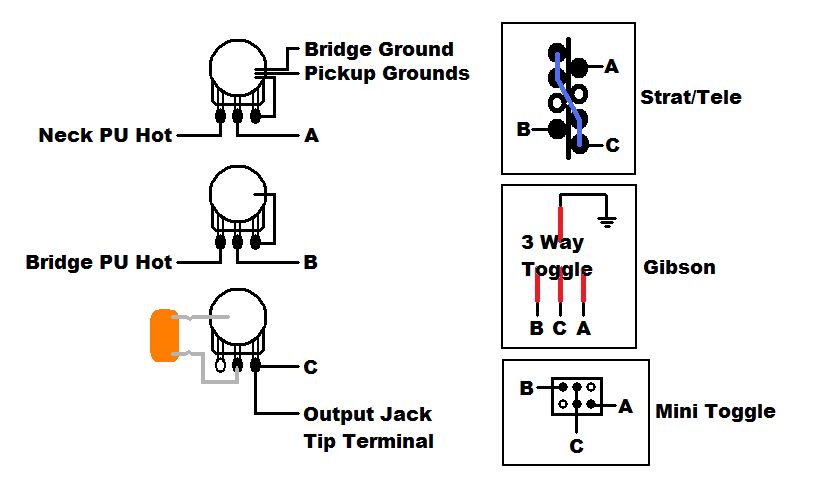

Here is a diagram that shows all three switch types:



[knitman]

That is very useful. I think that's what I will do also. Thanks for all your help . I will look into that treble/bass cut, sounds interesting
