Peavey VTB 300 Tube Head

[bassdopp]

I'm looking to buy an old VTB 300 head. Is there anyone out there who might have a schematic or even a link to any tech info on this head. Thanks, John



[nashvillebill]

Call Peavey, they will send schematics free, even for their old stuff.



[BbbyBld]

Hartley Peavey designed that one himself. We have schematics. Contact customer service.



[bassdopp]

Thank you. I will contact customer service. I was afraid this was going to be too old for them. That's great news.



[bassdopp]

Bbby Bid, do you recall the output loads for the two 1/4" jacks for the speakers? It is not labeled on the back? I read a thread they are series, not parallel. John



[throbbinnut]

That amp puts out 200 Watts RMS into 2 ohms, 150 into 4 ohms, and 100 into 8 ohms. Unlike other tube amps that have multiple taps on the output transformer, this amp only has 1 single tap, and the power is max when running into 2 ohms. The jacks are in parallel.

I've got one and it's ripped apart on my bench right now so I can rebuild it with a different preamp section.

Chris



[BbbyBld]

That amp puts out 200 Watts RMS into 2 ohms, 150 into 4 ohms, and 100 into 8 ohms. Unlike other tube amps that have multiple taps on the output transformer, this amp only has 1 single tap, and the power is max when running into 2 ohms. The jacks are in parallel.

I believe this is correct. I couldn't find my VTB schemo, but I did find the VTA400, which is similar, and that's how it's done.



[JimmyM]

Wow, that's the first I ever heard of a tube amp having reduced wattage with higher impedance...wild!



[ButtloadofBass]

Hartley Peavey designed that one himself. We have schematics. Contact customer service.

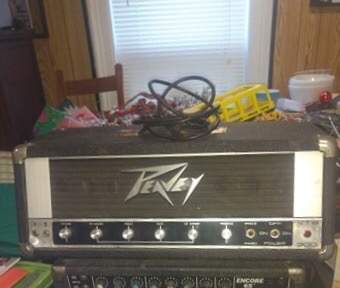

This is going to be a beast once again
