PJ pickup options - something other than a J?

[mr.hughes]

Kasbrey - thanks for that!!! That's the exact spec of my Precision - makes it a lot easier to imagine how it would look. Do you have any soundclips of the bass and various pickups combos? How do you have it wired?



[kasbrey]

[Invalid or Expired Link Removed]

Click on gallery for more pics. You can download the electronics spec too . Mine is a slightly older spec and has, I think, a Noll pre, wired volume, blend, treble and bass with active/ passive switch on the vol. My newer JM4 has the Glockenklang pre with passive tone on the active treble pot when switched.

No clips from me as yet but there's a video on Sandberg's news page with a Sandberg PM4.



[Bassdirty]

DANG.

Thats exactly what im doin to my squier....same color too.



[Domespeed]

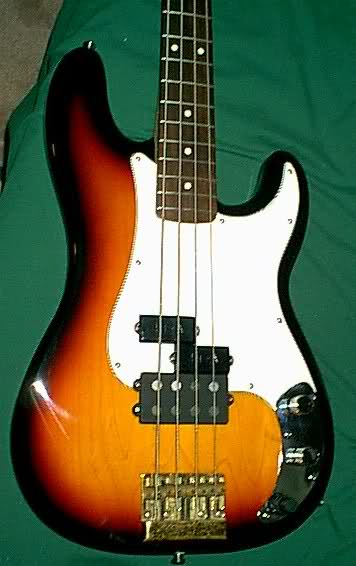

This exact body now is here with me in Germany!
I bought it from someone in the USA via ebay (don't know if the person was BassLife77; but no doubt this body is the one - the wood grain is identical) and I'm using the bass quite a lot.

Now it's got a MightyMite Maple Neck, a Fender Bridge, a MusicMan Pickup coupled with an EMG 2Band-EQ and a P-PU which runs passive.

You can choose either pickup - no possibility to combine the two Pickups; but since the MM-PU is nearly exactly in the original Stingray position, this bass got quite an authentic MusicMan sound in addition to the traditional P-Sound.

I love it - in fact used it tonight on a gig near my hometown!



[mr.hughes]

Small world huh? I wonder why both pickups can't be combined. Are you going to leave it that way? Does it have a separate outputs for each pickup?



[Domespeed]

There is a two-way toggle switch for the pickups. The reason I did it that way is because the P-pickup is going passive to the output while the MM is running through a preamp in order to have each sound as close a s possible to the original.

In fact, I didn't try the combination of both pickups - I was just figuring that active and passive won't go together too well...


edit: only one mono output.



[Jazz Ad]

Just make sure you use a humbucking J.
First because this way it won't be overwhelemed by the p (which WILL happen with a single coil).
Second because a single J would be noisy without his sibling to kill hum.



[mr.hughes]

Yep. I'm leaning towards a traditional P/J set-up. Thinking I might run into problems with hum if I start going down the soapbar/MM route with series/parallel switches. I might not, but I don't know enough to make an educated guess.

The Nordstrand Big Splits/Fat Stacks/Dual Coils all seem like good options, and I think would visually look very cool on a Sid Vicious style P-bass, but I don't understand all the wiring options and how they would work blended with a P-pickup. Anyone know how that might turn out?



[BassLife77]

This exact body now is here with me in Germany!
I bought it from someone in the USA via ebay (don't know if the person was BassLife77; but no doubt this body is the one - the wood grain is identical) and I'm using the bass quite a lot.

Now it's got a MightyMite Maple Neck, a Fender Bridge, a MusicMan Pickup coupled with an EMG 2Band-EQ and a P-PU which runs passive.

You can choose either pickup - no possibility to combine the two Pickups; but since the MM-PU is nearly exactly in the original Stingray position, this bass got quite an authentic MusicMan sound in addition to the traditional P-Sound.

I love it - in fact used it tonight on a gig near my hometown!

that's not my bass (yet). It's one of my projects and I'm using that pic as a reference for the luthier when he cuts out the cavity. I plan on installing a homebrew Stingray 2 band preamp and switches. If you add a switch you can combine both pickups.
