It seems like quite a few people here own one of these, so I am hoping you can help me where everywhere else has not.

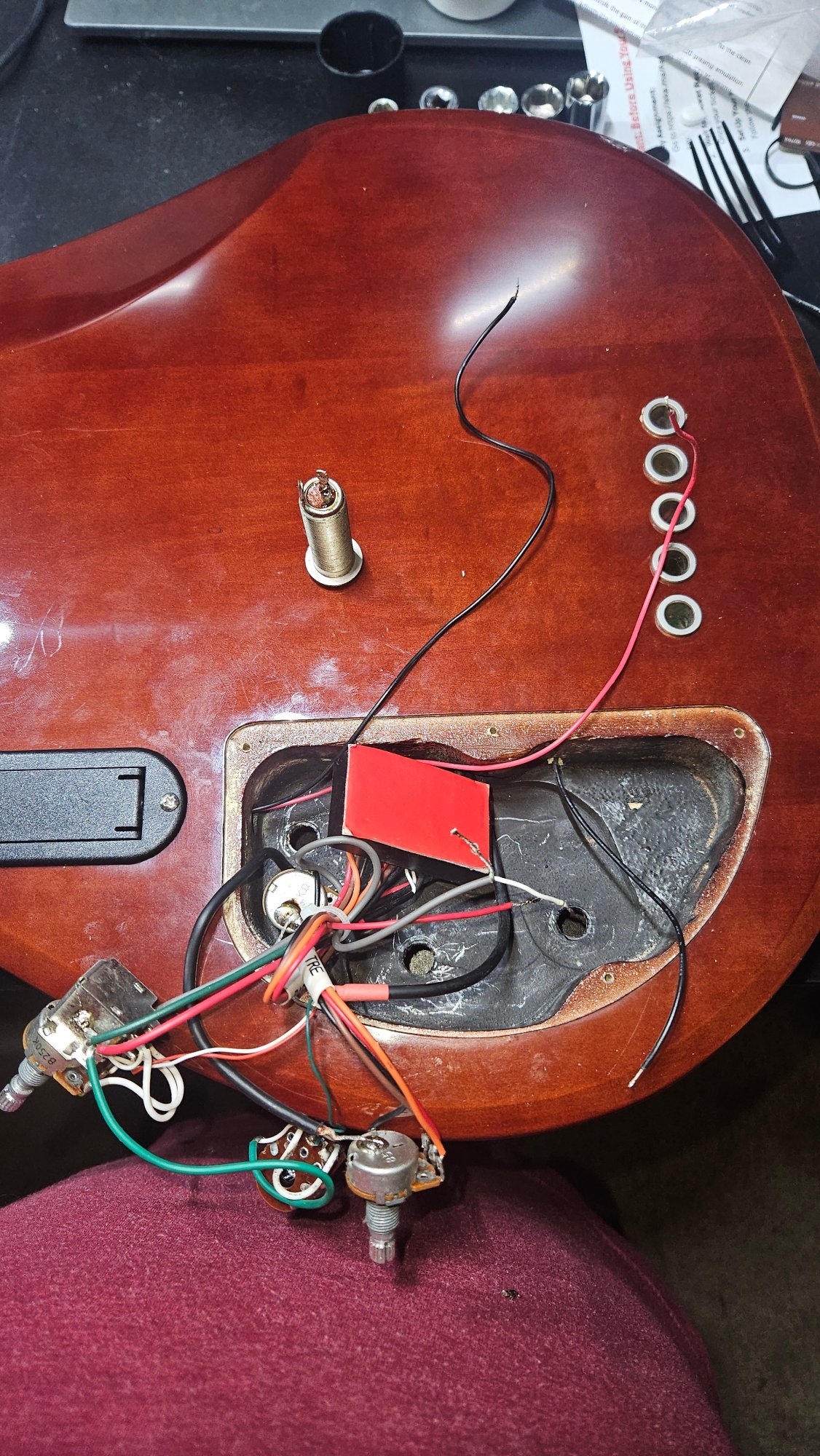

Can you help me figure out how to rewire this?
I have it working in a passive configuration, but I can't figure out where to solder the battery positive at. I'm also not sure if my passive configuration is correct, even if it worked.
Where is the best spots for soldering the positive and negative battery terminals?

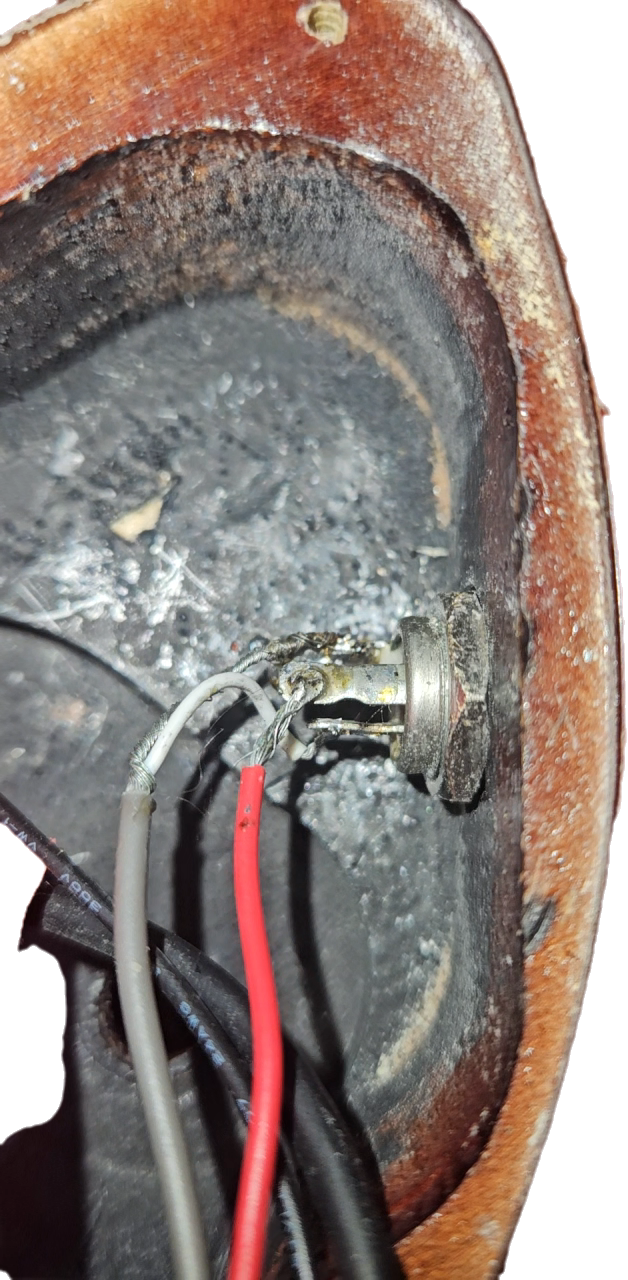

Should I wire the jack differently? I'm sure this is part of my problem, since I am hoping that the jack is part of completing the circuit to avoid the battery being wired always-on
Bonus question, what about the best spot for this bridge ground? It was taped down, but the tape has finally crumbled away whilst fumbling around in here.
Wiring diagrams welcome, or just pictures of the inside of your functional LX405 haha
