Second build, what do you think? 😬

[MikeMonterrubio]

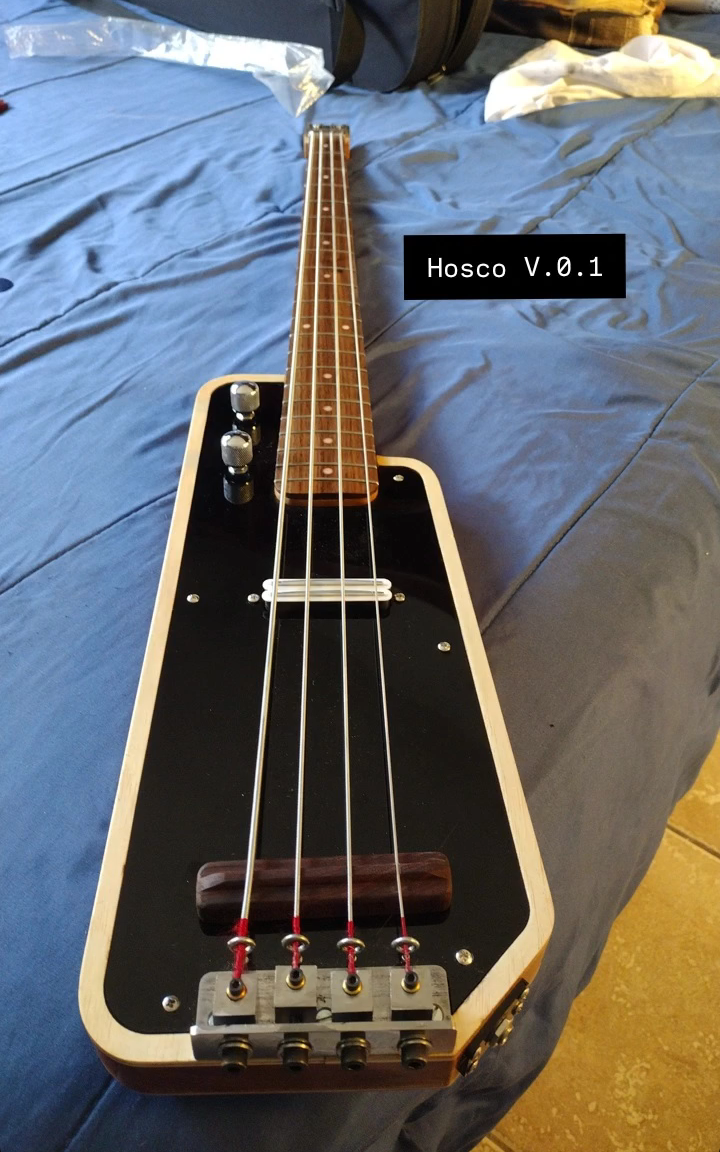

Hi! Here are some pictures of mi second build, the "Hosco" bass, "hosco" means rude or unpleasant in spanish and i think that name goes well with the bass appereance. The body was made with red cedar, laser cut plywood frame and backplate, and an acrylic pickguard (also laser cut). The neck Is made out of white oak...i think, and the fingerboard Is walnut, the inlays are pieces of 1/4" flexible copper pipe filled with baking soda and cyanoacrylate, The tuners and string holder are mild steel with some Allen screws (I had 3D printed some handles for the tuners, but they were very uncomfortable and I changed them for M5 Allen screws ). The bridge Is made out of Tzalam wood and the nut Is aluminum (now all my files are clogged) and the pickup Is one of those chinese guitar humbuckers. The body and the neck were finished with ten layers of tru oil.

You'll notice that the neck profile Is almost a square, The truth is that it is the first neck I built and it is also the final submission of a subject I am taking at school, so I did not dare to carve it by hand and I did not have any other roundover cutter that wasn't 3/4" lol, although i'ts quite thick, I like the surface where the thumb rests to be flat, maybe it's just necessary to lower it a little next time

Let me know what you think and give me ideas to locate the strap buttons



[MikeMonterrubio]



[Neck Diver]

Way outside the box. Very creative. How does it play and sound? Oh, if it gets stolen it would be easy to identify. Enjoy your creation.



[JIO]

Quite the unique resolution on bridge design... just don't forget the hex-wrench at your next gig.



[MrAB4003]

Cool bass! It reminds me of a Steinberger but if Ned designed those basses within the last few years instead of in the 1980s. What's the scale length?



[BGroovy]

Love to see something completely different. Very cool that you made all the parts



[subdude67]

I love your approach and execution very much! Unique in every way, I hope it plays and sounds to your satisfaction.



[Ricky Rioli]

You'll notice that the neck profile Is almost a square

My disproportionately large thumb, which on normal necks is always having to find ways of getting comfy, took one look at that neck profile and was immediately smitten YES.



[RSB]

Nice job! What is its scale and weight?



[MikeMonterrubio]

Way outside the box. Very creative. How does it play and sound? Oh, if it gets stolen it would be easy to identify. Enjoy your creation.

Thanks mate! I hope It never gets stolen, but that's a good point!
It's a bit uncomfortable to play It seated, but it's great standing, it's kinda light so It feels weird at first, but once you get used to It's really nice. The sound Is bright, It goes really well with chorus



[MikeMonterrubio]

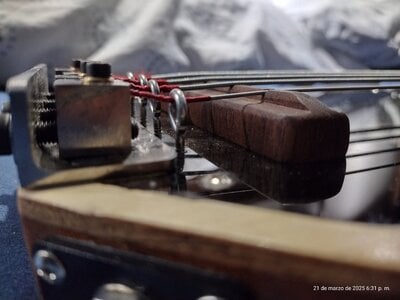

Quite the unique resolution on bridge design... just don't forget the hex-wrench at your next gig.

That's a great observation haha, I'm trying to get knurled screws so I can do the adjustment by hand, but so far I haven't been able to find them in screw shops



[JIO]

That's a great observation haha, I'm trying to get knurled screws so I can do the adjustment by hand, but so far I haven't been able to find them in screw shops

To stay with your theme of DIY 'making due' using hw store hardware... if you have a drill-press, you could first hog-out a Forstner-bit cavity in a chunk of wood that would isolate/hold in place a control knob, and then drill out the knob inner hole big enough to allow machine hex-head bolts to fit inside the cavity. Then, fit (and superglue) small washers on the bolt. I've used small brass washers from the hw store, or you might be able to find a plastic or metal spacer there that would fit. The spacer would need to fill the length of the knob hole to the end of the bottom side of the knob. (creating a tight shaft) You will need longer bolts than the ones you have - probably 1/4" longer as that is how deep the knob hole goes. Finally - slide the control knobs on and cinch down on the set-screw. I've not tried this personally, but I think it could work.



[MikeMonterrubio]

Cool bass! It reminds me of a Steinberger but if Ned designed those basses within the last few years instead of in the 1980s. What's the scale length?

Thanks man! Those Headless Steinberger were the main inspiration to build this Bass

The scale lenght Is 34" and the overall Bass lenght Is 95cm



[MikeMonterrubio]

Love to see something completely different. Very cool that you made all the parts

Thanks mate! I really enjoy DIY projects



[REMBO]

I Love It!



[coreyfyfe]

Cool bass! It reminds me of a Steinberger but if Ned designed those basses within the last few years instead of in the 1980s. What's the scale length?

Like a steinberger meets a 20/20 (which technically I guess is just steinberger meets steinberger)

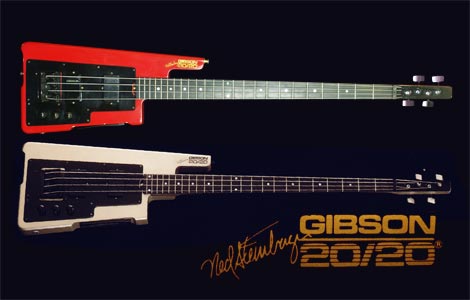

Gibson 20/20 electric bass guitar >> FlyGuitars

Gibson Ned Steinberger 20/20 electric bass guitar - description and photographs

www.flyguitars.com



[MikeMonterrubio]

My disproportionately large thumb, which on normal necks is always having to find ways of getting comfy, took one look at that neck profile and was immediately smitten YES.

As someone who also has long thumbs, I have to say this neck profile is really comfortable. Glad you liked it!



[MikeMonterrubio]

Nice job! What is its scale and weight?

The scale Is 34" and It weights 2.8kg, it's reaaaally lightweight



[MikeMonterrubio]

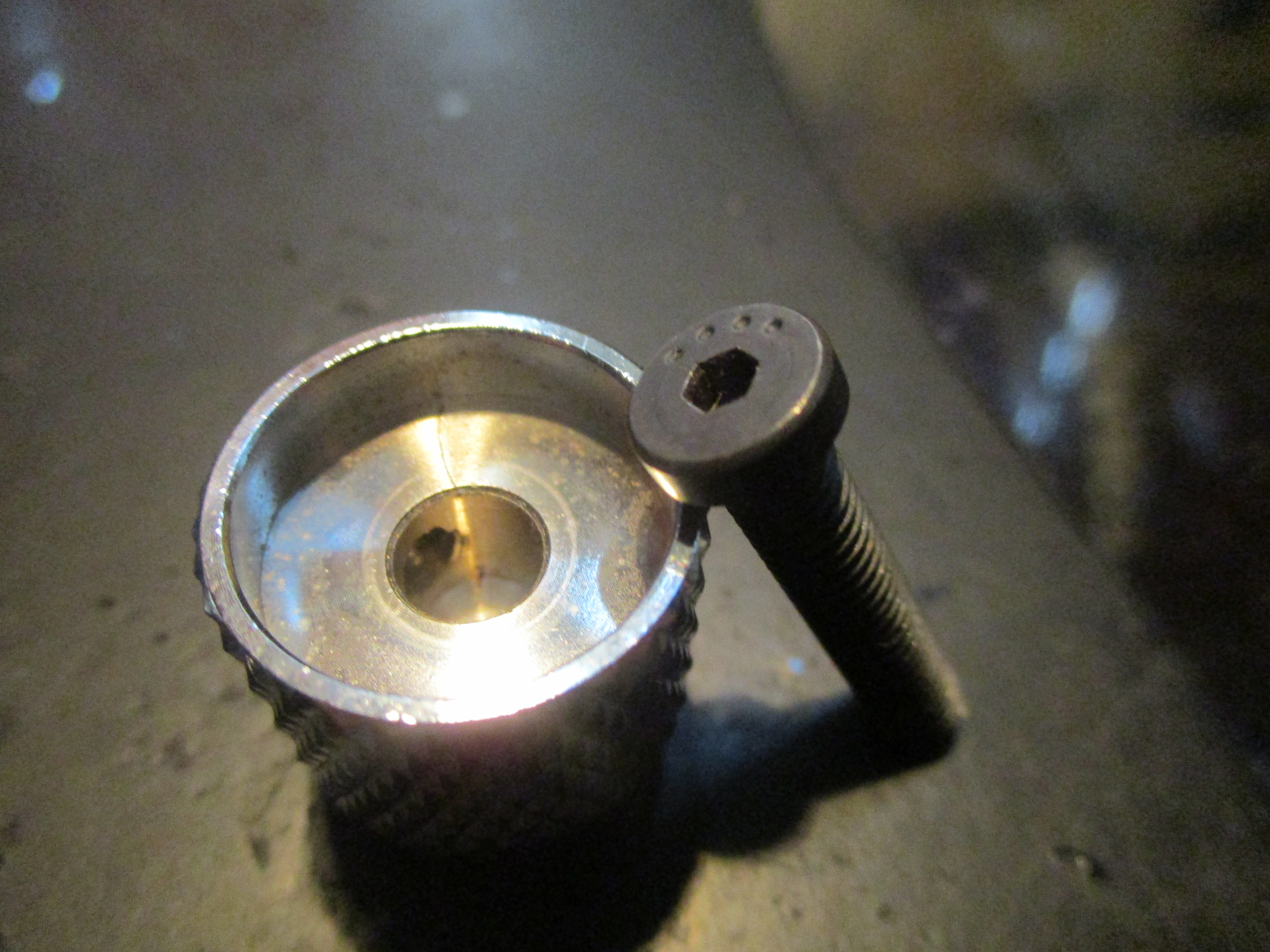

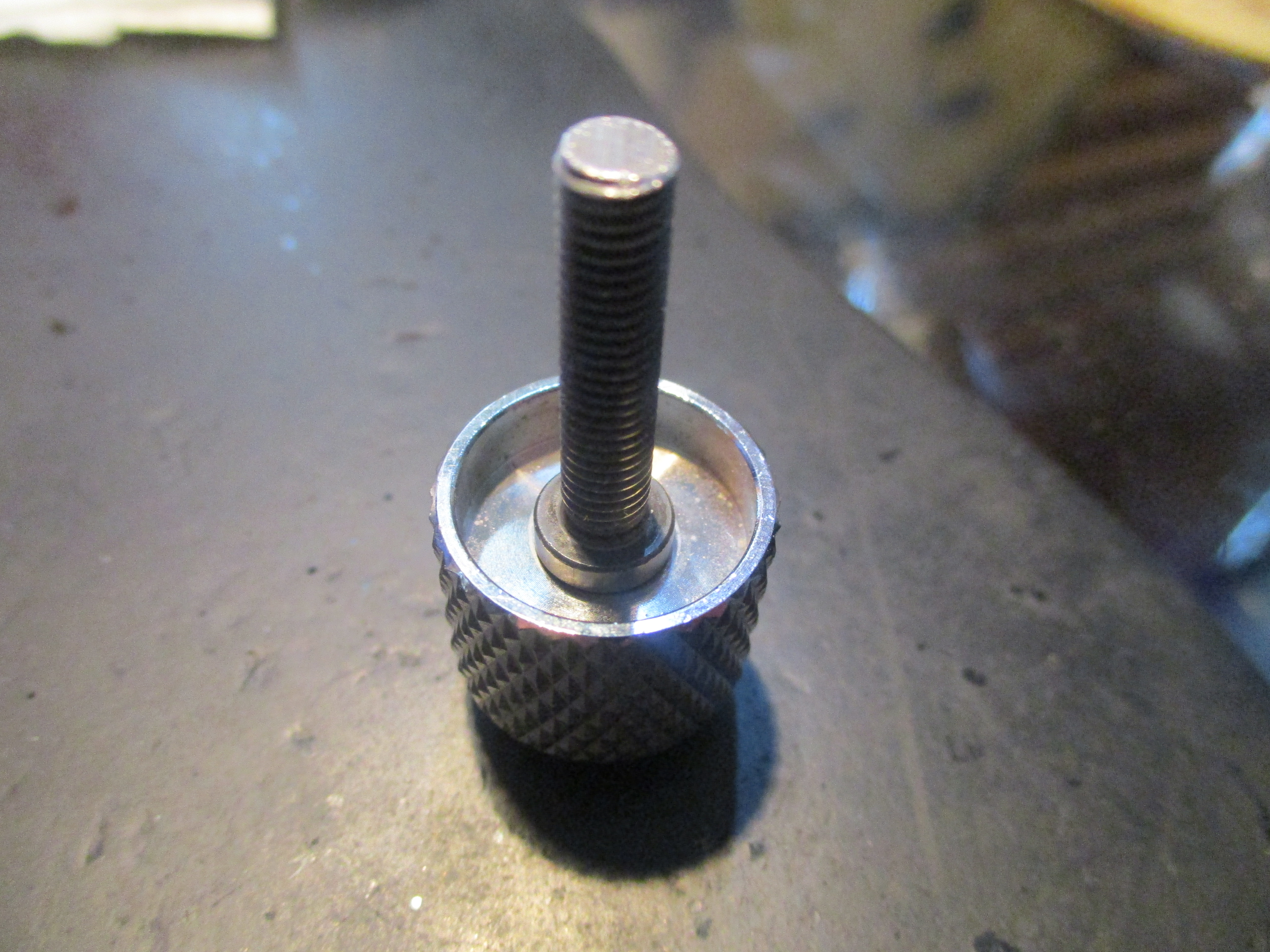

To stay with your theme of DIY 'making due' using hw store hardware... if you have a drill-press, you could first hog-out a Forstner-bit cavity in a chunk of wood that would isolate/hold in place a control knob, and then drill out the knob inner hole big enough to allow machine hex-head bolts to fit inside the cavity. Then, fit (and superglue) small washers on the bolt. I've used small brass washers from the hw store, or you might be able to find a plastic or metal spacer there that would fit. The spacer would need to fill the length of the knob hole to the end of the bottom side of the knob. (creating a tight shaft) You will need longer bolts than the ones you have - probably 1/4" longer as that is how deep the knob hole goes. Finally - slide the control knobs on and cinch down on the set-screw. I've not tried this personally, but I think it could work.

View attachment 7182881
View attachment 7182882

Dude, you're a genius, I'll try It soon!



[JIO]

Dude, you're a genius, I'll try It soon!
