Double Bass Show me how you mount your ATM350

[John Le Guyader]

I lucked on a low price restock atm350. Please show me where and how you mount it? thx



[ee-san]

For an easy and cheap but reliable setup see post #192 in this thread: Micing with a bass amp

Been using the original ATM clip-on forever in a drummer-less trio. I'm close to DC so send me a message if you want more info--got a gig nearby coming soon.



[John Le Guyader]

For an easy and cheap but reliable setup see post #192 in this thread: Micing with a bass amp

Been using the original ATM clip-on forever in a drummer-less trio. I'm close to DC so send me a message if you want more info--got a gig nearby coming soon.

Several good ideas in that thread...thx ee-san. Where/when is your gig?



[Roger Davis]



[Jay Corwin]

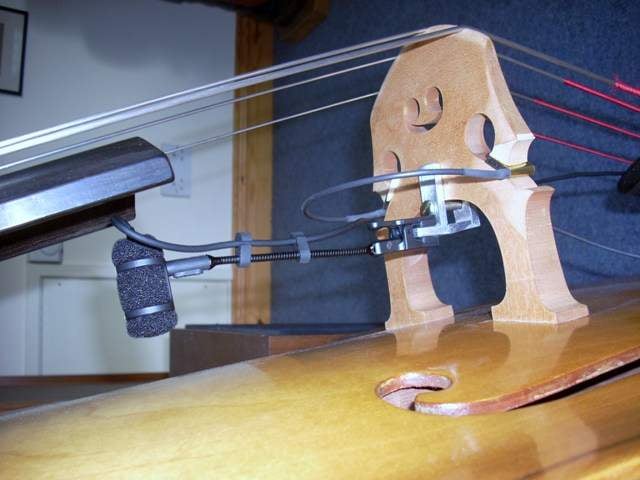

I used the PRO35 for a while years ago - same foot print. I purchased a small spring clamp from the hardware store that I would clamp to the bridge foot. Then I would use the mic's clamp to attach to the spring clamp and gooseneck it in place.



[John Le Guyader]

View attachment 1145418

Nice...home made or available for purchase where?



[John Le Guyader]

I used the PRO35 for a while years ago - same foot print. I purchased a small spring clamp from the hardware store that I would clamp to the bridge foot. Then I would use the mic's clamp to attach to the spring clamp and gooseneck it in place.

I saw your idea in the thread ee-san provided: Micing with a bass amp

I think that is the most expedient solution right now.



[John Le Guyader]

And I have to say you all on the double bass side are really awesome when it comes to help...thank you



[Roger Davis]

Nice...home made or available for purchase where?

Thanks, I made it out of some aluminium angle in my workshop.



[ee-san]

View attachment 1145418

This is an elegant design but does clamping to the bridge dampen the sound? Also, does pointing directly at the top have a bass-boosting proximity effect? If yes to either question, are those effects something you want in your sound?



[DoubleMIDI]

In the near field you always get a boost of low frequencies compared to a distance of several meters away since higher frequencies are more directional than lower ones. But placing a mic several meters away is not practical in a live setting.

Some (cheaper or small) mics have a small coupling capacitor that cuts the low end a bit. But in general you need more low cut and probably starting at a different frequency when you close mic a bass.



[ee-san]

In the near field you always get a boost of low frequencies compared to a distance of several meters away since higher frequencies are more directional than lower ones. But placing a mic several meters away is not practical in a live setting.

Agreed but in my understanding that's why many of us point the mic upward under the bridge instead of directly at the top--reduces the proximity effect to some extent.



[DoubleMIDI]

Agreed but in my understanding that's why many of us point the mic upward under the bridge instead of directly at the top--reduces the proximity effect to some extent.

As far as I know the proximity effect enhances the bass frequencies.
But pointing a directional mic to the neck heel gives less mids and highs, since the directionality is mostly valid for higher frequencies.
