Speakon issues...

#21
1bassplayinfool said:

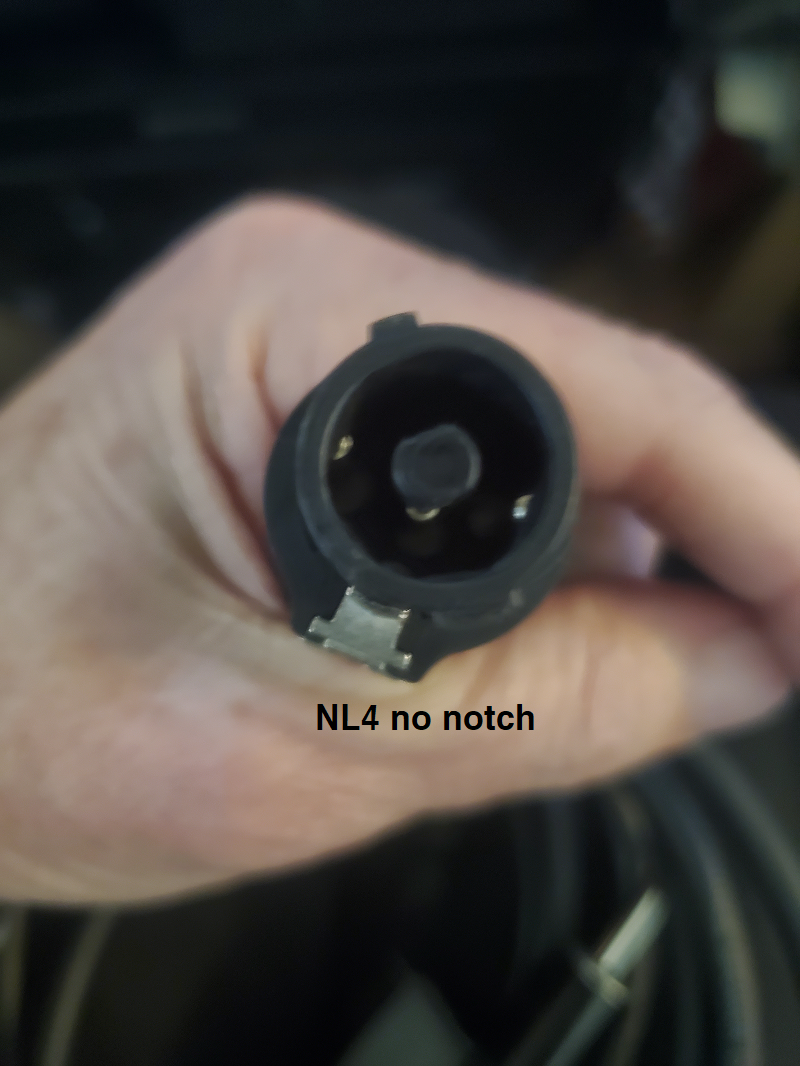

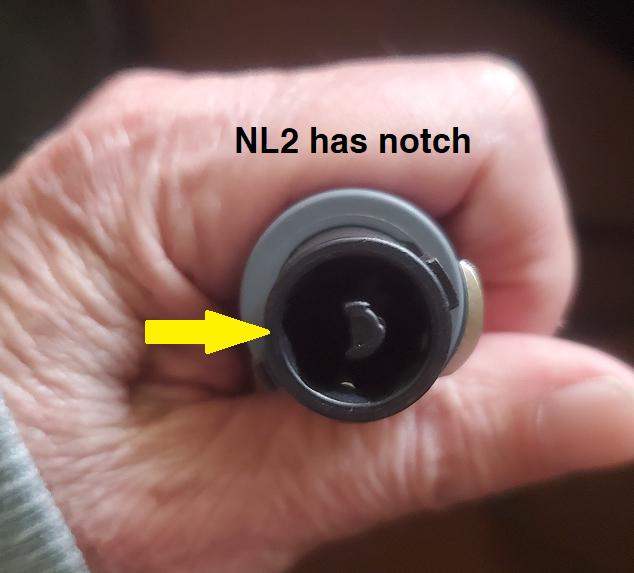

The GK will not accept a NL4, only NL2. They are "keyed" differently.

View attachment 4223289 View attachment 4223290
Click to expand...

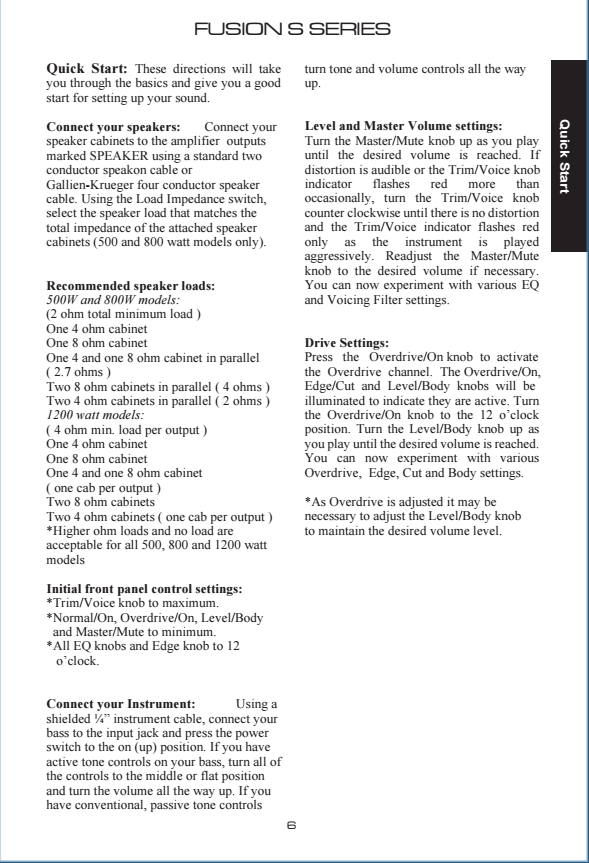

I saw that the new Neo IV cabs only take NL2, but the Fusion S manual (p. 6) says:
"Connect your speaker cabinets to the amplifier outputs marked SPEAKER using a standard two conductor speakon cable or Gallien-Krueger four conductor speaker cable"
​
AFAIK a four conductor GK cable is just a standard NL4 speakON.

It's the NL2 panel mount connector that limits what can be plugged in.

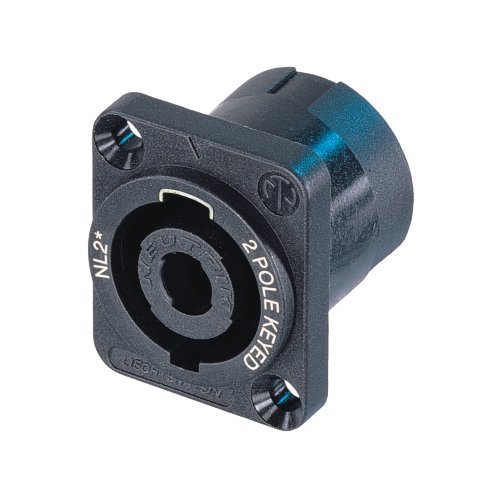

From: NL2MP

"Does not intermate with the 4-pole cableconnector"
​

#22
Wasnex said:
I saw that the new Neo IV cabs only take NL2, but the Fusion S manual (p. 6) says:
"Connect your speaker cabinets to the amplifier outputs marked SPEAKER using a standard two conductor speakon cable or Gallien-Krueger four conductor speaker cable"
​
AFAIK a four conductor GK cable is just a standard NL4 speakON.

It's the NL2 panel mount connector that limits what can be plugged in.

From: NL2MP

"Does not intermate with the 4-pole cableconnector"
​
Click to expand...

The manual is wrong... I mentioned it on the GK forum.https://www.talkbass.com/threads/gallien-krueger-club-gk-rules.1056655/page-702#post-2

Last edited:
  • Like
Reactions: DaveDeVille and Wasnex
#25
Page 8 of the manual that came with the amp:

page 8.png

#26
NL4 is THE standard jack for amps. Mates with NL2 and NL4 plugs.

I can’t believe that any manufacturer would use an NL2 knowingly these days. I would double-check that it really is an NL2, that doesn’t sound right.

I recall seeing a Neutrik notice that they were either discontinuing the NL2 jacks or changing how they are being distributed.

  • Like
Reactions: dkelley, Geri O, 1bassplayinfool and 1 other person
#28
agedhorse said:
NL4 is THE standard jack for amps. Mates with NL2 and NL4 plugs.

I can’t believe that any manufacturer would use an NL2 knowingly these days. I would double-check that it really is an NL2, that doesn’t sound right.

I recall seeing a Neutrik notice that they were either discontinuing the NL2 jacks or changing how they are being distributed.
Click to expand...

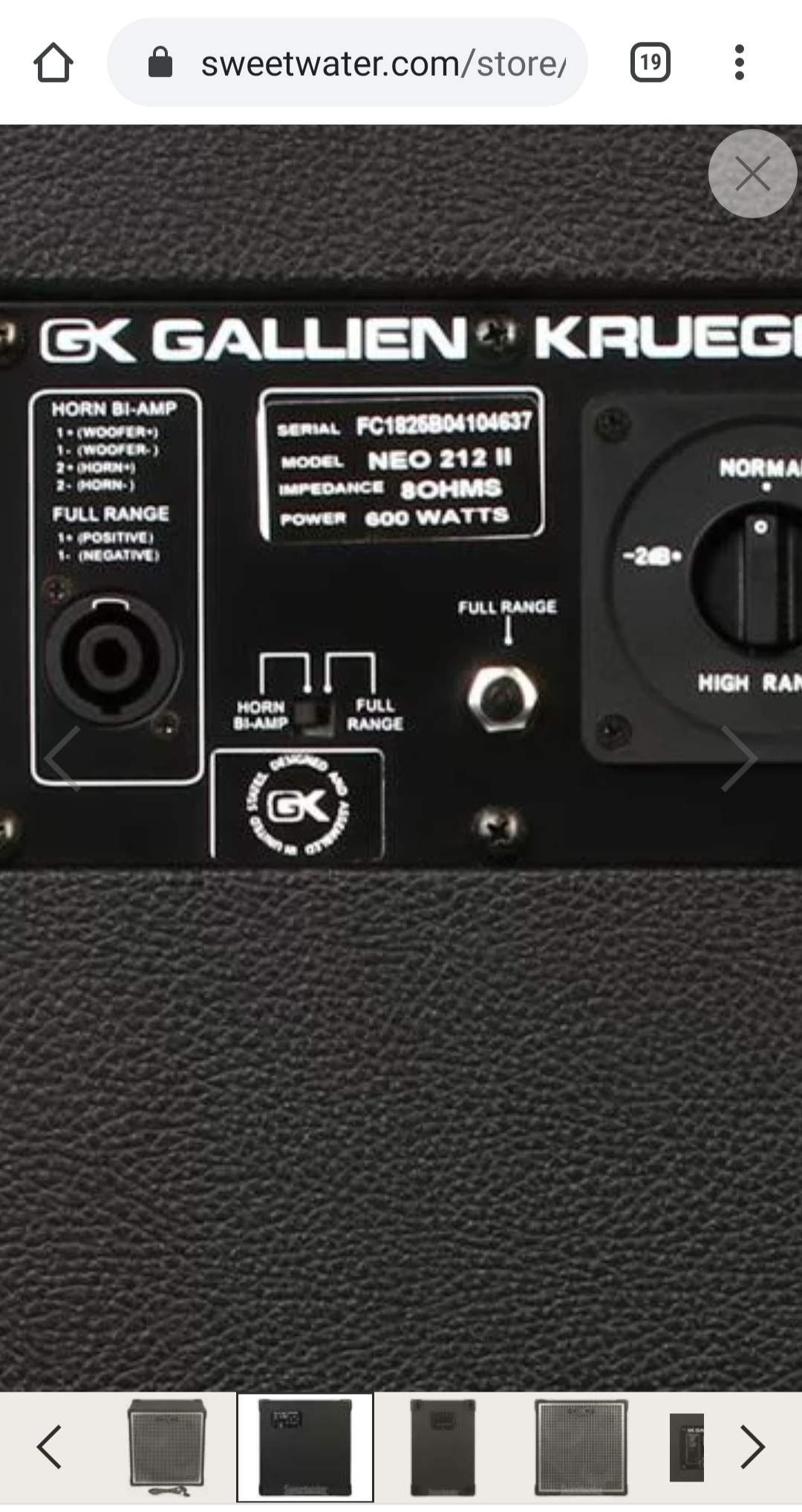

FYI, @rag has specifically stated the two conductor speakON is required for the new Neo IV speaker line. I took this to mean NL2 based on the context of the post....see this post: GK Neo IV cabs

I did not assume the same thing applied to the new amps, especially since the manual says, "Gallien-Krueger four conductor speaker cable" works. But this could be a typo in the manual as discussed above.

Seems easy enough to test. If an NL4 does not easily mate with the amp, it probably has NL2 jacks.

I thought all NL2 panel mount jacks had markings so they are obviously NL2--all of the standard NL2 on the Neutrik website do, but maybe GK had some special jacks made without the labeling:

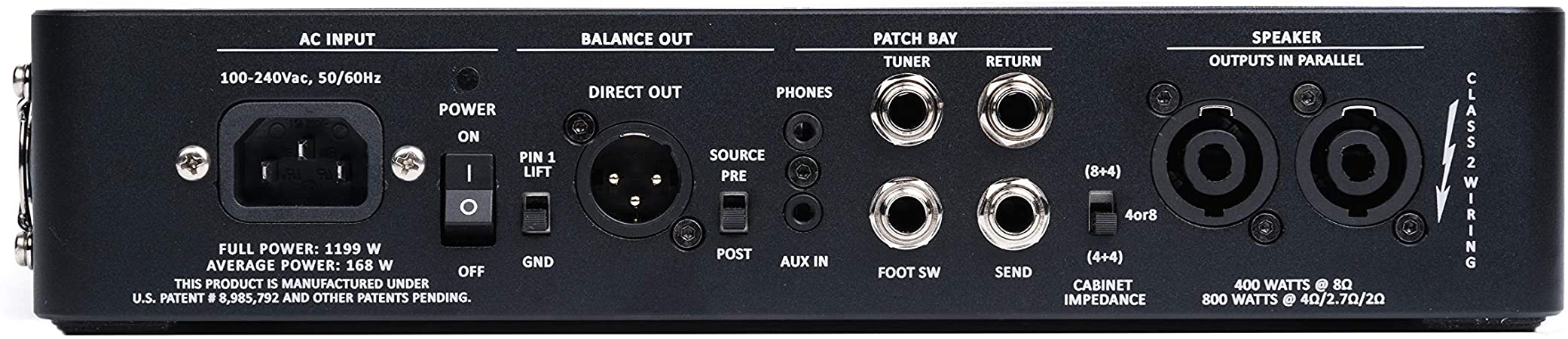

Outputs of Fusion S 1200 (image from Amazon)



I don't see any indication these are 2-pole NL2 jacks, but maybe this was a prototype with NL4 jacks. If I remember correctly, this is what happened with the Neo IV cabs.

  • Like
Reactions: BasturdBlaster
#33
I don't see the NL-2 on the heads, those are NL-4 (all NL-2 jacks I have ever seen are clearly marked due to the disastrous results when a few manufacturers new to the product used them by mistake, not realizing that the industry as a whole had never adopted them (almost 30 years ago).:


Can somebody else confirm if this is correct or not? I just can't find any other examples with NL-2.

If it is true, I need to let out customer support guys know so that they have good information when providing player support with out cabs.


Attachments

  • upload_2021-3-31_19-18-32.jpeg
    10 KB · Views: 77
  • Like
Reactions: 1bassplayinfool and dkelley
#34
agedhorse said:
I don't see the NL-2 on the heads, those are NL-4 (all NL-2 jacks I have ever seen are clearly marked due to the disastrous results when a few manufacturers new to the product used them by mistake, not realizing that the industry as a whole had never adopted them (almost 30 years ago).:
View attachment 4223817

Can somebody else confirm if this is correct or not? I just can't find any other examples with NL-2.

If it is true, I need to let out customer support guys know so that they have good information when providing player support with out cabs.
Click to expand...

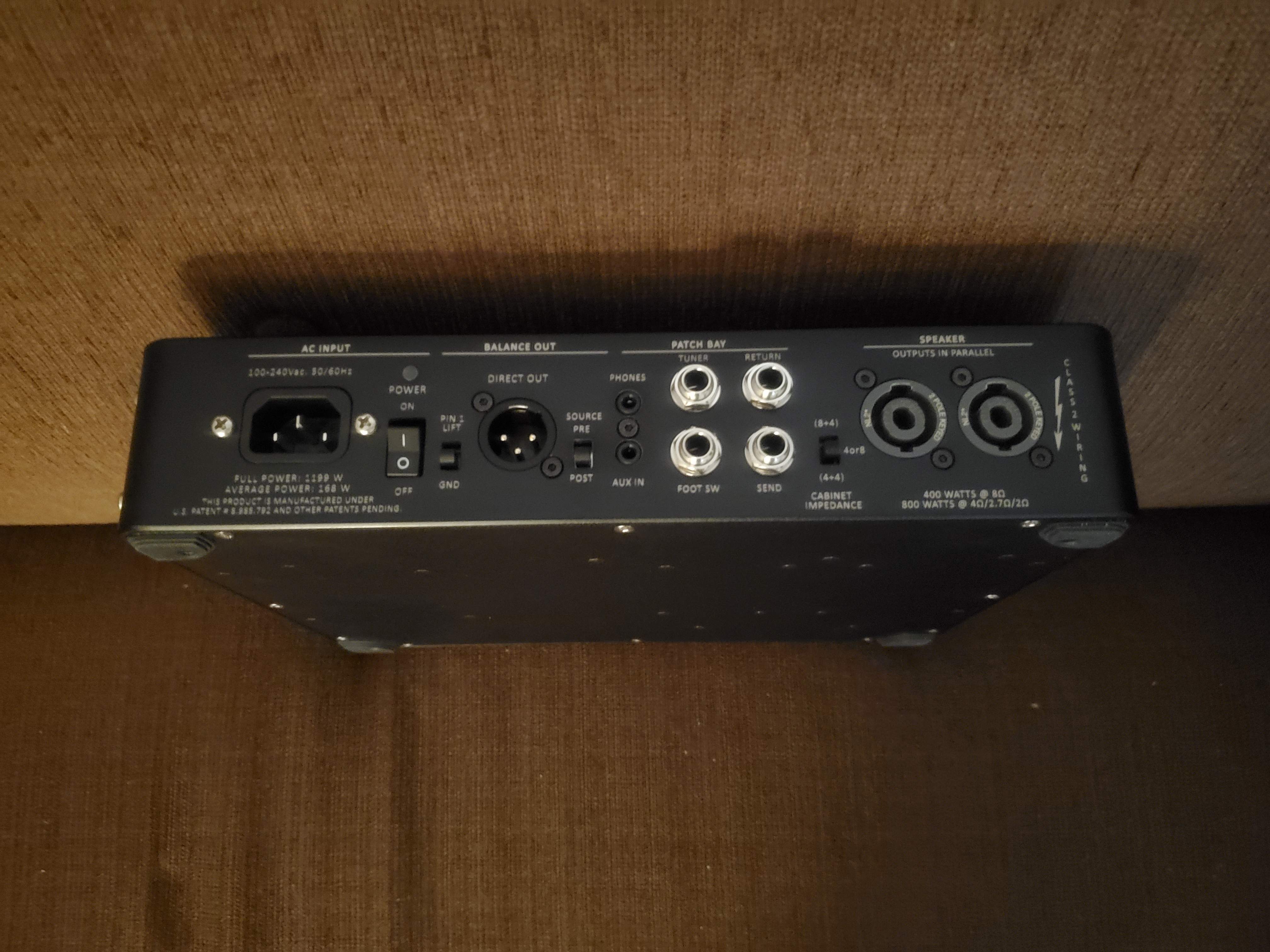

Please look at the photograph of @1bassplayinfool 's actual amp in post #30. The speaker jacks are clearly NL2.

  • Like
Reactions: Redbrangus
#36
Redbrangus said:
I can't help wondering if the use of NL2s on this amp relates to G-K having amps with bi-amp outputs on NL4s.
Click to expand...

I don't think that explains it. The earlier MB and MB Fusion heads had NL4 output jacks, and these heads did not biamp.

Personally I suspect it's going to be a problematic compatibility issue that damages the brand, so hopefully they had a good reason (explanation of my opinion--it's way easier to find a cable with NL4s on it than NL2s).

Last edited:
  • Like
Reactions: 1bassplayinfool
#40
Wasnex said:
I don't think that explains it. The earlier MB and MB Fusion heads had NL4 output jacks, and these heads did not biamp.

Personally I suspect it's going to be a problematic compatibility issue that damages the brand, so hopefully they had a good reason (explanation of my opinion--it's way easier to find a cable with NL4s on it than NL2s).
Click to expand...

Yup

agedhorse said:
I can’t find another with those jacks.

I wonder if it was a very early piece???
Click to expand...

I have no idea... just got it last week.
