Stingray 5 1999 wiring scheme

[sterling_76]

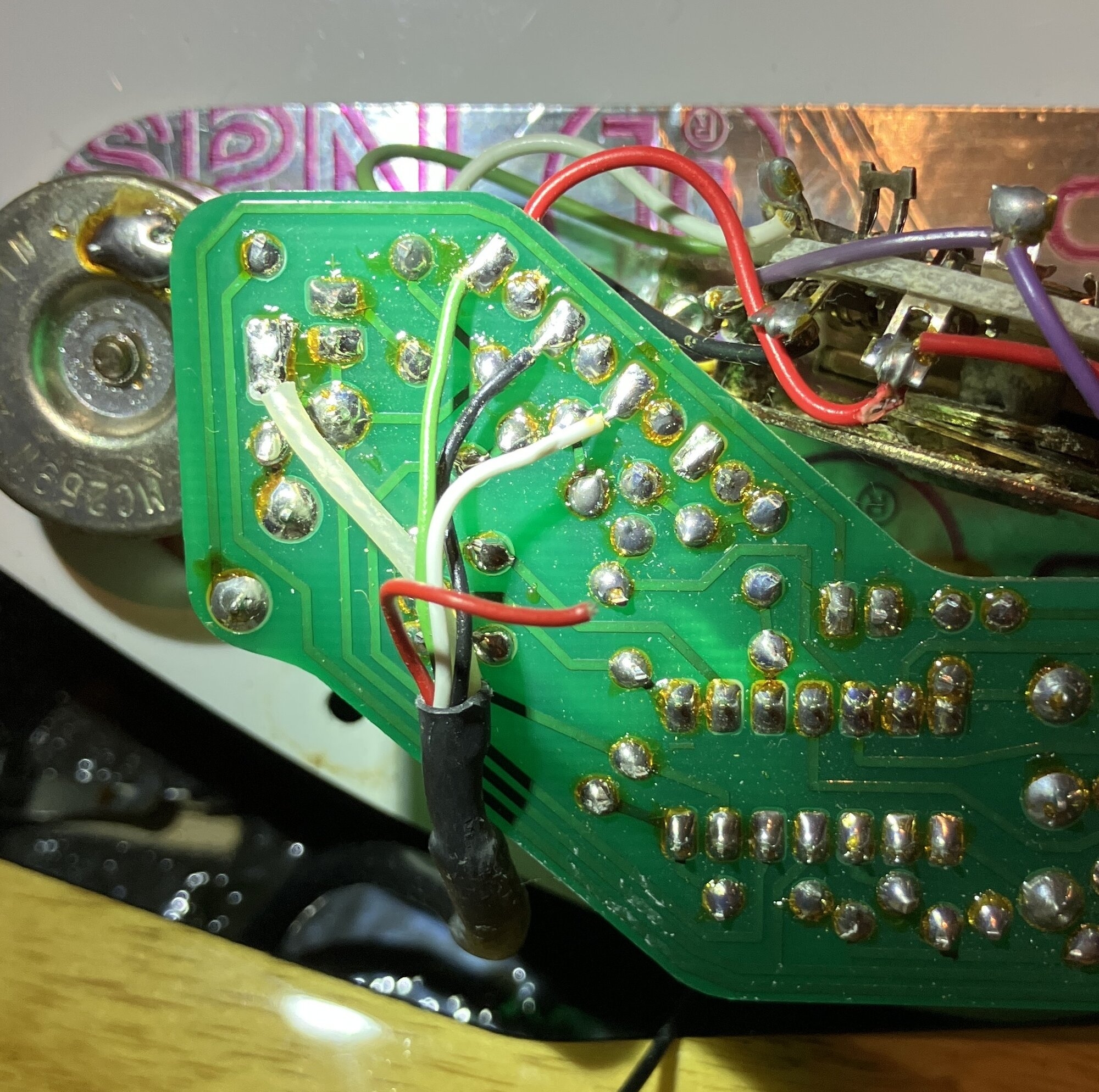

Hi, I was changing the pickguard in my Stingray 5 from 1999, serial number E10216

I realized that the red wire from the pickup came loose. Any idea where it belongs so I could solder it back?

I was not able to find a picture of a correctly soldered preamp of that version.

I found that the colors might mean thr following:

• Red + Green = neck coil
• White + bare/earth = bridge coil
• White + Black = bridge coil together with phantom coil

But where does the red one belong?

Thanks for any help!



[Tight and Tasty]

Try posting this question on this thread. There is a lot of knowledge and wisdom over there. https://www.talkbass.com/threads/music-man-sound-and-pickups.739218/



[Philthy]

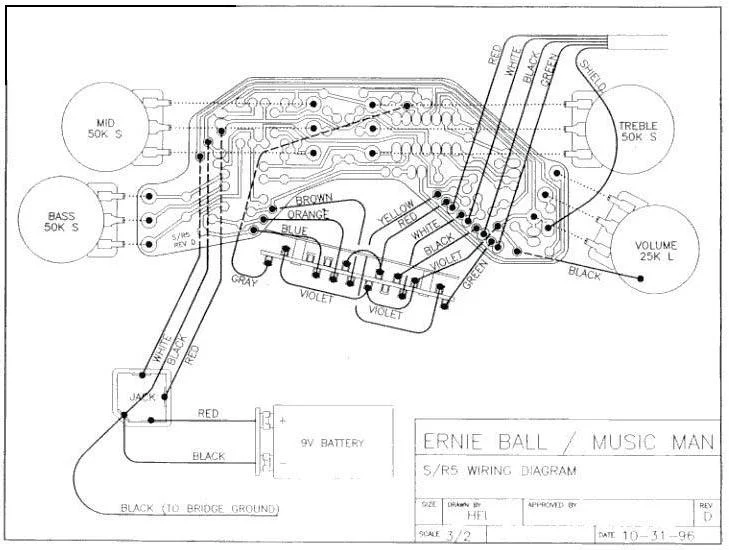

This might help
