Use the input that sounds best IMHO.
It varies from amp to amp what actually occurs. Often the input impedance changes, but not always.
The input will have both series resistance and shunt resistance to ground.

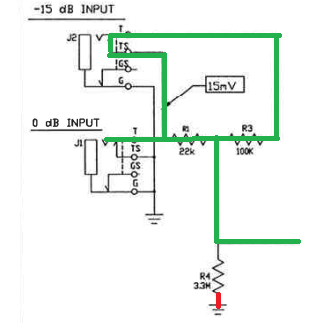

Here is a couple of signal flow workups for the SVT CL:
View attachment 4880269
This is the 0dB input (J1). The signal passes up through a switching contact in J2. This puts R1 (22K) and R3 (100K) in parallel. I believe this puts the effective series resistance at about 18K. R4 shunts some of the signal to ground. I believe this shunt resistance is the input impedance (3.3Meg).

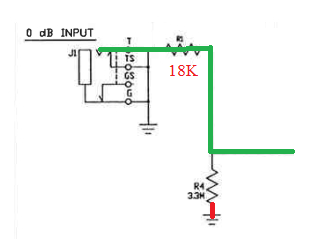

Equivalent circuit:
View attachment 4880282
Now let's look at the -15dB input:

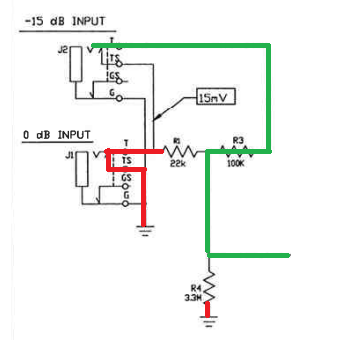

View attachment 4880272
Here the signal only passes from J2 through R3, so the series resistance is 100K. Since the series resistance is higher, less of the signal will pass through. Ground is provided through J1 to R1. This puts R1 (22K) and R4 (1Meg) in parallel. Effective impedance to ground is about 21K. Since the input resistance is significantly lower, more of the signal is shunted to ground.

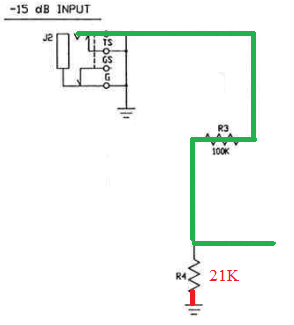

Equivalent circuit:
View attachment 4880285
