VVT plus 3-way switch on a PJ?

[LowWay]

I assumed this could be done. But can it? I’m having a hard time finding a wiring diagram for VVT and a 3 way toggle for a PJ setup. If not this configuration, what are my options that involve at least 1 switch to isolate the pickups and 3 knobs (the holes are already drilled, and I want independent volume on each pickups).



[Matt Liebenau]

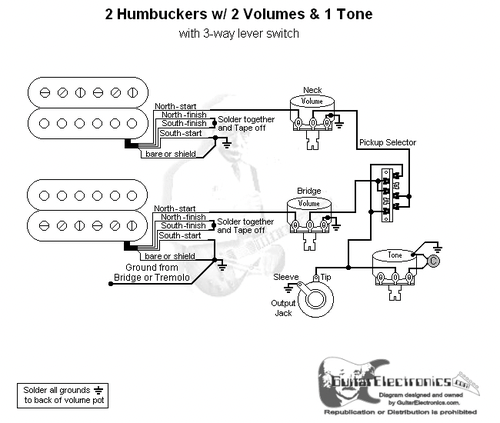

You may need to adjust for your particular pickup’s wire colors.



[Coughdrops]

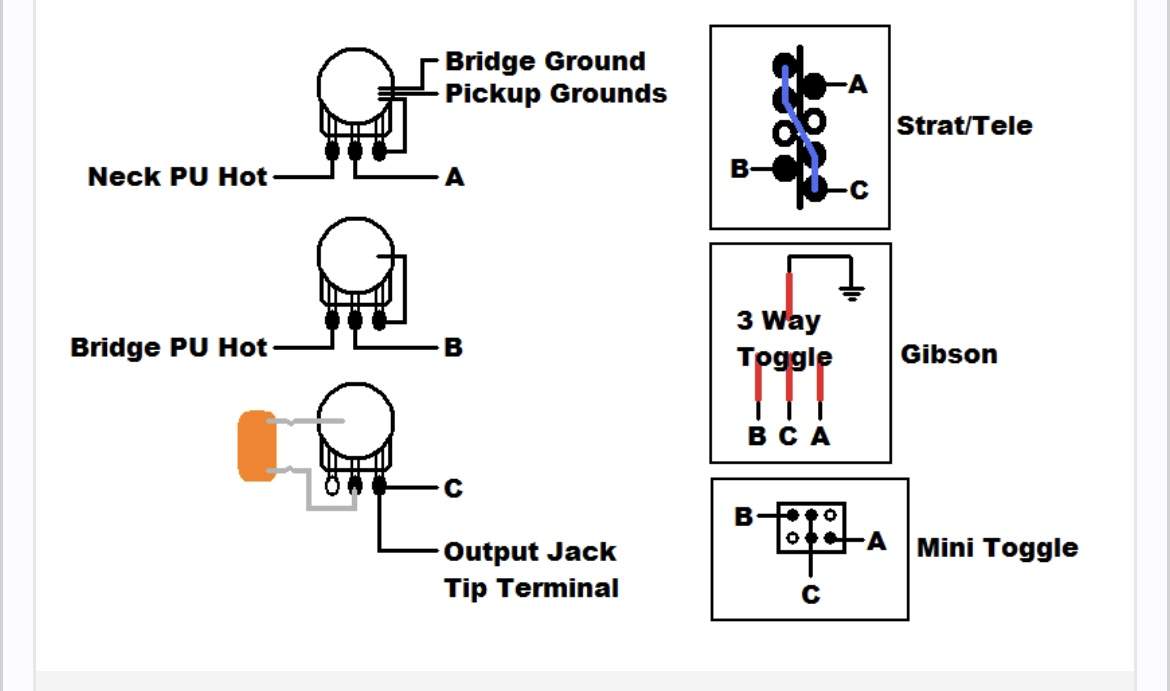

Answered this in another thread but I like this one I found on this site for different switch types.
