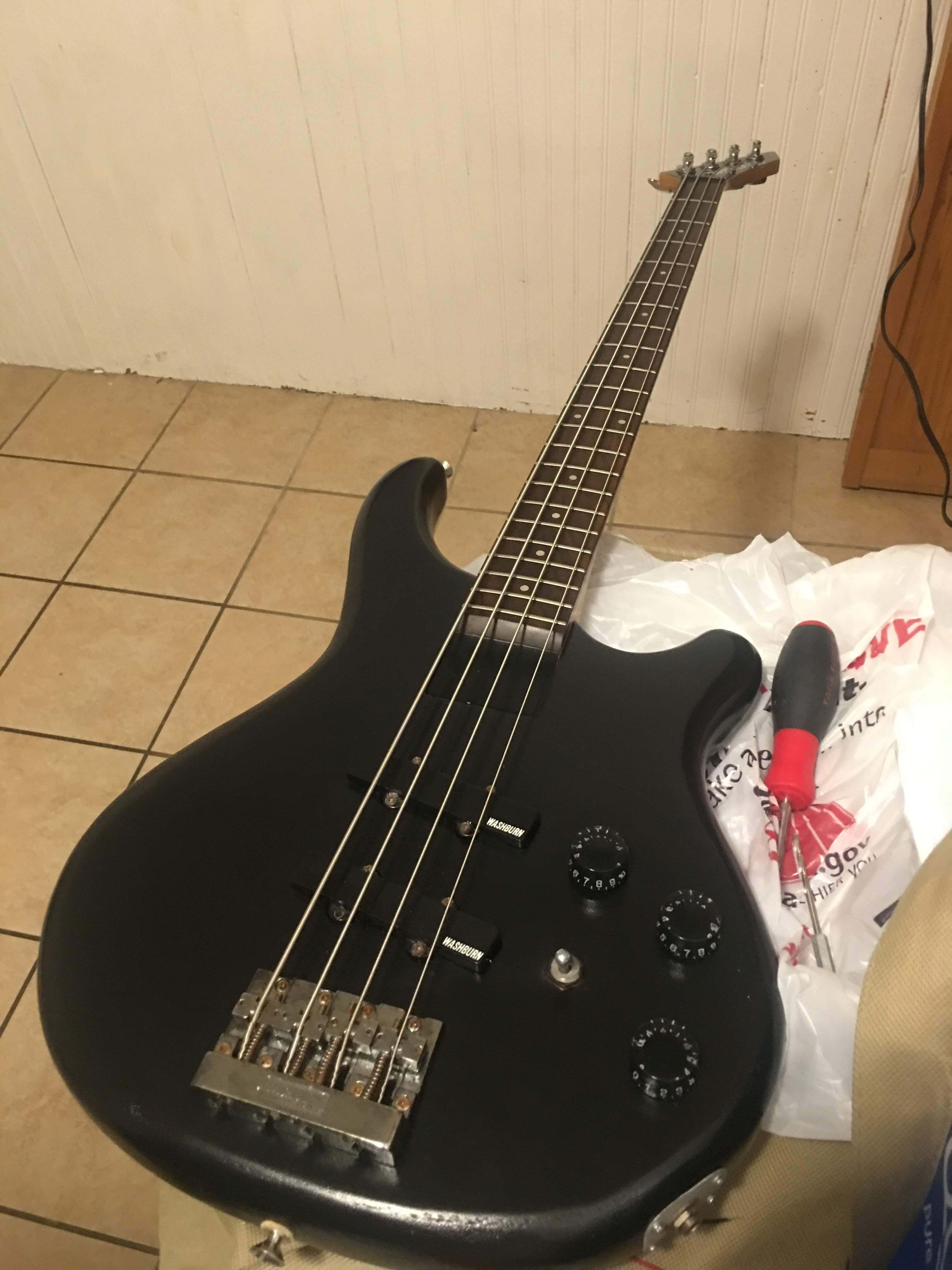

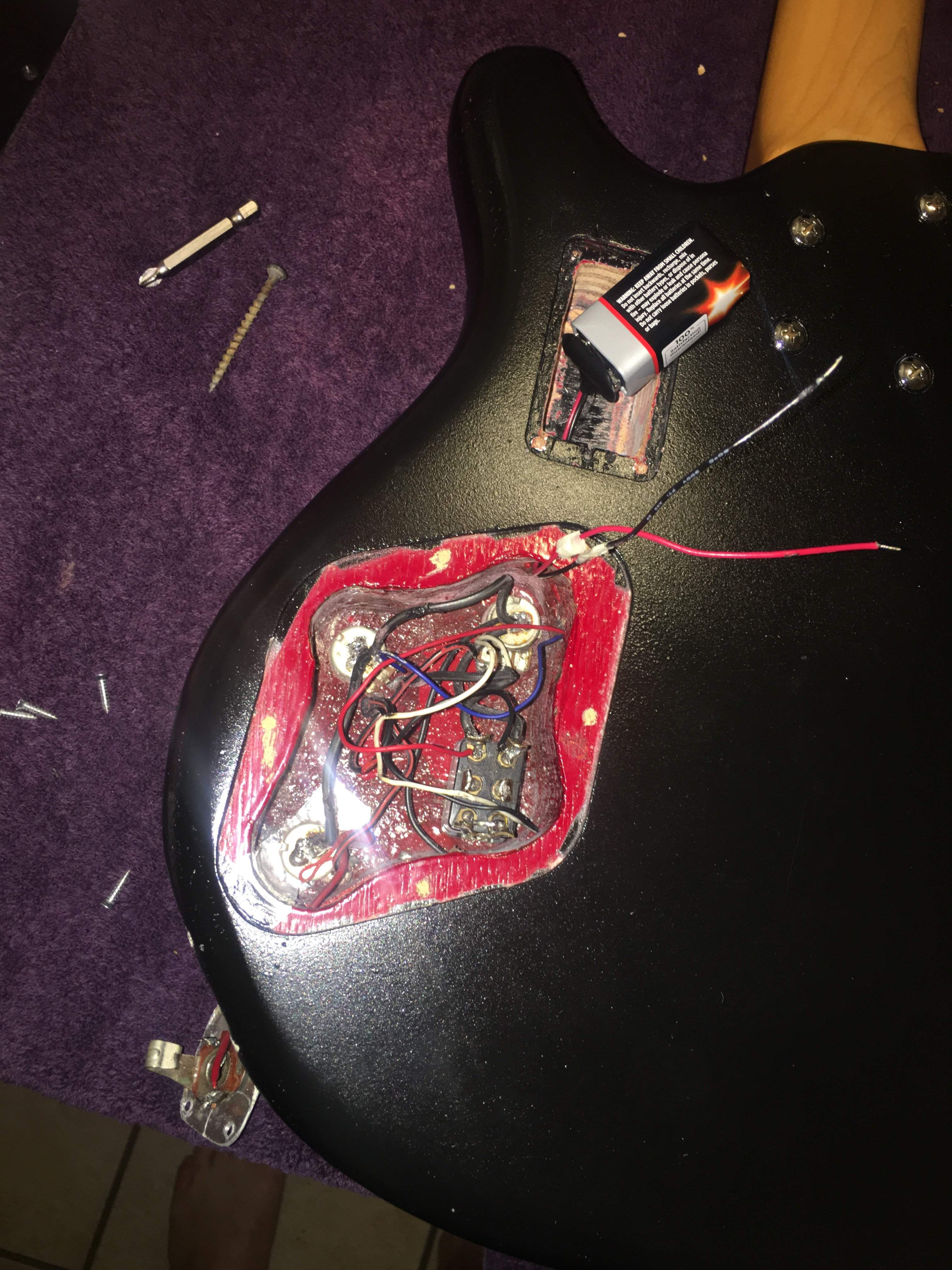

Hello, first time posting here, but I really need some help. I just bought this bass off of Craigslist for 40 dollars, repainted it, got new knobs, and it came out decent. However, the wiring was totally screwed up, and I have no idea how this thing gets soldered back together. I purchased a battery and a connector to hopefully get the active pickups to work. Can anyone offer some insight?
Enjoy the benefits of a premium membership!
Upgrade Account
-
TalkBass has been independent since 1998. Add your voice.
Create a free account to reply to discussions, view embedded media, and browse with fewer display ads.
Join free Log in
Want zero display ads or expanded classifieds tools? Compare plans.
Washburn ABT force b10
- Thread starter bradysbass24
- Start date
Hard to tell much from a picture but ...

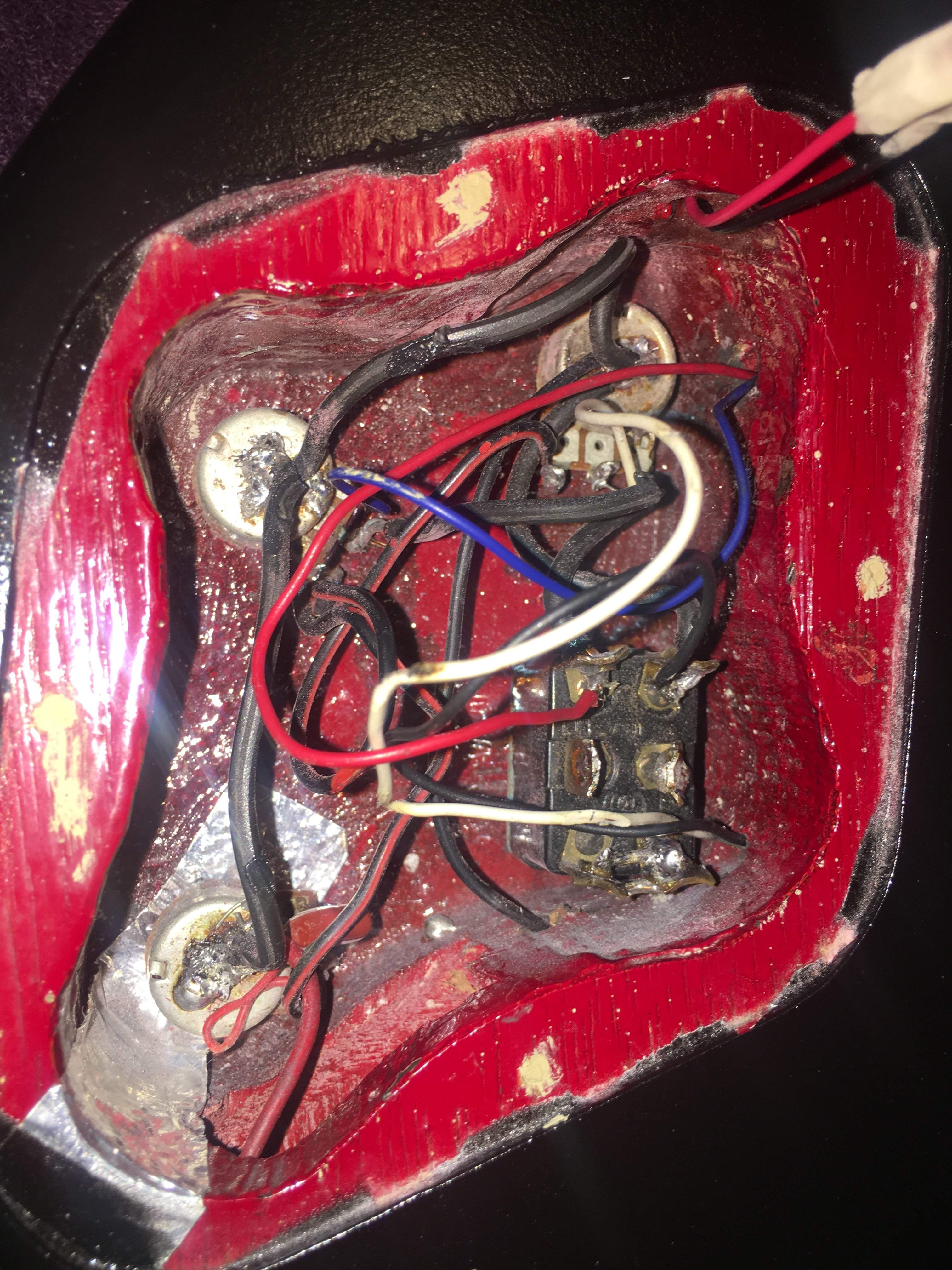

wiring looks older/original with no obvious breaks or looses ends. That would lead me to think the wiring is correct. Of course that is a optimistic guess. So if it was me I would get my ammeter out and the check continuity of everything I could get to. I would get on google and find a wiring schematic for that bass or one of similar design. Source parts such as the switch just in case.
If you are not concerned about original wiring , rewire it. Piece by piece , test then move on. hope that helps
wiring looks older/original with no obvious breaks or looses ends. That would lead me to think the wiring is correct. Of course that is a optimistic guess. So if it was me I would get my ammeter out and the check continuity of everything I could get to. I would get on google and find a wiring schematic for that bass or one of similar design. Source parts such as the switch just in case.
If you are not concerned about original wiring , rewire it. Piece by piece , test then move on. hope that helps
You are right, that wiring has been redone by some one who is inexperienced. It is a mess. I would replace all of it. Even if you got this working, those pots have clearly been over-heated, and resoldering them will only make things worse.
Are the pickups original?
What value are the pots?
It looks like a preamp has been removed and the pickups have only two wires each, so they aren't active. This means that the battery is not needed.
That switch wouldn't have been in a bass originally. Plus it has no wire to its middle lugs, so it will do nothing as is.
I would just rewire this as passive VVT or VBT. Just put a dummy pot or switch in the spare hole, or whatever. There are thousands of threads about what to do with a passive bass that has four holes.
If you are new to soldering, depending haw far apart the holes are, you might be able to cheaply buy a prewired jazz bass plate, transfer the pots and simply solder the pickup wires to it.
Are the pickups original?
What value are the pots?
It looks like a preamp has been removed and the pickups have only two wires each, so they aren't active. This means that the battery is not needed.
That switch wouldn't have been in a bass originally. Plus it has no wire to its middle lugs, so it will do nothing as is.
I would just rewire this as passive VVT or VBT. Just put a dummy pot or switch in the spare hole, or whatever. There are thousands of threads about what to do with a passive bass that has four holes.
If you are new to soldering, depending haw far apart the holes are, you might be able to cheaply buy a prewired jazz bass plate, transfer the pots and simply solder the pickup wires to it.
Last edited:
i have a black washburn b10, im running F#,B,E,A strings,its awsome,had it since 1991,my wires look similar,just a heads up the output jacks are stereo,ypu can still use a normal patch cord,great bass
There isn't one. Its active pickups with standard pots as opposed to the usual passive pickups with active EQ found in most "active" basses.
