Wiring from Blend Pot to Barrel Jack

[Matthew_84]

Hey guys, I am going to remove the preamp from my bass and just run the wiring straight from the blend pot to the barrel jack. There will be zero tone or volume pots in this configuration.

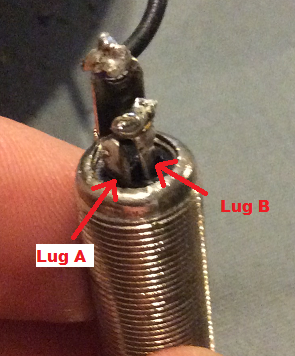

My barrel jack has three lugs. The two in the front "Lug A" and "Lug B" currently have nothing wired to them (one seemed to come from my battery and the other seemed to come from my preamp). The larger lug in the back seems to be a ground wire from my bridge.

Can anyone help me determine which lug I should wire the blend output to?

And which lug should the pickup grounds run to?

Thanks in advance.



[Slater]

In your pic, Lug A = Tip (Hot, pickup lead), Lug B = Ring (Battery), Big Lug = Ground.

So, blend pot to Lug A.



[Matthew_84]

In your pic, Lug A = Tip (Hot, pickup lead), Lug B = Ring (Battery), Big Lug = Ground.

So, blend pot to Lug A.

Great! Thank you!
