Wiring issue

[subdude67]

I have been asked to fix an electric guitar with 2 humbuckers, 3 way pickup selector, 1 volume and 1 tone with a pull push pot for coil splitting (I assume)
The issue is that the bridge pickup is dead but it isn't broken, I can measure the resistance of both pickups.
I have looked up wiring diagrams for identical setups but they look very different to what I have in front of me.

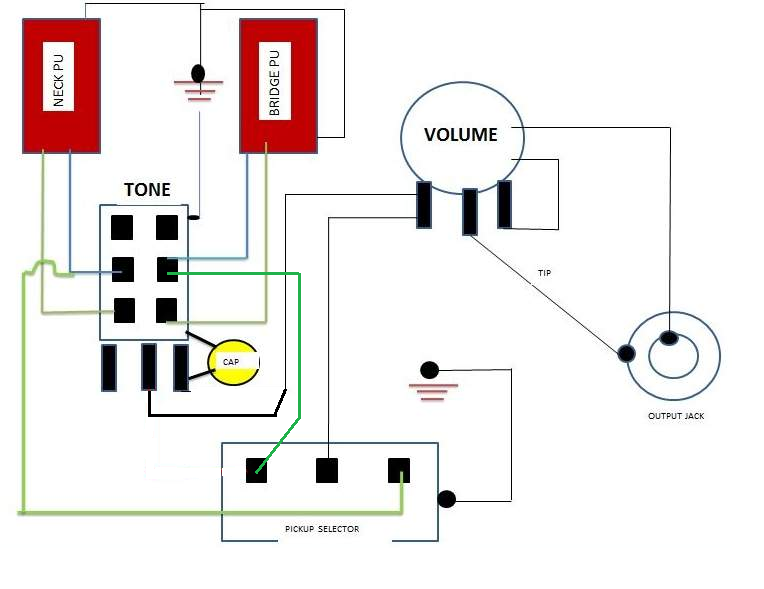

Here is what I have:

I left out most of the ground wires to keep it simpler but I checked continuity and all is well.
Can anybody tell me whether this wiring should work as it is and if it is OK, would it be correct to assume that the tone pot is broken?



[Crater]

Note the changes that have been made:
Bridge pickup hot wire (dark green) from the coil split switch to the pickup switch was added.
Wire from the center terminal of the volume pot connected to the "10" terminal on the volume pot.



[subdude67]

Note the changes that have been made:
Bridge pickup hot wire (dark green) from the coil split switch to the pickup switch was added.
Wire from the center terminal of the volume pot connected to the "10" terminal on the volume pot.

Many thanks, I will implement and report back!

And I assume it is
Wire from the center terminal of the TONE pot connected to the "10" terminal on the volume pot?



[Crater]

Wire from the center terminal of the TONE pot connected to the "10" terminal on the volume pot?

Yes, correct... sorry.



[subdude67]

The repair is a success, both pickups are now working and after replacing the volume pot the scratching noises have also disappeared.
Many thanks for helping me out, even if it was for a guitar
