XR18 and Windows 10 input channels missing

Engle

Engle

Oct 5, 2014
15,232
93,607
62
Pacific Northwet
#1
Hoping someone can help - I'm trying to set up recording through USB, but my computer only sees 8 channels - as 4 pairs of L/R
I have all 18 channels set up as USB sends (analog red circle) in the I/O patching.
Latest firmware is installed (1.17) and latest Windows driver setup (v4.38.0)

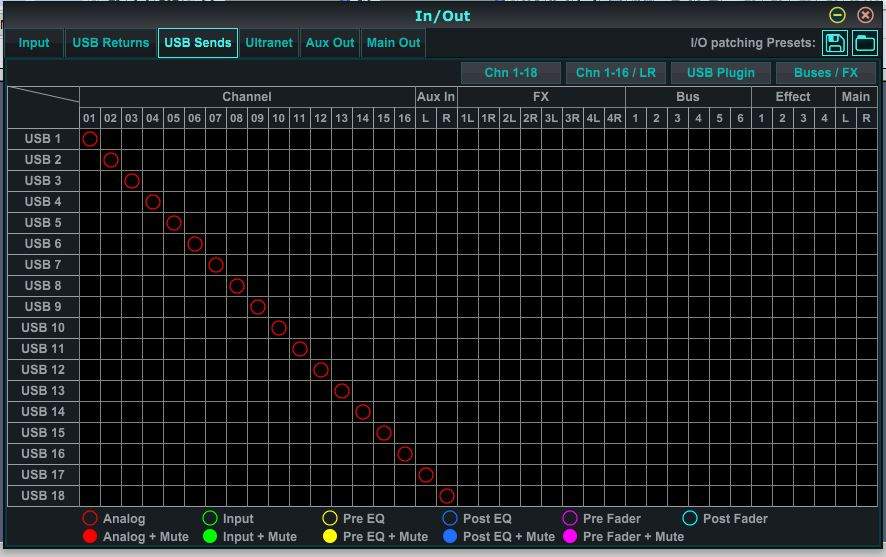

I have a gig this weekend and would like to capture more than 8 channels. This is how I have the USB sends configured:
IO patching capture.JPG

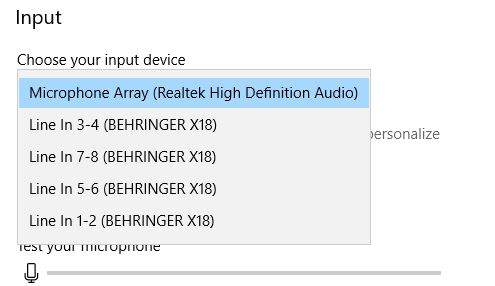

This is what I see in my PC sound settings:

win10 XR18 inputs.JPG

#2
So I am running my XR18 into a Windows 10 laptop. I've seen something similar but only when I have the wrong device selected in the settings. I'm assuming by latest Windows driver, you mean the ASIO driver?
