Original owner, have had for several years, used but not abused. Been in my desk for a while now. Used to always use but haven't for some time. So time to move on.

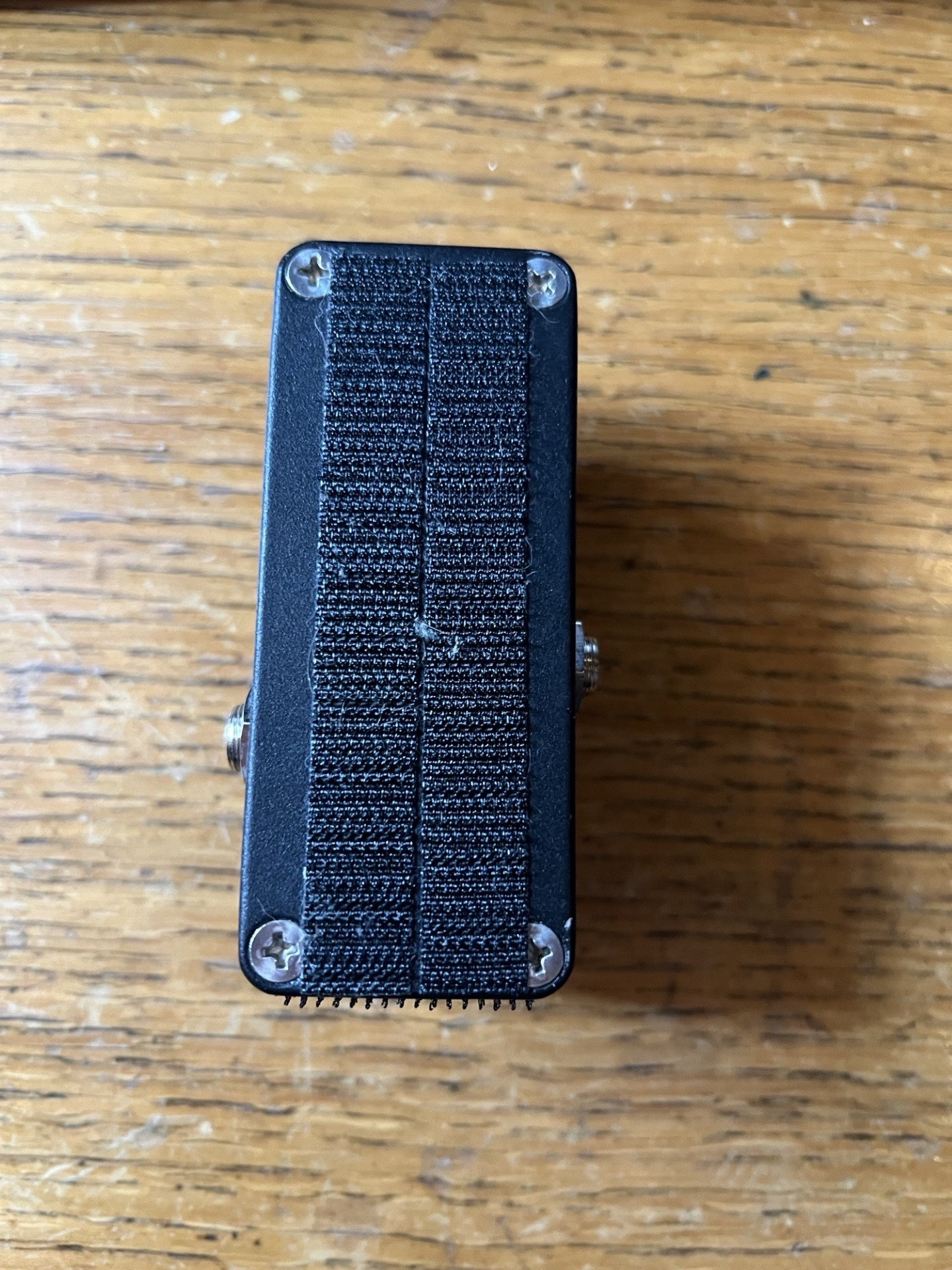

Signs of use but in good shape. Velcro on back. Works as it should.
Price includes US Shipping.
From Broughton:

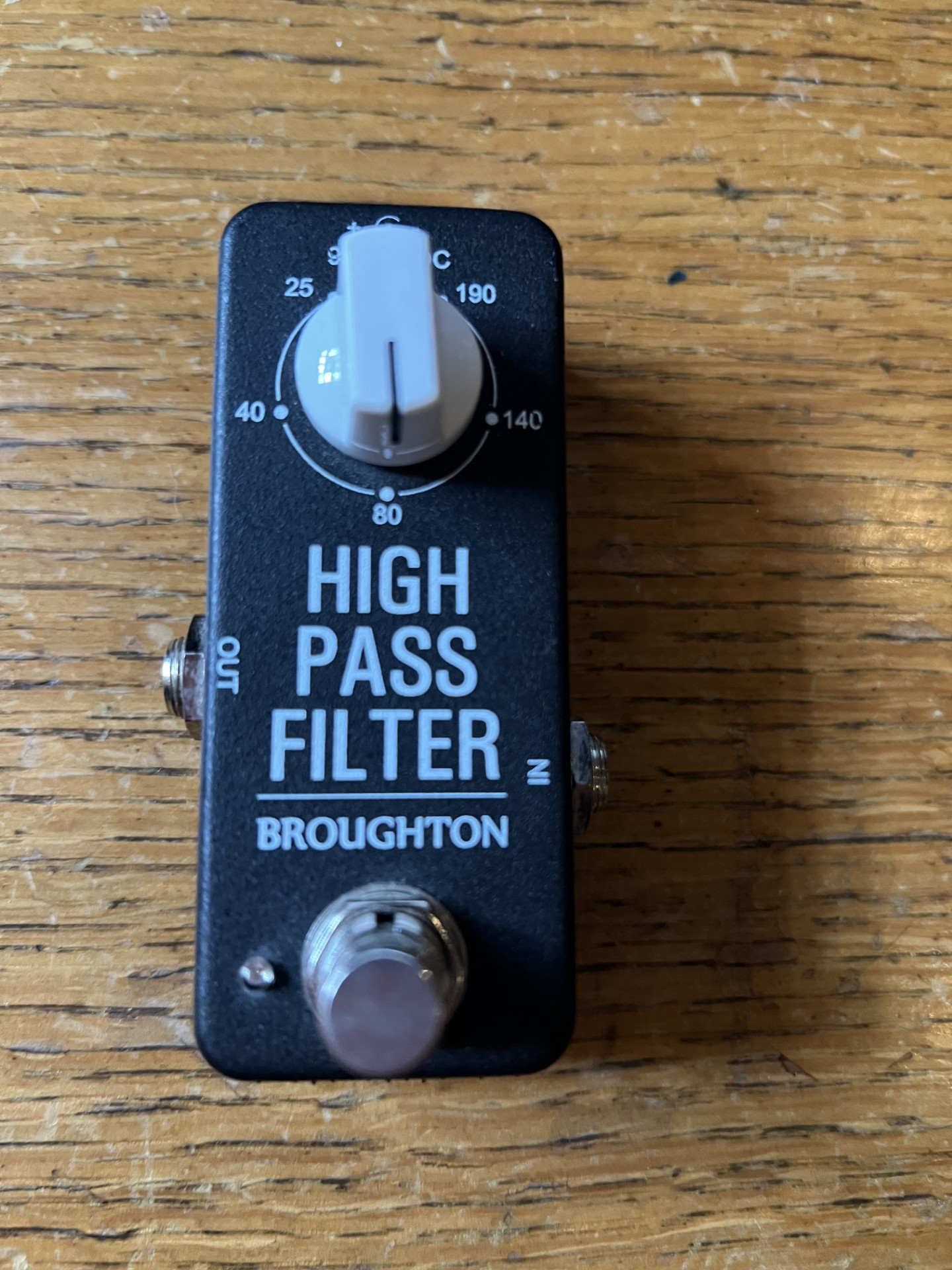

The High Pass Filter is the perfect utility pedal for cleaning up the low end.
The high pass filter is a 12 dB per octave low frequency filter. The knob controls the cutoff frequency and ranges continuously from 25 Hz to 190 Hz.
The stock input impedance is 1MΩ. If you have an acoustic pickup that requires a specialized input impedance, write it in the notes during check-out, and we will accomodate the request at no extra cost. The output impedance is 100Ω. This device will work with active or passive instruments, as well as with other devices such as pedals, preamps, or effects loops.
The High Pass Filter requires a DC power supply (not included). The DC supply should be a standard Boss style connector, center negative polarity. It can accept 9 to 24 volts. Although 9 volts is sufficient for most applications, higher voltages will provide more headroom when using the pedal with line level signals. The current draw is approximately 10 mA. A 24 volt power supply may be purchased separately.
The High Pass Filter has a true bypass switch.
Dimensions: 3.7" x 1.6"
Signs of use but in good shape. Velcro on back. Works as it should.
Price includes US Shipping.
From Broughton:
The High Pass Filter is the perfect utility pedal for cleaning up the low end.
The high pass filter is a 12 dB per octave low frequency filter. The knob controls the cutoff frequency and ranges continuously from 25 Hz to 190 Hz.
The stock input impedance is 1MΩ. If you have an acoustic pickup that requires a specialized input impedance, write it in the notes during check-out, and we will accomodate the request at no extra cost. The output impedance is 100Ω. This device will work with active or passive instruments, as well as with other devices such as pedals, preamps, or effects loops.
The High Pass Filter requires a DC power supply (not included). The DC supply should be a standard Boss style connector, center negative polarity. It can accept 9 to 24 volts. Although 9 volts is sufficient for most applications, higher voltages will provide more headroom when using the pedal with line level signals. The current draw is approximately 10 mA. A 24 volt power supply may be purchased separately.
The High Pass Filter has a true bypass switch.
Dimensions: 3.7" x 1.6"
