5 string single cut Wenge and Brazil walnut

[bastav]

This project is picking up steam again. First off, did some work on the body/neck join

Babysteps with the router

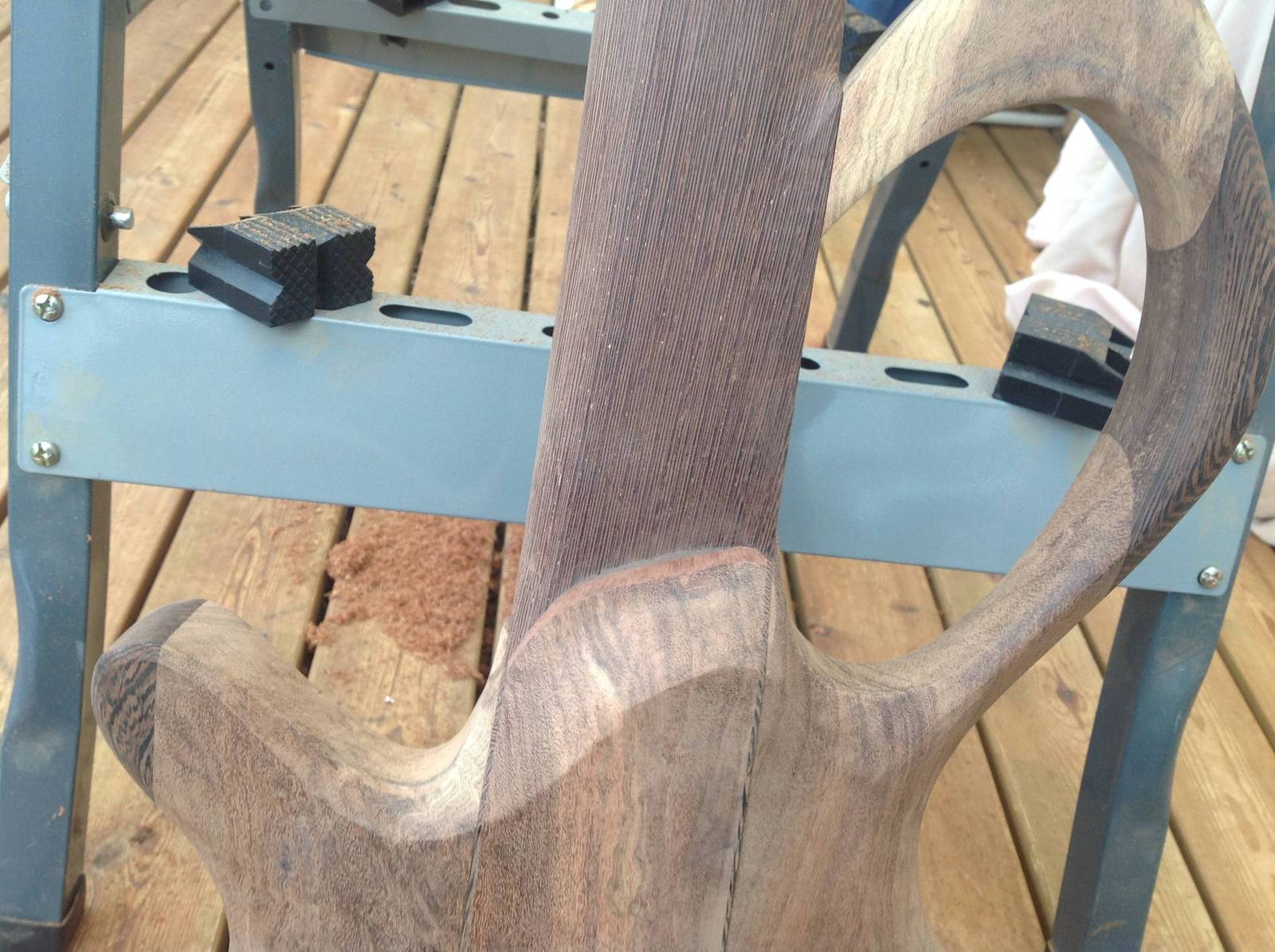

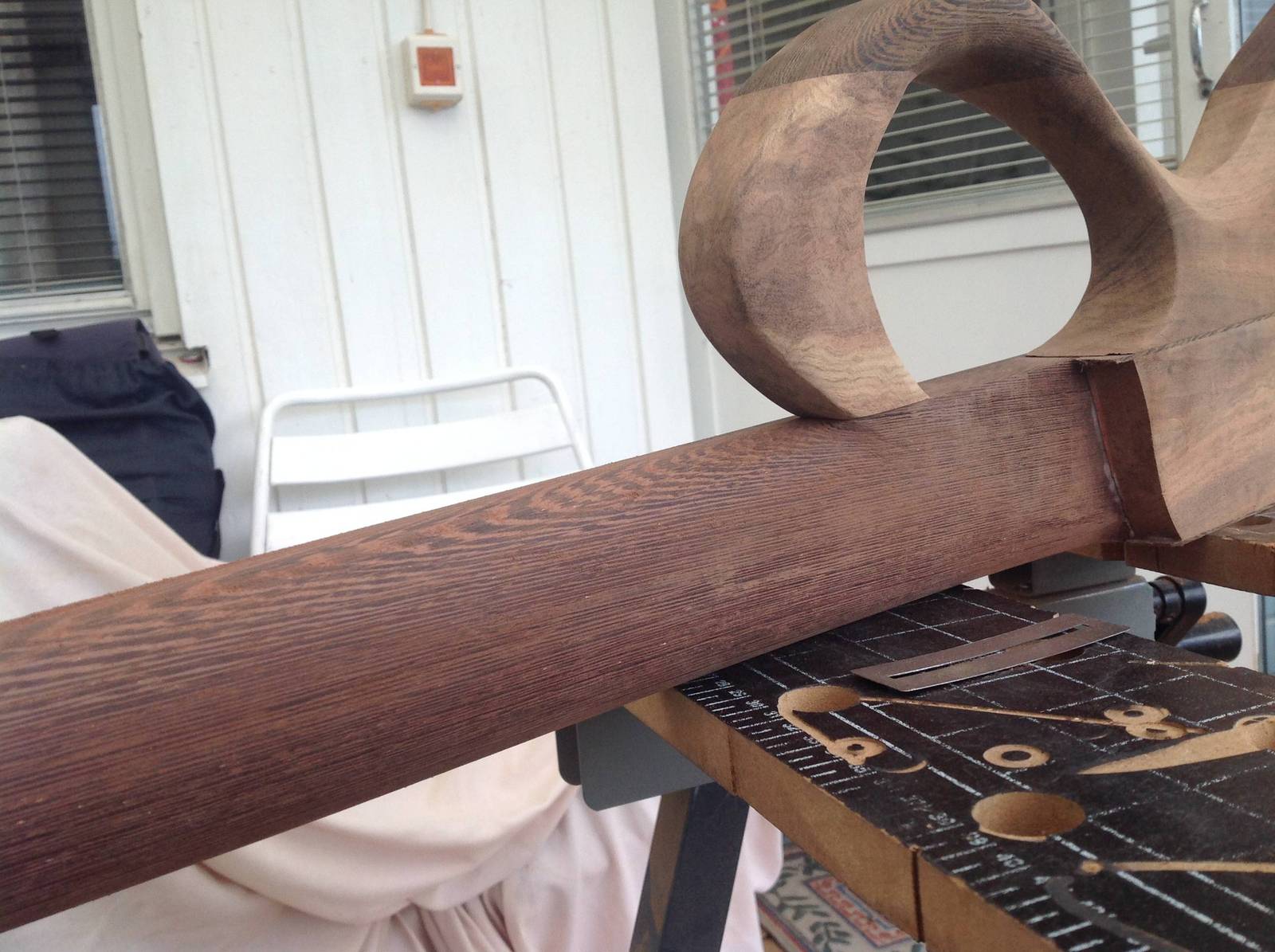

... and started sanding. Not done yet obviously but getting there



[bastav]

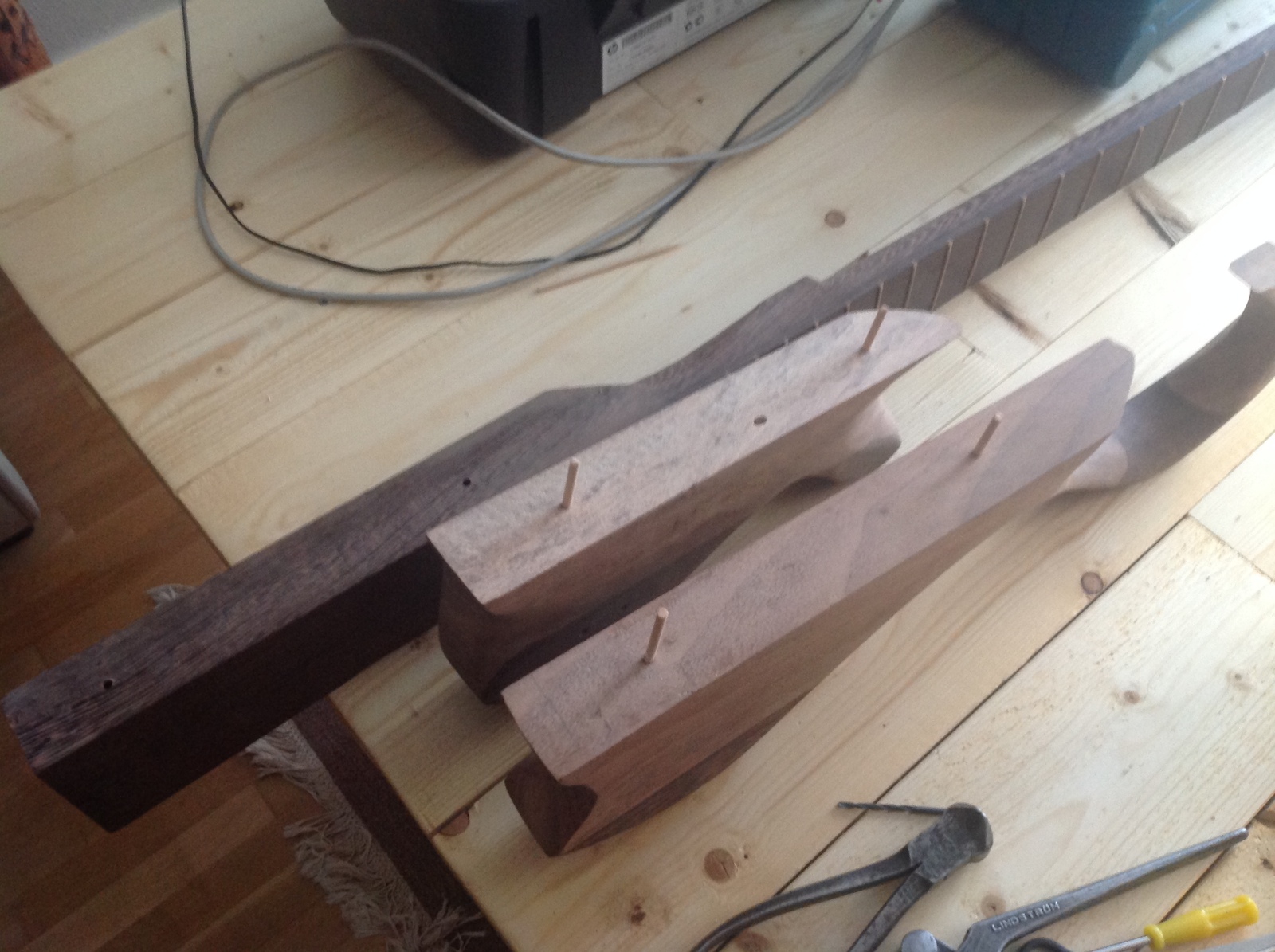

I've also started glueing up the wings, then I realized I hadnt thought about side marker dots... hmm... drilling for those will be more of a challenge with the wings getting in the way



[bastav]

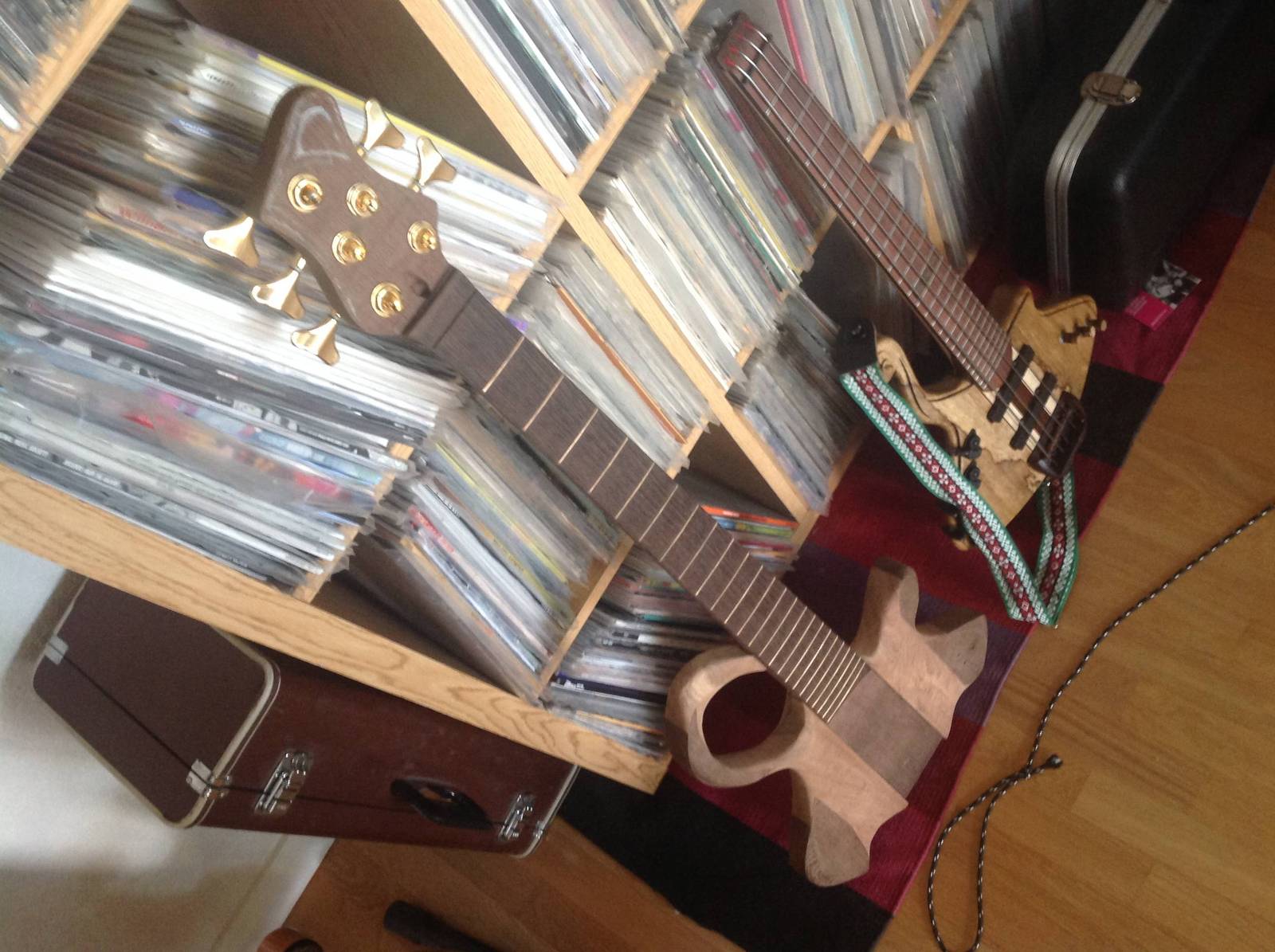

Tuners are in

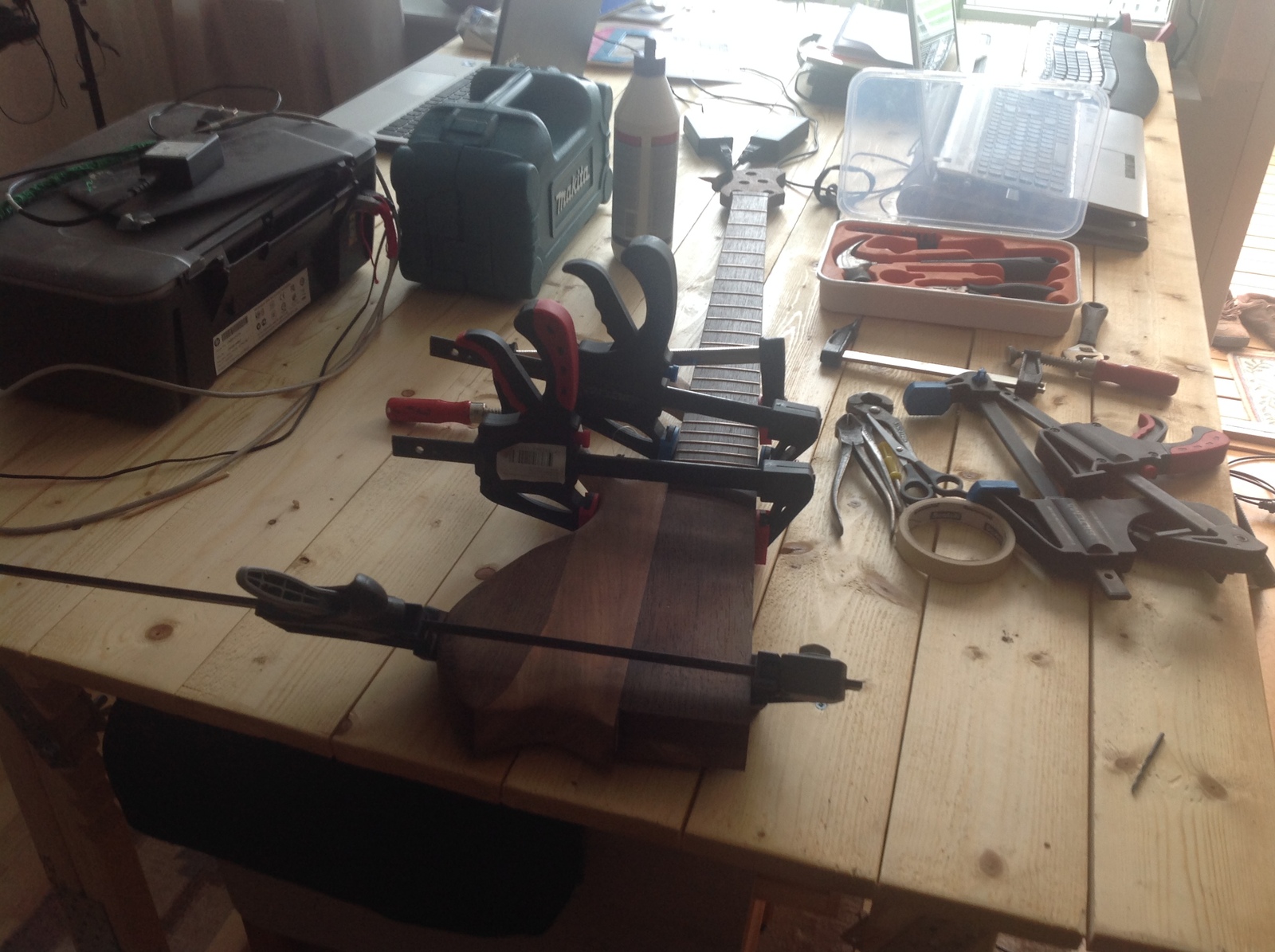

Glue up



[bastav]

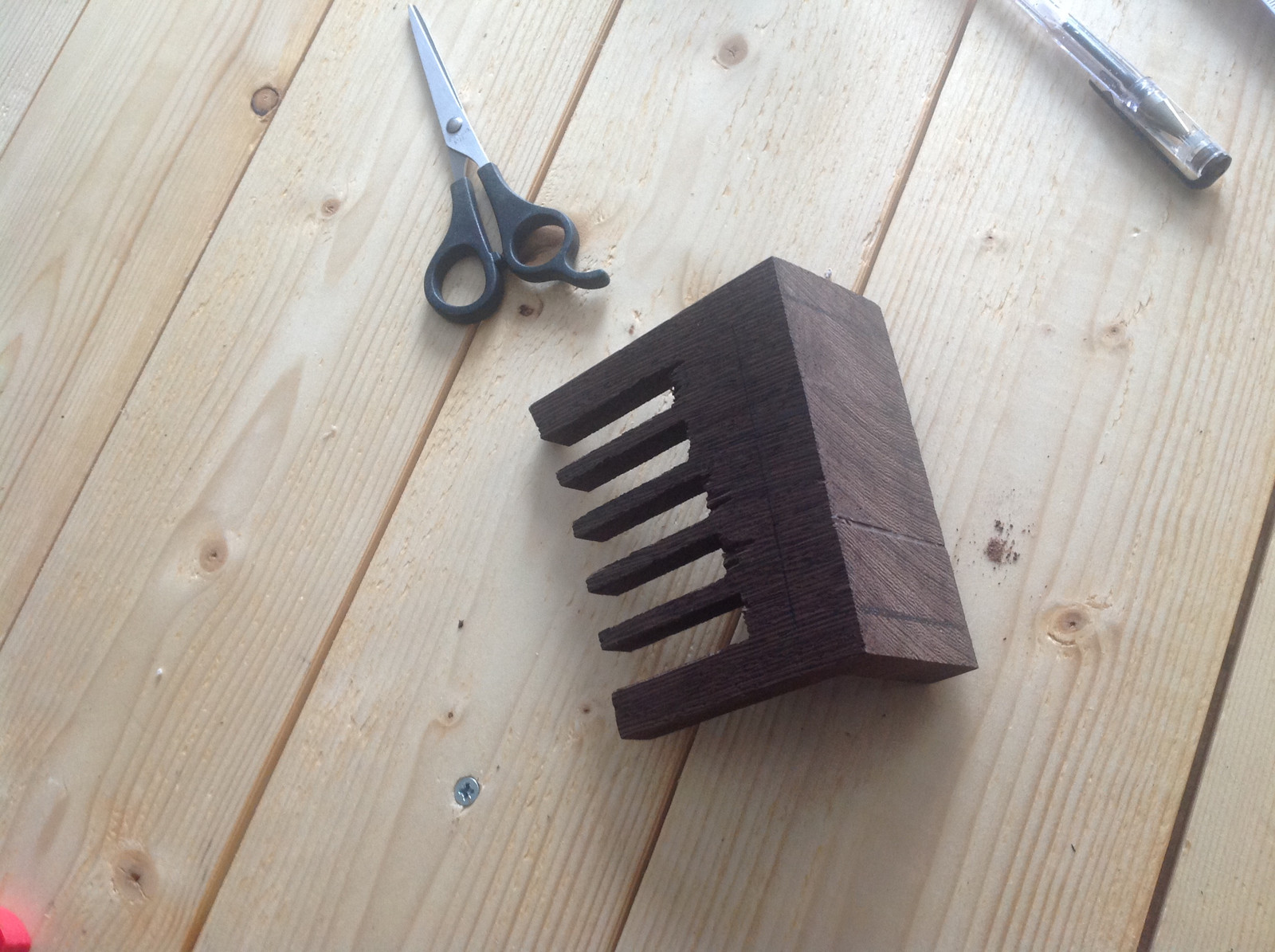

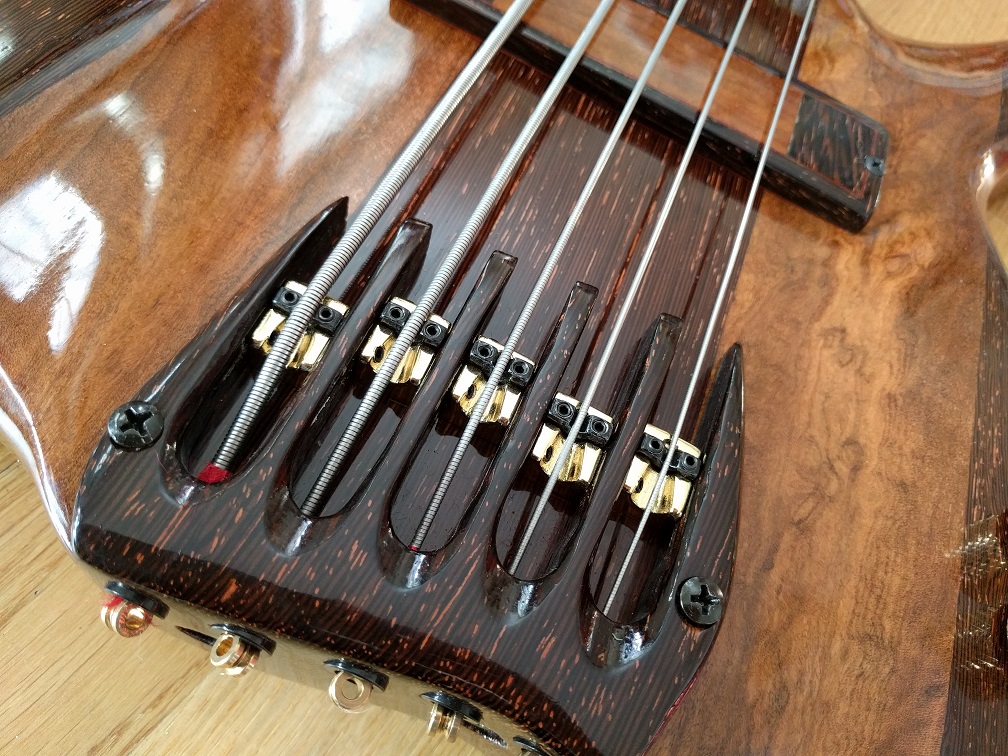

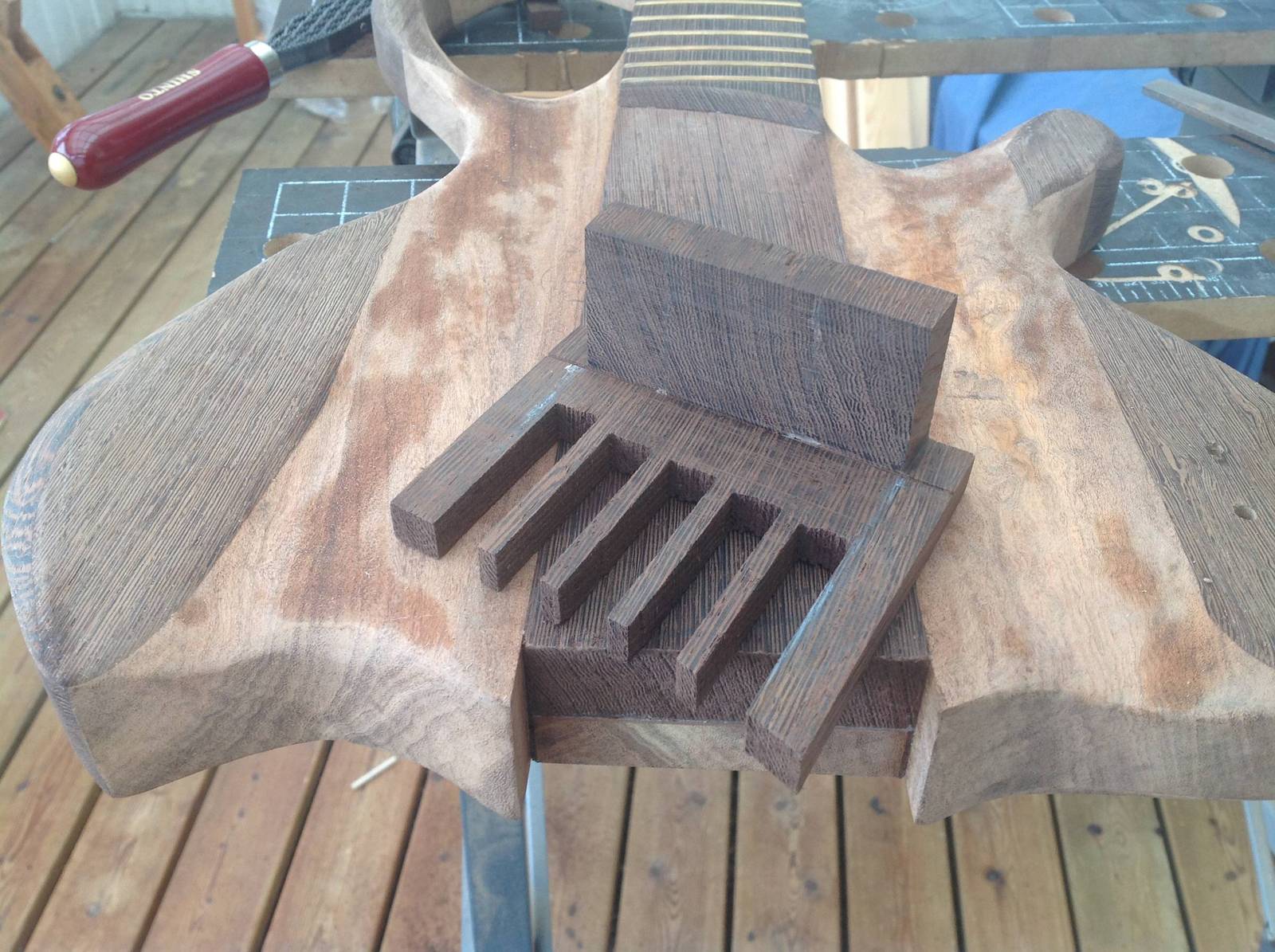

On to the bridge, this is what I had after glueing three wenge bits together and cutting stuff away on the bandsaw

Then fittting it to the slot at the butt end of the bass



[bastav]

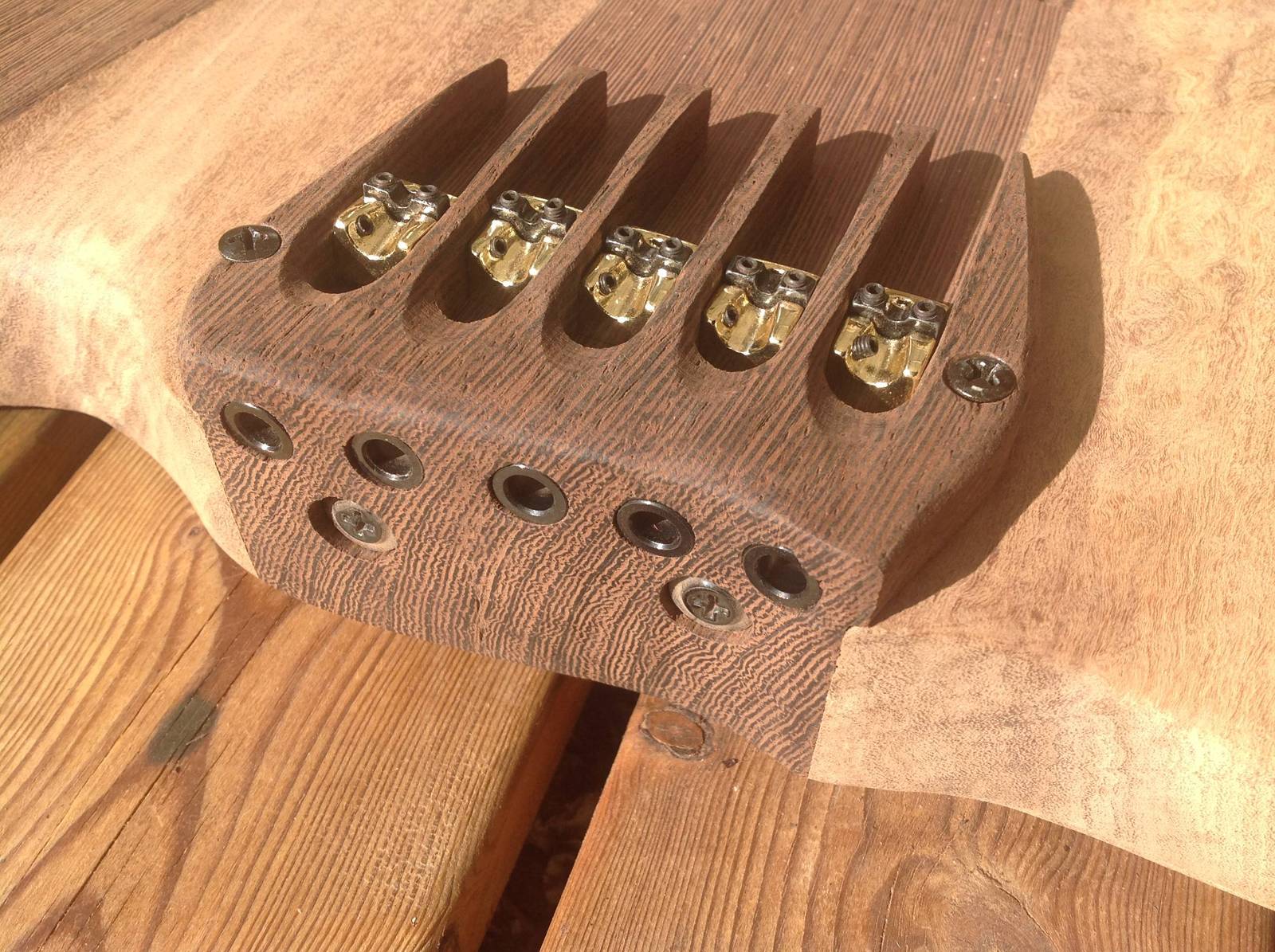

Then after a lot of sanding, filing, drilling, sanding and drilling...



[bastav]

Also strung it up with a string or two just to check intonation and action, all good I think



[bastav]

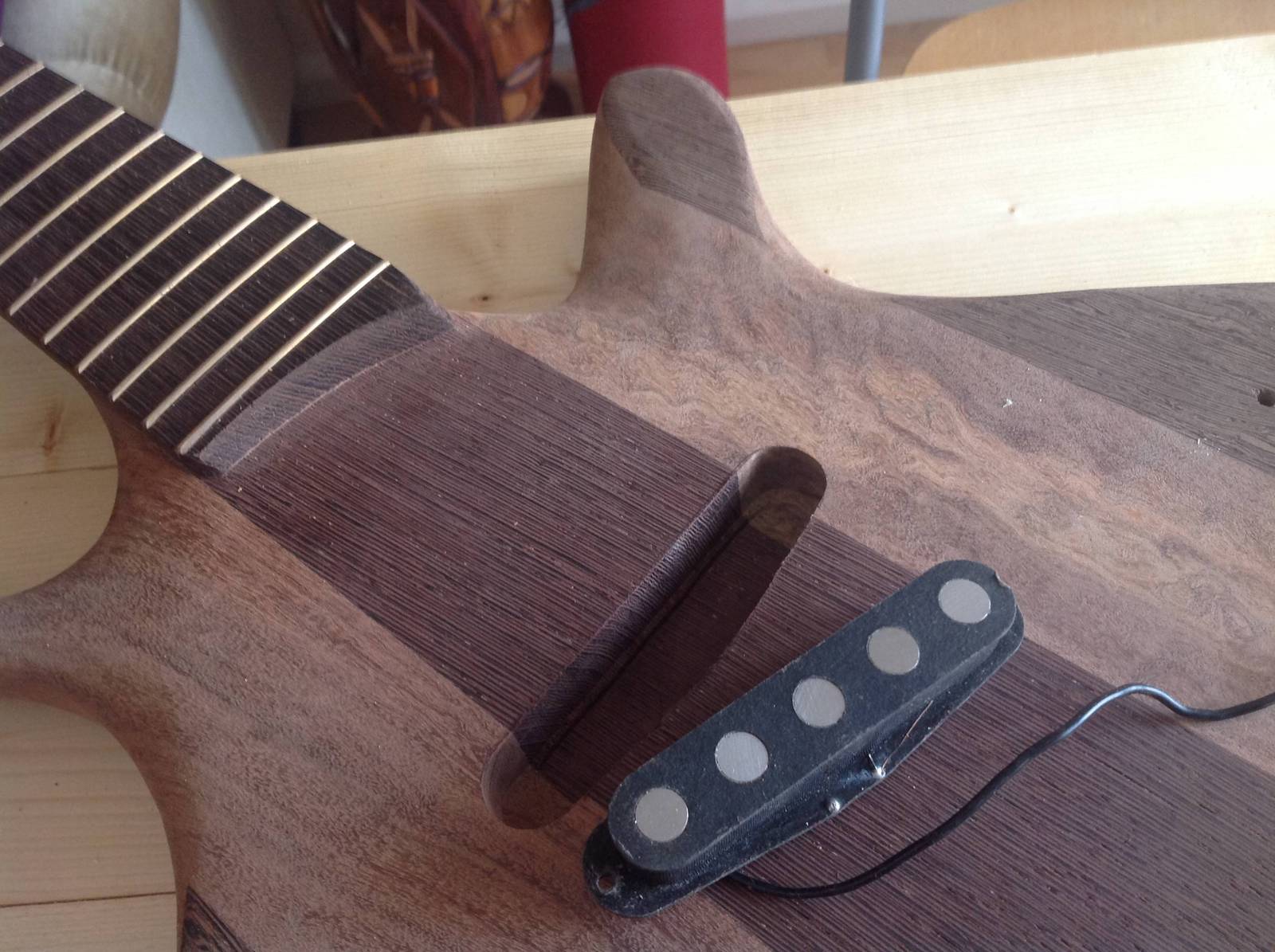

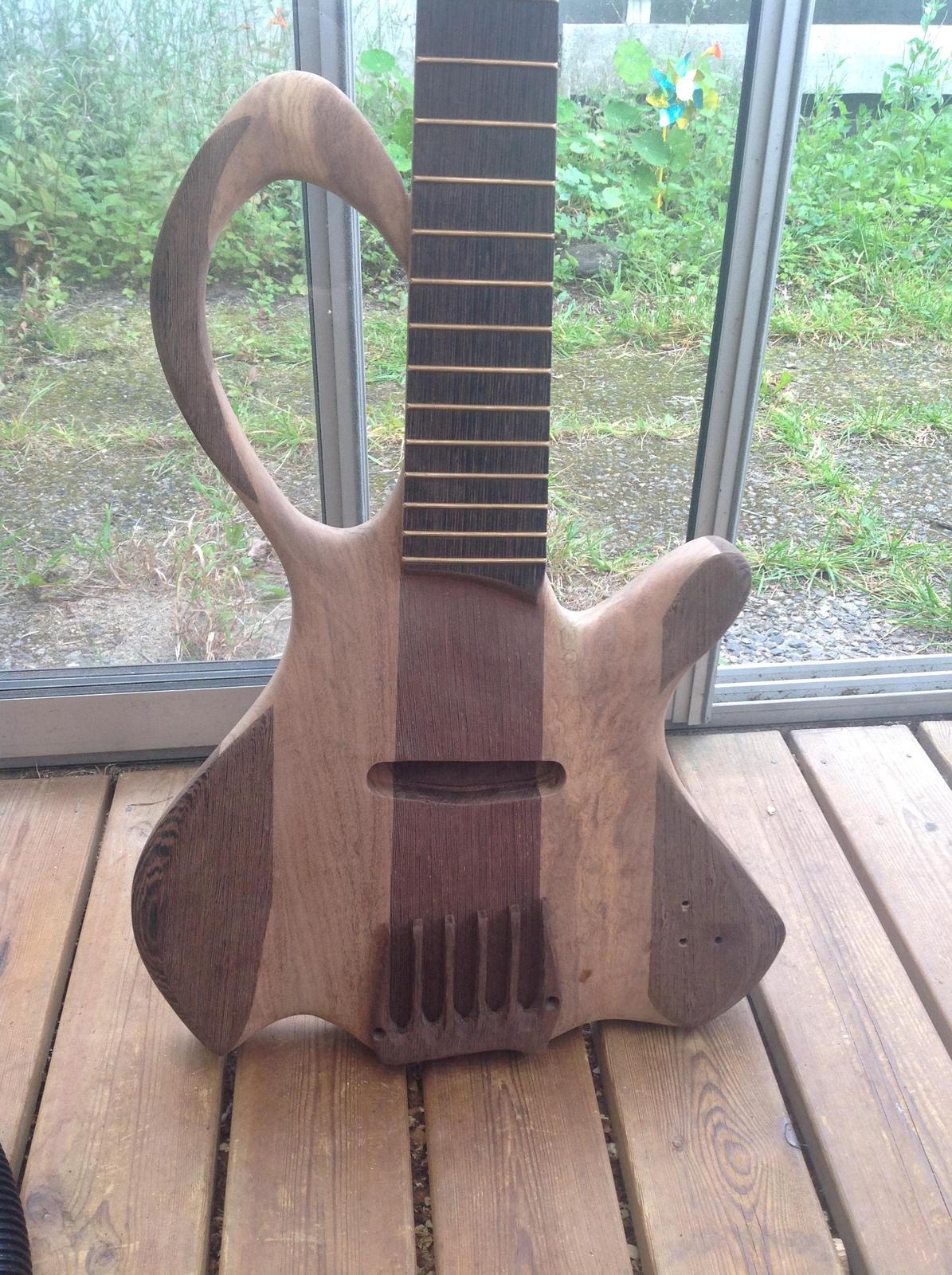

routed out for the pickup cavity



[bastav]

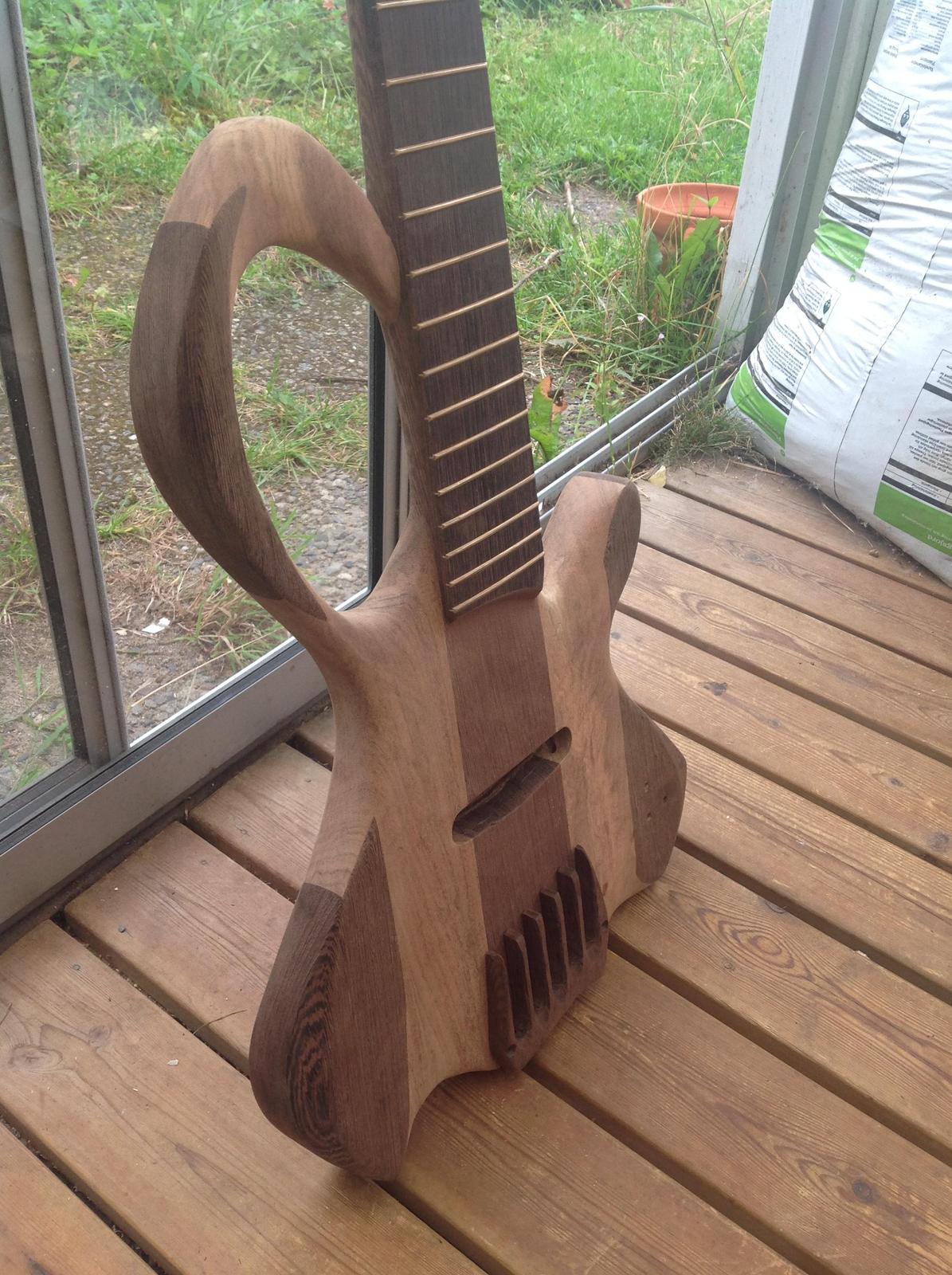

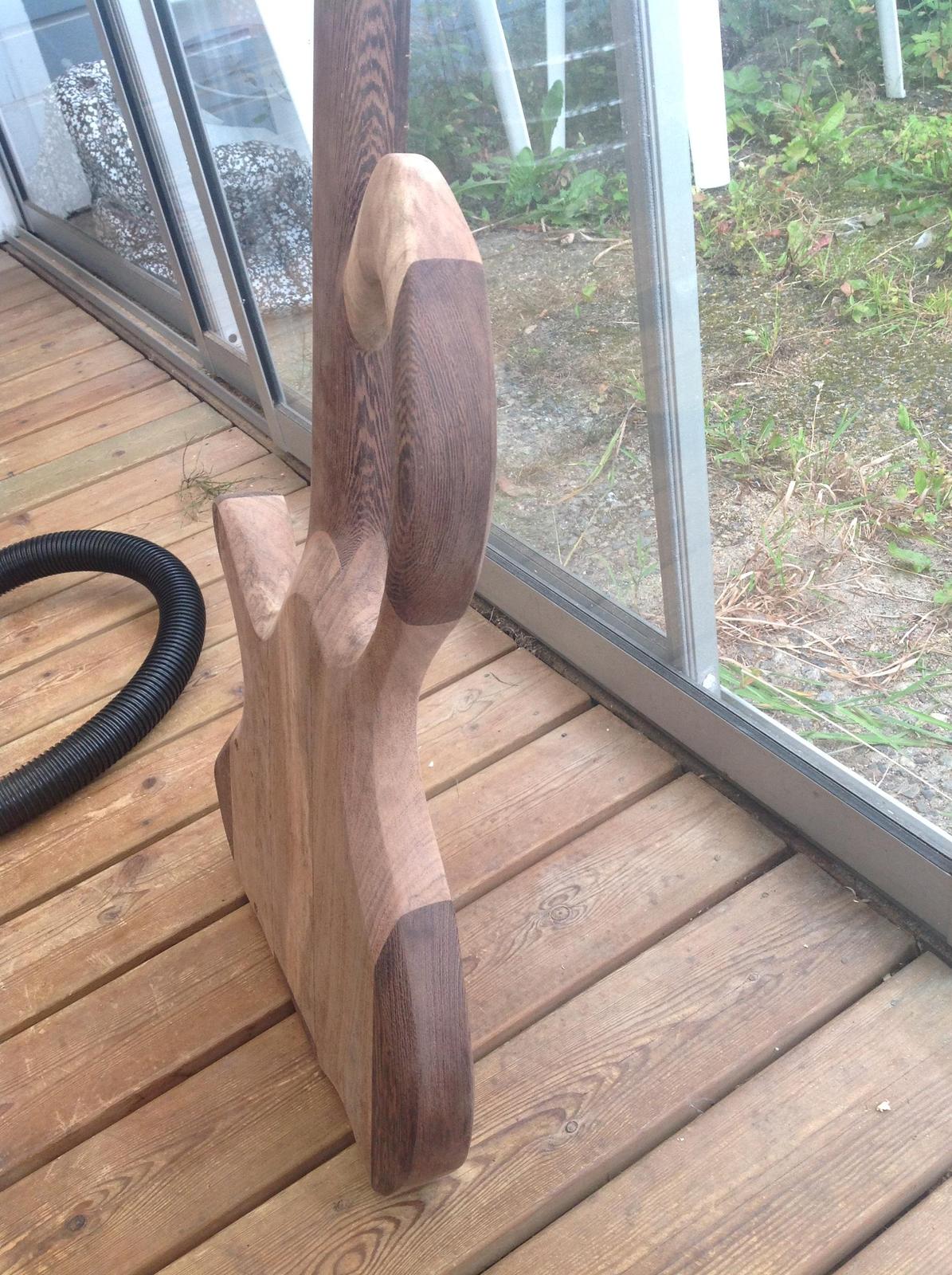

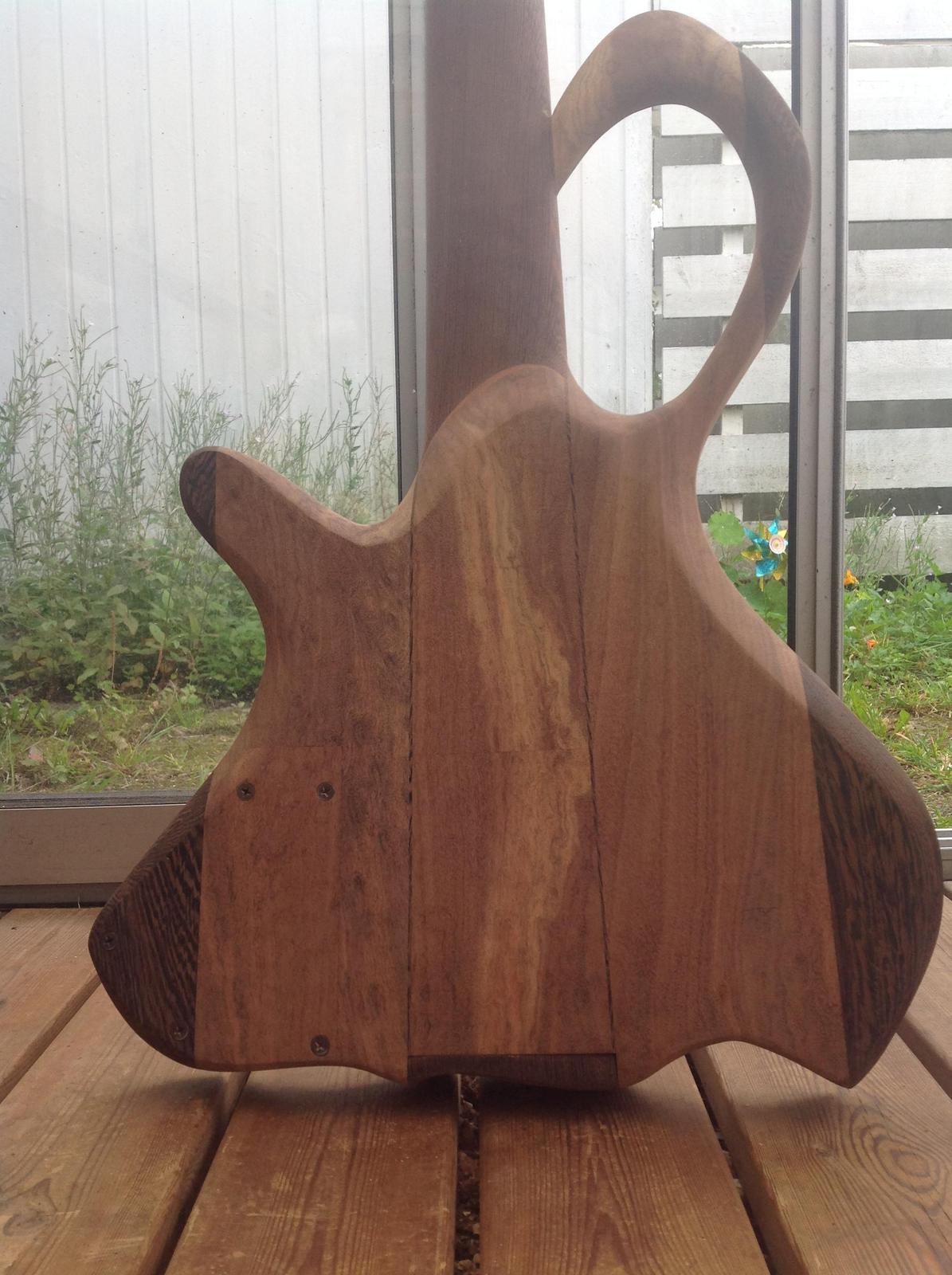

Also I think the carve is just about done



[bastav]



[bastav]

Ive also got a pickup cover thats just about done...



[bastav]

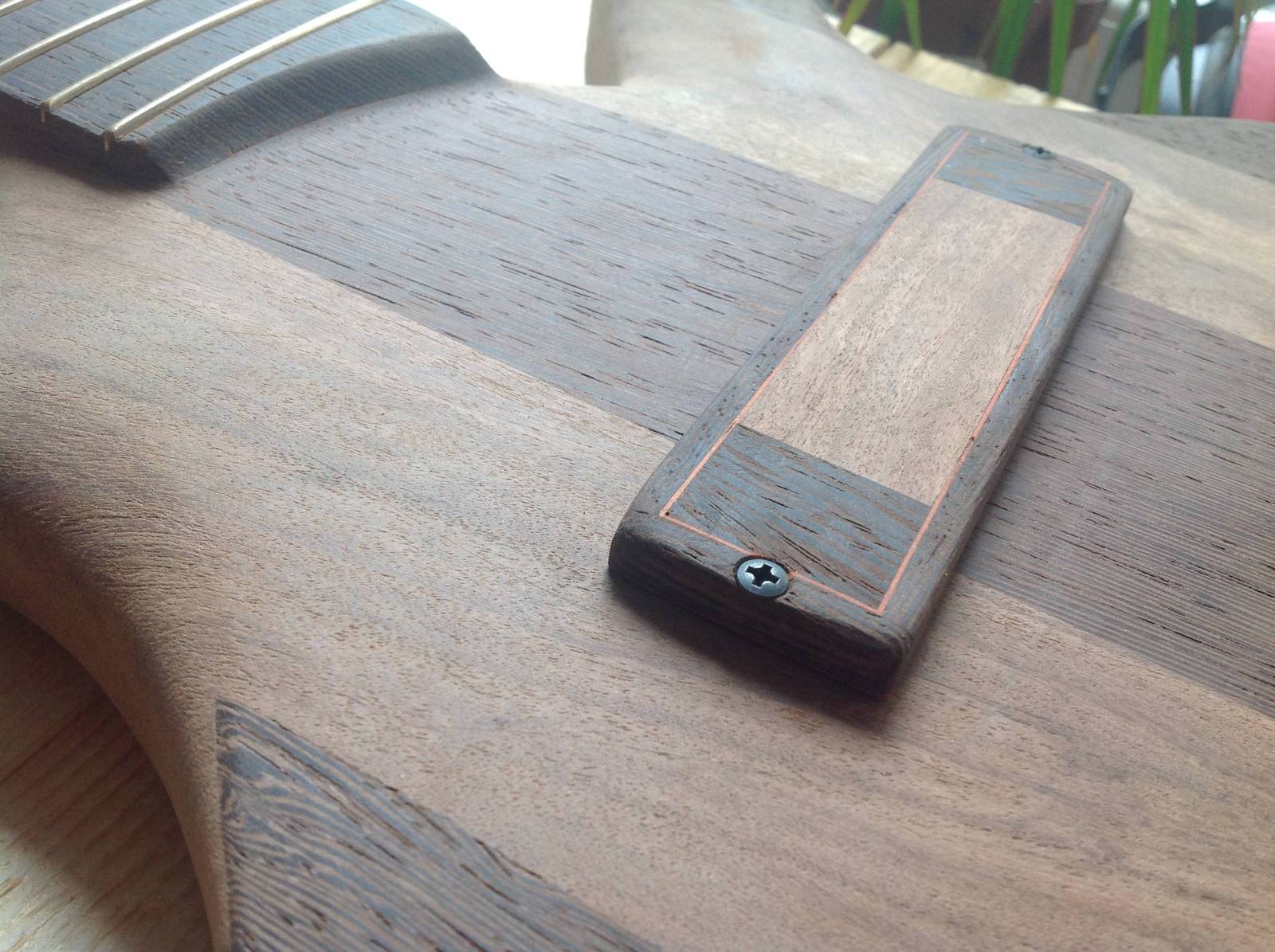

... and here's the PU cover



[bastav]

With that done there's just the slow process of finish sanding before grain filling and finishing so updates will probably be awhile



[Rôckhewer]

Nice job on that bridge!
Different & unique like the rest of this instrument

I've also started glueing up the wings, then I realized I hadnt thought about side marker dots... hmm... drilling for those will be more of a challenge with the wings getting in the way

I did that once myself....
I employed a tip I saw on the StewMac site....
Found a length of hobby store brass tubing with the proper ID for my drill bit to fit in snugly & glued it in with a couple drops of CA glue. Makes a bit as long as you need so you can get in tight along the face of the wing without the drill chuck getting in the way.



[Jisch]

I did that once myself....
I employed a tip I saw on the StewMac site....
Found a length of hobby store brass tubing with the proper ID for my drill bit to fit in snugly & glued it in with a couple drops of CA glue. Makes a bit as long as you need so you can get in tight along the face of the wing without the drill chuck getting in the way.

So you put the tubing in the drill chuck? interesting.

...and this is an awesome instrument, can't wait to see the finished product.



[bastav]

Nice job on that bridge!
Different & unique like the rest of this instrument

...and this is an awesome instrument, can't wait to see the finished product.

Thanks guys!
And thanks for the suggestion Re drillning for side dots, will keep that in mind



[I-Am-The-Slime]

Wow. Just, wow...

Inspirational originality



[bastav]

Wow. Just, wow...

Inspirational originality

Thanks!



[bastav]

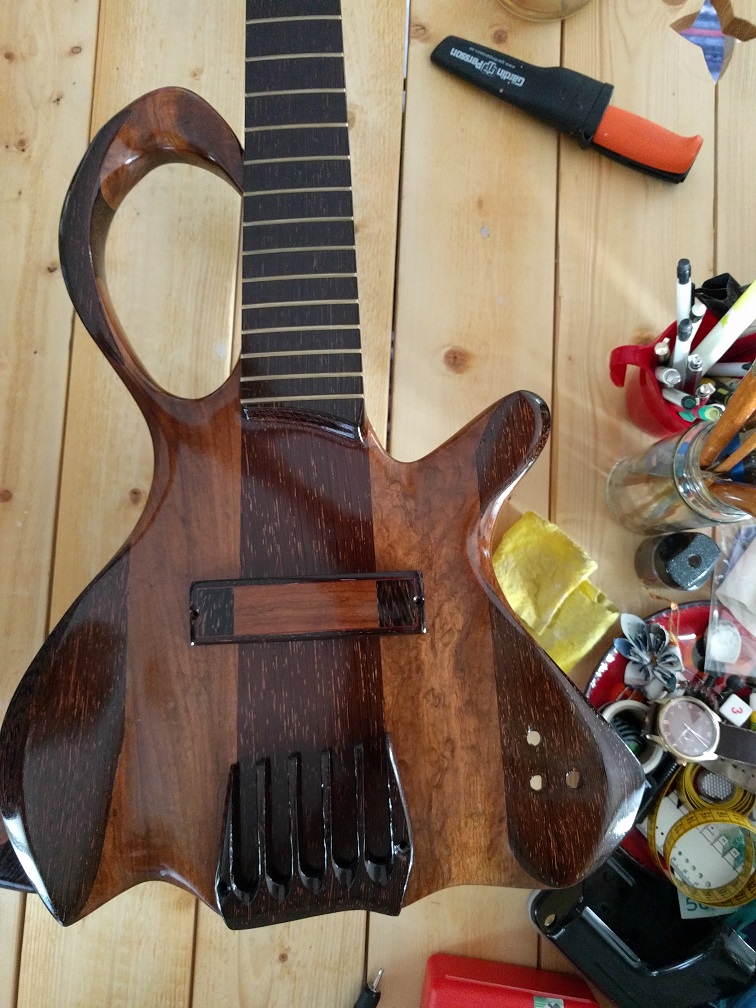

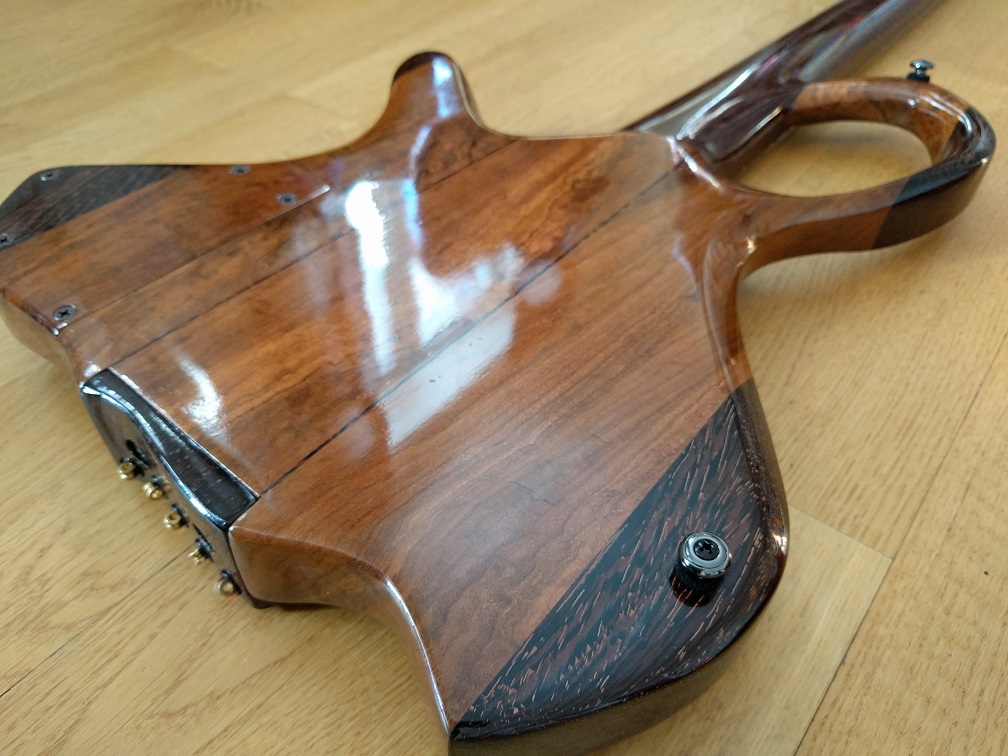

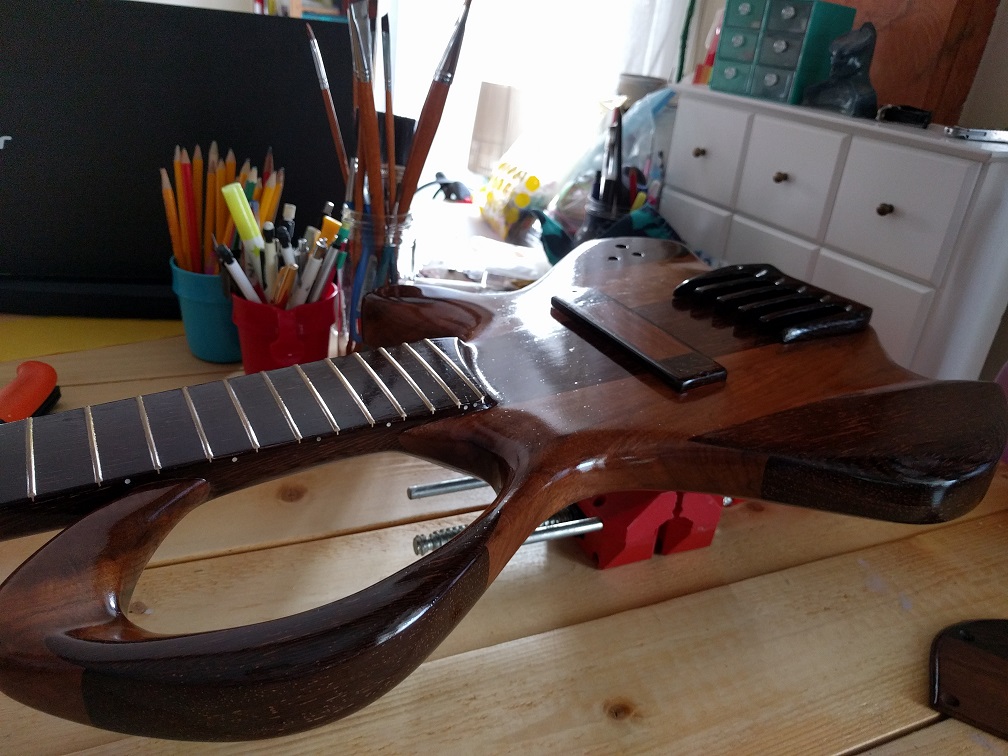

Finally got to a point where I can see the finish line. I've had some problems with the finishing process and had to start over once but now its getting to be quite shiny



[Rôckhewer]

Way cool!!



[bastav]

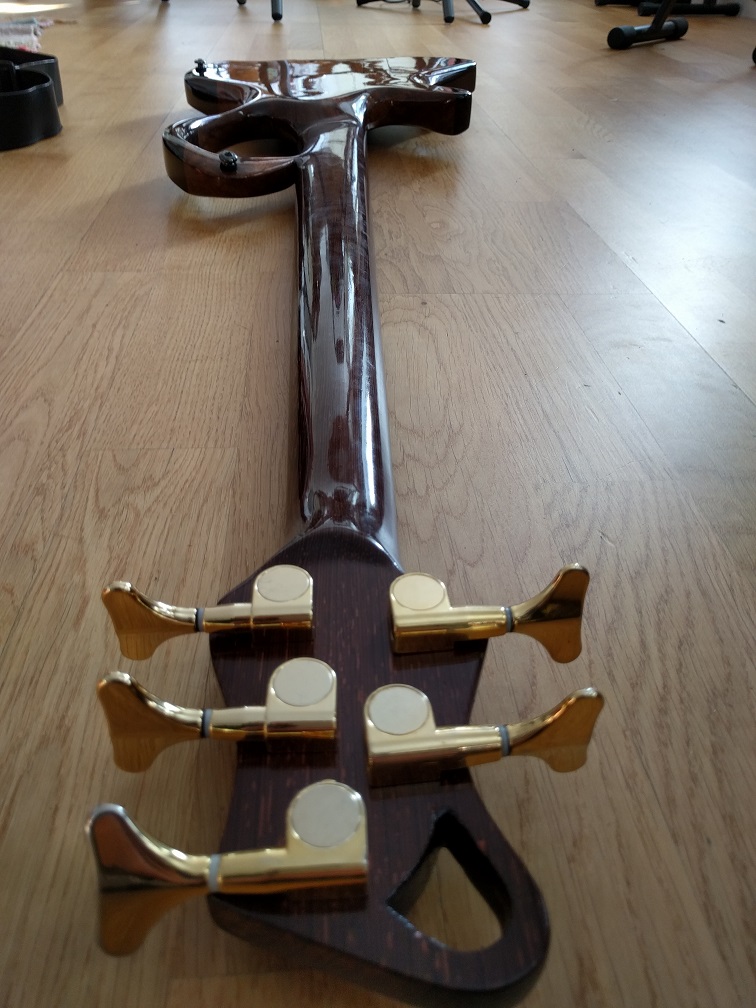

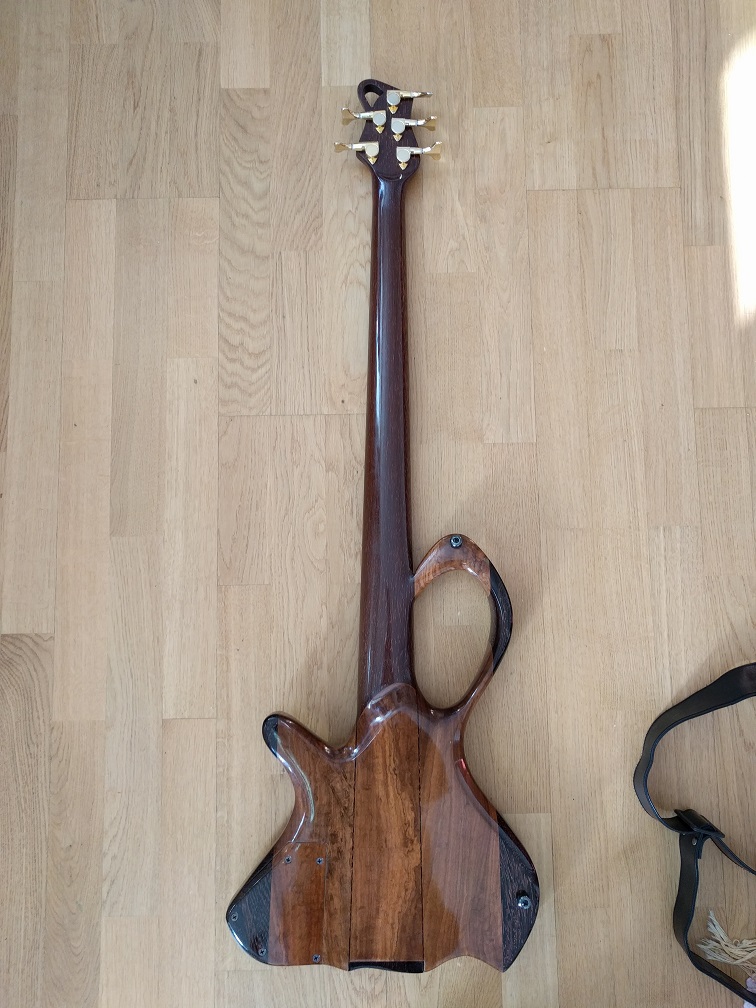

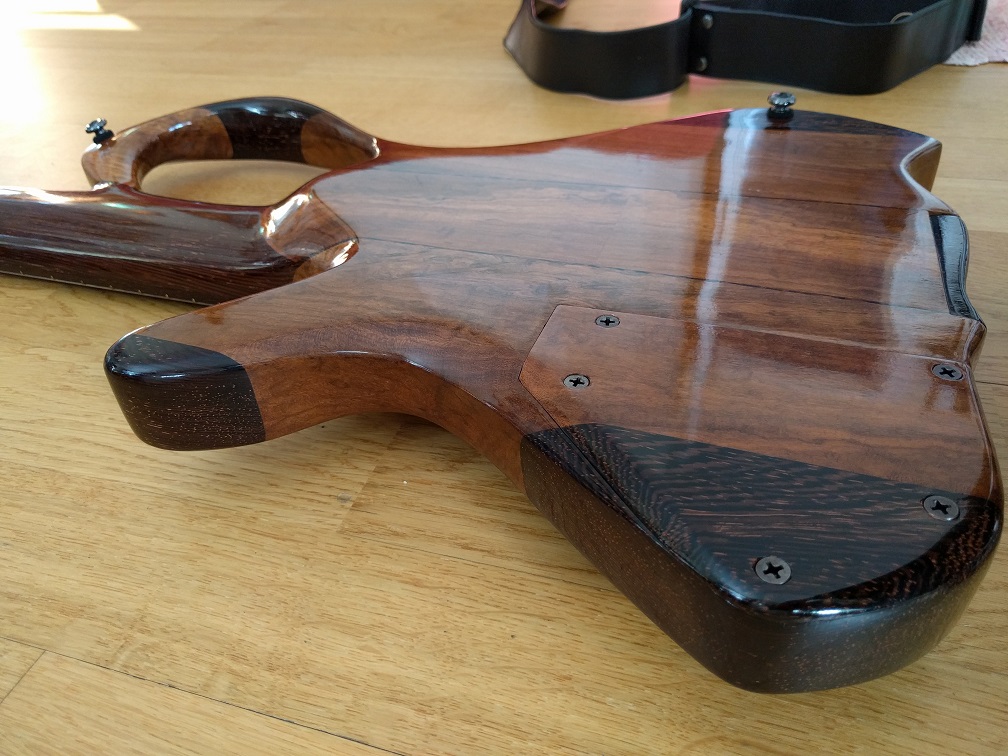

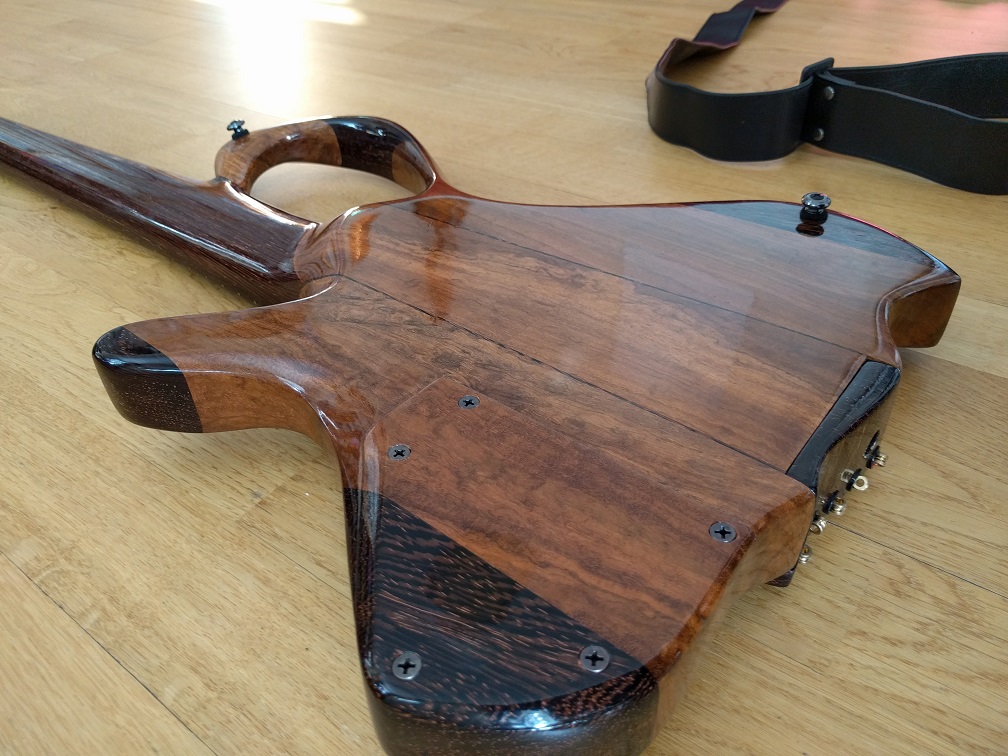

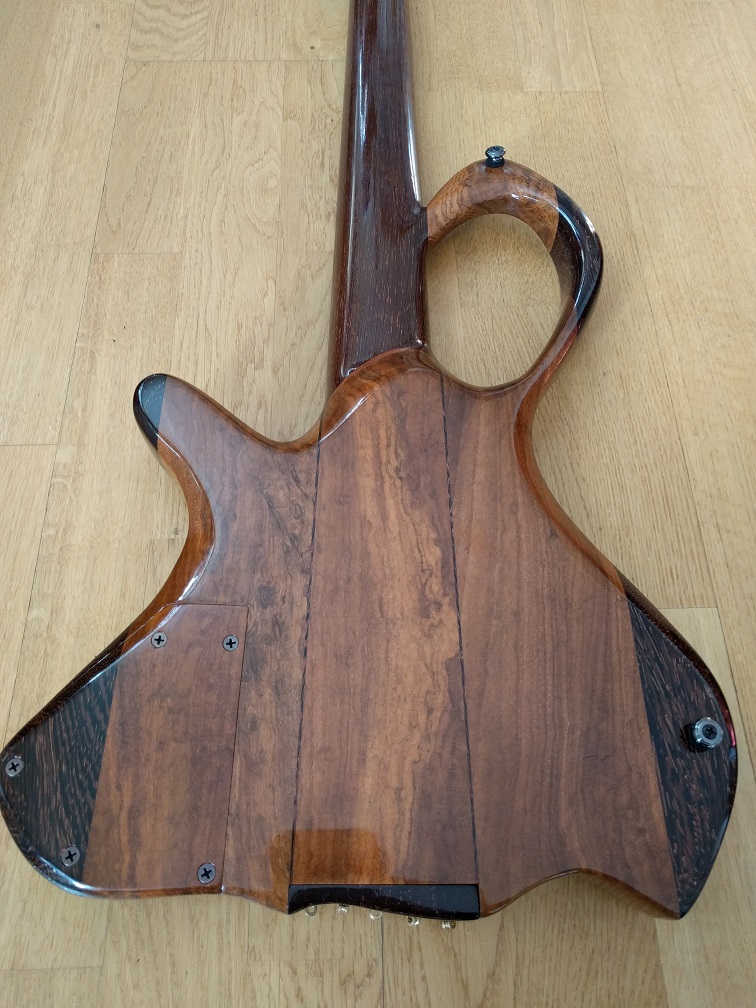

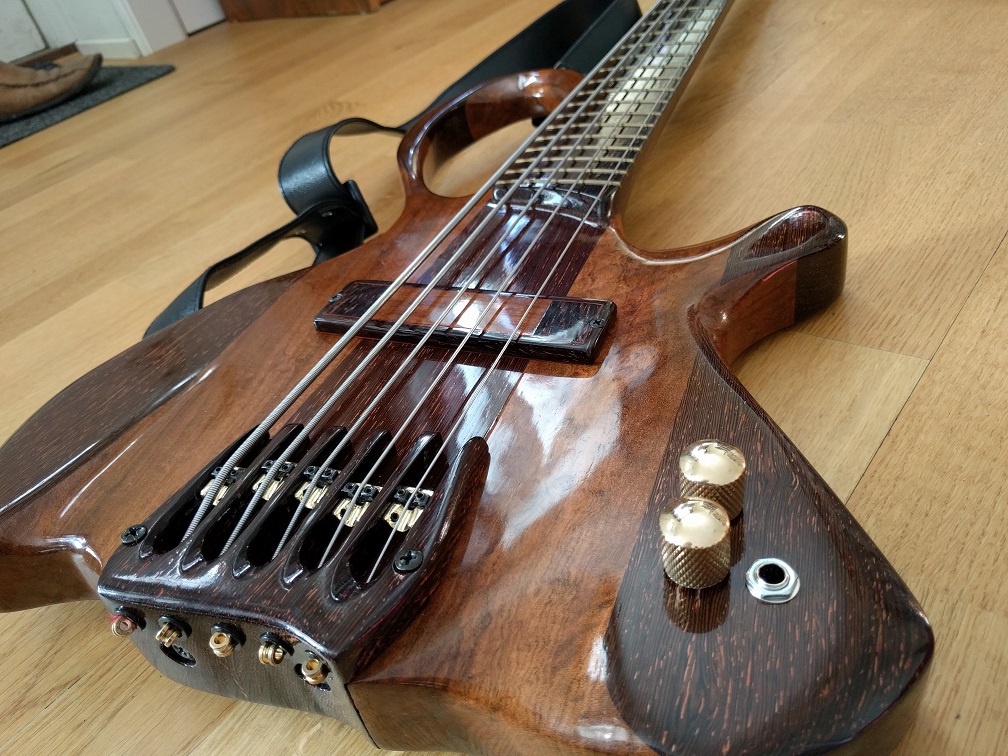

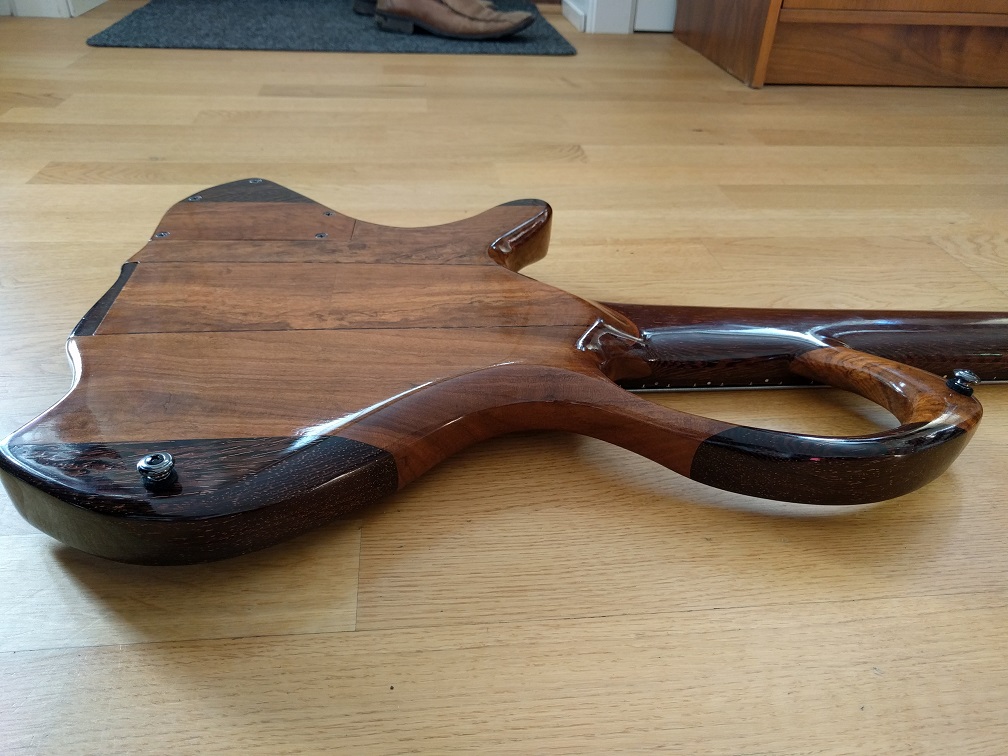

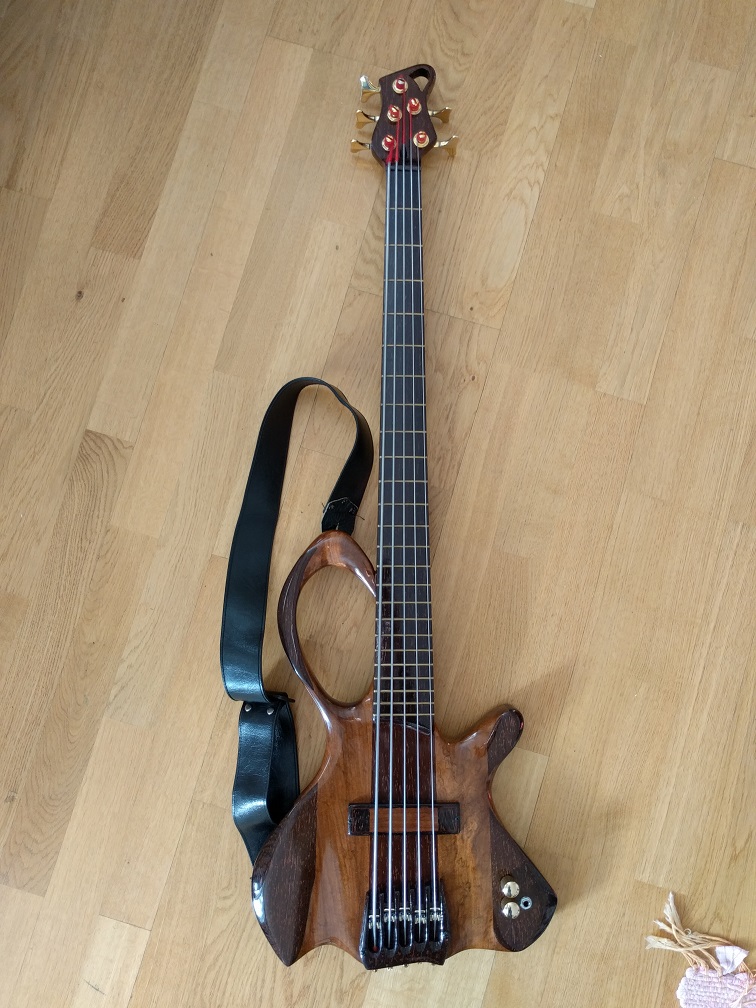

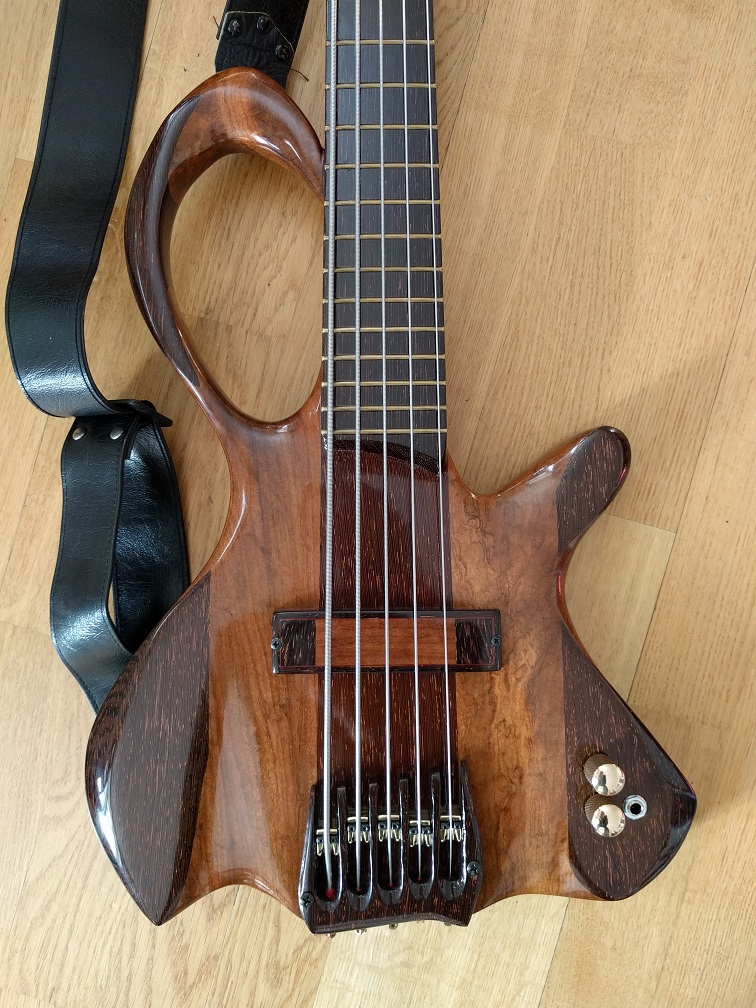

And done! I had a bit of a scare when I was installing the pots and a piece of wenge fell out the top. I glued it back in and luckily the knobs cover most of the damage. Phew. I would probably have thrown this thing out rather than start over on the finishing.

First impressions are good. The finish isn´t perfect but if you don´t look too close it looks pretty good
