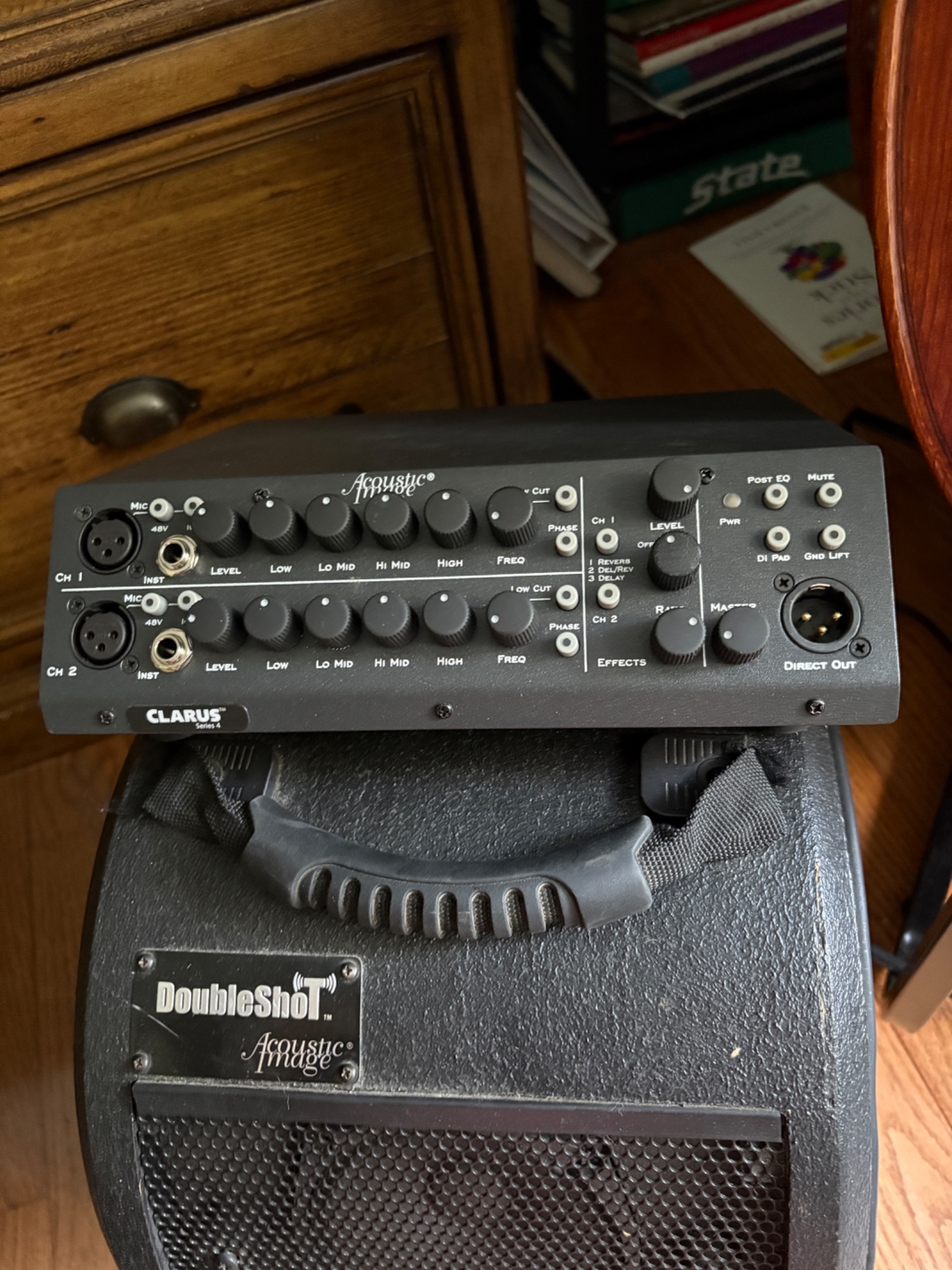

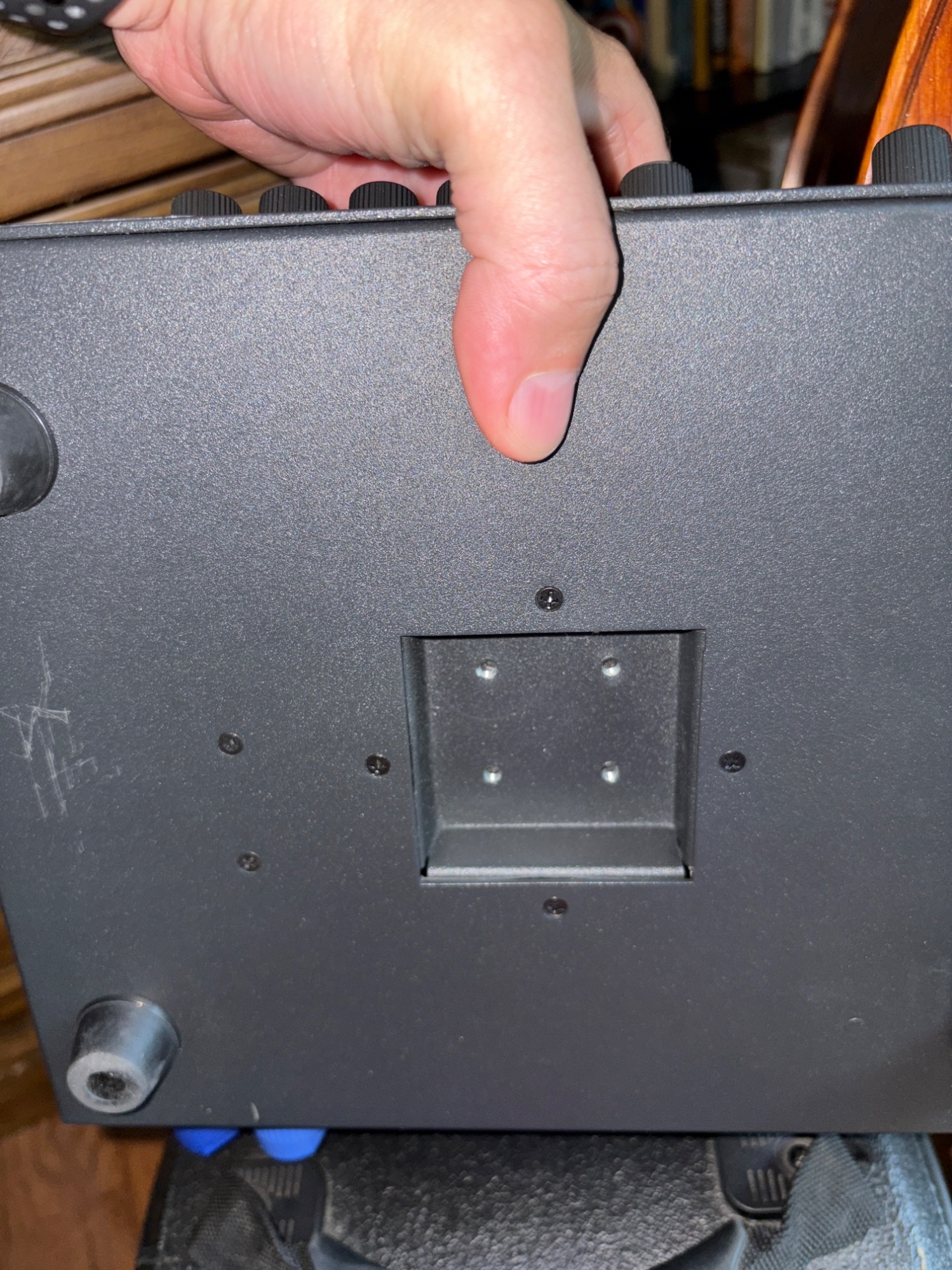

Double Bass Acoustic Image Clarus 4 - empty hole in bottom

[Yamarc]

Hi there - does anyone know what this is? Is there an adaptor I can buy to mount on a mic stand or something?

Thanks!



[BobKay]

It is for storing the four rubber feet when they are removed. You would need to remove the feet to slide the amp into a Coda housing. That’s how I use mine.



[Hasty]

Just make sure you use the factory supplied screws or replacements that are the exact same length if you ever put them into that little recess. Longer screws might go up high enough to make contact with the PCB and might accidentally make contact with a power trace which might fry your power supply. I say this as someone who experienced this firsthand with my Ten2 and a perfect storm of the kickback legs slipping and the amp/cab came down hard on stage and the screw made contact with the power supply board. In my defense I was the second owner and didn't even know those feet were in there (much less with the wrong length screw) until catastrophe struck... all I knew was it quit working on a gig. Rick informed me of this when I sent it to him for repair... sigh...



[Yamarc]

Ok, that is very helpful. I was hoping it was a place for a stand adaptor...I really want to be able to mount this amp for live use!



[Scott Freeman]

A laptop stand works well, with a little extra room for rosin, etc.



[Yamarc]

Interesting...I've looked around...do you have an example of what you are talking about?



[Scott Freeman]

On-Stage LPT7000 Deluxe Laptop Stand – Chuck Levin's Washington Music Center On-Stage LPT7000 Deluxe Laptop Stand
