Ampeg svt 810 heritage speaker replacement

[JimmyM]

yea it´s for a 410 8ohms.

but is my 810 4ohms not basially 2 x 410 8Ohm.

so i thought i could buy that pre-wired backplate with HPF and L-Pad and connect
the upper 4x10 to it.

Just sell the Heritage and buy a second 410he. Don't butcher it with a tweeter.



[Wasnex]

Just sell the Heritage and buy a second 410he. Don't butcher it with a tweeter.

Totally agree with this advice!!!!



[Artman]

27312823[/URL], member: 209686"]You made that post in 2019.

Here's a post from 2016 that indicates otherwise:
Ampeg heritage 10" drivers

2023-2019=4. Feb 2019, so 4 years and 1 month.
Whether they were in stock or not in 2016 is no indication of whether or not they were in February of 2019.



[rodl2005]

Tweeter will just add 'click-i-ness' in my experience. I rarely have em on.
Ymmv.



[Metallsau]

Just sell the Heritage and buy a second 410he. Don't butcher it with a tweeter.

You are right about the tweeter i don´t need the tweeter in particular.
the 410HE w. horn off is tuned brighter and the 115 has a lot of clickiness ....
so basically the horn would be too high frequencies anyways.
what i´m missing is 1-5k rather than 5-10 i guess.

But the Bass and Low mid Thumb / Tightness of the 810 Heritage
blews my mind. I´m having a hard time sending it back because of that.



[JimmyM]

You are right about the tweeter i don´t need the tweeter in particular.
the 410HE w. horn off is tuned brighter and the 115 has a lot of clickiness ....
so basically the horn would be too high frequencies anyways.
what i´m missing is 1-5k rather than 5-10 i guess.

But the Bass and Low mid Thumb / Tightness of the 810 Heritage
blews my mind. I´m having a hard time sending it back because of that.

I get it. I loved mine.



[Metallsau]

i got the PN115 delivered today.

maybe this will add Low and a little high to the mid grunt of the heritage.

it is 8 Ohms tho.

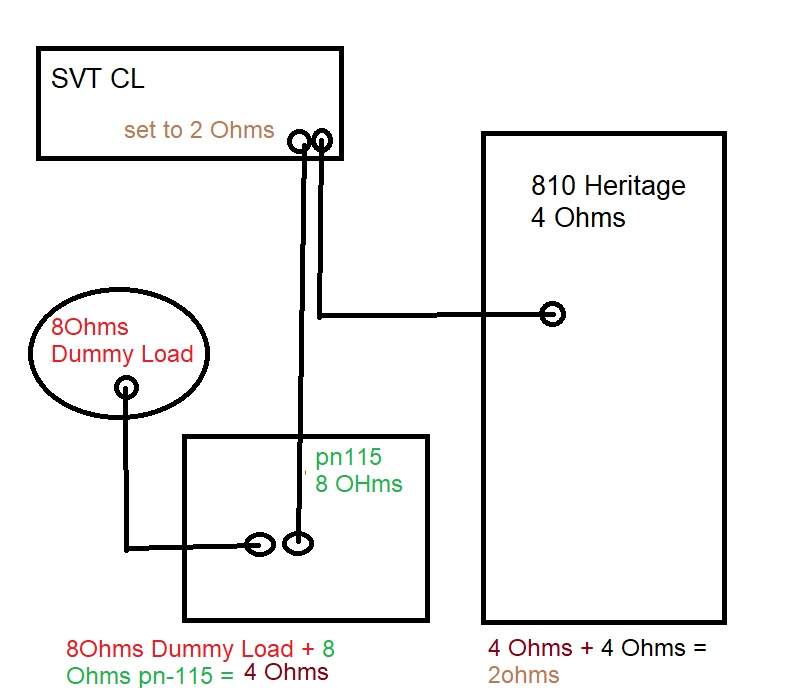

to run it on 2 Ohms with the SVT-CL + Heritage 810
i´d need a Second PN115 or a 8 Ohm Load Dummy.

someone ever did that ?

Does the SVT-CL on 2 Ohms have any downsides?



[seamonkey]

i got the PN115 delivered today.

maybe this will add Low and a little high to the mid grunt of the heritage.

it is 8 Ohms tho.
to run it on 2 Ohms with the SVT-CL + Heritage 810
i´d need a Second PN115 or a 8 Ohm Load Dummy.

someone ever did that ?

Does the SVT-CL on 2 Ohms have any downsides?

View attachment 5000504

You don't want to sink 25% of your power into that dummy load.



[Metallsau]

but why if it allows me to use 8x10 + 1x15 ?

does an SVT_CL have any downsides if used in 2 Ohm mode?



[_Some Dude]

8ohm + 4ohm in parallel is 2.667 ohms. It's not a match for the 2 ohm tap, but IMO it falls into safe mismatch territory and you can ditch the dummy load.

I'm curious how the 810+115 works. If my understanding of physics is correct 2/3rds of the power will go into the 810 and only 1/3rd of the power into 115, considering the box with over double the speaker surface area is also getting double the power there may be a massive volume imbalance.

With your other method, 50% of the power will go into the 810, 25% into the 115 and 25% into the dummy load. The dummy load doesn't fix the power imbalance, the 810 will still be substantially louder.

(someone who actually knows physics may want to check my math)



[Metallsau]

one thing i can say for sure.

although the tech-sheet says hertitage 810 has 100db sensitivity its quieter
than all the other speakers i am currently testing. ( 410he 115e and the pn1-15 hlf) .

will try 1-15 + 810 on 2 ohms and report.

funny thing is the 1-15 although it should have way more lowend it´s actually
pretty bright. but not as direct.

generally speaking, has the SVT CL any drawbacks in 2ohms mode compared to
4 ohms?!



[agedhorse]

Are you sure there no damage or internal miswiring of your 810?



[Metallsau]

upper half works fine allone. and if i plug in the single connector. all 8 are engaged.

i bought it new from the dealer so i guess everythings allright.
