An inexpensive audio transformer with DIY projects

[Feral Feline]

...Anything you would come up with would be greatly appreciated and above and beyond anything we deserve

+1

Frank and John — the gifters that keep on gifting.

Merci Beaucoup!



[kleinenenten]

Ok, so I have the GK Rails Pedal and love it, what's the skinny on this?



[nshuman]

Ok, so I have the GK Rails Pedal and love it, what's the skinny on this?

I'll be honest, the Transboost is an amazing clean boost, an amazing light OD, capable of more OD, an amazing unclean boost. It has become an always on for me.



[kleinenenten]

I'll be honest, the Transboost is an amazing clean boost, an amazing light OD, capable of more OD, an amazing unclean boost. It has become an always on for me.

Oh, jeez, not this again...





(How do I get my hands on one?)



[nshuman]

Oh, jeez, not this again...





(How do I get my hands on one?)

PM JohnK



[nshuman]

And, also, follow @boomertech 's settings recommendations as a starting point. Clipping at 0, Drive to just add a bit of hair, output to taste. Then, you take it from there.



[boomertech]

This thread now has three DIY circuits….

The TransBoost. The only one that has been built so far (that I am aware of).

The MOSFET/Transformer boost circuit that recnsci contributed in post #30 on page two.

And the latest is the iBUFF DI circuit. JohnK just made a PCB layout for those that want to etch their own boards.


-Frank



[Deadsound]

Will you make the PCB lay-out available to the public or is this classified information?

not yet.

hey @johnk_10 any plans to make your Transboost PCB layout public?



[johnk_10]

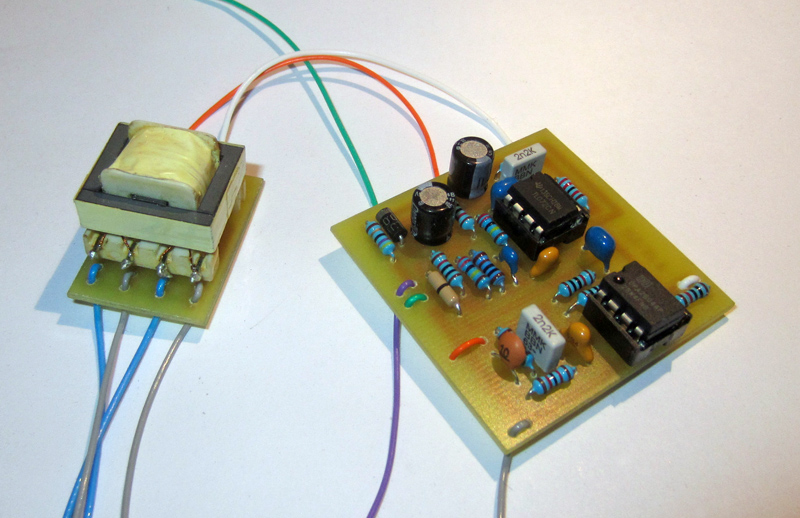

I finally got the ibuff boards etched & built up, but due to time constraints won't be able to start testing it til Monday.



[boomertech]

I finally got the ibuff boards etched & built up, but due to time constraints won't be able to start testing it til Monday.

Awesome work again, John!!! Looking forward to your testing!

-Frank



[johnk_10]

I may have some RTA tests as soon as tomorrow.



[boomertech]

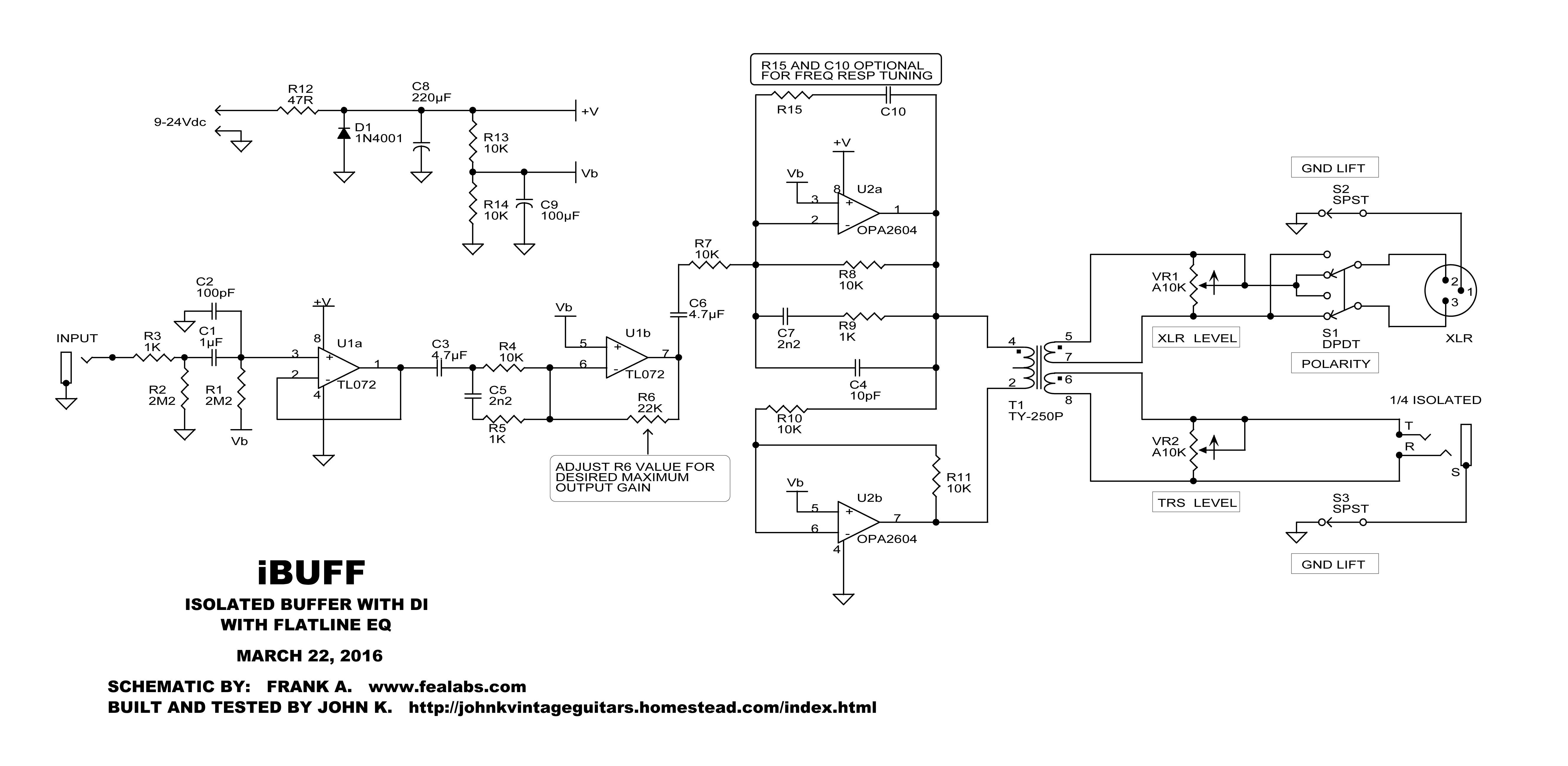

Here is the finalized iBuff. John built and tested this one and it looked really nice on the RTA plots.

-Frank



[kleinenenten]

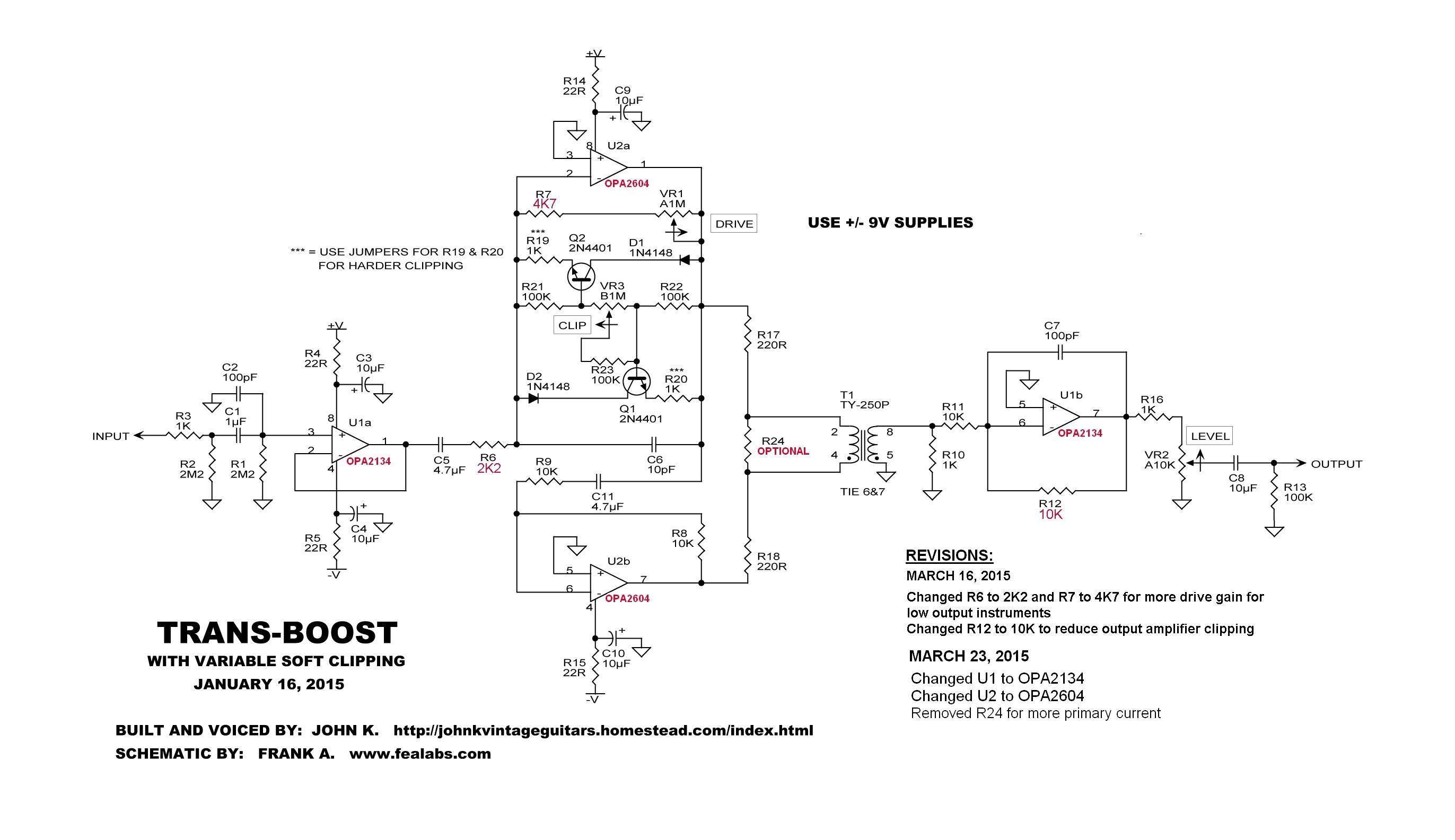

Can anybody tell me if this is the most recent version of the schematics for the Transboost?

And if it's not, could someone please post/send me the most recent schematics?

Thanks in advance, everybody!



[boomertech]

Can anybody tell me if this is the most recent version of the schematics for the Transboost?

And if it's not, could someone please post/send me the most recent schematics?

Thanks in advance, everybody!

I have been very good with removing old revisions of these circuits, so if you pull a schematic from one of my posts then it is very likely the latest revision that I worked on.

-Frank



[kleinenenten]

I have been very good with removing old revisions of these circuits, so if you pull a schematic from one of my posts then it is very likely the latest revision that I worked on.

-Frank

Great! I got it from page 17 of this thread. Thanks for the quick info. Hope to find someone to help me build this thing soon.



[bassically_eli]

I would certainly be interested in a simple, passive HPF using an inexpensive transformer. Okay, full disclosure, I know there are several references to HPFs in this thread, but I haven't read the entire thread. It's a bit much for me to digest.



[kleinenenten]

I would certainly be interested in a simple, passive HPF using an inexpensive transformer. Okay, full disclosure, I know there are several references to HPFs in this thread, but I haven't read the entire thread. It's a bit much for me to digest.

This thread is about a dirt light to medium gain dirt pedal. A pretty great one, actually. But NOT an HPF.



[galore]

I have one of these Transboost pedals and it’s amazing. But sometimes the signal cuts out and there’s only noise, like static tv. I did some troubleshooting and I narrowed it down to the dc 9V input jack where I can replicate the problem by slightly rotating dc cable. If the dc jack has to be replaced, it’s tucked under the internal board which I assume is fastened by knobs on the pots and can be removed by removing the knobs first? Anyone know what is the exact type of dc input jack?

Or is the dc jack 2.5 mm wide and I have a wrong dc cable (2.1 mm) inserted? It’s a tight fit so I guess this is not the case.

Any help much appreciated.



[davelowell2]

I picked one of these up made by DiCosimo. I really enjoy the low gain tones.

Can anyone tell me about the Clip knob? I feel like the middle range of travel it changes eq or emphasis or something.
Thanks!



[disssa]

@boomertech @johnk_10
I know it is an old thread.
The TY-250P is most of the time not available. Is the TY-145P an alternative? What would have to be changed for the TY-145P to work?
