Any info on the Ampeg B30?

[Yossarian]

I've been trying to figure out when my amp was made, can't find the information anywhere. It's an Ampeg B30. Anybody have any information on it?



[cornfarmer]

LET'S DO THE TIME WARP AGAIN

Twenty years later I am asking the same question. I just picked one up for $40 from Goodwill. I assume it's 30w (it sounds like it). It has a 15" but I didn't pull it out to see what is. The treble and midrange controls are effective, the bass knob seems to stop boosting after 1 o'clock. There's an 'EQ shift' toggle to switch between 'soft/hard' - this doesn't seem to do anything so it's probably broken. There's nothing on the back to indicate who made it.

It's an amp, it mostly works. I spent most of today cleaning all the cat p1ss off it. I haven't really put it through the paces yet. Predecessor to the BA series?



[bass player 53]

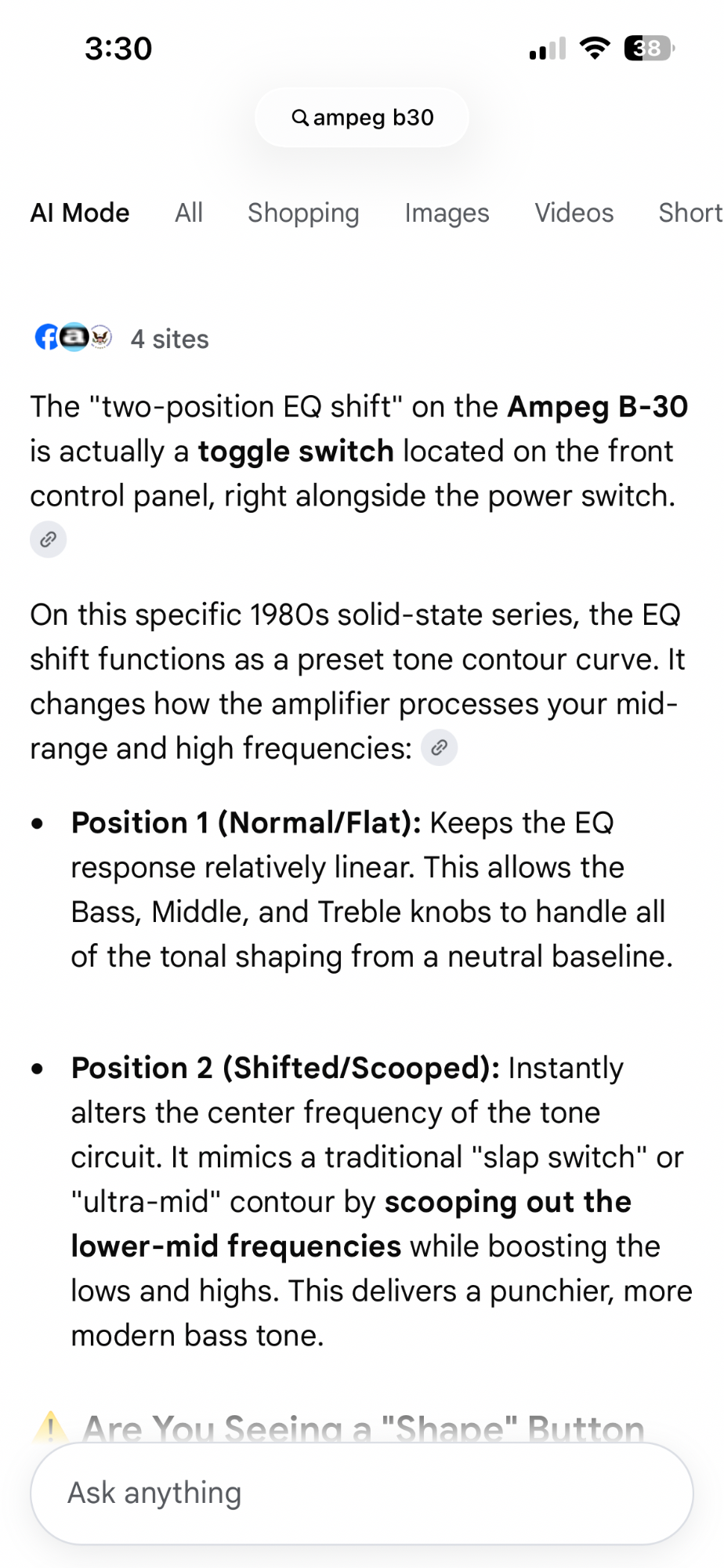

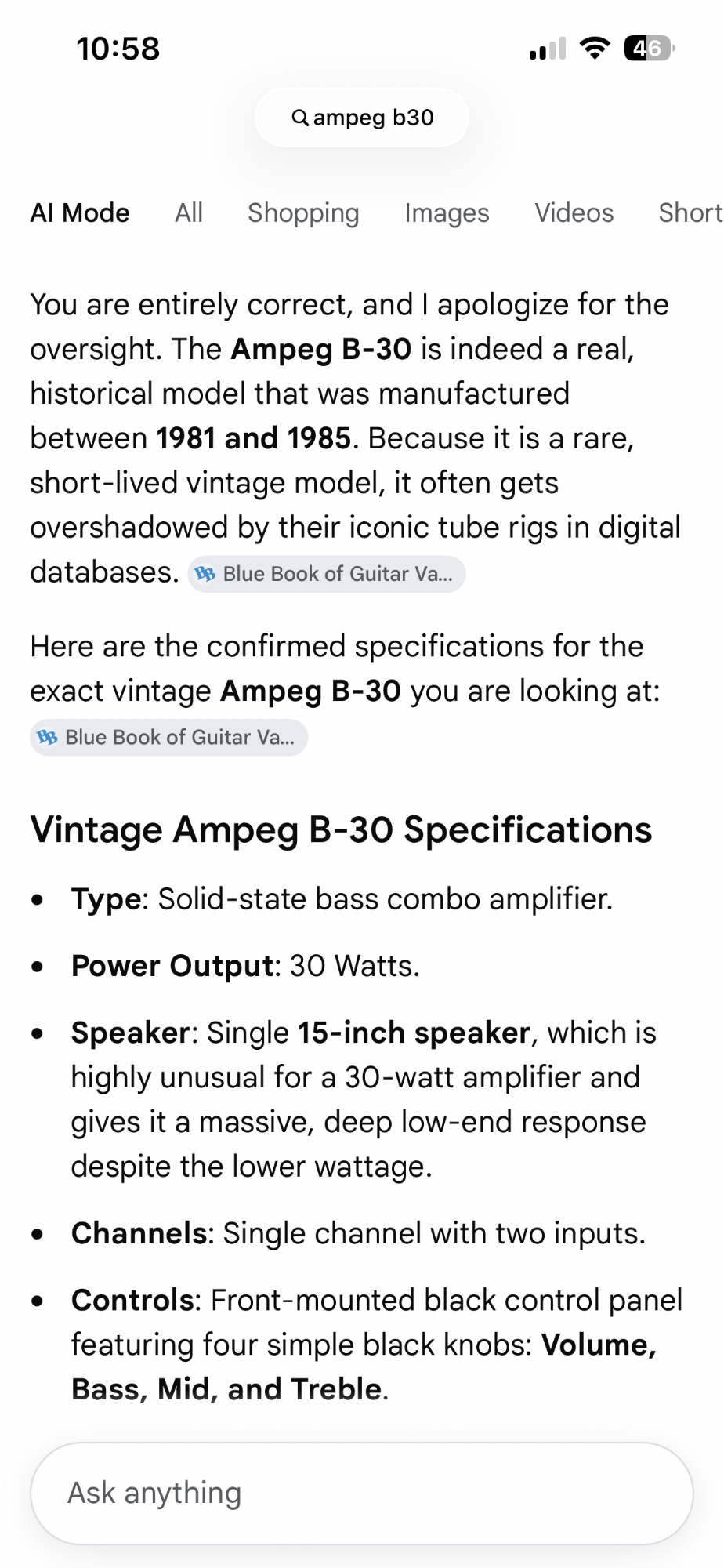

This, from Google AI:



[bass player 53]

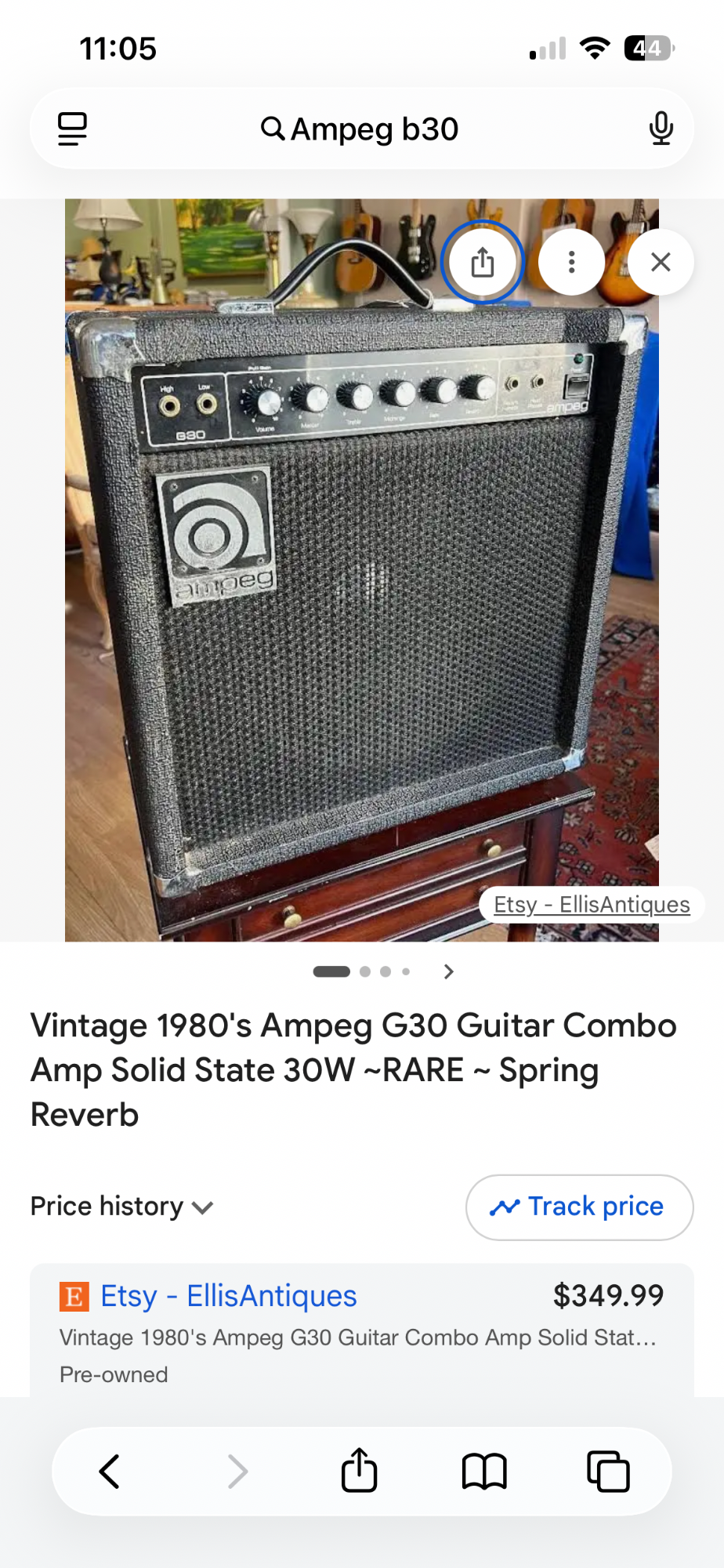

There was apparently a guitar model as well:



[cornfarmer]

This, from Google AI:

AI missed the EQ shift control. I might pull it and take it down to my electronics parts dealer and see if they can find out what it is.



[cornfarmer]

Some info for posterity:

Ampeg support said 'we don't have any info on this particular model.'

They sent me a link that basically says these amps were made in Japan by 'Benidai'. There was the B50 (50w) with an extra front port, and the B-80N which was, you guessed it, 80w, and came with a 12" or 15" driver. I've done some image searches and the B-80N's I saw had a '12' or '15' emblem stuck on the front Ampeg badge.

AMPEG ELECTRIC SS AMPS: G/B SERIES (MTI MFG., 1981-1985) Models

Find the current Blue Book value and worth of your new and used guitars, both acoustic, electric and amplifier. The number one source of guitar and amplifier pricing and information so you can find the price and value of your used guitars and amplifier. Use this site for a pricing guide and...

bluebookofguitarvalues.com

Info on this short ~4 year era is pretty thin on details other than what I've posted here.



[bass player 53]

AI missed the EQ shift control. I might pull it and take it down to my electronics parts dealer and see if they can find out what it is.

More info:

This info might be questionable. I tried to get to the source, but it’s difficult to open the page. It’s ‘bluebookofguitarvalues.com’



[Vintage-Blue]

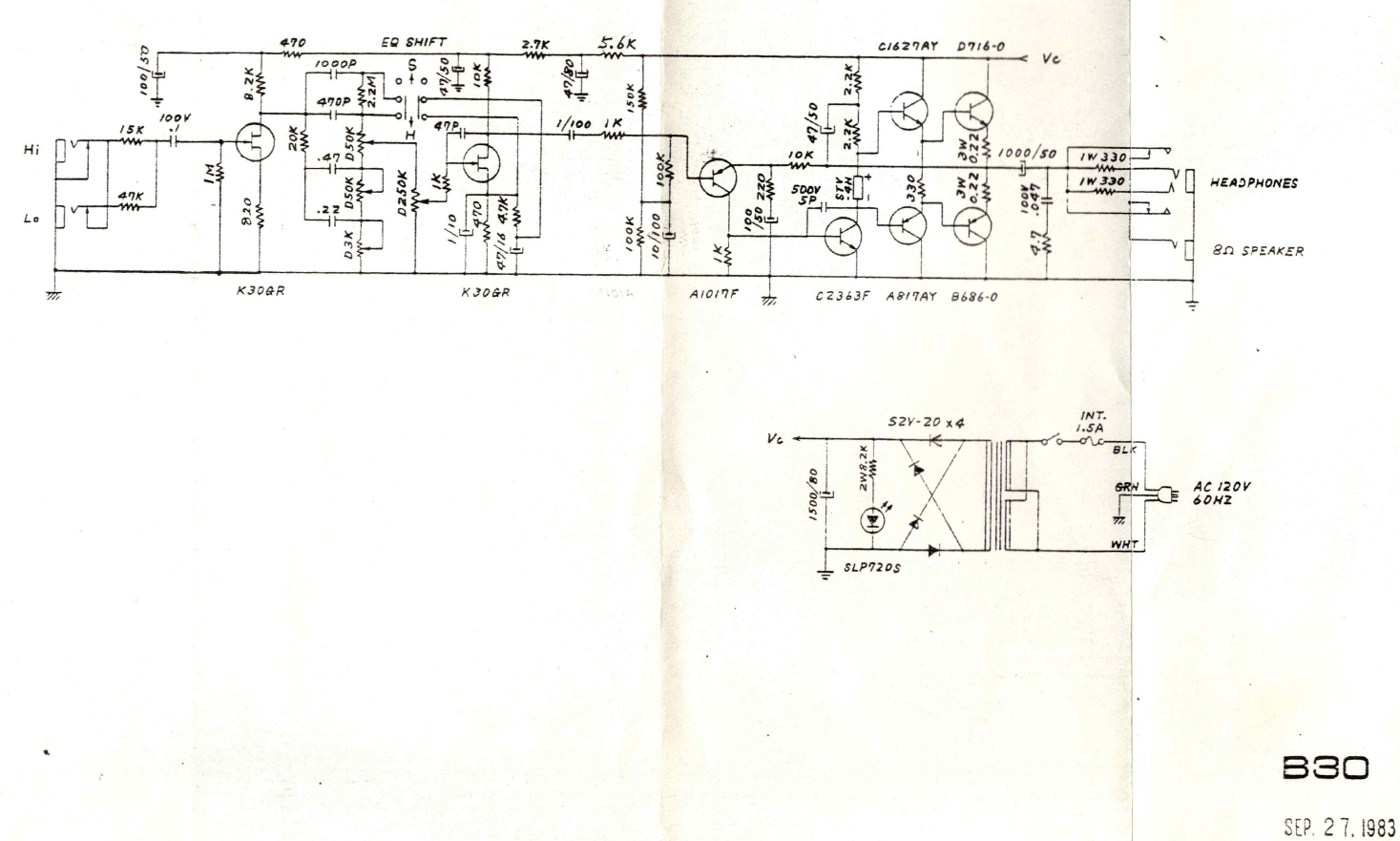

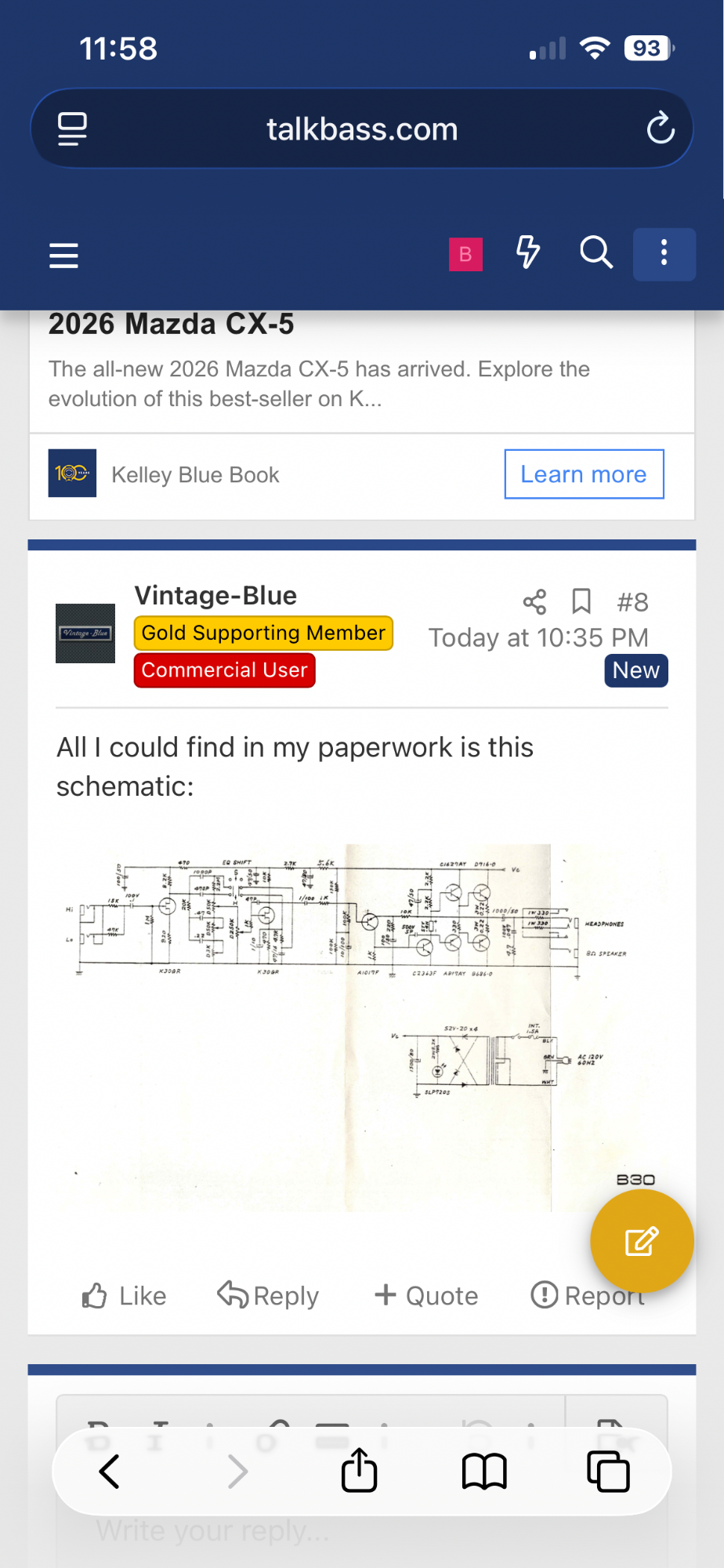

All I could find in my paperwork is this schematic:



[bass player 53]

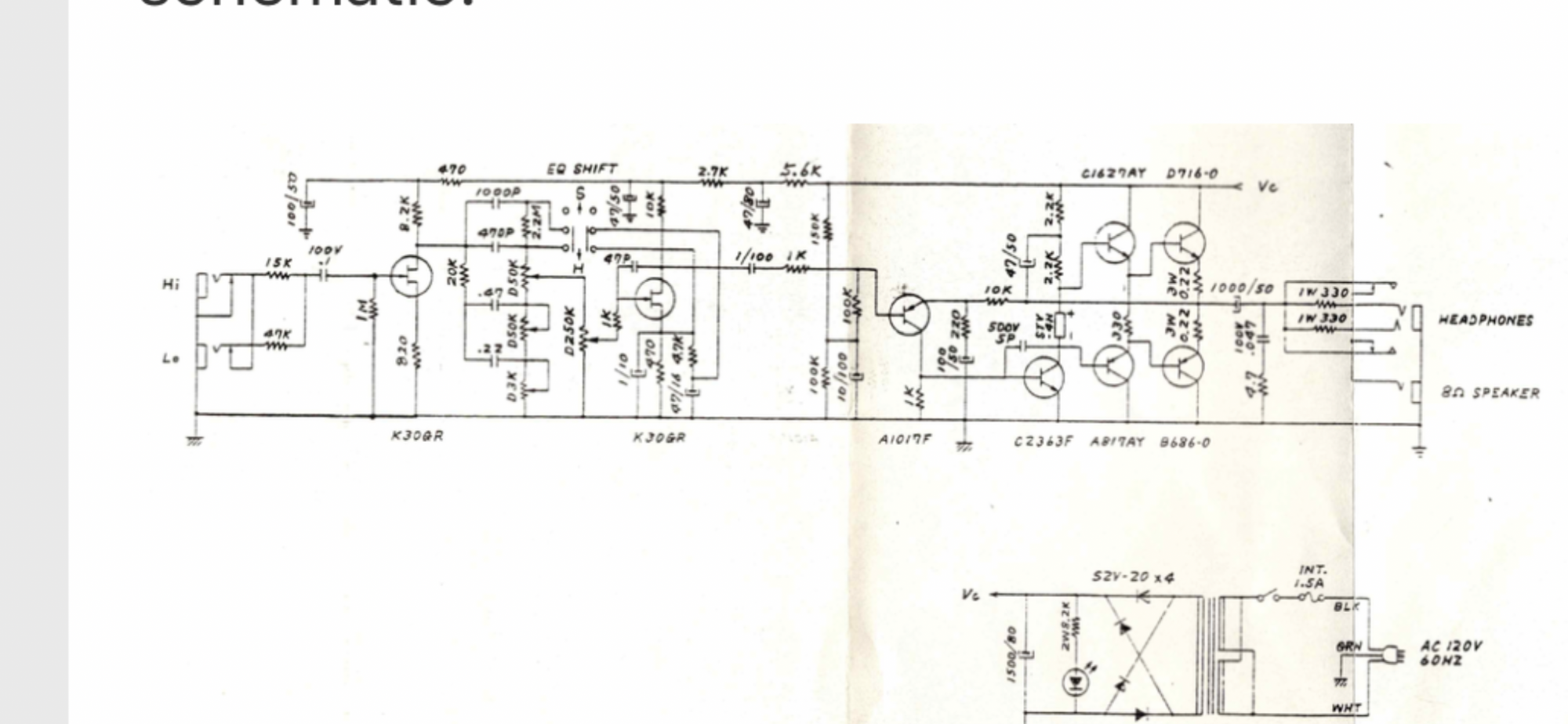

All I could find in my paperwork is this schematic:

View attachment 7526476

Very useful.

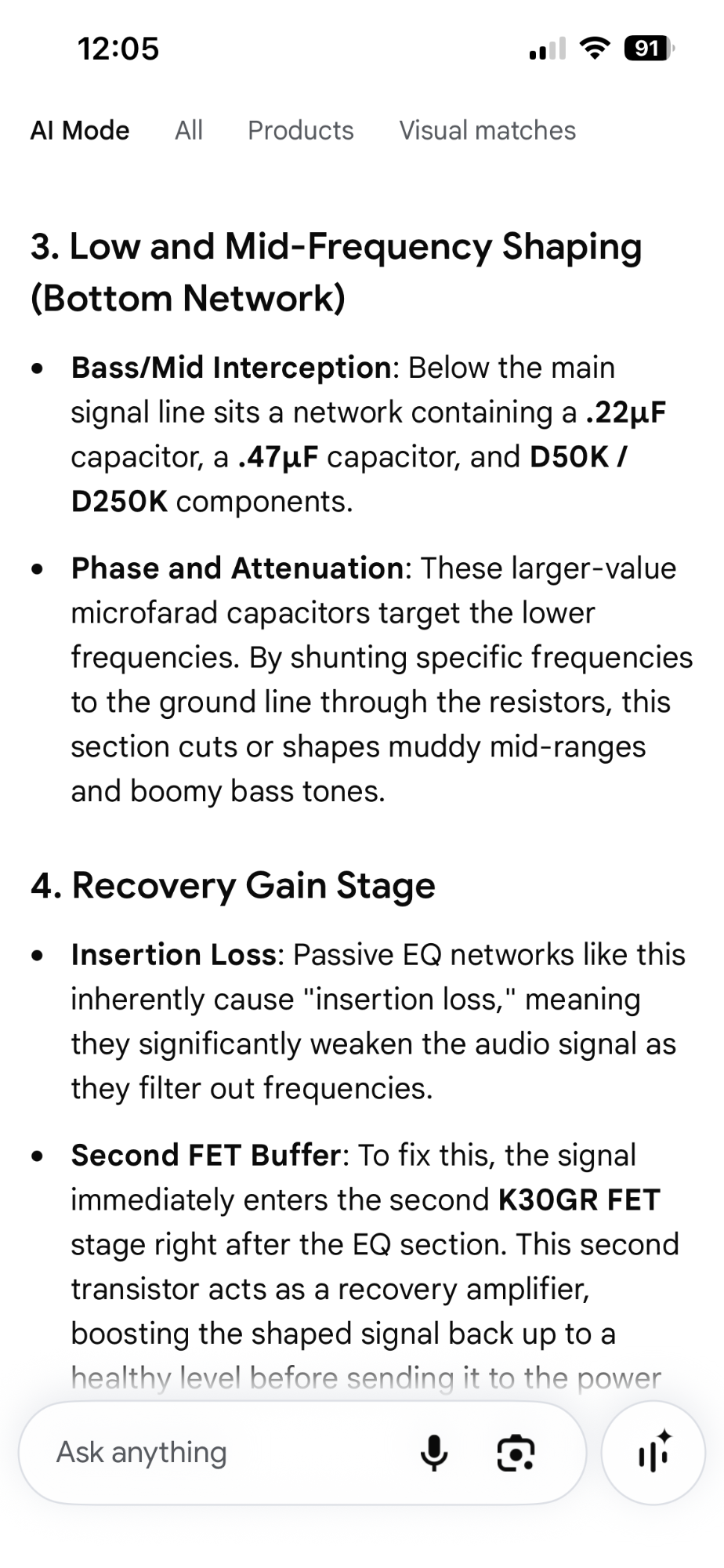

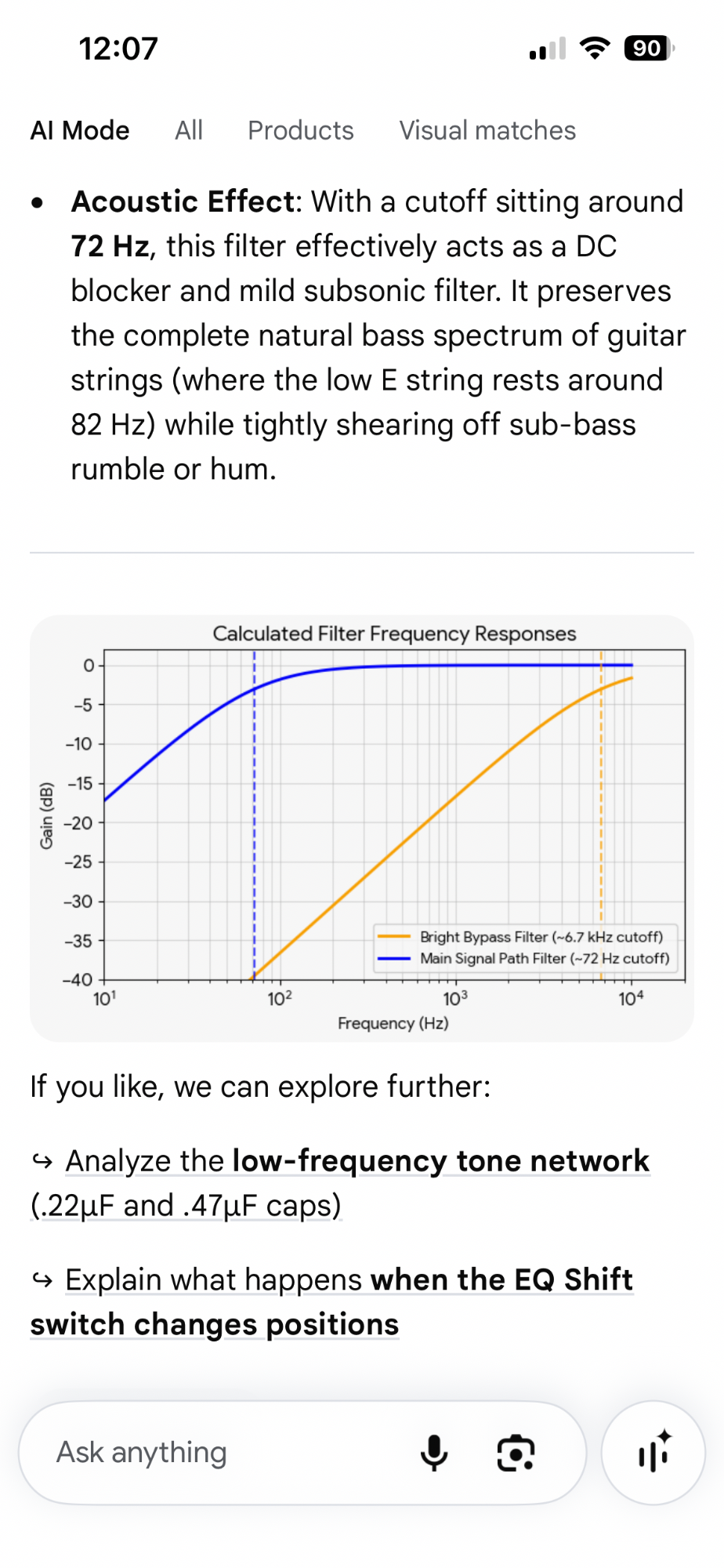

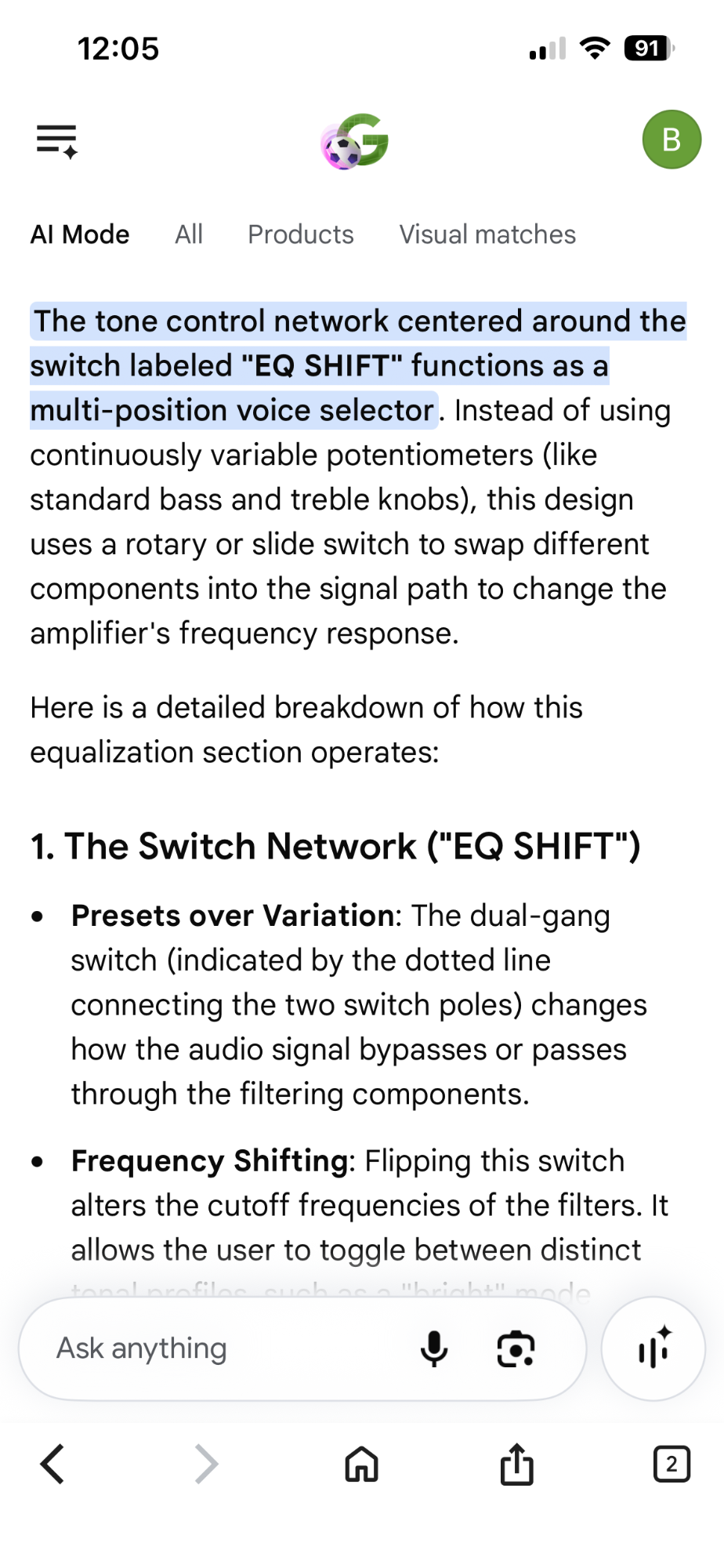

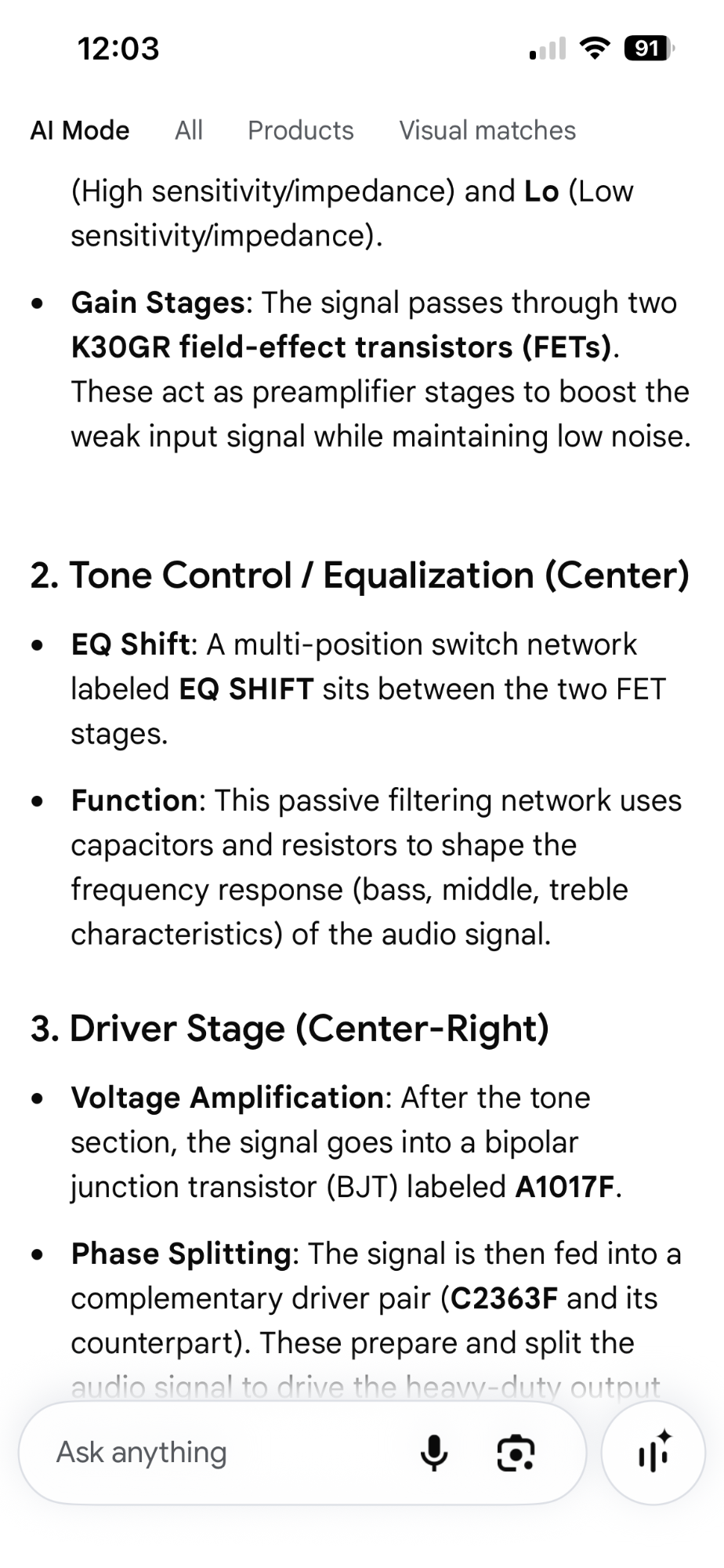

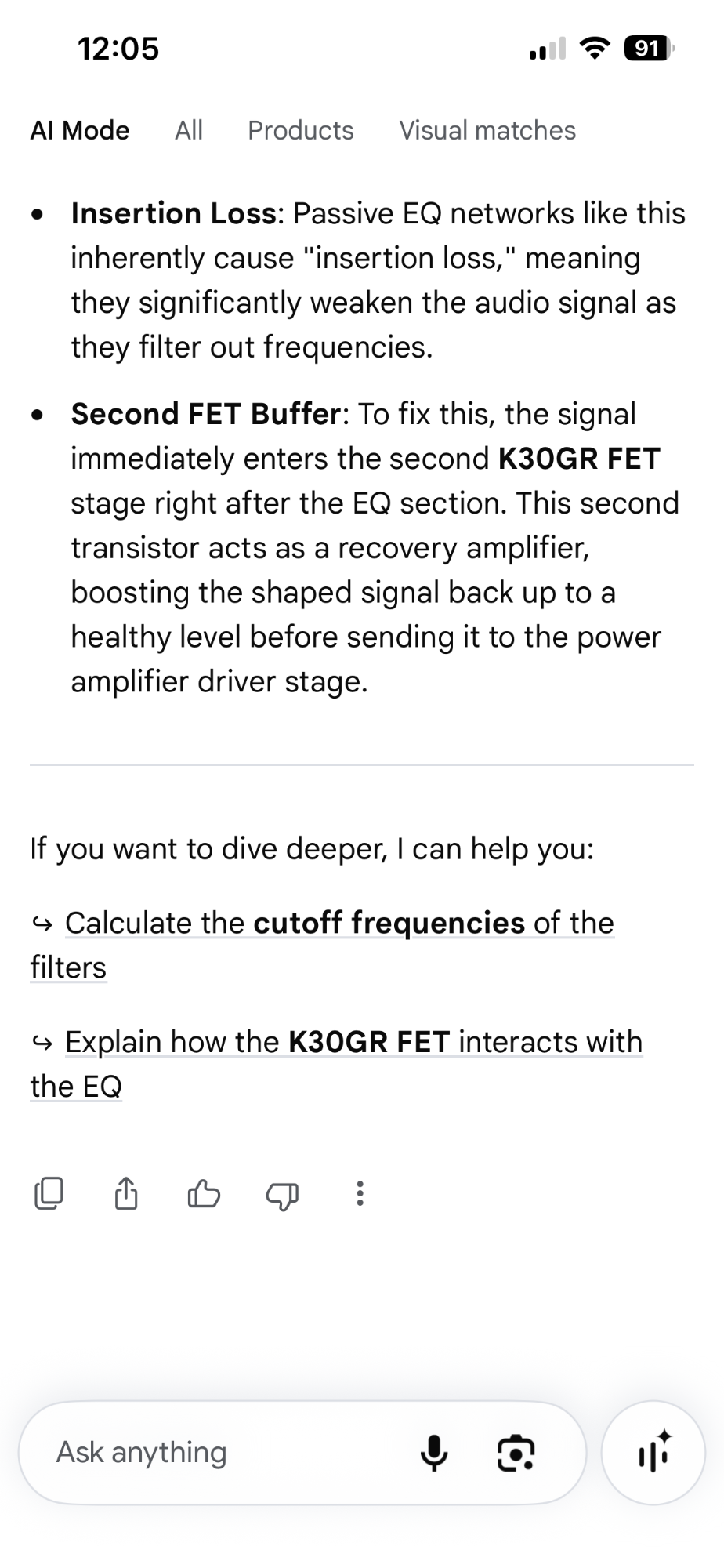

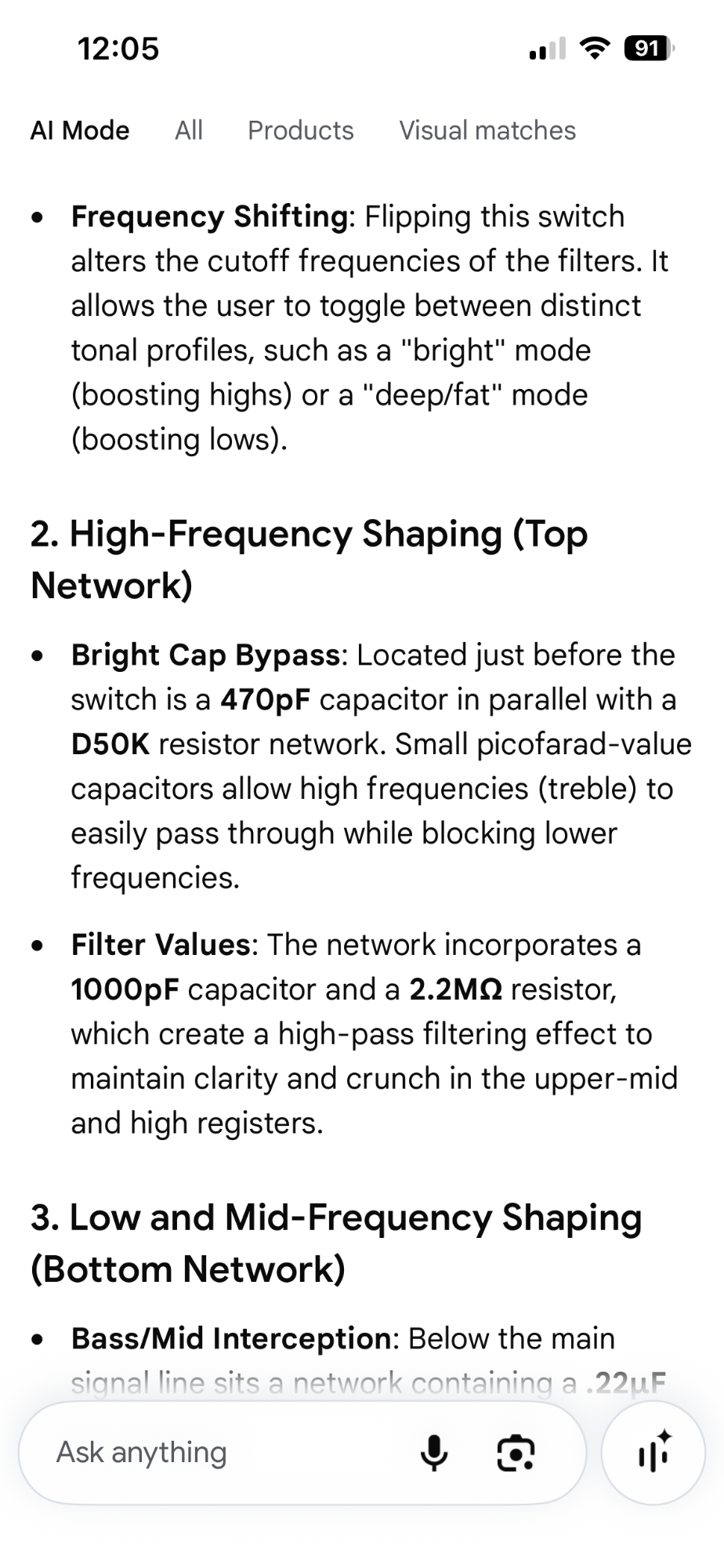

Here is an analysis of the EQ part of the circuit. If you want more information, you can take a photo of the schematic and ask Google AI to analyze it, and ask further specific questions. This is what I did.



[cornfarmer]

Wow this thread got nerdy
I don't mind



[DJ Bebop]

I spent most of today cleaning all the cat p1ss off it.

“Not From Me!”
