So many years ago the original BB circuit and pickup went out so I replaced it with a Seymour Duncan music man 3 band eq, and a Bartolini W4CBC. well last week I ordered the re-issue BB circuit from Aria and it arrived this past Wednesday. I took pictures of the before, during, and after. So bare with me its the first time i've posted something like this.

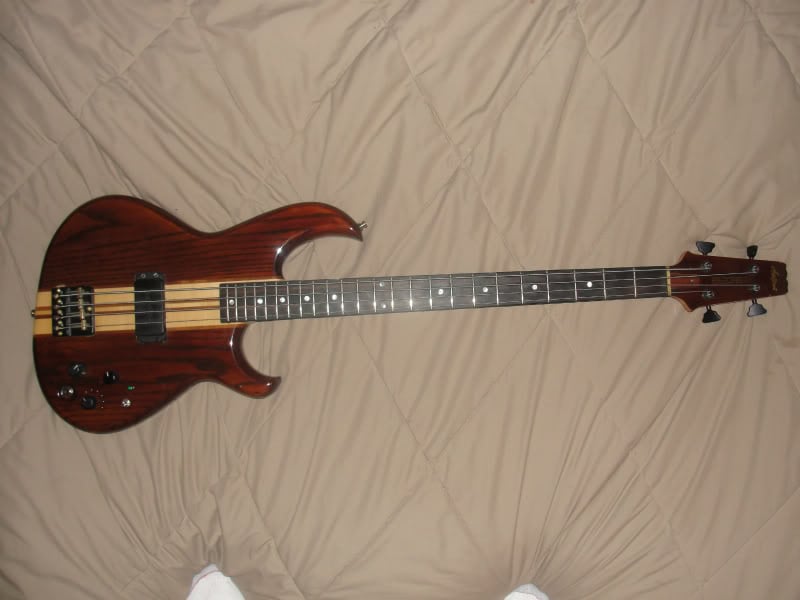

This is what it started as: 1986 Aria Pro II SB-1000
i've made a few mods, sperzel locking tuners, Bartolini P/U
Seymour Duncan music man 3 band eq

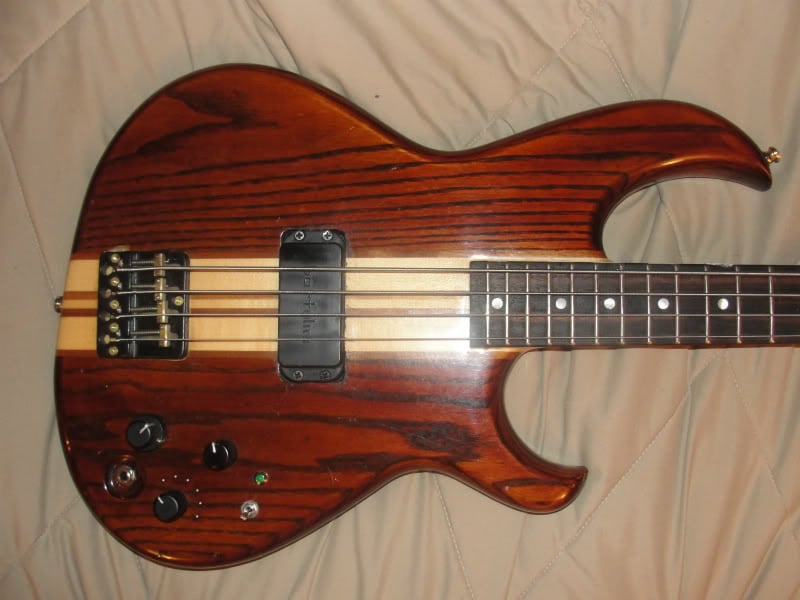

Close up of the body

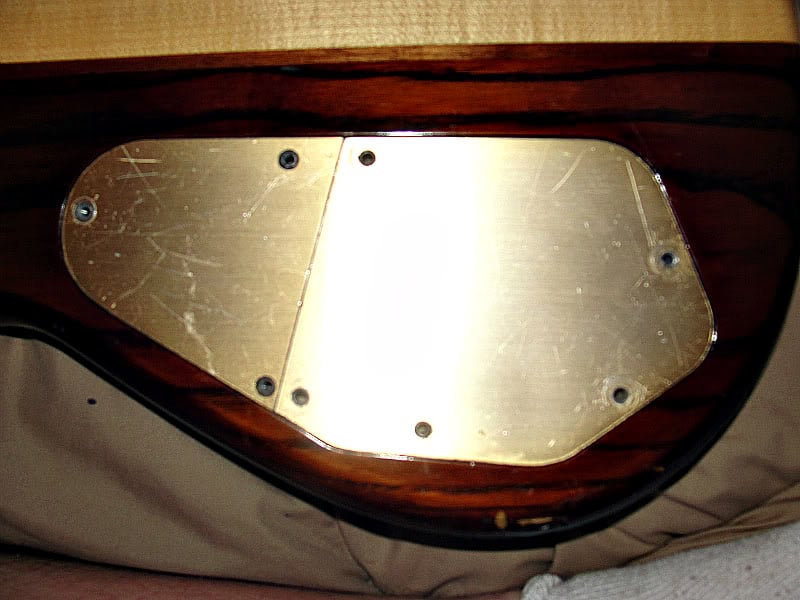

Control Cavity covers

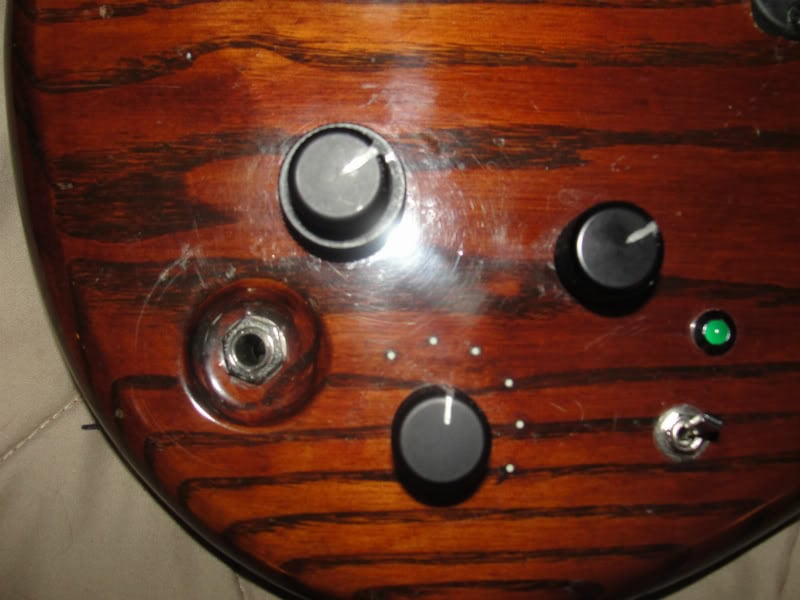

Control layout up close

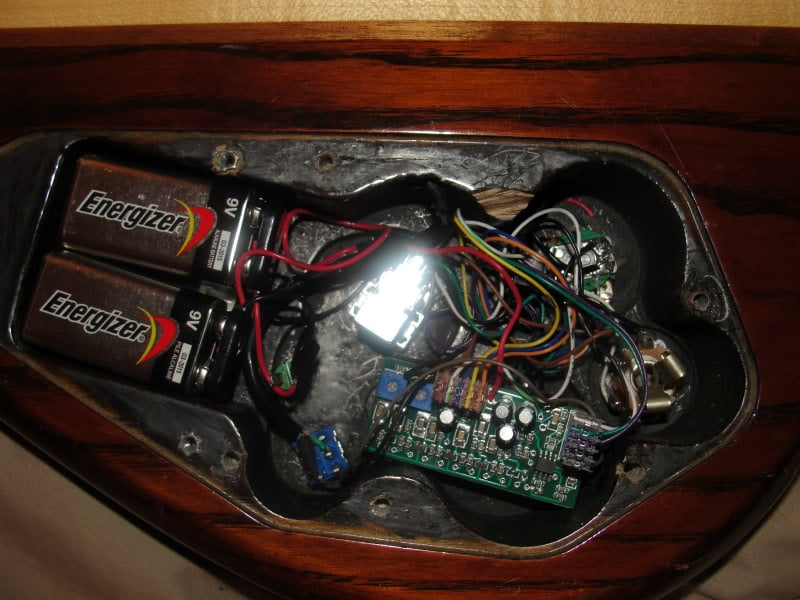

Covers removed showing the Seymour Duncan Preamp which i wired to 18 volts

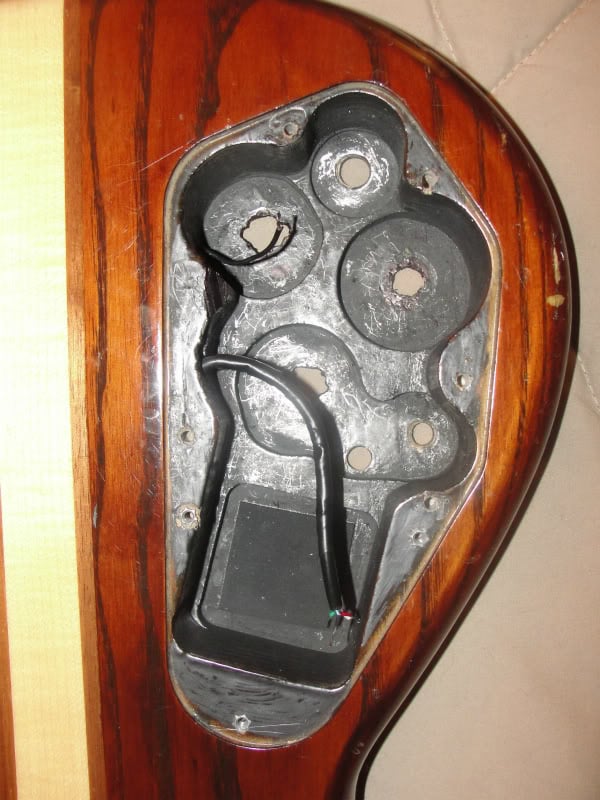

My bass is now gutless

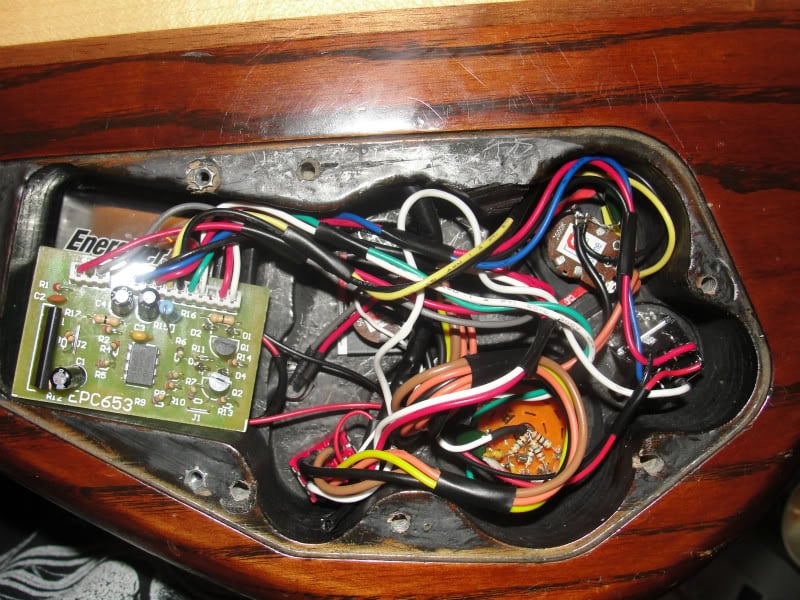

New Aria BB circuit installed, i taped some of the wires together just to make it a little neater looking, it is wired to run on 18 volts, as you can see the batteries are under the circuit board

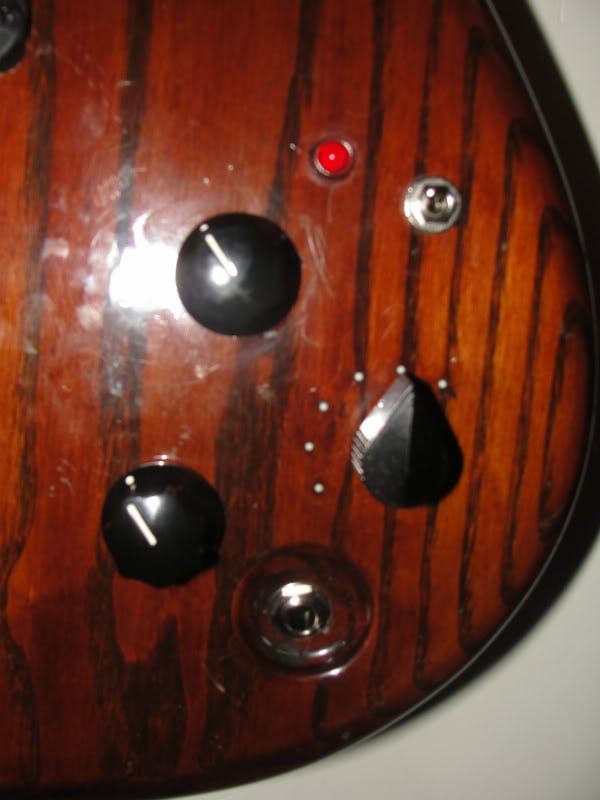

Finally installed, this was kind of a pain for me because i had to figure out what wires from pickup went to the open lugs on the toggle switch but a few minutes on the phone with a tech helped me out a lot

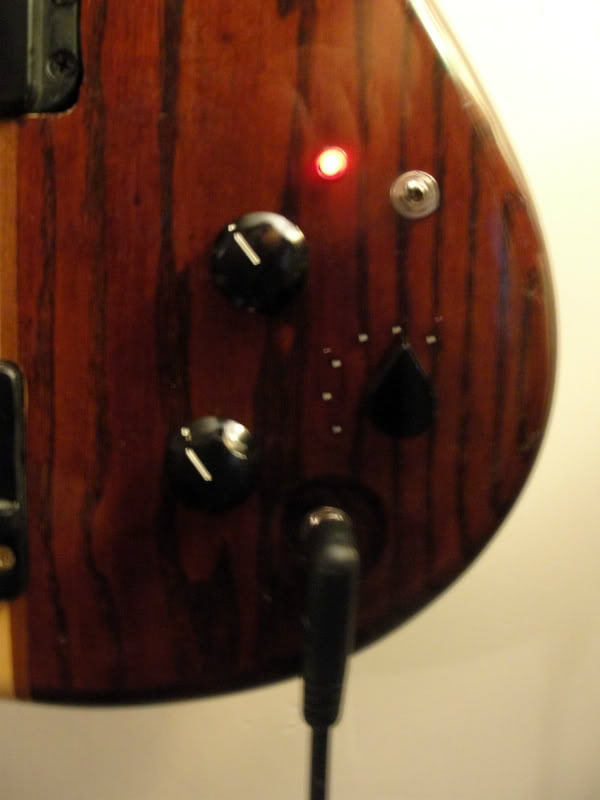

A cable plugged in to show the LED works, it is used for a battery life indicator, also the toggle functions as an active passive switch and Jazz bass knobs for the volume and tone controls and the original pointer knob for the 6 way selecter switch

This bass sounds soooooo amazing now I'll post sound clips soon
