Bartolini NTCT Dip Switch Washburn XB-900

[gilrep]

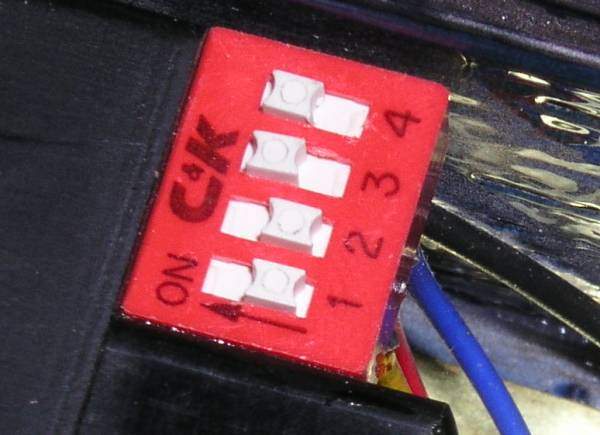

I am including a photo of the switch in question.

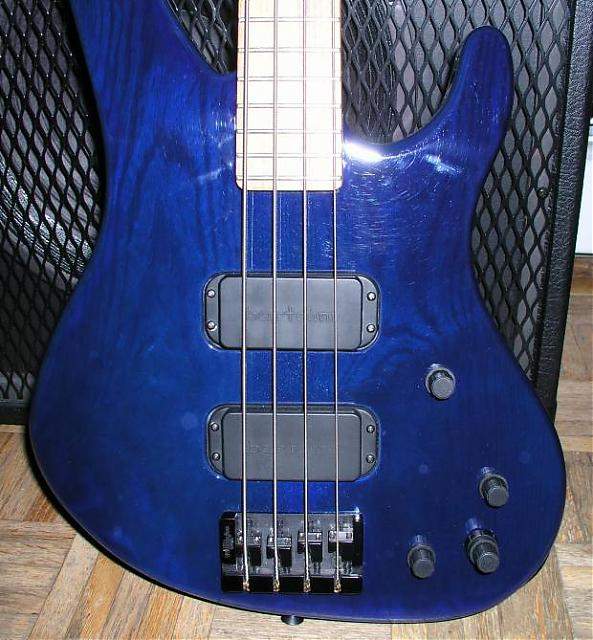

It is part of the active pickup setup on a 1999 Washburn XB-900 /Bartolini Pickups with a NTCT pre amp.
I searched for info on it..I learned that it is called a dip switch, But I don't fully understand it's function.
Apparently on my Bass #1 & 2 are turned off and #3 & 4 are on.
Can someone explain what this is doing to my sound? Is this the best way to set this switch?
Thanks for any comments or links to some info.



[leroybass 67]

hi having trouble with my ntct b could you pu u a photo of the switch



[Flatwound]

There are some parts on that bass, made by bartolini, that I believe are proprietary to Washburn. One is that switch. I have a diagram of its functions somewhere. I'll try to find it and post it.



[Flatwound]

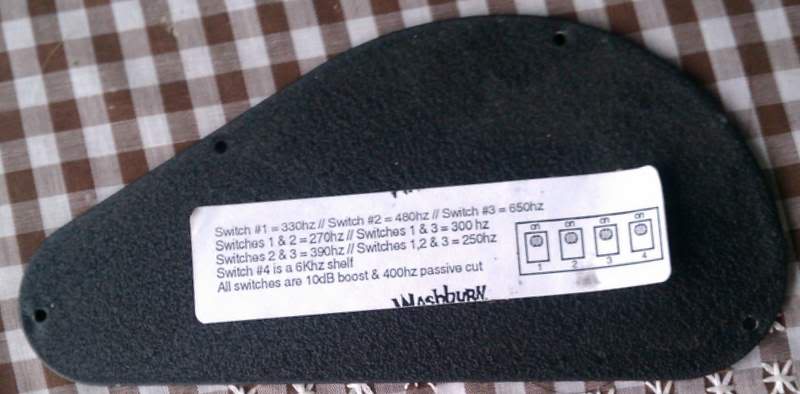

Got it!
